Skunk Creek near New River - ID # 66207

Current at Gage  | Station Description  | Rating Curve  | Rating Table  | Cross Section  | Watershed Map  | Downstream  | DSS

Page Last Updated: 24 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency | Crest Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

66207 1.45 feet 2,189.46 feet NAVD88 04/23/2020 -- Current
5588 1.45 feet 2,189.46 feet NAVD88 10/01/2018 -- 04/23/2020
5588 1.14 feet 2,189.18 feet NAVD88 06/02/2009 -- 09/30/2018
5588 -0.41 feet 2,187.63 feet NAVD88 06/28/2001 -- 06/02/2009
5583 -0.41 feet 2,187.63 feet NAVD88 07/15/1999 -- 06/28/2001
5583 0.00 feet 2,188.04 feet NAVD88 06/21/1995 -- 07/15/1999

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

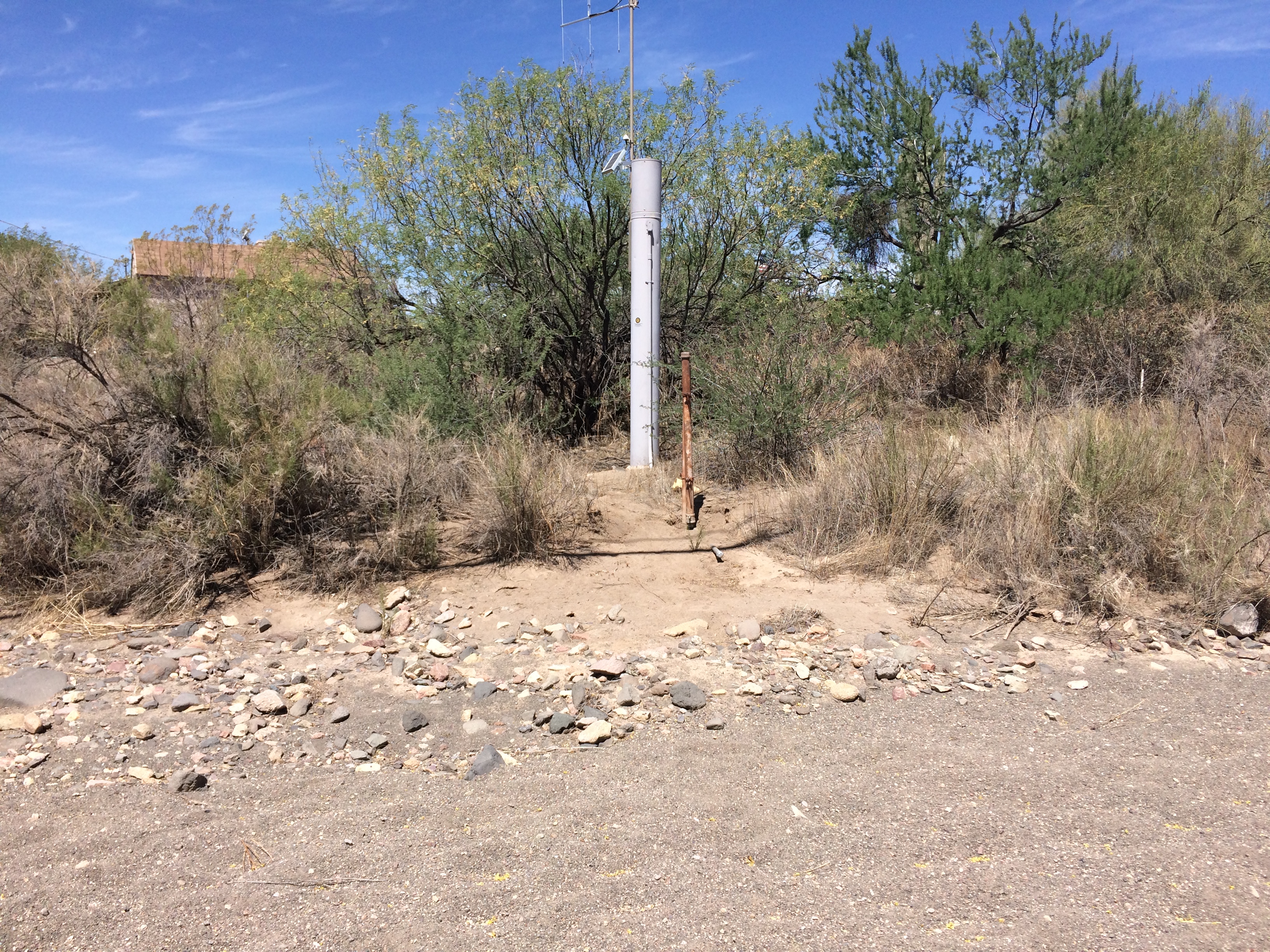

LOCATION Located south of the Fig Spring Road crossing of Skunk Creek

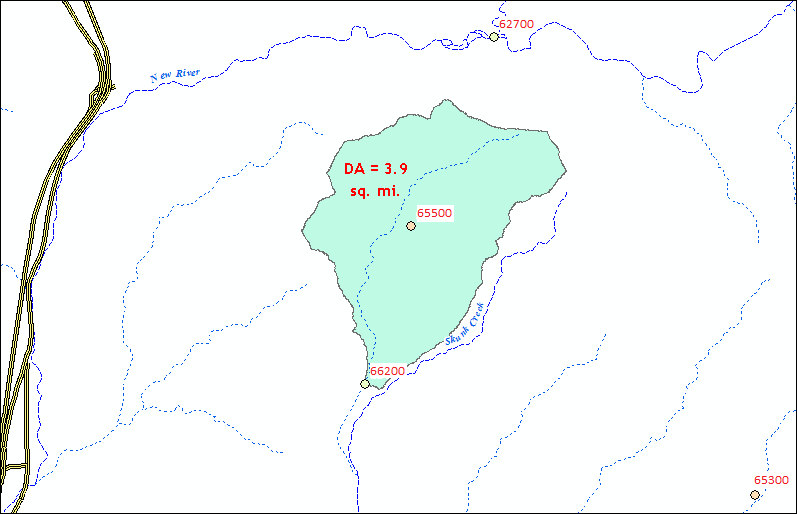

DRAINAGE AREA 3.92 mi2
STREAM TYPE Natural Stream
JURISDICTION Maricopa County, Arizona
WATERSHED Skunk Creek
SECTION/TOWNSHIP/RANGE S29 T7N R3E
LATITUDE N 33° 55' 34.3"  |  +33.92619
LONGITUDE W 112° 04' 57.7"  |  -112.08268
ARIZONA STATE PLANE E 649645  | N 1064553
USGS QUAD SHEET Daisy Mountain 7.5-Minute
STREAMGAGE INSTALLATION DATE 06/21/1995 - WY 1995
PERIOD OF AVAILABLE DATA RECORD 06/21/1995 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 29.28 Years | 10,695 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 1.45 feet Gage Height
STAFF GAGES None
CREST STAGE GAGES One
ZERO GAGE HEIGHT ELEVATION 2,188.011 feet NAVD88
POINT OF ZERO FLOW 0.3 feet Gage Height
EXTREME FOR PERIOD OF RECORD 3,021 cfs | 5.01 feet | 09/23/2019

Back to Top   |   Streamflow Homepage   |   FCD Home Page

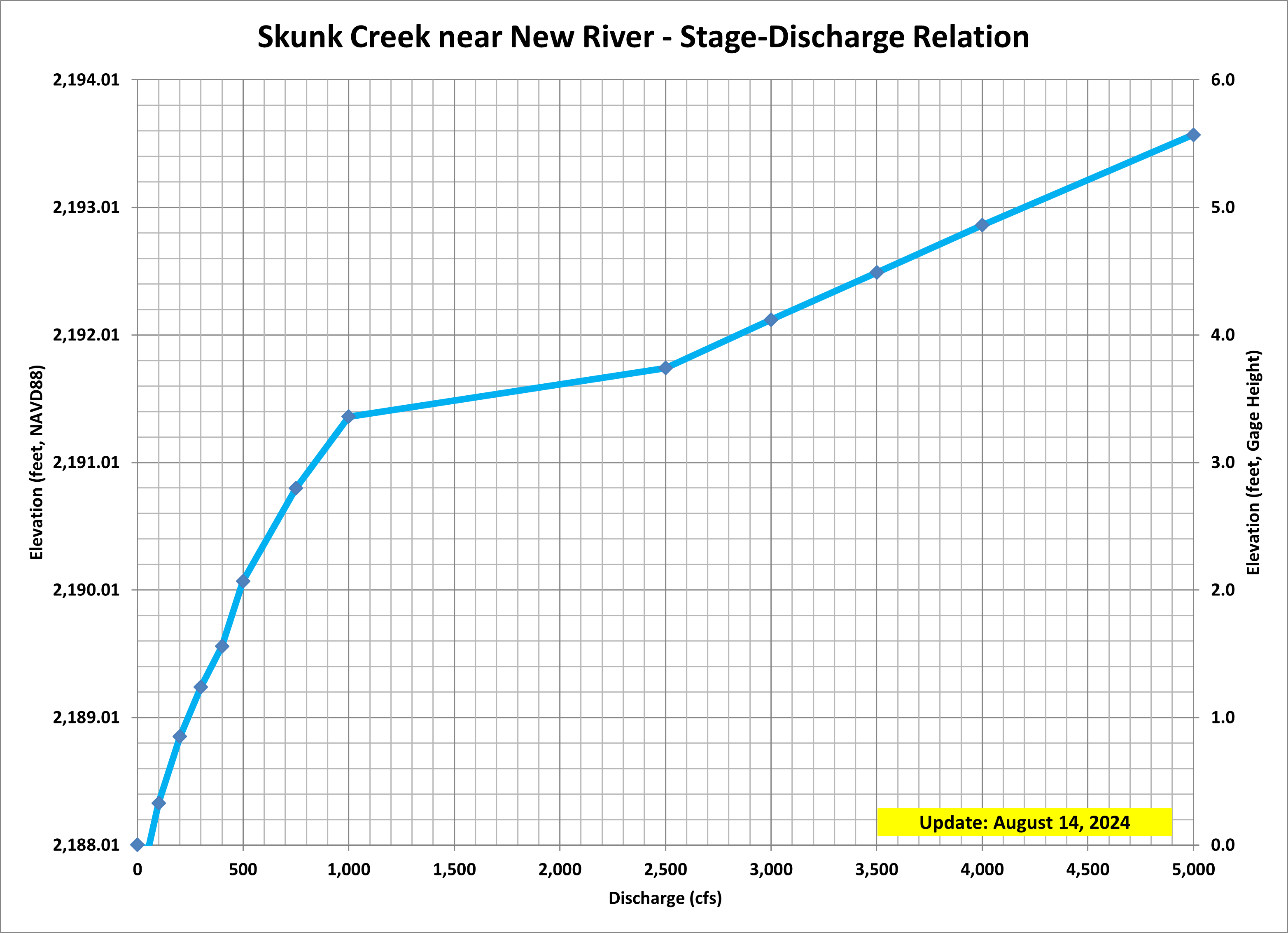

BRIEF RATING

Current Rating = #3 - Applied since 10/01/2009
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 2,188.01
200 0.43 2,188.34
300 0.80 2,189.24
500 1.40 2,190.08
1,000 2.55 2,191.37
2,500 3.75 2,191.75
3,000 4.15 2,192.13
4,000 4.96 2,192.87
5,000 5.80 2,193.81

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 None 0 None
2023 None 0 None
2022 None 0 None
2021 2.29 395 07/23/2021
2020 None 0 None
2019 5.01 3,016 09/23/2019
2018 1.61 137 07/30/2018
2017 2.05 283 12/22/2016
2016 1.92 238 10/20/2015
2015 0 None 0
2014 3.36 1,054 08/19/2014
2013 2.12 307 07/21/2013
2012 2.59 550 08/23/2012
2011 None 0 None
2010 4.29 2,000 01/21/2010
2009 0.62 32 02/09/2009
2008 2.66 453 01/27/2008
2007 2.07 287 07/28/2007
2006 2.89 528 08/24/2006
2005 1.14 102 01/04/2005
2004 3.10 750 09/19/2004
2003 1.62 173 02/13/2003
2002 1.76 206 09/07/2002
2001 3.49 821 10/22/2000
2000 2.21 223 06/20/2000
1999 3.90 949 07/15/1999
1998 1.90 154 07/23/1998
1997 1.65 109 09/11/1997
1996 0.68 18 09/09/1996
1995 0.50 12 08/21/1995

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY (RUNOFF ≥25 CFS)

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

07/23/2021 12:49 07/23/2021 12:40 07/23/2021 13:20 0.7 2.29 395 2021
09/26/2019 19:06 09/26/2019 18:51 09/27/2019 00:00 5.2 3.24 955 2019
09/23/2019 12:45 09/23/2019 12:29 09/23/2019 13:15 0.8 5.01 3,021 2019
07/30/2018 19:35 07/30/2018 19:32 07/30/2018 20:02 0.5 1.61 137 2018
02/28/2017 04:46 02/28/2017 04:46 02/28/2017 06:22 1.6 1.40 58 2017
01/01/2017 07:56 01/01/2017 07:46 01/01/2017 08:27 0.7 1.45 78 2017
12/22/2016 11:12 12/22/2016 10:57 12/22/2016 11:47 0.8 2.05 283 2017
08/02/2016 11:40 08/02/2016 11:37 08/02/2016 12:10 0.6 1.50 100 2016
10/20/2015 11:42 10/20/2015 11:33 10/20/2015 12:40 1.1 1.92 238 2016
08/19/2014 10:47 08/19/2014 10:24 08/19/2014 11:36 1.2 3.12 874 2014
08/19/2014 07:24 08/19/2014 06:58 08/19/2014 08:02 1.1 3.36 1,054 2014
07/21/2013 12:26 07/21/2013 12:23 07/21/2013 12:46 0.4 2.12 307 2013
09/10/2012 23:44 09/10/2012 23:31 09/11/2012 00:30 1.0 2.44 469 2012
08/23/2012 02:41 08/23/2012 02:16 08/23/2012 03:40 1.4 2.59 550 2012

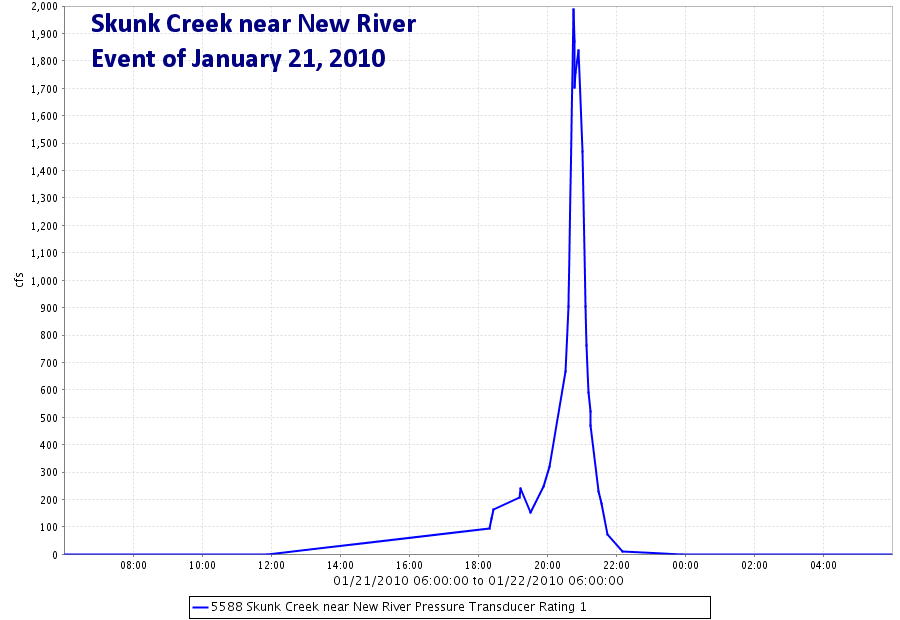

01/21/2010 20:46 01/21/2010 18:19 01/21/2010 23:54 5.6 4.29 2,000 2010
02/09/2009 12:15 02/09/2009 11:44 02/09/2009 16:02 4.3 0.62 32 2009
09/10/2008 20:26 09/10/2008 20:15 09/11/2008 01:21 5.1 1.07 92 2008
09/09/2008 20:01 09/09/2008 19:52 09/10/2008 01:31 5.7 1.32 126 2008
08/31/2008 22:24 08/31/2008 22:13 09/01/2008 02:25 4.2 1.22 112 2008
07/14/2008 13:10 07/14/2008 12:27 07/14/2008 14:12 1.8 1.04 88 2008
01/27/2008 17:07 01/27/2008 07:37 01/30/2008 10:50 75.2 2.66 453 2008
01/07/2008 11:32 01/07/2008 11:29 01/07/2008 14:43 3.2 0.59 29 2008
12/11/2007 17:51 12/11/2007 17:32 12/11/2007 22:42 5.2 0.87 65 2008
12/07/2007 18:00 12/07/2007 17:15 12/08/2007 11:57 18.7 1.29 123 2008
12/01/2007 03:06 11/30/2007 16:16 12/02/2007 06:54 38.6 2.57 422 2008
07/28/2007 16:33 07/28/2007 16:23 07/28/2007 20:32 4.2 2.07 287 2007
09/14/2006 20:40 09/14/2006 20:12 09/15/2006 00:34 4.4 0.64 35 2006

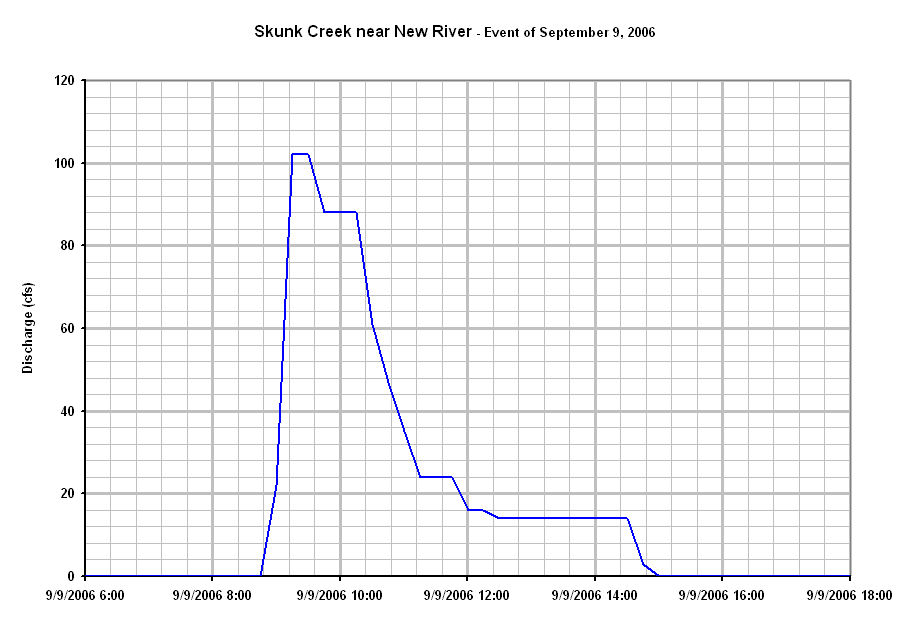

09/09/2006 09:02 09/09/2006 08:59 09/09/2006 14:53 5.9 1.14 102 2006

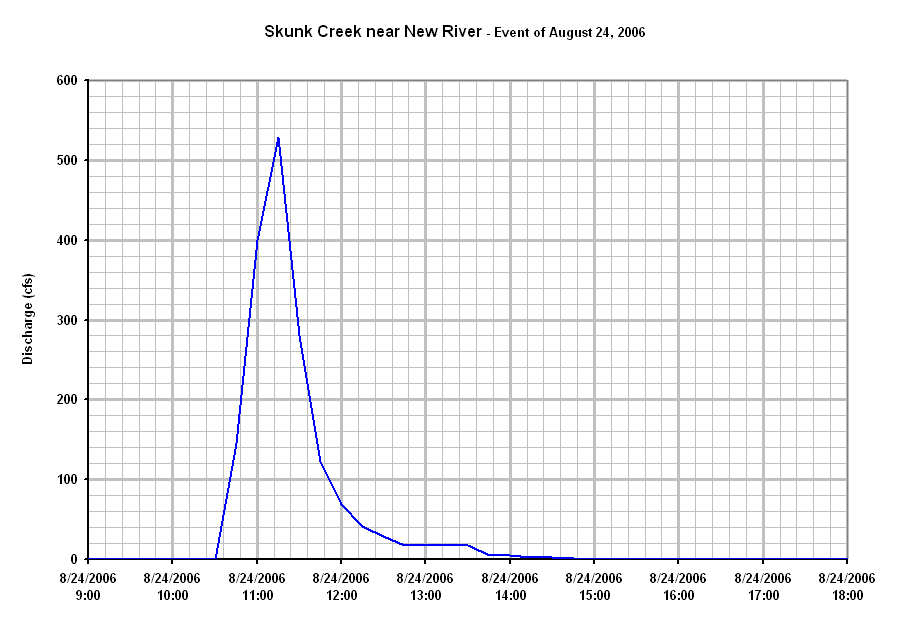

08/24/2006 11:00 08/24/2006 10:40 08/24/2006 14:49 4.1 2.89 528 2006
07/31/2005 19:38 07/31/2005 19:21 08/01/2005 04:47 9.4 1.12 98 2005
02/12/2005 00:40 02/11/2005 09:03 02/15/2005 00:32 87.5 1.04 88 2005
01/27/2005 01:06 01/26/2005 23:17 01/27/2005 10:52 11.6 1.09 95 2005
01/04/2005 14:20 01/04/2005 09:55 01/06/2005 05:19 43.4 0.74 47 2005

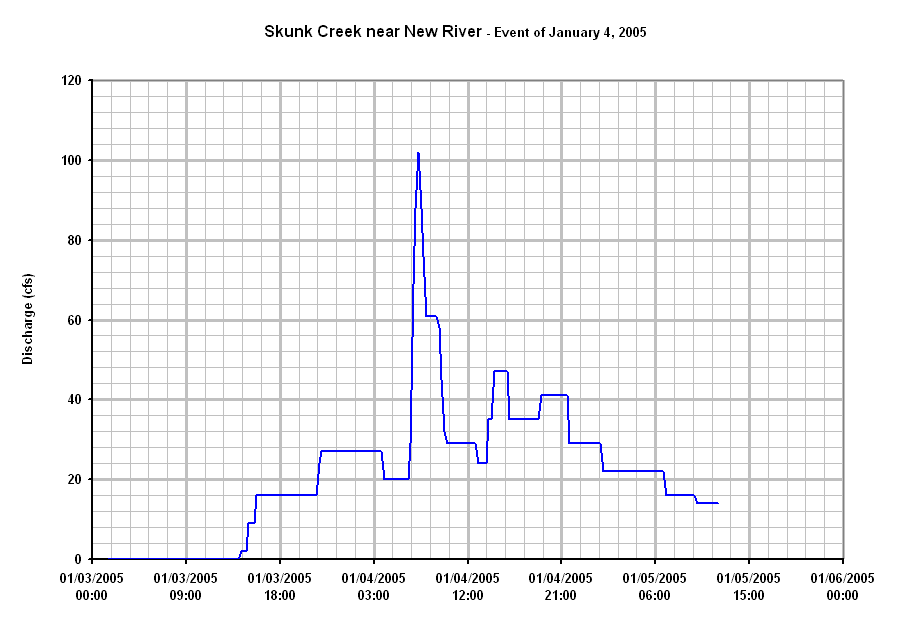

01/04/2005 07:00 01/03/2005 14:01 01/04/2005 09:07 19.1 1.14 102 2005
12/29/2004 07:53 12/29/2004 04:27 12/29/2004 23:38 19.2 0.59 29 2005
11/22/2004 10:53 11/22/2004 09:16 11/22/2004 17:45 8.5 0.72 44 2005
11/21/2004 09:24 11/21/2004 07:06 11/21/2004 14:26 7.3 0.64 35 2005

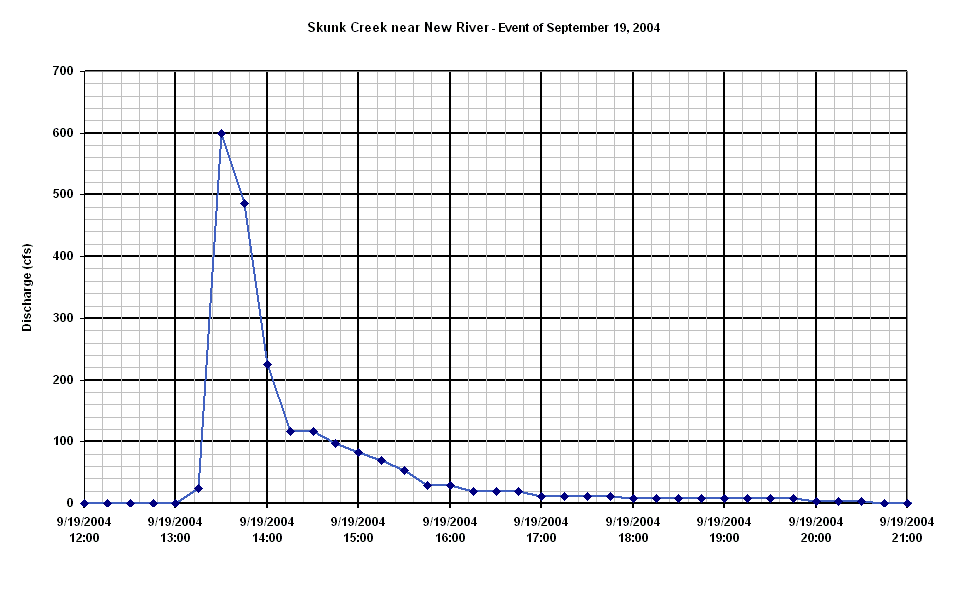

09/19/2004 13:28 09/19/2004 13:12 09/19/2004 19:55 6.7 3.10 750 2004
04/02/2004 08:59 04/02/2004 05:25 04/02/2004 17:19 11.9 0.64 35 2004
03/05/2004 01:01 03/04/2004 16:51 03/05/2004 18:00 25.2 0.99 82 2004

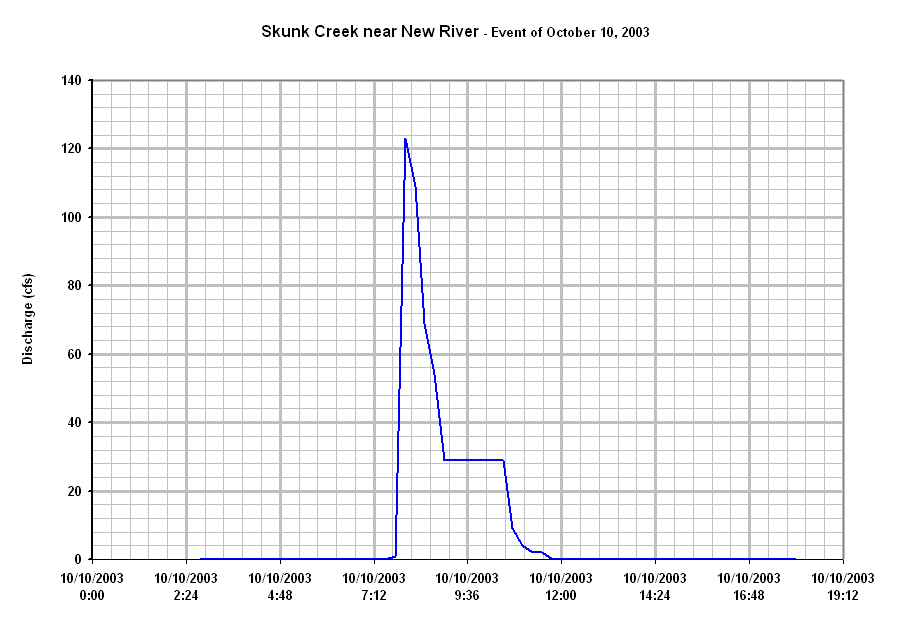

10/10/2003 07:58 10/10/2003 07:42 10/10/2003 13:04 5.4 1.29 123 2004

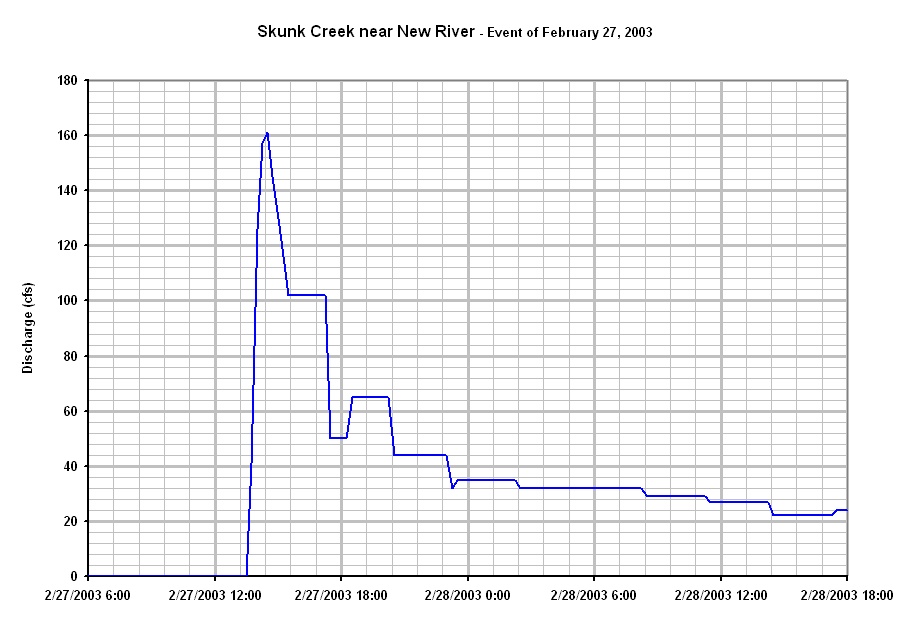

02/27/2003 14:16 02/27/2003 13:31 03/01/2003 07:36 42.1 1.54 161 2003

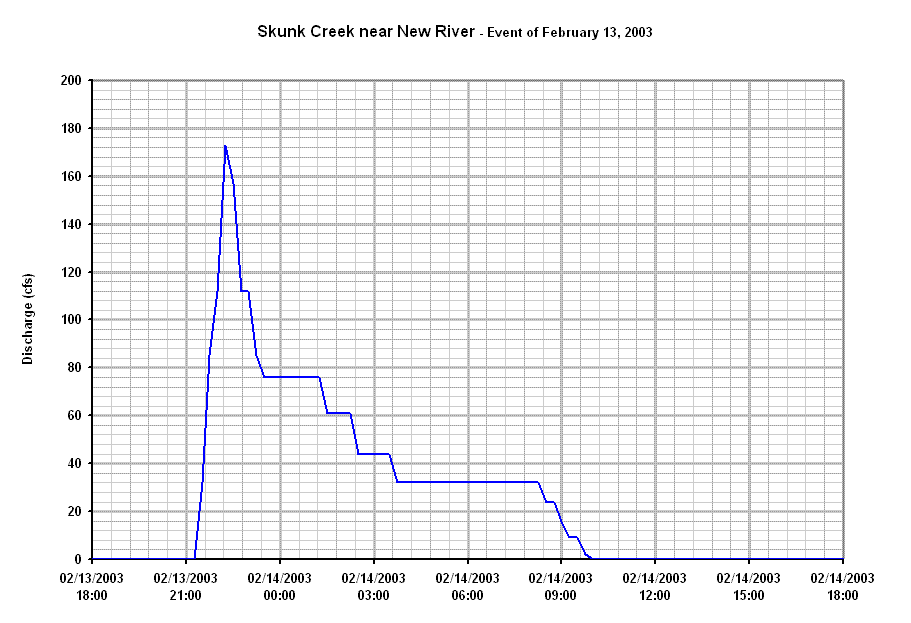

02/13/2003 22:03 02/13/2003 20:52 02/14/2003 11:06 14.2 1.62 173 2003

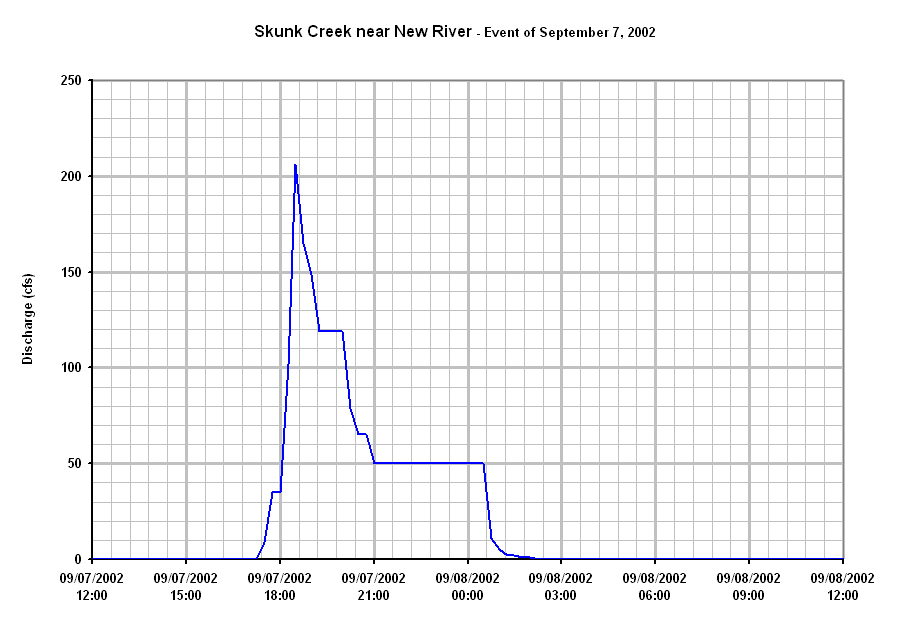

09/07/2002 18:24 09/07/2002 17:06 09/08/2002 08:30 15.4 1.76 206 2002

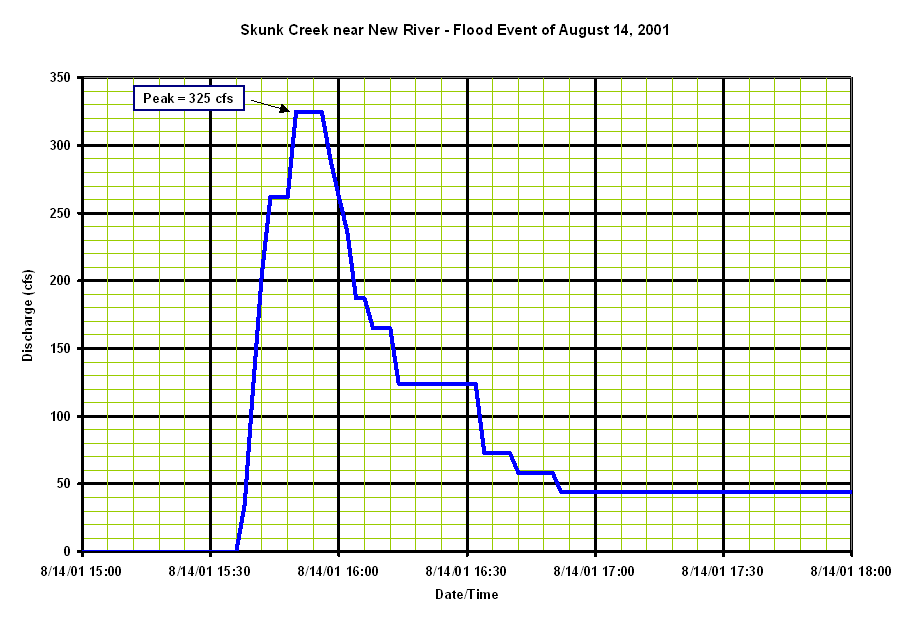

08/14/2001 15:48 08/14/2001 15:36 08/14/2001 16:51 1.3 2.04 325 2001

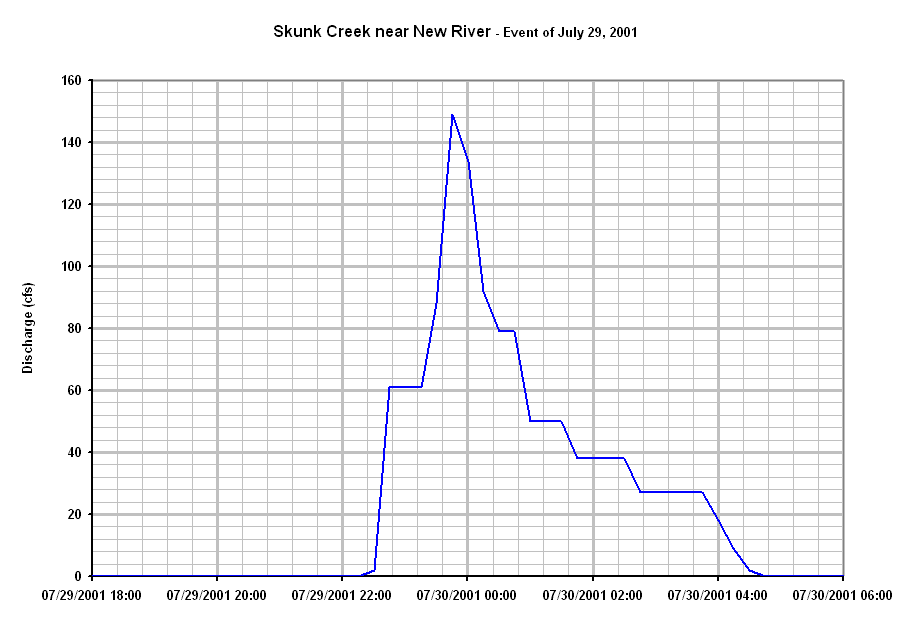

07/29/2001 23:40 07/29/2001 22:26 07/30/2001 06:57 8.4 1.47 176 2001

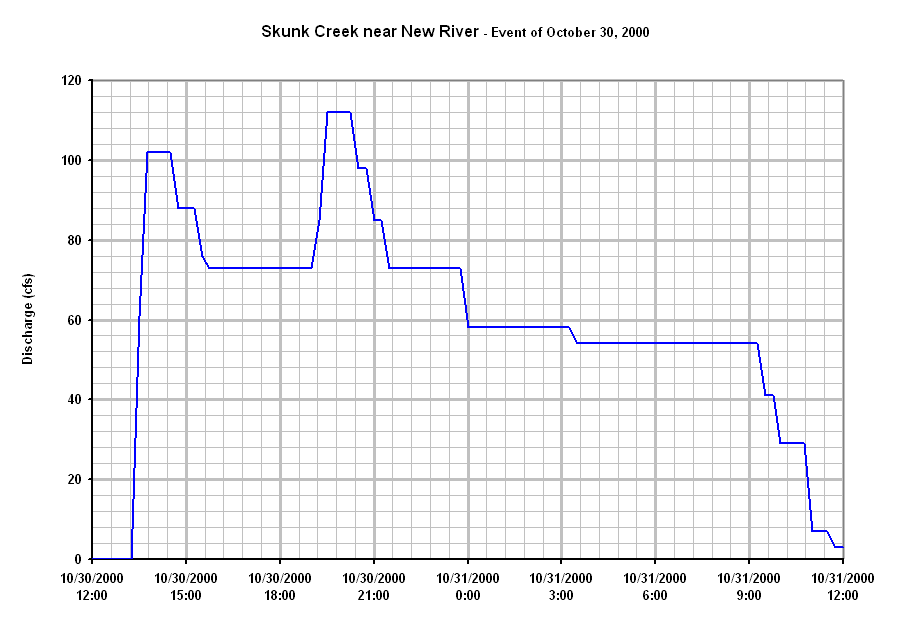

10/30/2000 19:28 10/30/2000 13:24 10/31/2000 14:50 25.4 1.22 124 2001

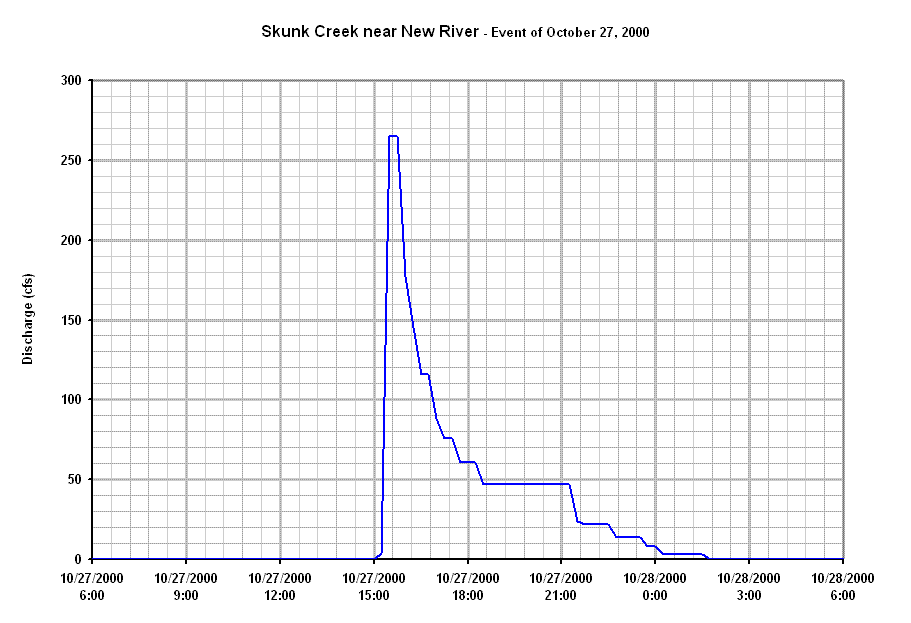

10/27/2000 15:23 10/27/2000 14:59 10/28/2000 04:24 13.4 1.99 311 2001

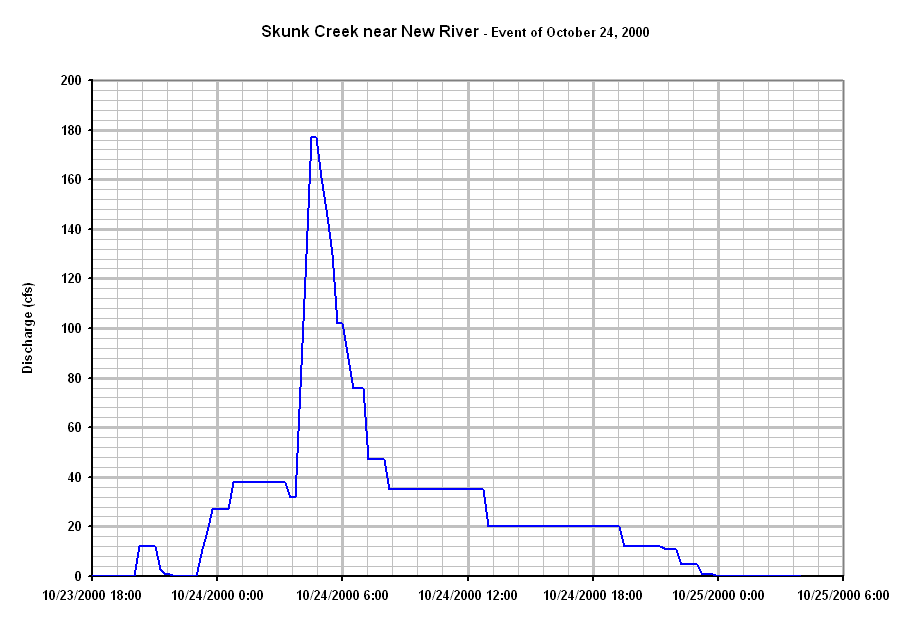

10/24/2000 04:29 10/23/2000 23:04 10/25/2000 05:04 30.0 1.64 217 2001

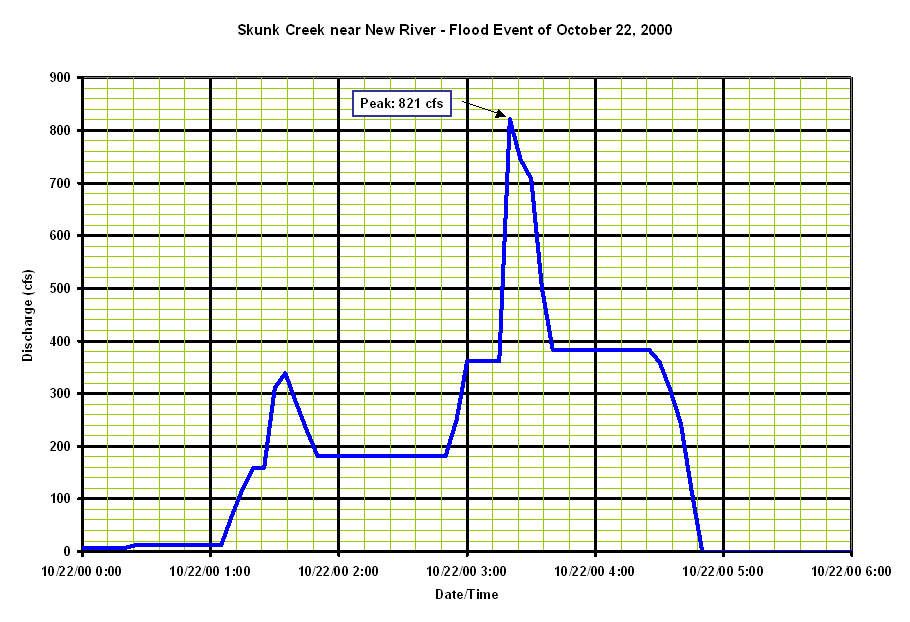

10/22/2000 03:19 10/21/2000 22:55 10/23/2000 14:45 39.8 3.49 821 2001

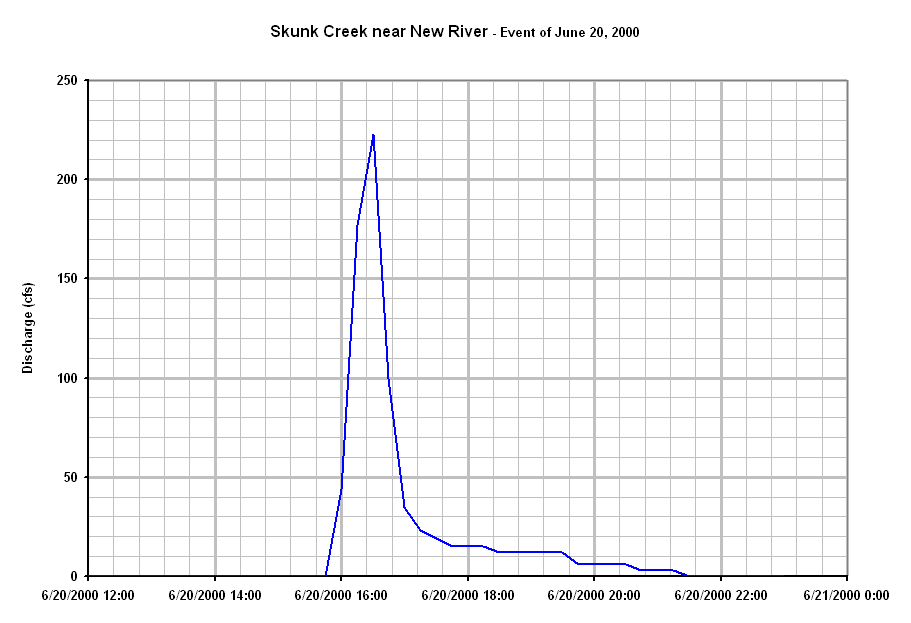

06/20/2000 16:18 06/20/2000 15:58 06/20/2000 23:02 7.1 2.21 223 2000

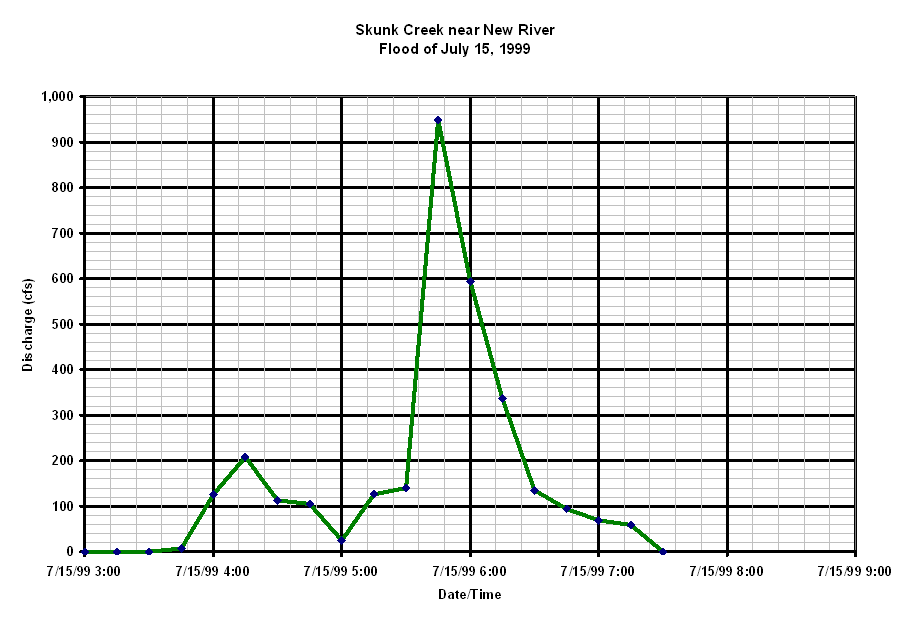

07/15/1999 05:41 07/15/1999 03:35 07/15/1999 07:04 3.5 3.95 949 1999

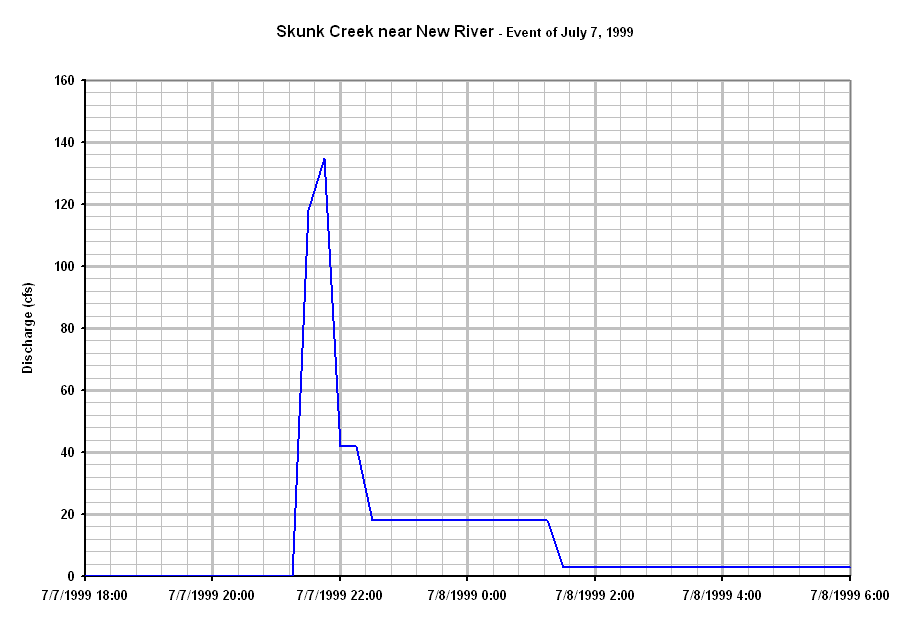

07/07/1999 21:31 07/07/1999 21:18 07/08/1999 01:21 4.1 1.80 135 1999

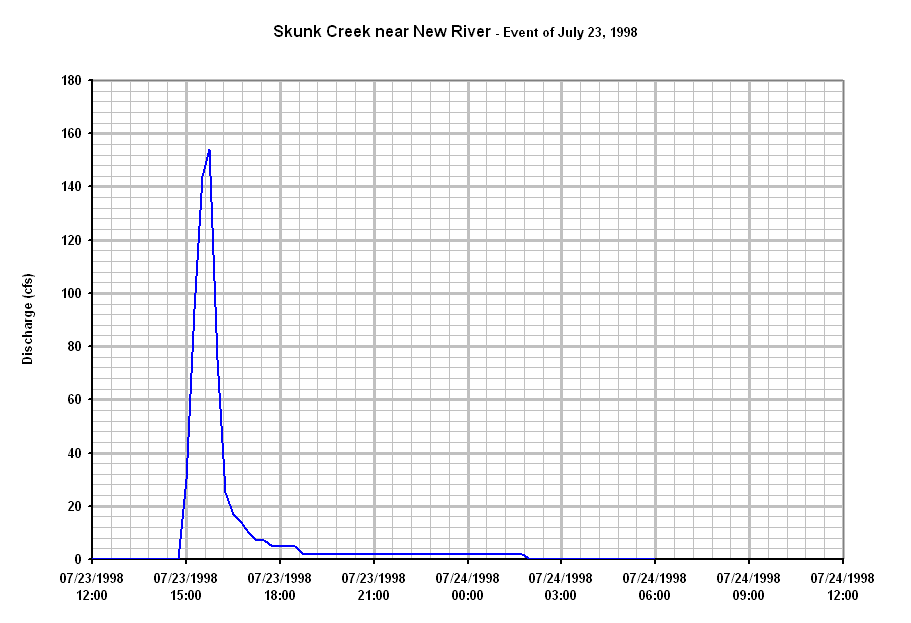

07/23/1998 15:32 07/23/1998 14:57 07/23/1998 18:31 3.6 1.90 154 1998

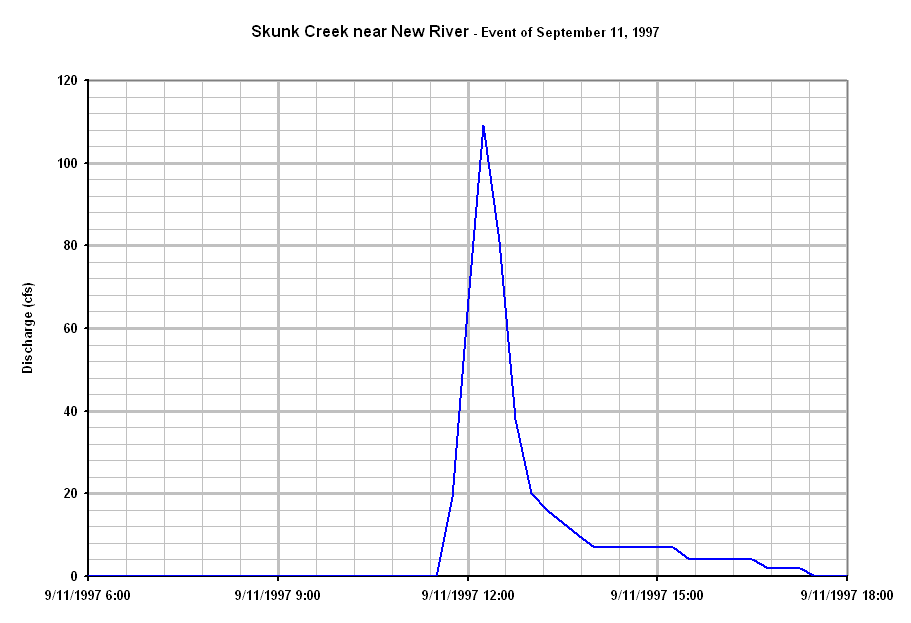

09/11/1997 12:05 09/11/1997 11:39 09/11/1997 16:38 5.0 1.65 109 1997

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
FEMA Flood Flood Insurance Study
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year
----- ----- 1,730 ----- 2,500 3,650 ----- -----

Back to Top   |   Streamflow Homepage   |   FCD Home Page

CREST STAGE GAGES

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 1.85 Located on right bank
