New River Dam Pool - ID # 62017

Current at Gage  | Station Description  | Q Curve  | Vol Curve  | DD Curve  | Q Table  | Vol Table  | DD Table  | Watershed Map  | Upstream  | Downstream  | DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History | Staff Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

62017 2.88 feet 1,394.38 feet NAVD88 04/22/2020 -- Current
5614 2.88 feet 1,394.38 feet NAVD88 09/30/2008 -- 04/22/2020
5614 2.88 feet 1,392.24 feet M.S.L. 09/30/2008 -- 04/22/2020
5609 2.88 feet 1,392.24 feet M.S.L. 05/02/2000 -- 09/30/2008
5614 2.88 feet 1,392.24 feet M.S.L. 03/29/1993 -- 05/02/2000
5609 2.88 feet 1,392.24 feet M.S.L. 09/22/1992 -- 03/29/1993
2699 2.88 feet 1,392.24 feet M.S.L. 10/01/1987 -- 09/22/1992
0092 No Information No Information 04/15/1986 -- 09/30/1987

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION Near 75th Avenue north of Jomax Road

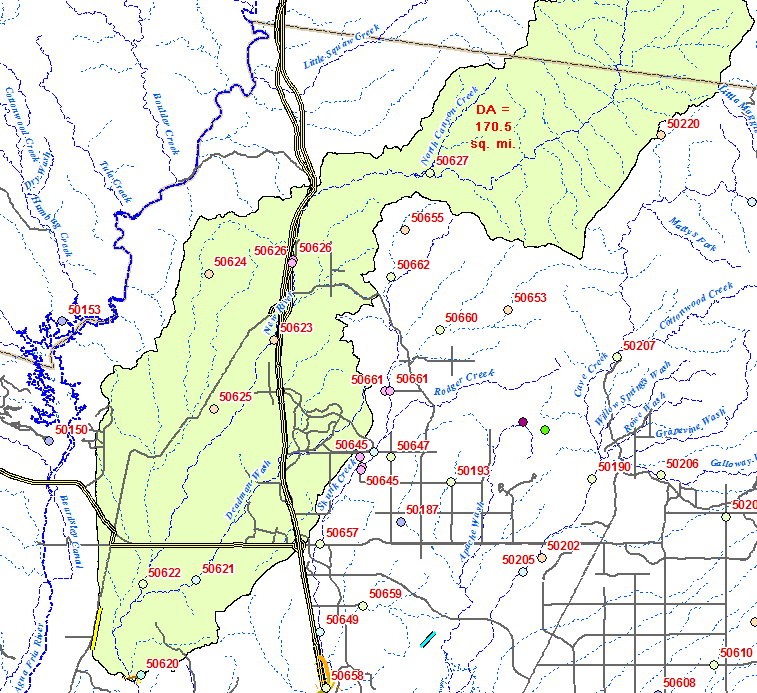

DRAINAGE AREA 171 mi2
STREAM TYPE Dam of natural drainage
JURISDICTION Peoria, Arizona
WATERSHED Upper New River
SECTION/TOWNSHIP/RANGE S35 T5N R1E
LATITUDE N 33° 44' 09.1"  |  +33.73585
LONGITUDE W 112° 13' 31.8"  |  -112.22550
ARIZONA STATE PLANE E 606115  | N 995412
USGS QUAD SHEET Hedgpeth Hills 7.5-Minute
STREAMGAGE INSTALLATION DATE 04/15/1986 - WY 1986
PERIOD OF AVAILABLE DATA RECORD 08/30/1988 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 36.09 Years | 13,181 Days
GAPS (> 2 DAYS) IN RECORD None

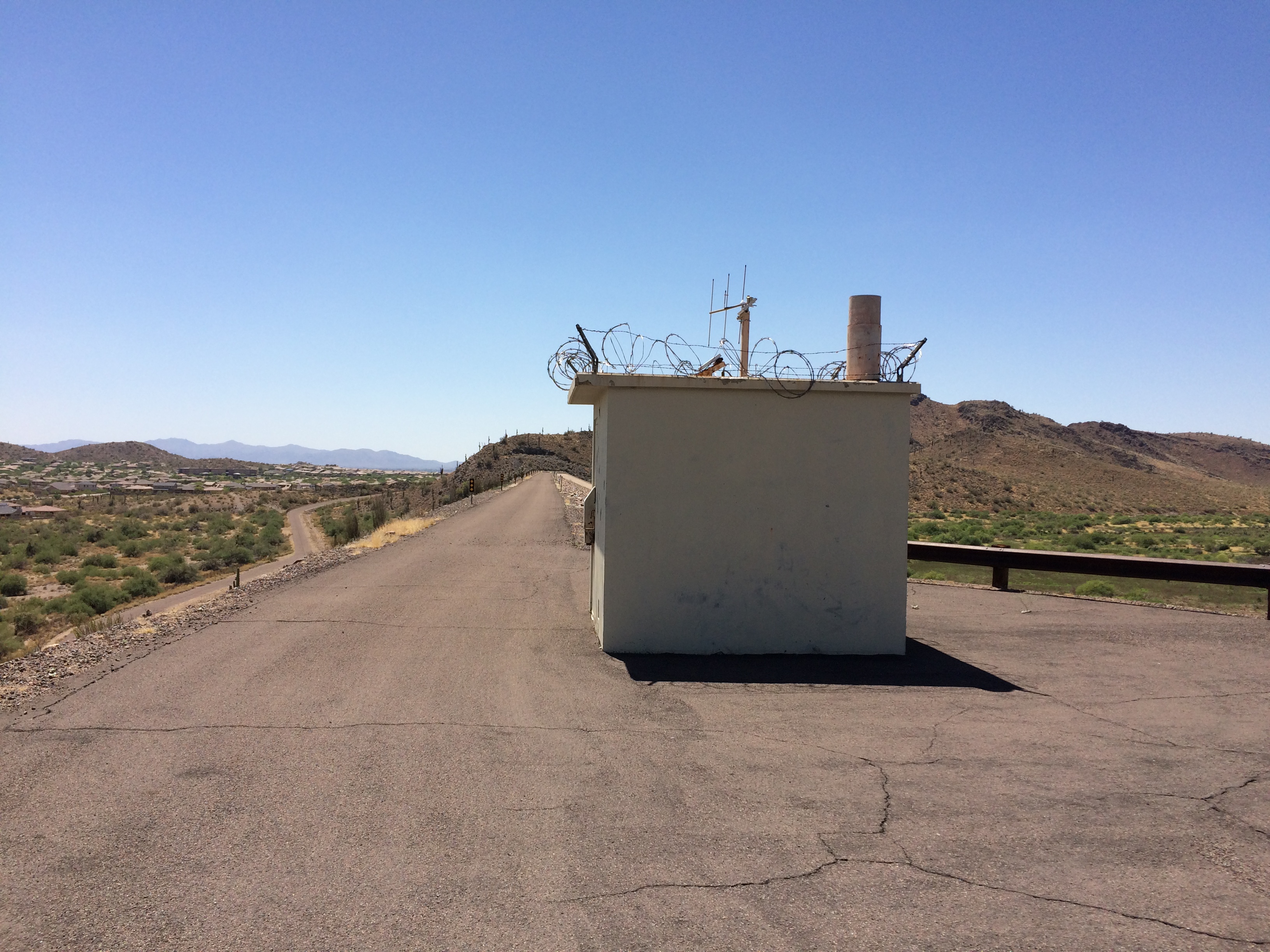

STAGE GAGE TYPE Non-submersible Transducer
STAGE GAGE ELEVATION 2.85 feet Gage Height
STAFF GAGES 21
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,391.50 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height
STANDARD PROJECT FLOOD 49,300 acre-feet / 45,000 cfs inflow / 2,665 cfs outflow
PROBABLE MAXIMUM FLOOD 105,000 acre-feet / 144,000 cfs inflow / 30,000 cfs outflow
SPILLWAY ELEVATION 67.0 feet Gage Height
TOP OF DAM ELEVATION 98.0 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

BRIEF RATING

Current Discharge Rating = #3 - Applied since 10/01/2017
Current Capacity Rating = #3 - Applied since 10/01/2017
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)
0.00 1,391.50 0 0.0
3.00 1,394.50 86 61.0
5.00 1,396.50 199 156.6
10.00 1,401.50 594 613.2
15.00 1,406.50 1,003 1,488.7
20.00 1,411.50 1,261 2,612.3
25.00 1,416.50 1,470 4,093.8
30.00 1,421.50 1,651 6,098.1
35.00 1,426.50 1,818 8,650.5
40.00 1,431.50 1,977 11,825.2
45.00 1,436.50 2,119 15,765.1
50.00 1,441.50 2,253 20,603.9
60.00 1,451.50 2,504 33,287.8
67.00 1,458.50 2,620 44,875.8
70.00 1,461.50 4,034 50,616.3
80.00 1,471.50 13,378 72,774.5
90.00 1,481.50 29,441 99,357.9
96.50 1,488.00 42,481 118,625.6
98.00 1,489.50 45,797 No Data

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2025
2024 None 0.0 0.0 None
2023 16.75 1854.1 4.2 03/21/2023
2022 None 0.0 0.0 None
2021 6.63 260.3 0.6 07/24/2021
2020 12.62 1,035.2 2.3 11/29/2019
2019 7.02 291.6 0.6 03/14/2019
2018 None 0.0 0.0 None
2017 15.97 1,414 3.2 02/28/2017
2016 7.09 317 0.7 01/07/2016
2015 None 0 0.0 None
2014 30.38 5,620 12.9 08/19/2014
2013 5.78 252 1.2 01/28/2013
2012 6.48 286 0.7 08/01/2012
2011 None 0 0.0 None
2010 36.80 9,230 21.2 01/22/2010
2009 8.88 406 0.9 12/26/2008
2008 23.04 3,050 7.0 01/28/2008
2007 None 0 0.0 None
2006 None 0 0.0 None
2005 20.71 2,245 5.1 02/12/2005
2004 5.04 214 0.5 09/20/2004
2003 7.84 354 0.8 02/24/2003
2002 None 0 0.0 None
2001 6.87 306 0.7 10/31/2000
2000 5.20 222 0.5 09/02/2000
1999 5.52 239 0.5 07/15/1999
1998 6.73 434 1.0 03/19/1998
1997 None 0 0.0 None
1996 None 0 0.0 None
1995 11.73 1,755 4.0 02/11/1995
1994 3.02 118 0.3 11/15/1993
1993 44.37 14,670 33.6 01/08/1993
1992 9.60 442 1.0 02/14/1992
1991 15.38 1,317 3.0 03/02/1991
1990 5.17 218 0.5 09/04/1990
1989 8.00 360 0.8 11/09/1988
1988 9.60 442 1.0 08/30/1988

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

09/01/2023 07:18 09/01/2023 06:00 09/01/2023 14:05 4.14 109.2 0.3 2023
03/22/2023 18:00 03/21/2023 22:40 03/25/2023 12:00 85.3 16.75 1854.1 2023
03/16/2023 17:50 03/16/2023 11:45 03/17/2023 15:55 28.2 5.10 162.4 2023
03/04/2023 12:00 03/02/2023 12:00 03/05/2023 23:20 83.3 5.16 159.0 2023
01/17/2023 20:35 01/17/2023 00:00 01/19/2023 18:50 66.8 5.71 198.7 2023
08/12/2021 14:20 08/12/2021 12:10 08/14/2021 12:50 48.7 4.30 119.0 2021
07/24/2021 02:35 07/23/2021 21:40 07/25/2021 19:40 46.0 6.63 260.3 2021
03/20/2020 00:55 03/19/2020 12:00 03/21/2020 00:00 36.0 4.25 116.0 2020
03/13/2020 19:45 03/13/2020 12:35 03/15/2020 14:30 49.9 6.75 270.0 2020
12/28/2019 13:45 12/27/2019 23:30 12/30/2019 06:00 54.5 5.11 162.8 2020
11/29/2019 18:55 11/29/2019 11:10 12/02/2019 06:00 66.8 12.62 1,035.2 2020
11/21/2019 06:00 11/20/2019 22:25 11/24/2019 00:00 73.6 10.98 757.1 2020
09/23/2019 21:50 09/23/2019 18:15 09/24/2019 18:00 23.8 6.52 252.1 2019
03/14/2019 00:55 03/13/2019 16:20 03/15/2019 19:40 51.3 7.02 291.6 2019
02/28/2019 12:00 02/26/2019 11:05 03/01/2019 12:00 72.9 5.79 203.7 2019
02/15/2019 18:00 02/15/2019 10:50 02/17/2019 18:50 56.0 5.19 167.4 2019
02/06/2019 18:00 02/06/2019 10:20 02/08/2019 06:00 43.7 6.57 255.9 2019
10/24/2018 00:00 10/23/2018 18:55 10/24/2018 08:50 13.9 5.47 183.9 2019
10/03/2018 18:00 10/03/2018 13:10 10/04/2018 01:20 12.2 4.51 130.1 2019
07/29/2017 16:30 07/29/2017 16:30 07/29/2017 18:00 1.5 3.05 115 2017
02/28/2017 18:00 02/28/2017 09:20 03/05/2017 18:00 129 15.97 1,414 2017
02/20/2017 01:35 02/19/2017 17:50 02/21/2017 18:00 48.2 6.98 312 2017
01/21/2017 18:00 01/21/2017 09:20 01/23/2017 06:00 44.7 7.78 352 2017
01/07/2016 03:02 01/06/2016 11:02 01/09/2016 04:12 65.2 7.09 317 2016
09/08/2014 12:02 09/08/2014 03:37 09/13/2014 12:01 128 9.68 446 2014
08/19/2014 18:41 08/19/2014 11:21 08/31/2014 14:46 291 30.38 5,620 2014
08/30/2013 22:36 08/30/2013 21:11 08/31/2013 04:06 6.9 3.48 136 2013
01/28/2013 20:51 01/28/2013 00:06 01/30/2013 06:07 54.0 5.78 252 2013
08/01/2012 00:30 07/31/2012 23:15 08/02/2012 06:09 30.9 6.48 286 2012
03/08/2010 19:16 03/08/2010 04:51 03/10/2010 15:16 58.4 6.68 296 2010
01/22/2010   Data Unavailable Data Unavailable   36.80 9,230 2010
02/11/2009 19:05 02/10/2009 13:03 02/17/2009 19:05 160 5.68 246 2009
12/26/2008 19:07 12/26/2008 09:22 01/02/2009 01:07 160 8.88 406 2009
01/28/2008 09:34 01/27/2008 19:10 01/31/2008 21:35 98.4 23.04 3,050 2008
01/08/2008 00:08 01/07/2008 19:07 01/09/2008 09:35 38.5 6.24 274 2008
12/08/2007 15:35 12/08/2007 01:53 12/12/2007 03:35 97.7 8.69 397 2008
12/03/2007 09:19 12/03/2007 09:18 12/04/2007 00:43 15.4 6.53 289 2008
08/12/2005 01:46 08/11/2005 19:47 08/13/2005 19:47 48.0 5.95 260 2005
08/10/2005 02:28 08/09/2005 22:33 08/11/2005 01:47 27.2 4.59 192 2005
08/01/2005 07:49 08/01/2005 02:57 08/02/2005 05:32 26.6 5.55 240 2005
02/23/2005 01:03 02/22/2005 14:14 02/25/2005 22:41 80.5 5.20 222 2005
02/19/2005 22:41 02/18/2005 09:23 02/22/2005 10:41 97.3 10.00 462 2005
02/12/2005 17:49 02/11/2005 19:54 02/16/2005 16:41 117 20.71 2,245 2005
01/27/2005 21:57 01/27/2005 19:49 01/28/2005 06:23 10.6 3.16 120 2005
01/05/2005 04:37 Data Unavailable Data Unavailable   11.74 931 2005
01/04/2005   Data Unavailable Data Unavailable   7.40 500 2005
09/19/2004 21:25 09/19/2004 18:26 09/20/2004 12:04 17.6 5.04 214 2004
02/28/2003 09:04 02/26/2003 22:11 03/02/2003 05:31 79.3 5.91 258 2003
02/24/2003 11:11 02/24/2003 10:39 02/24/2003 12:02 1.4 7.84 354 2003
10/31/2000 09:45 10/31/2000 02:20 11/01/2000 21:43 43.4 6.87 306 2001
10/23/2000 08:15 10/23/2000 08:15 10/30/2000 09:36 169 6.70 298 2001
09/02/2000 00:49 09/01/2000 23:09 09/02/2000 00:49 1.7 5.20 222 2000
03/05/2000 05:06 03/05/2000 04:38 03/05/2000 05:54 1.3 3.76 148 2000
03/02/2000 22:11 03/02/2000 22:11 single report 0.0 3.35 127 2000
07/15/1999 12:34 07/14/1999 21:54 07/16/1999 05:29 31.6 5.52 239 1999
03/29/1998 10:12 03/28/1998 23:12 03/31/1998 20:14 69.0 6.73 434 1998
02/25/1998 10:12 02/25/1998 01:07 02/27/1998 10:12 57.1 4.30 227 1998
02/18/1998 03:00 02/17/1998 19:08 02/20/1998 10:12 63.1 5.25 307 1998
02/15/1998 17:00 02/15/1998 07:01 02/17/1998 08:01 49.0 5.38 230 1998
02/10/1998 12:12 02/10/1998 11:47 02/12/1998 12:19 48.5 4.50 244 1998
03/12/1995 17:33 03/12/1995 03:08 03/14/1995 12:23 57.3 5.92 365 1995
03/06/1995 19:55 03/06/1995 12:27 03/08/1995 05:39 41.2 5.58 336 1995
02/15/1995 13:50 02/15/1995 03:53 02/19/1995 04:39 96.7 11.73 1,755 1995
01/26/1995 21:27 01/26/1995 09:37 01/29/1995 17:09 79.5 9.37 1,052 1995
01/05/1995 19:27 01/05/1995 06:24 01/08/1995 17:17 82.9 10.85 1,494 1995
11/15/1993 19:25 11/15/1993 19:25 11/15/1993 23:34 4.2 3.02 118 1994
02/20/1993 16:46 02/20/1993 05:16 02/23/1993 09:38 76.4 9.75 450 1993
02/09/1993 22:40 02/09/1993 02:42 02/10/1993 17:22 38.7 20.34 2,179 1993
01/19/1993 01:26 01/18/1993 09:31 01/24/1993 09:20 144 19.89 2,100 1993
01/17/1993 14:27 01/17/1993 05:37 01/18/1993 07:54 26.3 15.12 1,265 1993
01/15/1993 06:27 01/14/1993 16:48 01/17/1993 03:06 58.3 17.21 1,630 1993
01/08/1993 16:12 01/07/1993 03:16 01/14/1993 15:35 180 44.37 14,670 1993
12/29/1992 04:57 12/28/1992 21:06 12/31/1992 08:50 59.7 6.31 278 1993
09/10/1992 08:27 09/10/1992 08:27 single report 0.0 3.03 114 1992
08/23/1992 05:07 08/23/1992 01:48 08/24/1992 03:58 26.2 5.42 233 1992
04/02/1992 21:41 04/02/1992 15:06 04/04/1992 01:20 34.2 4.07 166 1992
03/09/1992 21:31 03/09/1992 13:20 03/12/1992 00:31 59.2 7.66 345 1992
02/14/1992 01:31 02/13/1992 18:32 02/14/1992 14:57 20.4 9.60 442 1992
01/07/1992 10:32 01/06/1992 20:51 01/08/1992 21:30 48.7 3.13 263 1992
03/02/1991 05:06 03/01/1991 07:27 03/04/1991 12:16 76.8 15.38 1,317 1991
09/03/1990 23:52 09/03/1990 21:30 09/05/1990 09:09 35.7 5.17 218 1990
08/21/1989 08:08 08/21/1989 08:08 single report 0.0 3.03 114 1989
08/16/1989 04:59 08/16/1989 03:38 08/16/1989 16:39 13.0 4.22 174 1989
07/20/1989 07:55 07/20/1989 07:54 07/20/1989 08:31 0.6 7.26 323 1989
03/06/1989 11:16 03/06/1989 11:16 03/06/1989 11:20 0.1 3.03 114 1989
11/09/1988 11:46 11/09/1988 11:34 11/09/1988 11:49 0.3 8.00 360 1989
08/30/1988 08:17 Data Unavailable Data Unavailable   9.60 442 1988

Back to Top   |   Streamflow Homepage   |   FCD Home Page

STAFF GAGES

Staff Gage Range Staff Gage Information
0 - 6 Displays in feet, gage height
6 - 11 Displays in feet, gage height
11 - 16 Displays in feet, gage height
16 - 21 Displays in feet, gage height
21 - 26 Displays in feet, gage height
26 - 31 Displays in feet, gage height
31 - 36 Displays in feet, gage height
36 - 41 Displays in feet, gage height
41 - 46 Displays in feet, gage height
46 - 51 Displays in feet, gage height
51 - 56 Displays in feet, gage height
56 - 61 Displays in feet, gage height
61 - 66 Displays in feet, gage height
66 - 71 Displays in feet, gage height
71 - 76 Displays in feet, gage height
76 - 81 Displays in feet, gage height
81 - 86 Displays in feet, gage height
86 - 91 Displays in feet, gage height
91 - 96 Displays in feet, gage height
95 - 100 Displays in feet, gage height

Back to Top   |   Streamflow Homepage   |   FCD Home Page
