Phoenix Dam #2B - ID # 9907

Current at Gage  | Station Description  | Q Rating Curve  | Vol Rating Curve  | DD Rating Curve  | Q Rating Table  | Vol Rating Table  | DD Rating Table  | Watershed Map  | DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

9907 0.00 feet 1,398.20 feet NAVD88 03/26/2020 -- Current
4778 0.00 feet 1,398.20 feet NAVD88 06/30/2009 -- 03/26/2020

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION On Thunderbird Road east of 7th Street

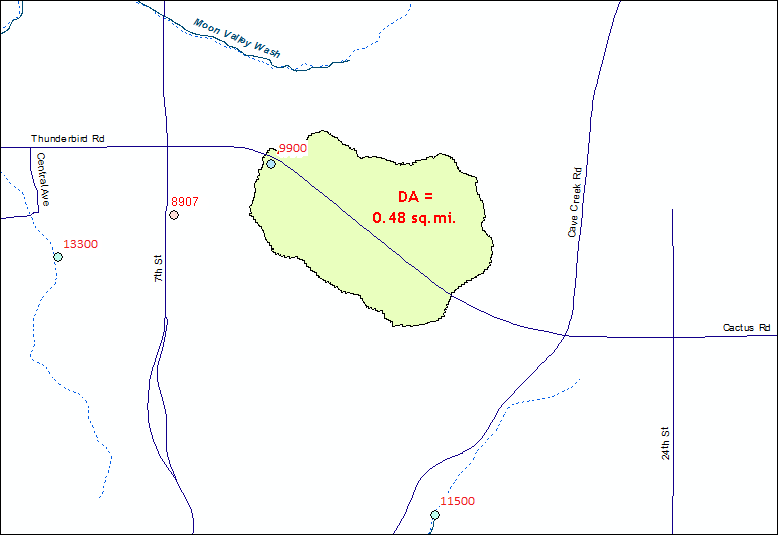

DRAINAGE AREA 0.48 mi2
STREAM TYPE Dam of natural drainage
JURISDICTION Phoenix, Arizona
WATERSHED Upper ACDC
SECTION/TOWNSHIP/RANGE S16 T3N R3E
LATITUDE N 33° 36' 23.8"  |  +33.60660
LONGITUDE W 112° 03' 28.4"  |  -112.05789
ARIZONA STATE PLANE E 656947  | N 948279
USGS QUAD SHEET Sunnyslope 7.5-Minute
STREAMGAGE INSTALLATION DATE 06/30/2009 - WY 2009
PERIOD OF AVAILABLE DATA RECORD 06/30/2009 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 15.26 Years | 5,572 Days
GAPS (> 2 DAYS) IN RECORD None

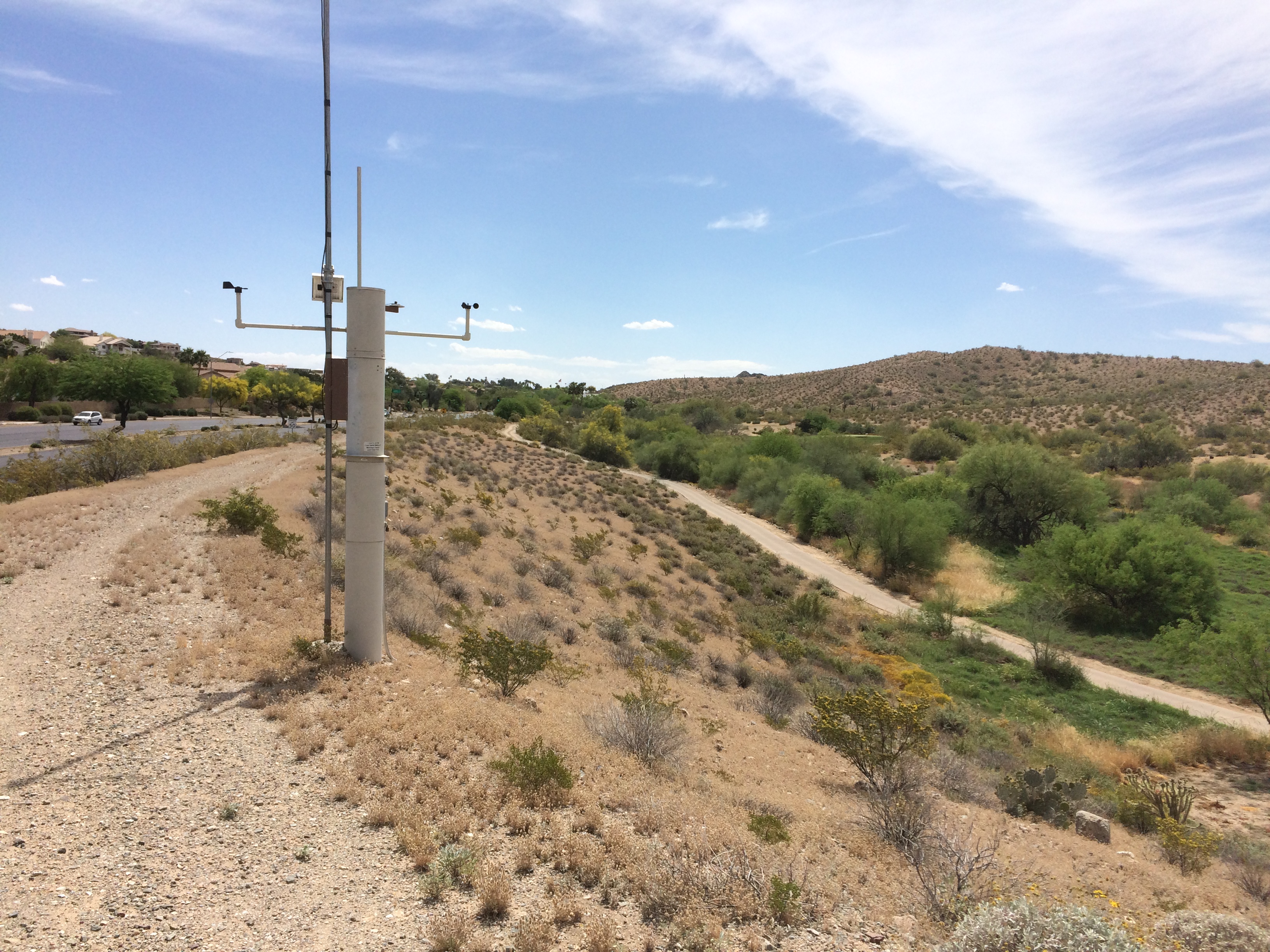

STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.00 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,398.20 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height
SPILLWAY ELEVATION 16.0 feet Gage Height
TOP OF DAM ELEVATION 22.0 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

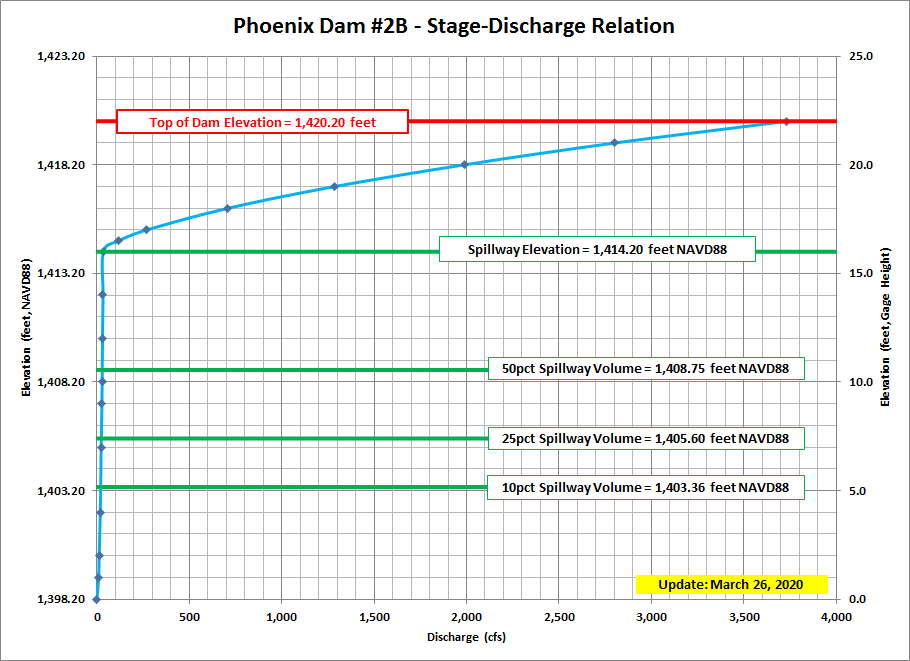

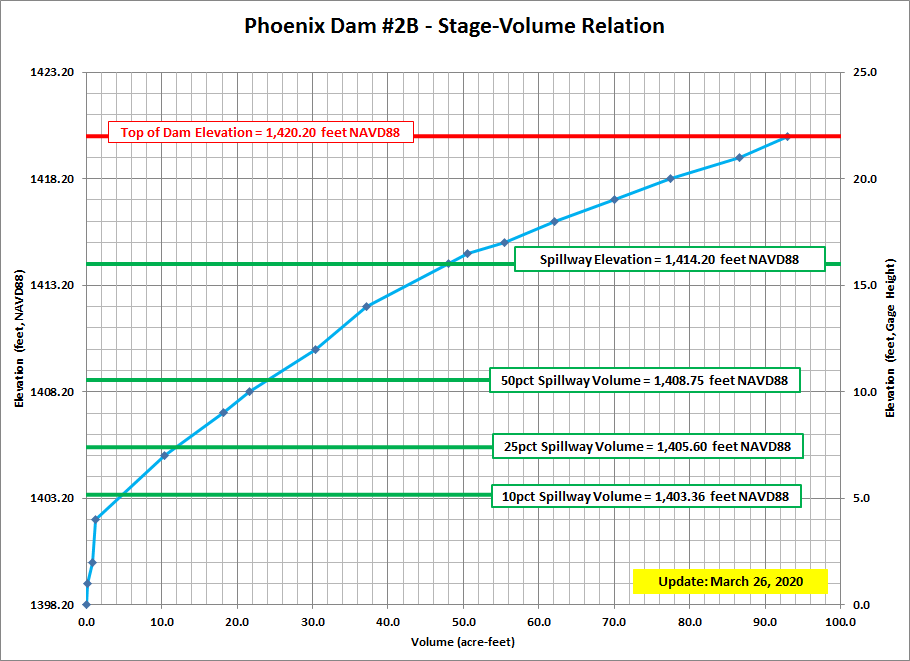

BRIEF RATING

Current Discharge Rating = #1 - Applied since 06/30/2009
Current Capacity Rating = #1 - Applied since 06/30/2009
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)
0.00 1,398.20 0 0.0
2.00 1,400.20 12 0.8
4.00 1,402.20 18 1.2
7.00 1,405.20 23 10.4
10.00 1,408.20 28 21.6
14.00 1,412.20 33 37.1
16.00 1,414.20 35 48.0
17.00 1,415.20 270 55.4
18.00 1,416.20 710 62.1
20.00 1,418.20 1,988 77.4
22.00 1,420.20 3,730 93.0

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2025
2024 None 0.0 0.0 None
2023 None 0.0 0.0 None
2022 3.49 1.1 2.3 09/11/2022
2021 4.16 1.7 3.5 08/13/2021
2020 4.32 2.2 4.5 03/13/2020
2019 5.47 5.7 11.9 09/23/2019
2018 7.25 11.4 23.7 08/23/2018
2017 3.01 1.0 2.1 08/03/2017
2016 5.68 6.4 13.3 08/05/2016
2015 None 0.0 0.0 None
2014 7.62 12.8 26.9 09/08/2014
2013 0.32 <0.1 0.0 07/19/2013
2012 1.65 0.6 1.3 09/07/2012
2011 0.52 0.1 0.2 10/05/2010
2010 1.70 0.6 1.3 01/21/2010
2009 None 0.0 0.0 None

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

09/11/2022 22:30 09/11/2022 18:00 09/12/2022 02:38 8.6 3.49 1.1 2022
07/30/2022 18:30 07/30/2022 18:00 07/31/2022 05:13 11.2 0.89 0.1 2022
12/24/2021 16:51 12/24/2021 16:30 12/24/2021 19:30 3.0 0.55 0.1 2022
08/13/2021 22:41 08/13/2021 22:01 08/14/2021 02:24 4.4 4.16 1.7 2021
03/13/2020 16:24 03/13/2020 15:35 03/13/2020 21:22 5.8 4.32 2.2 2020
03/13/2020 01:26 03/13/2020 01:09 03/13/2020 05:15 4.1 1.33 0.3 2020
03/12/2020 16:59 03/12/2020 15:51 03/12/2020 19:56 4.1 1.06 0.1 2020
02/22/2020 10:24 02/22/2020 10:15 02/22/2020 14:20 4.1 0.38 0.0 2020
11/29/2019 06:19 11/29/2019 06:19 11/29/2019 09:57 3.6 0.61 0.1 2020
09/23/2019 19:09 09/23/2019 17:20 09/24/2019 00:40 7.3 5.47 5.7 2019
08/28/2019 22:41 08/28/2019 21:30 08/29/2019 02:23 4.9 4.72 3.4 2019
10/13/2018 14:34 10/13/2018 14:02 10/13/2018 19:44 5.7 0.49 0.0 2019
10/07/2018 04:25 10/07/2018 03:10 10/07/2018 15:44 12.6 5.30 5.2 2019
10/02/2018 18:44 10/02/2018 17:52 10/02/2018 22:25 4.6 4.03 1.3 2019
10/02/2018 10:32 10/02/2018 08:14 10/02/2018 13:14 5.0 3.76 1.2 2019
08/23/2018 18:45 08/23/2018 17:46 08/24/2018 01:55 8.2 7.25 11.4 2018
08/23/2017 22:49 08/23/2017 21:49 08/24/2017 01:53 4.1 2.93 1.0 2017
08/03/2017 17:28 08/03/2017 16:57 08/03/2017 22:02 5.1 3.01 1.0 2017
07/29/2017 18:00 07/29/2017 17:10 07/29/2017 21:43 4.6 1.21 0.2 2017
02/28/2017 08:31 02/28/2017 08:18 02/28/2017 12:00 3.7 0.31 0.0 2017
01/01/2017 12:20 01/01/2017 12:11 01/01/2017 15:15 3.1 0.31 0.0 2017
12/31/2016 07:27 12/31/2016 07:14 12/31/2016 10:20 3.1 0.21 0.0 2017
12/22/2016 10:45 12/22/2016 05:41 12/22/2016 15:10 9.5 1.78 0.6 2017
08/22/2016 16:27 08/22/2016 15:56 08/23/2016 05:51 13.9 2.81 1.0 2016
08/05/2016 09:37 08/05/2016 07:39 08/05/2016 18:00 10.4 5.68 6.4 2016
04/10/2016 14:09 04/10/2016 13:46 04/10/2016 20:52 7.1 1.92 0.7 2016
09/27/2014 15:50 09/27/2014 14:54 09/27/2014 23:36 8.7 1.42 0.4 2014
09/08/2014 05:36 09/08/2014 02:58 09/08/2014 19:13 16.3 7.62 12.8 2014
08/19/2014 12:43 08/19/2014 06:35 08/19/2014 20:44 14.2 6.32 8.3 2014
08/12/2014 22:23 08/12/2014 21:22 08/13/2014 04:13 6.9 3.65 1.1 2014
08/02/2014 18:12 08/02/2014 16:13 08/03/2014 01:43 9.5 3.32 1.1 2014
07/14/2014 19:46 07/14/2014 18:39 07/15/2014 01:00 6.4 3.78 1.2 2014
03/01/2014 22:23 03/01/2014 21:22 03/02/2014 00:27 3.1 1.50 0.4 2014
03/01/2014 12:10 03/01/2014 12:09 03/01/2014 12:16 0.1 0.45 <0.1 2014
07/19/2013 23:00 07/19/2013 22:58 07/19/2013 23:30 0.5 0.32 <0.1 2013
12/14/2012 01:21 12/14/2012 01:21 12/14/2012 02:18 1.0 0.28 <0.1 2013
09/07/2012 08:32 09/07/2012 07:44 09/08/2012 16:59 33.3 1.65 0.6 2012
08/23/2012 02:10 08/23/2012 01:55 08/23/2012 02:41 0.8 1.00 0.1 2012
10/05/2010 12:46 10/05/2010 12:44 10/05/2010 13:06 0.4 0.52 0.1 2011
08/27/2010 10:35 08/27/2010 08:42 08/27/2010 14:25 5.7 0.30 <0.1 2010
08/26/2010 14:04 08/26/2010 13:04 08/26/2010 14:27 1.4 0.22 <0.1 2010
07/29/2010 16:15 07/29/2010 16:15 07/29/2010 16:24 0.2 0.12 <0.1 2010
01/21/2010 21:35 01/21/2010 20:28 01/22/2010 01:57 5.5 1.70 0.6 2010
