Phoenix Dam #2A - ID # 8907

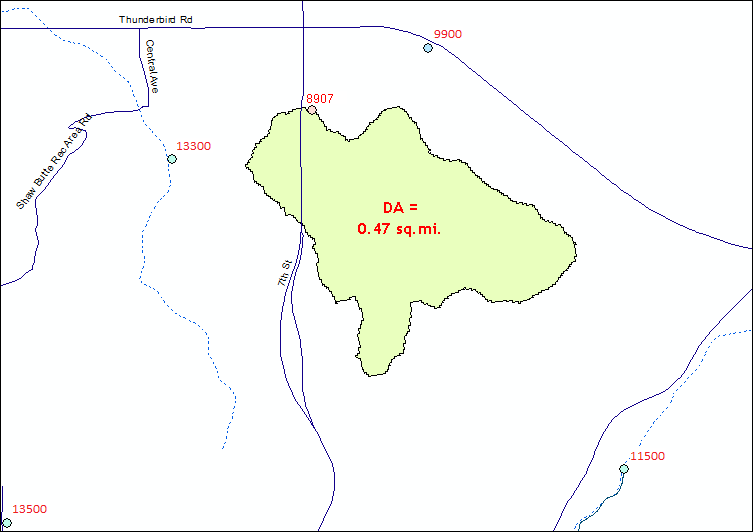

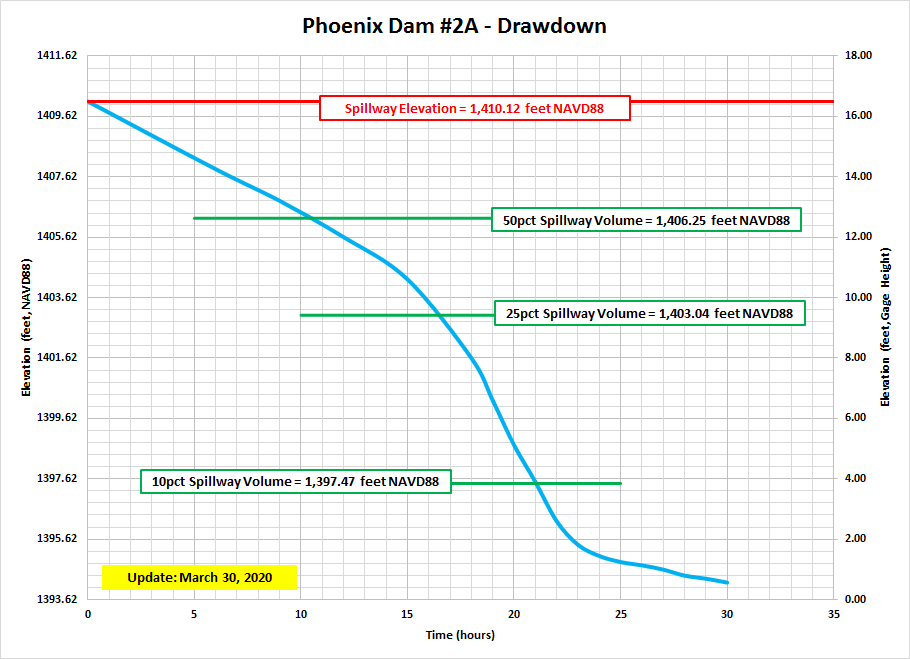

Current at Gage  | Station Description  | Q Rating Curve  | Vol Rating Curve  | DD Rating Curve  | Q Rating Table  | Vol Rating Table  | DD Rating Table  | Watershed Map  | DSS

Page Last Updated: 04 November 2025

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

8907 0.00 feet 1,393.62 feet NAVD88 03/25/2020 -- Current
4789 0.00 feet 1,393.62 feet NAVD88 06/29/2009 -- 03/25/2020
4789 0.00 feet 1,391.50 feet M.S.L. 06/29/2009 -- 03/25/2020

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION On 7th Street south of Thunderbird Road
DRAINAGE AREA 0.47 mi2
STREAM TYPE Dam of natural drainage
JURISDICTION Phoenix, Arizona
WATERSHED Upper ACDC
SECTION/TOWNSHIP/RANGE S16 T3N R3E
LATITUDE N 33° 36' 13.2"  |  +33.60366
LONGITUDE W 112° 03' 52.8"  |  -112.06466
ARIZONA STATE PLANE E 654947  | N 947202
USGS QUAD SHEET Sunnyslope 7.5-Minute
STREAMGAGE INSTALLATION DATE 06/29/2009 - WY 2009
PERIOD OF AVAILABLE DATA RECORD 06/29/2009 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 15.26 Years | 5,573 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.00 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,393.62 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height
SPILLWAY ELEVATION 16.5 feet Gage Height
TOP OF DAM ELEVATION 22.5 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

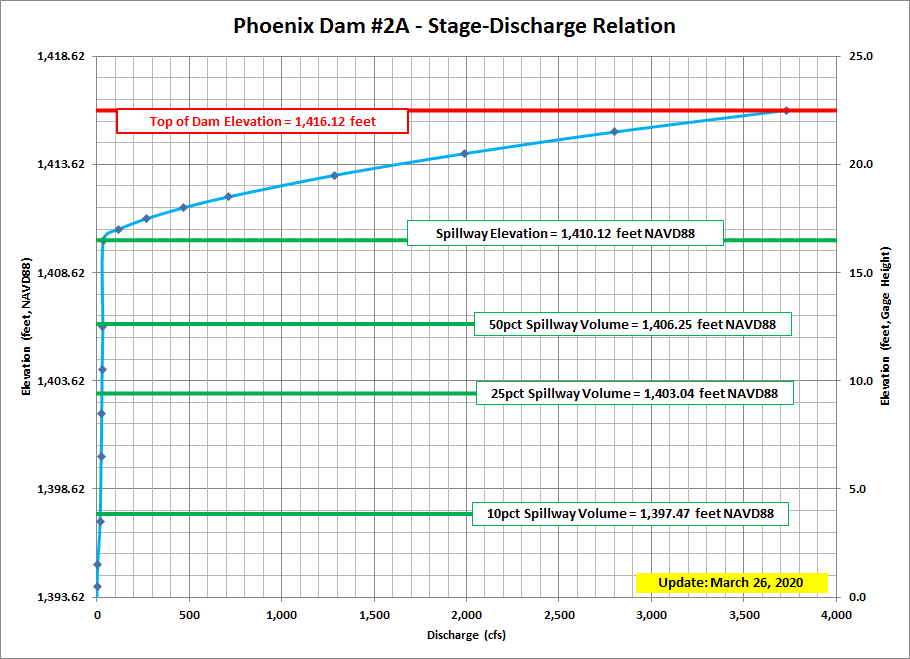

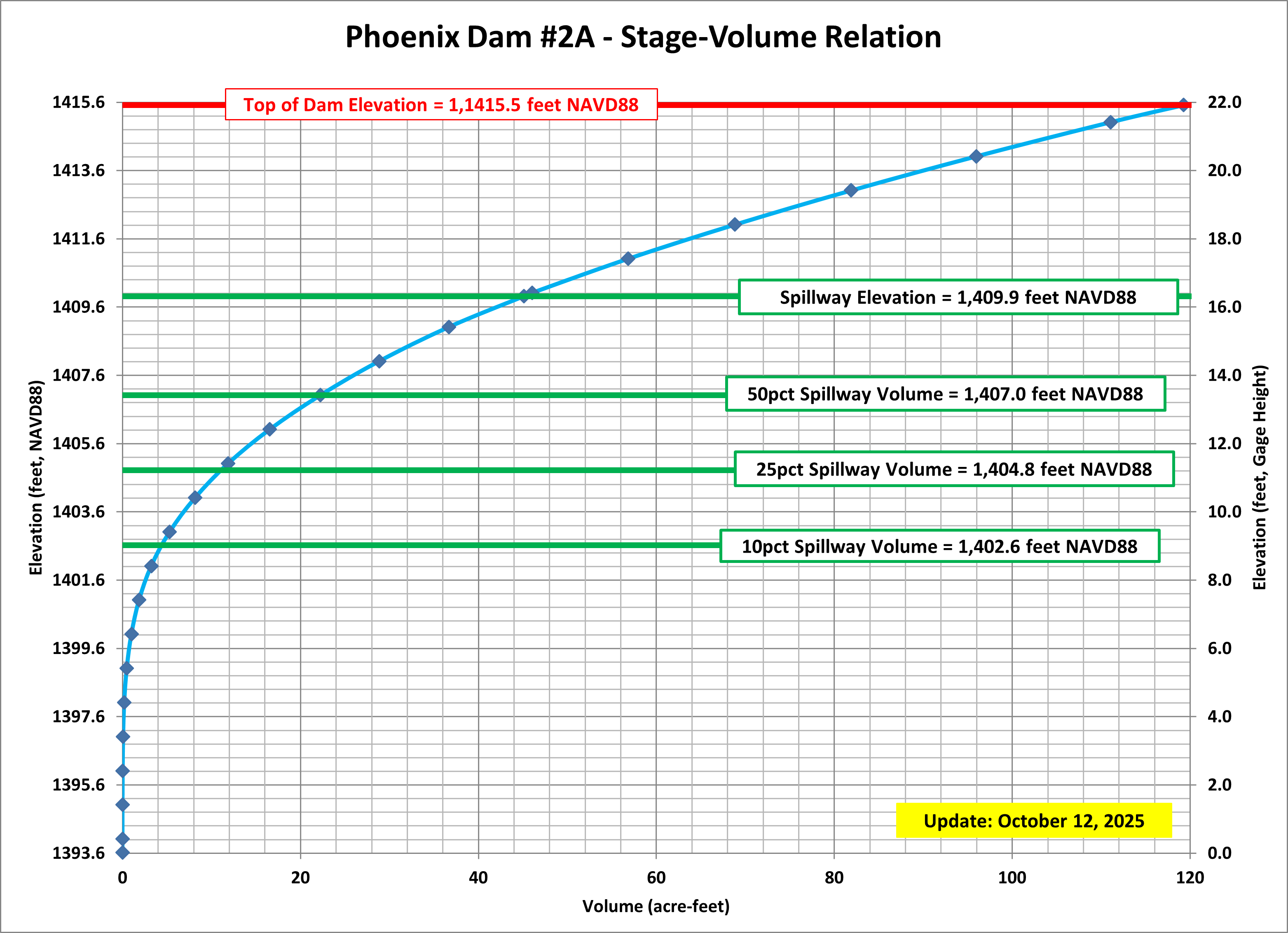

BRIEF RATING

Current Discharge Rating = #1 - Applied since 06/29/2009
Current Capacity Rating = #2 - Applied since 10/12/2025
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)
0.00 1,393.62 0 0.0
1.40 1,395.02 4 0.0
3.40 1,397.02 17 0.1
8.40 1,402.02 26 3.2
10.40 1,404.02 28 8.2
12.40 1,406.02 32 16.5
16.30 1,409.92 35 45.1
17.40 1,411.02 271 56.8
18.40 1,412.02 710 68.8
20.40 1,414.02 1,989 96.0
21.90 1,415.52 3,731 119.3

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2026
2025 6.38 9.3 15.6 09/03/2025
2024 4.15 6.5 11.1 04/01/2024
2023 3.3 5.3 8.8 03/01/2023
2022 10.67 19.0 31.7 07/30/2022
2021 10.37 17.6 29.4 08/13/2021
2020 8.32 12.1 20.3 03/13/2020
2019 10.34 17.6 29.3 10/07/2018
2018 9.59 15.5 25.8 08/23/2018
2017 6.51 9.5 15.9 12/22/2016
2016 10.10 16.9 28.2 08/05/2016
2015 3.48 5.5 9.2 05/15/2015
2014 11.50 23.5 39.2 09/08/2014
2013 4.70 7.1 11.9 07/19/2013
2012 5.00 7.5 12.5 09/07/2012
2011 4.95 7.4 12.3 10/05/2010
2010 4.55 6.9 11.5 01/21/2010
2009 (partial) 5.15 7.7 7.7 09/05/2009

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

09/27/2025 19:17 09/27/2025 18:00 09/28/2025 00:00 6.0 4.09 2.8 2025
09/26/2025 14:18 09/26/2025 12:00 09/26/2025 18:00 6.0 5.43 8.1 2025
09/03/2025 23:41 09/03/2025 23:00 09/04/2025 01:00 2.0 6.38 9.3 2025
08/26/2025 21:58 08/26/2025 21:00 08/27/2025 00:00 3.0 3.03 5.0 2025
06/02/2025 03:43 06/02/2025 03:00 06/02/2025 04:33 1.5 0.75 1.6 2025
08/18/2024 03:28 08/18/2024 00:00 08/18/2024 05:51 5.9 1.27 2.8 2024
04/01/2024 04:01 03/31/2024 06:00 04/01/2024 07:55 25.9 4.15 6.5 2024
01/23/2024 09:06 01/23/2024 06:00 01/23/2024 13:33 4.6 0.74 1.6 2024
12/22/2023 20:09 12/22/2023 18:00 12/23/2023 00:00 6.0 2.06 3.9 2024
11/18/2023 06:45 11/18/2023 06:30 11/18/2023 07:57 1.5 1.71 3.5 2024
03/01/2023 20:21 03/01/2023 19:21 03/02/2023 00:00 4.6 3.30 5.3 2023
01/01/2023 15:54 01/01/2023 12:00 01/02/2023 00:00 12.0 0.80 1.8 2023
10/15/2022 23:07 10/15/2022 10:31 10/16/2022 06:00 19.5 1.97 3.8 2023
09/11/2022 22:25 09/11/2022 21:47 09/11/2022 23:48 2.0 6.97 10.2 2022
09/09/2022 03:34 08/09/2022 03:14 08/09/2022 04:55 1.7 3.62 5.7 2022
08/04/2022 05:24 08/04/2022 04:40 08/04/2022 07:05 2.4 7.08 10.3 2022
07/30/2022 19:09 07/30/2022 18:17 07/31/2022 00:38 6.3 10.67 19.0 2022
12/24/2021 17:13 12/24/2021 10:47 12/24/2021 18:53 8.1 6.21 9.1 2022
08/18/2021 13:59 08/18/2021 13:42 08/18/2021 15:02 1.3 2.60 4.5 2021
08/13/2021 23:06 08/13/2021 22:12 08/14/2021 04:17 6.1 10.37 17.6 2021
07/16/2021 09:41 07/16/2021 09:41 07/16/2021 09:56 0.3 0.42 0.9 2021
03/13/2020 16:39 03/13/2020 15:46 03/13/2020 19:02 3.3 8.32 12.1 2020
03/13/2020 01:08 03/13/2020 00:08 03/13/2020 06:00 5.9 0.94 2.1 2020
03/12/2020 16:07 03/12/2020 15:36 03/12/2020 17:29 1.9 4.11 6.3 2020
03/12/2020 07:57 03/12/2020 07:46 03/12/2020 12:00 4.2 1.71 3.5 2020
02/22/2020 09:12 02/22/2020 02:30 02/22/2020 12:00 3.5 0.84 1.8 2020
02/11/2020 01:56 02/11/2020 00:45 02/11/2020 03:08 2.4 0.37 0.8 2020
12/27/2019 17:06 12/27/2019 17:06 12/27/2019 18:00 0.9 0.34 0.7 2020
11/29/2019 04:41 11/29/2019 04:10 11/29/2019 08:54 4.7 5.28 7.9 2020
11/20/2019 18:11 11/20/2019 12:44 11/20/2019 20:06 7.4 1.42 3.1 2020
11/20/2019 09:23 11/20/2019 08:42 11/20/2019 10:40 2.0 0.74 1.6 2020
09/26/2019 17:45 09/26/2019 17:42 09/26/2019 18:46 1.1 2.16 4.0 2019
09/23/2019 19:20 09/23/2019 17:30 09/23/2019 23:05 5.6 9.69 15.7 2019
08/28/2019 22:35 08/28/2019 21:48 08/29/2019 01:31 3.7 8.87 13.4 2019
02/21/2019 12:04 02/21/2019 11:53 02/21/2019 17:25 5.5 1.15 2.5 2019
10/13/2018 14:38 10/13/2018 11:11 10/13/2018 16:13 5.0 0.99 2.2 2019
10/07/2018 04:33 10/07/2018 03:22 10/07/2018 09:26 6.1 10.34 17.6 2019
10/02/2018 18:48 10/02/2018 06:25 10/02/2018 20:46 14.4 7.60 11.1 2019
10/02/2018 10:23 10/02/2018 06:25 10/02/2018 20:46 14.4 7.35 10.7 2019
08/23/2018 18:43 08/23/2018 18:00 08/23/2018 23:06 5.1 9.59 15.5 2018
08/11/2018 00:09 08/11/2018 00:05 08/11/2018 01:22 1.3 0.35 0.8 2018
08/08/2018 20:21 08/08/2018 20:12 08/08/2018 21:27 1.3 3.49 5.5 2018
08/03/2017 17:10 08/03/2017 16:55 08/03/2017 18:00 1.1 3.44 5.4 2017
07/29/2017 17:49 07/29/2017 17:28 07/29/2017 19:15 1.8 4.52 6.9 2017
02/28/2017 08:00 02/28/2017 07:39 02/28/2017 12:00 4.3 1.28 2.8 2017
01/01/2017 10:00 01/01/2017 09:59 01/01/2017 11:25 1.4 0.40 0.9 2017
12/31/2016 05:59 12/31/2016 05:37 12/31/2016 07:35 2.0 1.05 2.3 2017
12/22/2016 11:03 12/22/2016 03:40 12/22/2016 12:34 8.9 6.51 9.5 2017
08/22/2016 16:48 08/22/2016 16:05 08/23/2016 06:00 13.9 8.26 12.1 2016
08/05/2016 09:57 08/05/2016 07:42 08/05/2016 14:27 6.8 10.10 16.9 2016
04/10/2016 13:44 04/10/2016 13:23 04/10/2016 15:14 1.9 4.38 6.7 2016
01/07/2016 11:45 01/07/2016 11:09 01/07/2016 18:00 6.9 1.14 2.5 2016
01/06/2016 22:30 01/06/2016 21:57 01/06/2016 22:38 0.7 5.45 8.1 2016
05/15/2015 15:38 05/15/2015 15:27 05/16/2015 02:08 10.7 3.48 5.5 2015
12/04/2014 08:14 12/04/2014 07:57 12/04/2014 18:21 10.4 1.85 3.7 2015
10/19/2014 18:42 10/19/2014 18:40 10/19/2014 19:48 1.1 1.18 2.6 2015
09/27/2014 15:08 09/27/2014 14:43 09/27/2014 16:38 1.9 11.50 23.5 2014
09/08/2014 05:01 09/08/2014 03:08 09/08/2014 12:50 9.7 11.50 23.5 2014
08/19/2014 13:24 08/19/2014 11:57 08/19/2014 21:31 9.6 10.72 19.2 2014
08/19/2014 07:13 08/19/2014 06:47 08/19/2014 09:36 2.8 6.28 9.2 2014
08/12/2014 22:12 08/12/2014 21:36 08/13/2014 00:41 3.1 6.38 9.3 2014
08/02/2014 18:08 08/02/2014 17:17 08/02/2014 21:12 3.9 8.68 12.9 2014
07/14/2014 19:46 07/14/2014 18:52 07/14/2014 21:52 3.0 7.68 11.2 2014
03/01/2014 21:32 03/01/2014 19:46 03/01/2014 23:51 4.1 4.48 6.8 2014
03/01/2014 12:37 03/01/2014 12:19 03/01/2014 13:56 1.6 4.00 6.2 2014
11/22/2013 06:56 11/22/2013 03:43 11/23/2013 04:00 24.3 0.98 2.1 2014
08/26/2013 19:55 08/26/2013 19:54 08/27/2013 01:49 5.9 0.35 0.8 2013
07/21/2013 11:35 07/21/2013 11:32 07/21/2013 13:48 2.3 0.40 0.9 2013
07/19/2013 23:24 07/19/2013 23:07 07/20/2013 01:48 2.7 4.70 7.1 2013
01/26/2013 13:42 01/26/2013 08:41 01/26/2013 15:58 7.3 0.60 1.3 2013
12/15/2012 16:10 12/15/2012 16:07 12/16/2012 15:57 23.8 0.52 1.2 2013
12/14/2012 01:35 12/14/2012 01:33 12/14/2012 15:57 14.4 1.48 3.2 2013
09/07/2012 08:55 09/07/2012 08:22 09/07/2012 11:47 3.4 5.00 7.5 2012
08/23/2012 02:17 08/23/2012 02:03 08/23/2012 03:01 1.0 4.08 6.3 2012
11/05/2011 01:00 11/05/2011 00:56 11/05/2011 03:56 3.0 0.58 1.3 2012
07/31/2011 22:15 07/31/2011 22:10 07/31/2011 23:27 1.3 4.50 6.8 2011
12/30/2010 03:07 12/30/2010 02:51 12/30/2010 04:25 1.6 2.38 4.3 2011
10/05/2010 13:05 10/05/2010 12:46 10/05/2010 20:40 7.9 4.95 7.4 2011
08/07/2010 05:06 08/07/2010 05:05 08/07/2010 06:21 1.3 0.88 1.9 2010
07/29/2010 16:46 07/29/2010 16:20 07/29/2010 17:19 1.0 3.08 5.0 2010
03/07/2010 13:21 03/07/2010 13:01 03/07/2010 23:36 10.6 1.08 2.4 2010
02/28/2010 00:49 02/28/2010 00:49 02/28/2010 11:34 10.8 1.03 2.3 2010
02/21/2010 05:46 02/21/2010 05:36 02/21/2010 11:36 6.0 1.53 3.3 2010
01/21/2010 20:52 01/21/2010 20:04 01/24/2010 17:37 69.6 4.55 6.9 2010
01/19/2010 22:17 01/19/2010 19:13 01/20/2010 00:10 5.0 1.28 2.8 2010
12/07/2009 12:53 12/07/2009 12:53 12/08/2009 02:00 13.1 1.00 2.2 2010
09/05/2009 10:35 09/05/2009 10:00 09/05/2009 12:18 2.3 5.15 7.7 2009
08/13/2009 04:22 08/13/2009 01:56 08/13/2009 06:20 4.4 1.83 3.7 2009
08/07/2009 20:43 08/07/2009 20:37 08/08/2009 01:07 4.5 0.77 1.7 2009
