Ford Canyon Wash - ID # 86207

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Travel Times | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency | Crest Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

86207 0.72 feet 1,468.79 feet NAVD88 05/05/2020 -- Current
5428 0.72 feet 1,468.72 feet NAVD88 03/14/2002 -- 05/05/2020

Back to Top   |   Streamflow Homepage   |   FCD Home Page

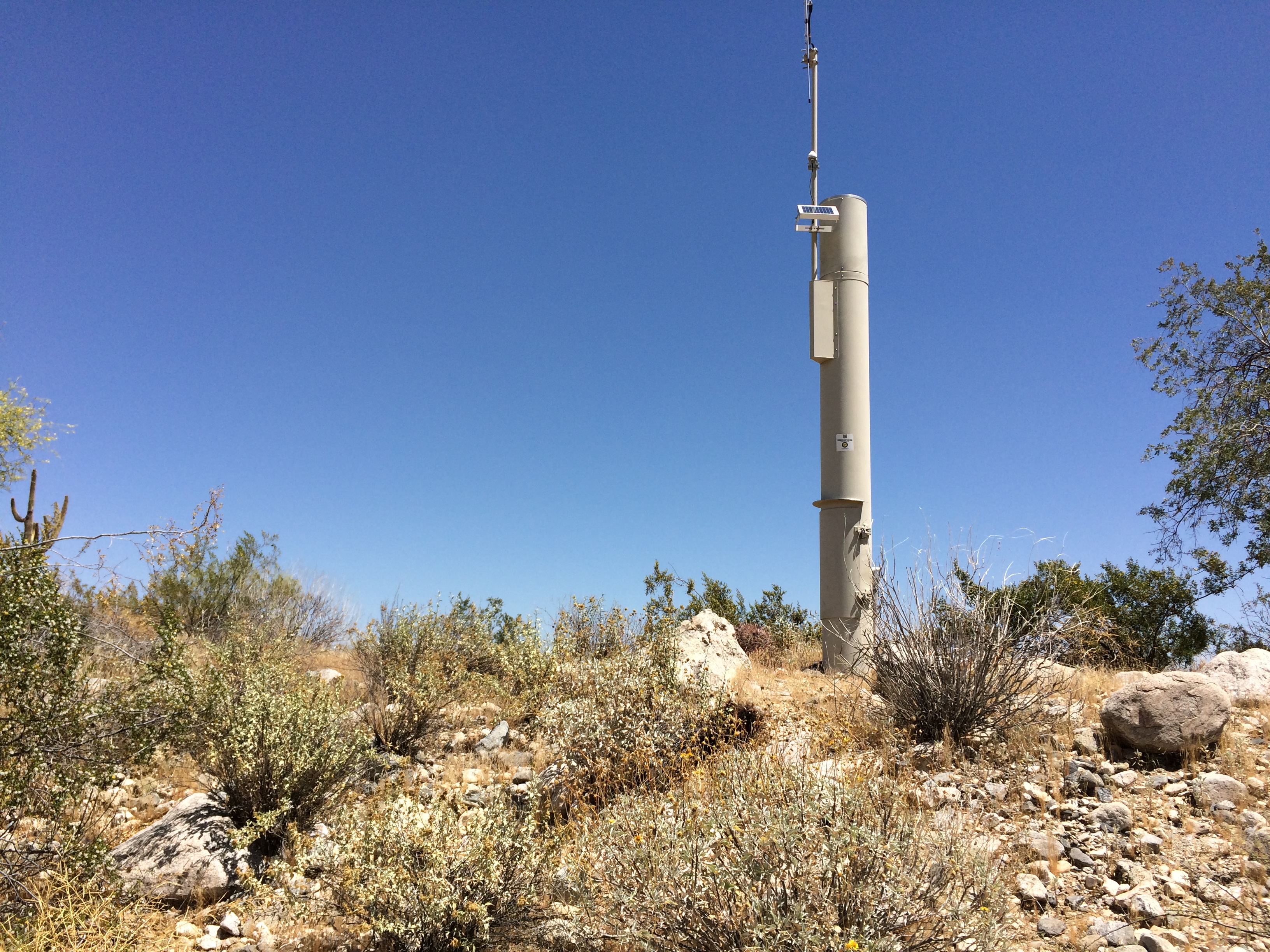

SITE DATA

STATUS Active
LOCATION Located in the north part of White Tanks Regional Park

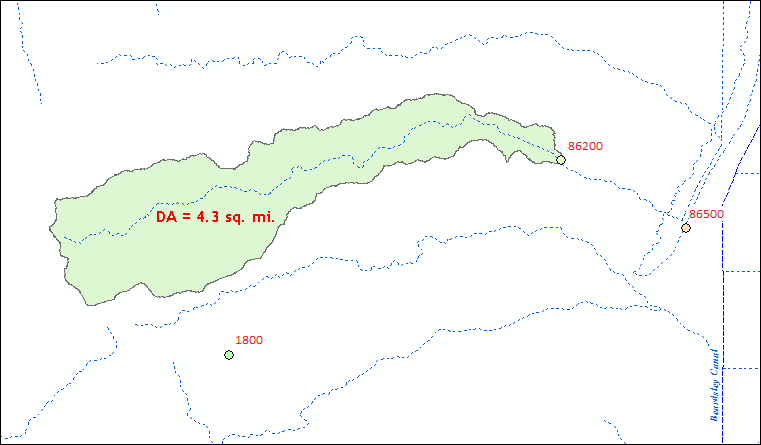

DRAINAGE AREA 4.3 mi2
STREAM TYPE Natural Stream
JURISDICTION Maricopa County, Arizona
WATERSHED White Tanks B
SECTION/TOWNSHIP/RANGE S18 T3N R2W
LATITUDE N 33° 35' 47.3"  |  +33.59648
LONGITUDE W 112° 29' 57.3"  |  -112.49925
ARIZONA STATE PLANE E 522575  | N 945100
USGS QUAD SHEET Waddell 7.5-Minute
STREAMGAGE INSTALLATION DATE 02/05/2002 - WY 2002
PERIOD OF AVAILABLE DATA RECORD 02/05/2002 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 22.65 Years | 8,274 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.72 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 1
ZERO GAGE HEIGHT ELEVATION 1,468.07 feet NAVD88
POINT OF ZERO FLOW 0.7 feet Gage Height
EXTREME FOR PERIOD OF RECORD 1,682 cfs | 4.37 feet | 09/08/2014

Back to Top   |   Streamflow Homepage   |   FCD Home Page

TRAVEL TIMES

Estimated Time to McMicken Dam, about 1.5 miles downstream
Discharge (cfs) Gage Height (feet) Time (minutes)
100 1.49 31
500 2.43 17
1,000 3.12 13
1,500 3.67 11

Back to Top   |   Streamflow Homepage   |   FCD Home Page

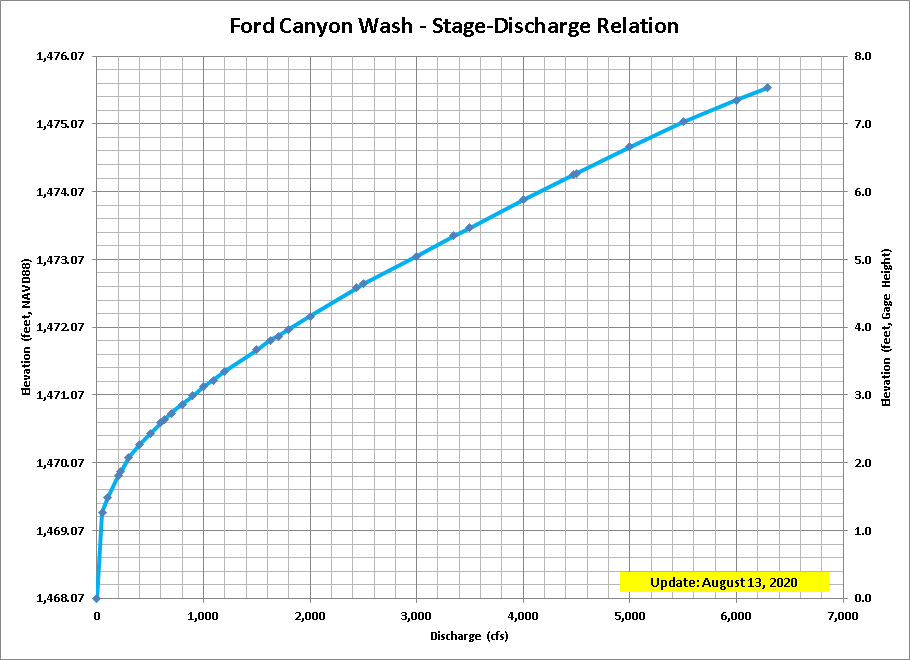

BRIEF RATING

Current Rating = #2 - Applied since 10/01/2019
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 1,468.07
50 1.27 1,469.34
100 1.49 1,469.56
300 2.08 1,470.15
500 2.43 1,470.50
800 2.86 1,470.93
1,000 3.12 1,471.19
1,500 3.67 1,471.74
2,000 4.16 1,472.23
3,000 5.05 1,473.12

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 None 0 None
2023 None 0 None
2022 1.82 204 08/10/2022
2021 None 0 None
2020 1.56 104 03/13/2020
2019 2.37 328 10/13/2018
2018 None 0 None
2017 None 0 None
2016 None 0 None
2015 None 0 None
2014 4.37 1,682 09/08/2014
2013 1.27 57 08/24/2013
2012 None 0 None
2011 None 0 None
2010 2.30 303 01/21/2010
2009 None 0 None
2008 None 0 None
2007 None 0 None
2006 None 0 None
2005 0.82 4 08/02/2005
2004 1.39 76 10/10/2003
2003 3.32 787 09/04/2003
2002 0.75 4 09/11/2002

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

08/10/2022 18:14 08/10/2022 17:35 08/10/2022 22:15 4.7 1.82 204 2022
03/13/2020 01:25 03/13/2020 00:42 03/13/2020 07:10 6.5 1.56 104 2020
09/26/2019 07:06 09/26/2019 07:00 09/26/2019 09:45 2.8 1.23 51 2019
10/14/2018 02:23 10/14/2018 01:36 10/14/2018 06:00 4.4 1.15 40 2019
10/13/2018 11:08 10/13/2018 11:06 10/13/2018 18:00 6.9 2.37 328 2019
09/08/2014 03:35 09/08/2014 03:31 09/08/2014 09:12 5.7 4.37 1,682 2014
07/03/2014 22:11 07/03/2014 22:08 07/03/2014 23:18 1.2 1.10 32 2014
08/24/2013 05:31 08/24/2013 05:30 08/24/2013 06:17 0.8 1.27 57 2013
01/21/2010 20:35 01/21/2010 20:24 01/21/2010 22:14 1.8 2.30 303 2010
08/02/2005 22:35 08/02/2005 22:35 single report 0.0 0.82 4 2005
10/10/2003 06:05 10/10/2003 06:03 10/10/2003 07:46 1.7 1.39 76 2004

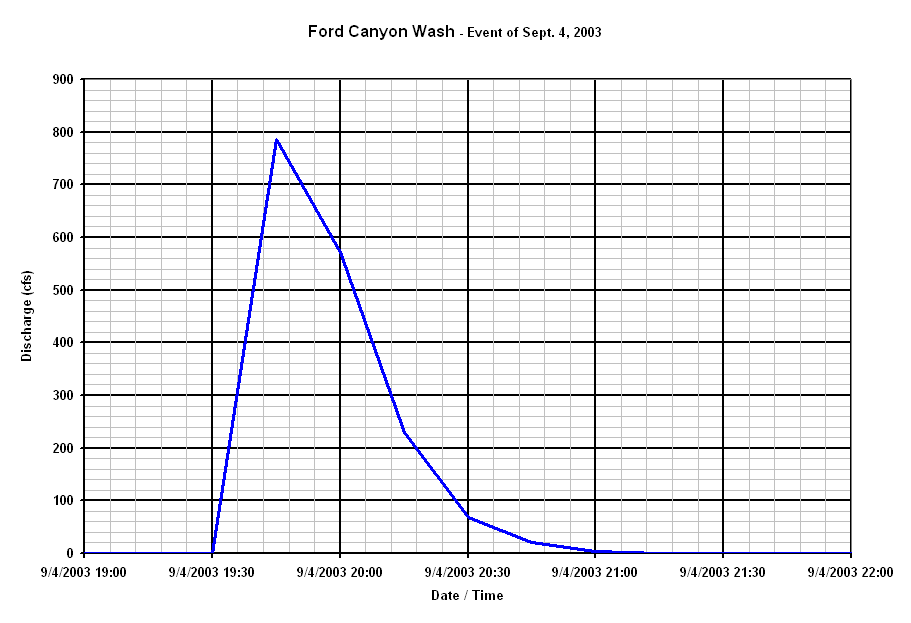

09/04/2003 19:43 09/04/2003 19:39 09/04/2003 20:46 1.1 3.32 787 2003
07/29/2003 22:52 07/29/2003 22:42 07/29/2003 23:44 1.0 1.95 193 2003
02/25/2003 19:49 02/25/2003 19:47 02/25/2003 20:05 0.3 0.92 12 2003

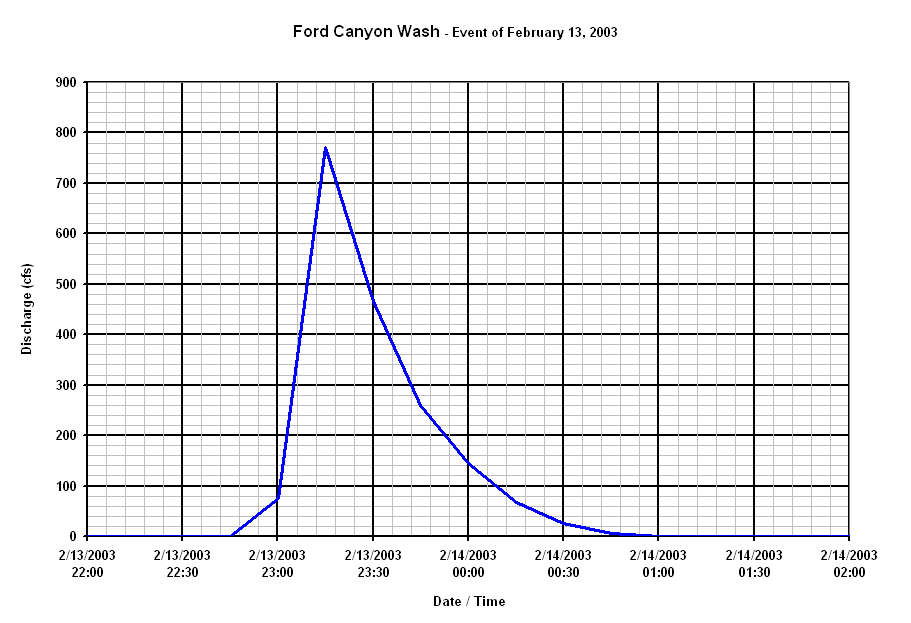

02/13/2003 23:07 02/13/2003 22:55 02/14/2003 00:52 3.0 3.30 740 2003
09/11/2002 02:23 09/11/2002 02:23 09/11/2002 03:52 1.5 0.75 4 2002

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
HEC-1 Analysis
2-year 5-year 10-year 25-year 50-year 100-year 200-year 500-year
USGS StreamStats Flood Flow Frequency
2-year 5-year 10-year 25-year 50-year 100-year 200-year 500-year

Back to Top   |   Streamflow Homepage   |   FCD Home Page

CREST STAGE GAGES

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 0.77 Located on left bank near transducer
