Dysart Drain at El Mirage Road - ID # 85707

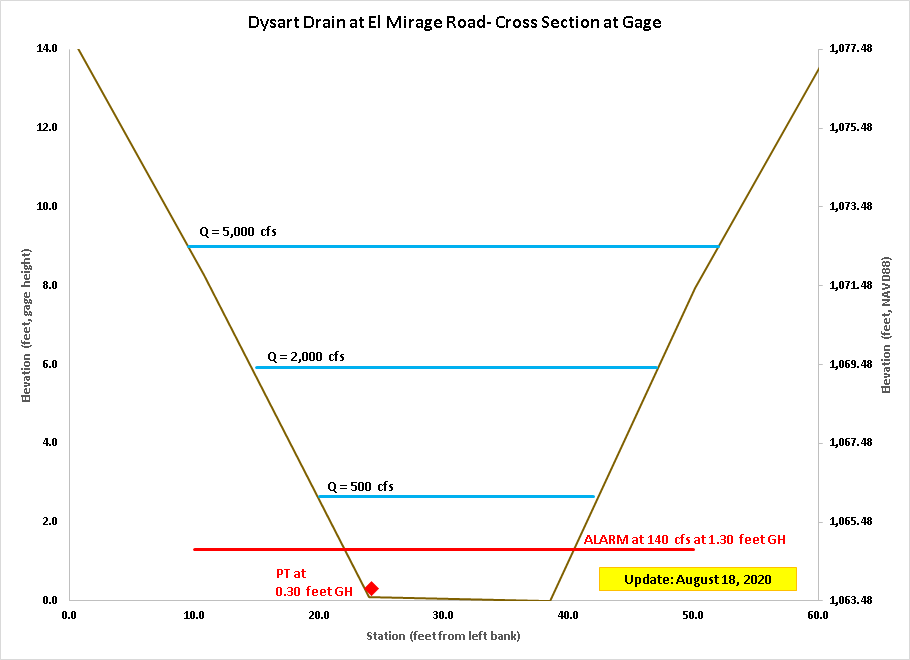

Current at Gage | Station Description | Rating Curve | Rating Table | Cross Section | DSS

Page Last Updated: 18 October 2023

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

85707 0.30 feet 1,054.59 feet NAVD88 05/05/2020 -- Current
5423 0.30 feet 1,054.59 feet NAVD88 10/01/2017 -- 05/05/2020
5423 0.20 feet 1,052.40 feet M.S.L. 01/18/2006 -- 09/30/2017
5422 SONAR Undetermined 01/19/1999 -- 01/18/2006
5423 0.20 feet 1,052.40 feet M.S.L. 03/07/1997 -- 07/13/2000

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

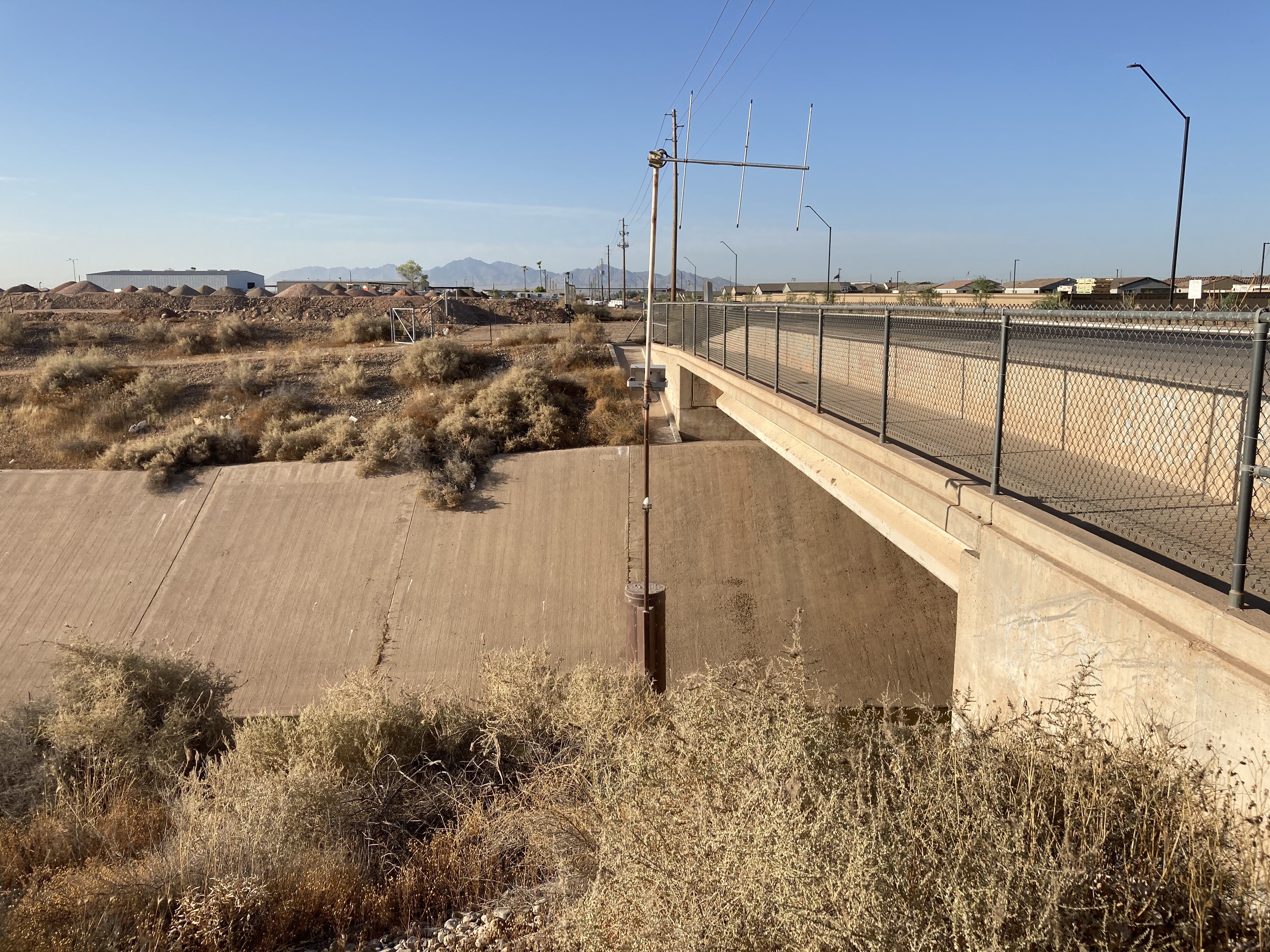

LOCATION On El Mirage Road about mid-way between Glendale and Northern Avenues
DRAINAGE AREA 34.7 mi2
STREAM TYPE Engineered Channel
JURISDICTION Glendale, Arizona
WATERSHED White Tanks A
SECTION/TOWNSHIP/RANGE S016 T2N R1W
LATITUDE N 33° 32' 37.1"  |  +33.54370
LONGITUDE W 112° 19' 26.6"  |  -112.32399
ARIZONA STATE PLANE E 575902  | N 925591
USGS QUAD SHEET El Mirage 7.5-Minute
STREAMGAGE INSTALLATION DATE 03/07/1997 - WY 1997
PERIOD OF AVAILABLE DATA RECORD 03/07/1997 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2023) 26.57 Years | 9,704 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.30 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,054.287 feet NAVD88
POINT OF ZERO FLOW 0.0 feet Gage Height
EXTREME FOR PERIOD OF RECORD 836 cfs | 3.53 feet | 07/26/2022

Back to Top   |   Streamflow Homepage   |   FCD Home Page

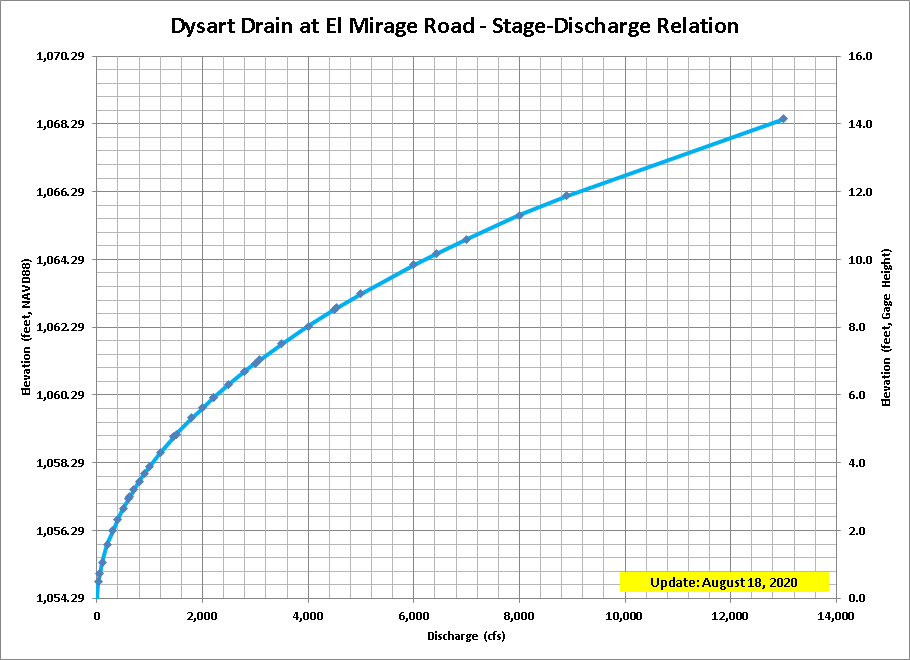

BRIEF RATING

Current Rating = #3 - Applied since 10/01/2019
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 1,054.29
25 0.49 1,054.78
50 0.73 1,055.02
100 1.07 1,055.36
200 1.59 1,055.88
500 2.66 1,056.95
800 3.45 1,057.74
1,000 3.89 1,058.18
1,500 4.84 1,059.13
2,000 5.63 1,059.92
3,000 6.94 1,061.23

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2024
2023 3.26 723 09/01/2023
2022 3.53 835 07/26/2022
2021 2.72 521 07/25/2021
2020 None 0 None
2019 None 0 None
2018 1.15 53 08/11/2018
2017 2.36 116 07/16/2017
2016 None 0 None
2015 None 0 None
2014 5.30 823 09/08/2014
2013 2.95 167 08/26/2013
2012 2.28 *0* 12/02/2011
2011 1.82 113 12/30/2010
2010 5.15 775 01/21/2010
2009 0.73 25 08/13/2009
2008 2.85 257 12/01/2007
2007 3.30 334 08/01/2007
2006 2.20 160 07/26/2006
2005 3.92 453 08/03/2005
2004 2.74 238 08/18/2004
2003 4.32 545 02/14/2003
2002 1.46 78 09/06/2002
2001 3.18 311 10/27/2000
2000 0.84 32 03/06/2000
1999 1.30 65 09/19/1999
1998 3.00 280 02/17/1998
1997 0.20 2 04/07/1997

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY (RUNOFF ≥ 25 CFS)

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

03/22/2023 07:51 03/21/2023 00:00 03/23/2023 00:00 48.0 1.72 231 2023
03/15/2023 21:41 03/13/2023 12:00 03/17/2023 06:00 90.0 1.93 284 2023
03/01/2023 20:03 03/01/2023 06:00 03/03/2023 03:01 45.0 1.88 271 2023
12/28/2022 09:04 12/26/2022 12:00 01/02/2022 00:00 180.0 1.55 191 2023
11/10/2022 12:00 11/09/2022 06:00 11/12/2022 00:00 66.0 0.87 69 2023
10/15/2022 18:20 10/14/2022 18:00 10/19/2022 00:00 102.0 2.13 228 2023
09/25/2022 12:00 09/21/2022 01:00 09/25/2022 18:00 137.0 0.76 54 2022
09/09/2022 22:53 09/09/2022 18:00 09/10/2022 06:00 12.0 0.73 50 2022
8/21/2022 04:22 08/18/2022 20:41 08/22/2022 16:46 92.1 3.11 665 2022
08/18/2022 22:14 08/18/2022 18:00 08/23/2022 00:00 102.0 2.51 452 2022
08/04/2022 07:00 08/04/2022 05:30 08/04/2022 15:46 10.3 0.95 81 2022
07/28/2022 11:54 07/28/2022 11:48 07/29/2022 18:00 30.2 2.54 461 2022
07/26/2022 01:15 07/26/2022 00:00 07/26/2022 18:00 18.0 3.53 835 2022
07/17/2022 22:43 07/17/2022 18:00 07/18/2022 03:14 9.2 1.94 287 2022
12/24/2021 16:21 12/24/2021 09:27 12/24/2021 20:44 11.3 1.65 214 2022
08/17/2021 05:51 08/17/2021 05:47 08/17/2021 06:40 0.9 0.57 33 2021
08/14/2021 00:33 08/14/2021 00:33 08/14/2021 01:04 0.5 0.41 19 2021
07/25/2021 12:00 07/25/2021 09:41 07/25/2021 19:43 10.0 2.72 521 2021
07/25/2021 01:31 07/25/2021 01:21 07/25/2021 02:40 1.3 0.62 38 2021
07/15/2021 19:11 07/15/2021 17:22 07/16/2021 00:50 7.5 0.89 72 2021
07/14/2021 06:28 07/14/2021 05:31 07/14/2021 13:59 8.5 1.75 238 2021
08/14/2018 20:54 08/14/2018 20:54 08/14/2018 23:51 3.0 0.75 26 2018
08/11/2018 01:05 08/11/2018 00:48 08/11/2018 05:27 4.7 1.15 53 2018
08/08/2018 21:09 08/08/2018 21:00 08/08/2018 22:01 1.0 0.75 26 2018
07/11/2018 22:08 07/11/2018 21:57 07/12/2018 00:53 2.9 0.92 88 2018
08/13/2017 03:40 08/13/2017 03:05 08/13/2017 06:19 3.2 2.19 88 2017
07/29/2017 18:00 07/29/2017 14:45 07/29/2017 18:43 1.0 2.11 76 2017
07/16/2017 23:44 07/16/2017 23:09 07/17/2017 00:47 1.6 2.36 116 2017
09/27/2014 15:12 09/27/2014 14:58 09/27/2014 20:46 5.8 2.15 84 2014
09/08/2014 05:32 09/08/2014 03:15 09/08/2014 16:27 13.2 5.30 823 2014
08/19/2014 23:26 08/19/2014 06:17 08/25/2014 10:25 148 4.70 203 2014
08/12/2014 23:26 08/12/2014 21:29 08/15/2014 11:26 62.0 4.75 210 2014
08/01/2014 23:58 08/01/2014 13:01 08/04/2014 09:21 68.3 5.00 249 2014
07/04/2014 02:05 07/03/2014 22:00 07/05/2014 20:05 46.1 4.95 241 2014
03/01/2014 20:56 03/01/2014 13:18 03/03/2014 07:18 42.0 3.80 90 2014
12/20/2013 13:18 12/20/2013 02:09 12/22/2013 13:18 59.2 3.05 33 2014
11/22/2013 07:28 11/22/2013 06:04 11/24/2013 13:17 55.2 3.75 86 2014
09/09/2013 18:45 09/09/2013 15:44 09/10/2013 01:20 9.6 1.48 28 2013
09/07/2013 10:57 09/06/2013 22:12 09/08/2013 04:57 30.8 1.48 28 2013
08/29/2013 00:26 08/28/2013 23:30 08/29/2013 16:57 17.5 2.65 128 2013
08/26/2013 21:21 08/26/2013 20:48 08/27/2013 13:54 17.1 2.95 167 2013
08/24/2013 13:42 08/24/2013 11:40 08/26/2013 09:08 45.5 1.62 38 2013
07/20/2013 04:57 07/19/2013 23:36 07/21/2013 04:14 28.6 2.45 104 2013
12/02/2011   Data Unavailable Data Unavailable   2.28 *Uncertain* 2011
12/30/2010 03:20 12/30/2010 01:51 12/30/2010 14:11 12.3 1.82 113 2011
12/23/2010 01:17 12/22/2010 23:11 12/23/2010 06:23 7.2 0.90 36 2011
08/22/2010 01:05 08/22/2010 00:03 08/22/2010 09:14 9.2 1.90 122 2010
03/07/2010 20:02 03/07/2010 12:59 03/08/2010 04:23 15.4 1.35 69 2010
02/28/2010 02:17 02/28/2010 01:10 02/28/2010 05:50 4.7 0.58 16 2010
01/21/2010 21:04 01/21/2010 04:01 01/23/2010 00:00 44.0 5.15 775 2010
01/19/2010 22:22 01/19/2010 20:17 01/20/2010 18:17 22.0 3.60 390 2010
08/13/2009 00:41 08/13/2009 00:12 08/13/2009 05:44 5.5 0.73 25 2009
01/28/2008 00:52 01/27/2008 03:59 01/29/2008 15:34 59.9 2.65 225 2008
01/07/2008 11:47 01/07/2008 09:32 01/08/2008 09:33 24.0 1.17 55 2008
12/01/2007 00:42 11/30/2007 06:15 12/03/2007 21:34 87.3 2.85 257 2008
08/01/2007 18:28 07/31/2007 21:25 08/02/2007 15:26 42.0 3.30 334 2007
07/23/2007 18:39 07/23/2007 18:00 07/24/2007 13:44 19.7 2.40 188 2007
07/21/2007 09:24 07/20/2007 13:17 07/22/2007 17:44 52.5 0.90 36 2007
09/02/2006 19:31 09/02/2006 04:40 09/04/2006 04:30 47.8 2.05 141 2006
08/22/2006 09:15 08/22/2006 08:21 08/22/2006 16:51 8.5 1.05 46 2006
08/12/2006 00:08 08/11/2006 23:34 08/12/2006 04:51 5.3 1.30 65 2006
07/31/2006 10:27 07/30/2006 16:29 07/31/2006 16:51 24.4 0.88 35 2006
07/26/2006 13:27 07/26/2006 09:19 07/27/2006 22:21 37.0 2.20 160 2006
10/18/2005 14:10 10/18/2005 10:15 10/19/2005 05:45 19.5 1.50 81 2006
09/04/2005 21:57 Data Unavailable Data Unavailable   1.00 42 2005
08/03/2005 01:29 Data Unavailable Data Unavailable   3.92 453 2005
07/30/2005 19:59 Data Unavailable Data Unavailable   3.16 308 2005
03/05/2005 18:26 Data Unavailable Data Unavailable   1.94 126 2005
02/24/2005 02:46 Data Unavailable Data Unavailable   2.26 167 2005
02/19/2005 11:06 Data Unavailable Data Unavailable   1.84 115 2005
02/12/2005 07:36 Data Unavailable Data Unavailable   2.18 157 2005
02/11/2005 22:56 Data Unavailable Data Unavailable   2.18 157 2005
01/29/2005 16:04 Data Unavailable Data Unavailable   1.04 45 2005
01/04/2005 19:55 Data Unavailable Data Unavailable   1.94 126 2005
12/29/2004 06:04 Data Unavailable Data Unavailable   0.90 36 2005
11/22/2004 08:22 Data Unavailable Data Unavailable   1.36 69 2005
11/07/2004 09:04 Data Unavailable Data Unavailable   1.12 51 2005
10/28/2004 08:19 Data Unavailable Data Unavailable   0.72 25 2005
09/18/2004 20:35 09/18/2004 19:35 09/19/2004 13:51 18.3 2.18 157 2004
08/18/2004 22:08 09/18/2004 19:08 09/19/2004 13:51 17.0 2.74 238 2004
04/04/2004 18:18 04/04/2004 17:03 04/05/2004 06:18 13.2 1.10 49 2004
11/12/2003 21:15 11/12/2003 05:25 11/13/2003 17:25 36.0 1.10 49 2004
08/27/2003 04:43 08/27/2003 00:48 08/27/2003 11:28 10.7 1.58 88 2003
07/29/2003 22:20 07/29/2003 21:40 07/30/2003 07:20 9.7 0.84 32 2003
02/25/2003 21:52 02/25/2003 01:17 02/26/2003 01:32 24.3 1.38 71 2003
02/14/2003 00:52 02/13/2003 05:32 02/16/2003 09:07 75.6 4.32 545 2003
10/26/2002 11:28 10/26/2002 08:23 10/27/2002 09:58 25.6 0.76 27 2003
09/07/2002 21:45 09/07/2002 14:25 09/10/2002 14:26 72.0 1.42 74 2002
09/06/2002 22:15 09/06/2002 20:00 09/07/2002 09:50 13.8 1.46 78 2002
08/17/2001 06:58 08/17/2001 06:18 08/17/2001 10:48 4.5 0.76 27 2001
10/30/2000   Data Unavailable Data Unavailable   1.08 48 2001
10/27/2000   Data Unavailable Data Unavailable   3.18 311 2001
10/22/2000   Data Unavailable Data Unavailable   1.62 92 2001
03/06/2000   Data Unavailable Data Unavailable   0.83 32 2000
09/19/1999   Data Unavailable Data Unavailable   1.44 76 1999
07/15/1999   Data Unavailable Data Unavailable   1.10 49 1999
09/11/1998   Data Unavailable Data Unavailable   1.15 53 1998
08/07/1998   Data Unavailable Data Unavailable   0.87 34 1998
07/07/1998   Data Unavailable Data Unavailable   0.77 28 1998
02/17/1998   Data Unavailable Data Unavailable   3.00 280 1998
02/15/1998   Data Unavailable Data Unavailable   1.18 55 1998
02/09/1998   Data Unavailable Data Unavailable   0.93 38 1998
02/04/1998   Data Unavailable Data Unavailable   1.00 42 1998

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
USGS StreamStats Flood Flow Frequency
2-year 5-year 10-year 25-year 50-year 100-year 200-year 500-year
Flood Flow Frequency
Based on HECWRC implementation of Bulletin 17B, n=25, 1997-2020
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year
