Red Mtn. Fwy. Levee @ Brown Rd. - ID # 81507

Current at Gage |  Station Description |  Q Rating Curve |  V Rating Curve |  Q Rating Table |  V Rating Table |  FRS XS |  Local XS |  Watershed Map |  DSS

Page Last Updated: 24 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

81507 0.32 feet 1,571.85 feet NAVD88 04/30/2020 -- Current
6693 0.32 feet 1,571.85 feet NAVD88 10/01/2017 -- 04/30/2020
6693 0.27 feet 1,572.02 feet NAVD88 06/04/2008 -- 09/30/2017

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION Located at Brown Road and SR 202L
DRAINAGE AREA 13.6 mi2  at outlet gage
STREAM TYPE Engineered Channel / Levee / Dam
JURISDICTION Mesa, Arizona

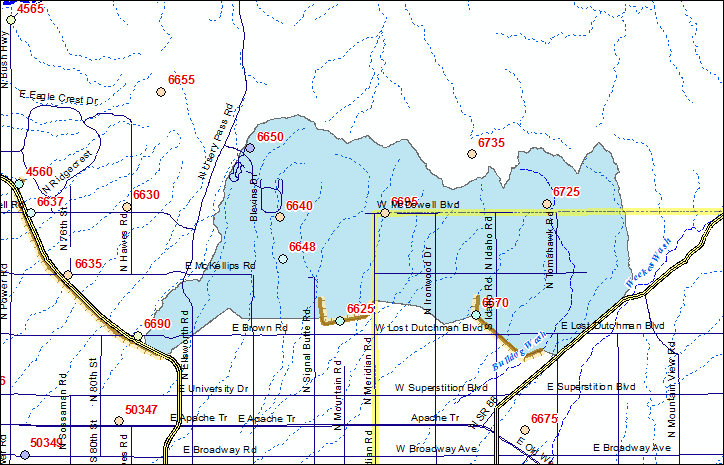

WATERSHED Lower Verde
SECTION/TOWNSHIP/RANGE S16 T1N R7E
LATITUDE N 33° 26' 11.9"  |  +33.43664
LONGITUDE W 111° 38' 52.8"  |  -111.64799
ARIZONA STATE PLANE E 781957  | N 886500
USGS QUAD SHEET Buckhorn 7.5-Minute
STREAMGAGE INSTALLATION DATE 06/04/2008 - WY 2008
PERIOD OF AVAILABLE DATA RECORD 06/04/2008 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 16.33 Years | 5,963 Days
GAPS (> 2 DAYS) IN RECORD None

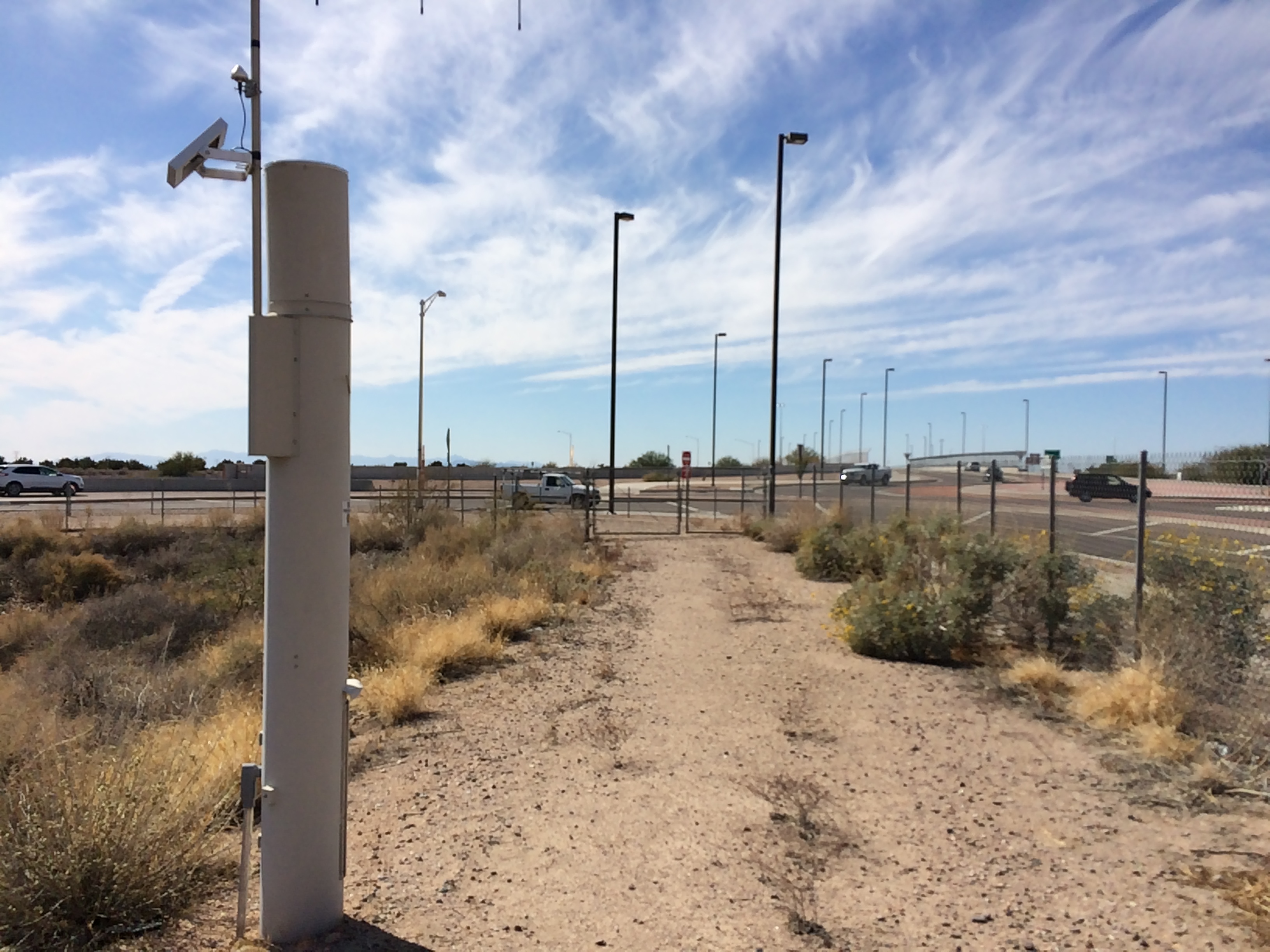

STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.32 feet Gage Height
STAFF GAGES None
CREST STAGE GAGES None
ZERO GAGE HEIGHT ELEVATION 1,571.53 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height

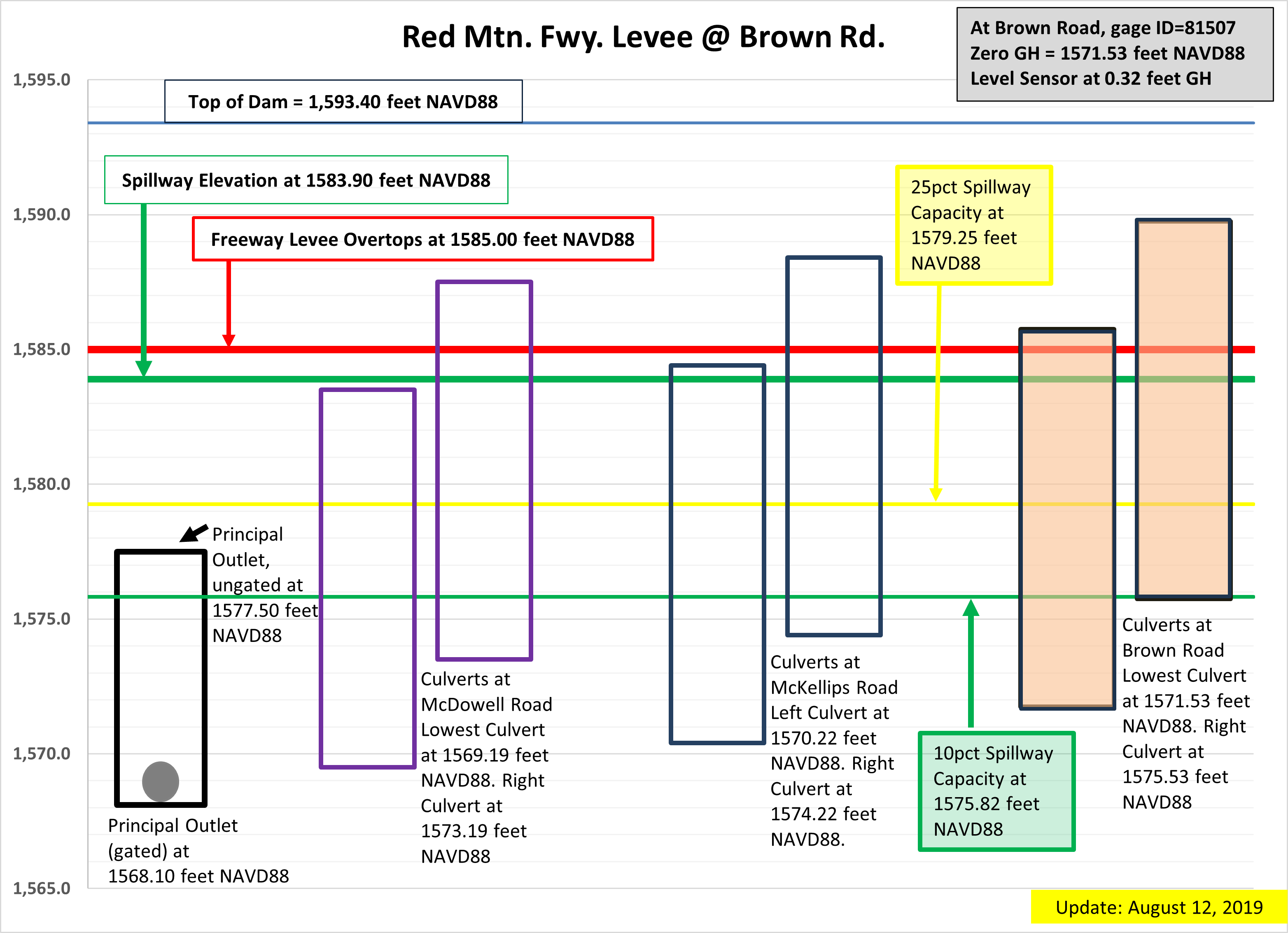

SPOOK HILL DAM ELEVATIONS AS RELATED TO GAGE HEIGHT AT THIS SITE
SPOOK HILL PRINCIPAL OUTLET ELEVATION -3.43 feet Gage Height
SPOOK HILL UNGATED PRINCIPAL OUTLET INLET ELEVATION 5.97 feet Gage Height
MINIMUM FREEWAY LEVEE ELEVATION UPSTREAM OF BROWN ROAD 13.47 feet Gage Height
SPOOK HILL SPILLWAY ELEVATION 12.37 feet Gage Height
SPOOK HILL TOP OF DAM ELEVATION 21.88 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

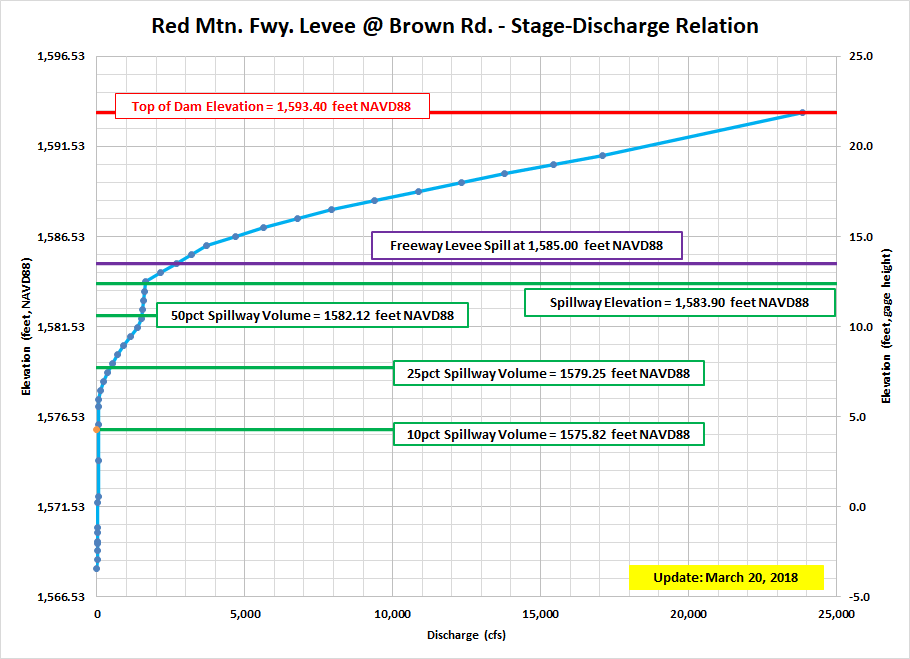

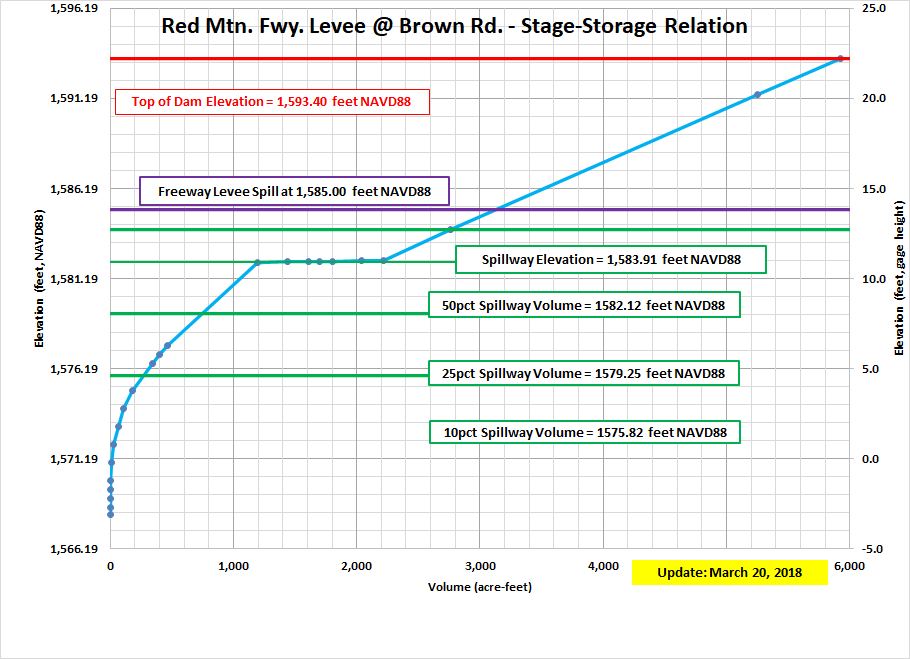

BRIEF RATING

Current Discharge Rating = #1 - Applied since 06/01/2008
Current Capacity Rating = #2 - Applied since 10/01/2015
Gage
Height
(feet)		 Elevation
(feet NAVD 88)		 Volume
(acre-feet)		 Discharge
(cfs)
Controlled Outlet (assumed open)		 Discharge
(cfs)
Uncontrolled Outlet		 Discharge
(cfs)
Spillway		 Discharge
(cfs)
Combined
0.00 1,571.53 23.0 0 0 0 37
0.35 1,571.88 32.3 39 0 0 39
2.35 1,573.88 118 47 0 0 47
4.35 1,575.88 310 54 0 0 54
5.75 1,577.28 469 59 0 0 59
6.75 1,578.28 583 63 161 0 224
8.75 1,580.28 890 69 838 0 907
10.25 1,581.78 1,171 72 1,425 0 1,497
10.65 1,582.18 2,282 72 1,454 0 1,526
11.05 1,582.58 2,405 74 1,481 0 1,555
11.25 1,582.78 2,468 74 1,495 0 1,569
12.37 1,583.90 2,761 76 1,565 0 1,641
12.75 1,584.28 2,937 77 1,638 470 2,164
13.25 1,584.78 3,087 78 1,666 934 2,678
14.75 1,586.28 3,553 79 1,763 2,740 4,582
16.75 1,588.28 4,215 83 1,930 7,284 9,297
18.25 1,589.78 4,741 85 2,108 11,605 13,798
21.65 1,593.18 5,927 90 2,393 21,388 23,871

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-ft)		 Percent
Full
Available Storage Capacity		 Date of
Peak
2025
2024 1.54 77.6 2.0 02/10/2024
2023 1.99 99.3 2.9 10/15/2022
2022 1.99 99.3 2.9 08/12/2022
2021 5.53 439.2 10.1 08/14/2021
2020 2.11 105.1 3.1 11/29/2019
2019 4.73 337.7 7.3 09/23/2019
2018 4.74 338.8 7.3 08/10/2018
2017 2.21 109.9 3.2 07/24/2017
2016 1.71 61.6 18.0 08/09/2016
2015 1.72 62.0 2.5 02/04/2015
2014 5.60 262 10.5 09/08/2014
2013 4.22 149.4 6.0 09/09/2013
2012 3.27 116.2 4.7 09/07/2012
2011 1.00 36.6 1.5 10/06/2010
2010 2.64 94.2 3.8 01/22/2010
2009 0.97 35.7 1.5 02/09/2009
2008 (partial) 5.42 234.8 9.4 07/10/2008

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(ac-ft)		 Percent
Full
(%)		 Water
Year
View a Plot of These Data

02/10/2024 20:52 02/06/2024 18:00 02/13/2024 06:00 156.0 1.54 77.6 2.0 2024
02/02/2024 00:34 02/01/2024 18:00 02/05/2024 06:00 84.0 1.19 61.8 1.6 2024
12/23/2023 6:40 12/22/2023 12:00 12/26/2023 12:00 96.0 0.94 54.6 1.4 2024
12/07/2023 06:00 12/05/2023 06:00 12/08/2023 00:00 66.0 0.66 45.2 1.0 2024
09/12/2023 22:25 09/12/2023 18:00 09/16/2023 12:00 90.0 1.09 59.0 1.6 2023
03/15/2023 00:00 03/14/2023 18:00 03/20/2023 12:00 138.0 1.31 66.3 2.0 2023
03/02/2023 00:00 03/01/2023 18:00 03/10/2023 12:00 210.0 1.39 70.2 2.1 2023
02/26/2023 07:48 02/25/2023 18:00 02/27/2023 12:00 42.0 0.86 52.0 1.3 2023
02/22/2023 10:21 02/20/2023 12:00 02/24/2023 12:00 96.0 0.91 53.6 1.4 2023
01/17/2023 06:00 01/14/2023 10:26 01/25/2023 12:00 265.6 0.86 52.0 1.3 2023
01/01/2023 18:00 12/27/2022 10:48 01/11/2023 12:00 361.2 1.09 59.0 1.6 2023
12/04/2022 06:51 12/02/2022 11:21 12/19/2022 12:00 408.7 0.96 55.1 1.5 2023
10/15/2022 18:37 10/15/2022 09:51 10/22/2022 12:00 170.2 1.99 99.3 2.9 2023
09/12/2022 01:22 09/11/2022 18:00 09/19/2022 12:00 186.0 1.74 87.2 2.6 2022
08/12/2022 16:39 08/12/2022 15:05 08/28/2022 08:55 377.8 1.99 99.3 2.9 2022
07/28/2022 16:20 07/28/2022 09:36 08/05/2022 08:46 191.2 1.44 72.7 2.1 2022
02/24/2022 00:00 02/23/2022 21:07 02/23/2022 12:00 14.9 0.77 49.1 1.2 2022
12/24/2021 18:58 12/24/2021 05:45 12/25/2021 12:00 30.2 0.94 54.5 1.4 2022
08/17/2021 00:18 08/11/2021 07:42 08/20/2021 12:00 220.3 3.63 218.9 5.2 2021
08/14/2021 00:21 08/11/2021 07:42 08/20/2021 12:00 220.3 5.53 439.2 10.1 2021
08/11/2021 08:55 08/11/2021 07:42 08/20/2021 12:00 220.3 3.76 231.9 5.4 2021
07/24/2021 09:28 07/23/2021 10:17 07/26/2021 08:26 61.7 1.09 59.0 1.6 2021
03/18/2020 18:25 03/18/2020 08:34 03/21/2020 12:50 76.3 0.96 55.1 1.5 2020
03/13/2020 02:36 03/13/2020 01:24 03/13/2020 09:15 7.9 0.74 48.0 1.1 2020
12/25/2019 09:47 12/25/2019 09:32 12/26/2019 00:00 14.5 0.94 54.5 1.4 2020
11/29/2019 07:39 11/29/2019 04:57 12/01/2019 10:56 54.0 2.11 105.1 3.1 2020
09/23/2019 08:14 09/23/2019 03:38 09/27/2019 12:00 104.4 4.73 337.7 12.2 2019
02/22/2019 01:09 02/21/2019 14:16 02/25/2019 00:00 81.7 1.97 98.3 2.9 2019
10/13/2018 15:16 10/13/2018 08:17 10/17/2018 18:00 106 1.07 58.4 1.6 2019
08/24/2018 23:12 08/24/2018 22:24 08/25/2018 08:05 9.7 0.67 45.6 1.0 2018
08/10/2018 01:17 08/09/2018 23:24 08/15/2018 14:38 13.5 4.74 338.8 7.3 2018
07/30/2018 20:20 07/30/2018 20:03 07/31/2018 00:00 4.0 0.75 48.4 1.2 2018
08/03/2017 19:20 08/03/2017 18:10 08/04/2017 00:54 6.7 1.21 62.3 1.8 2017
07/24/2017 08:43 07/23/2017 19:28 07/26/2017 15:00 67.5 2.21 109.9 3.2 2017
08/09/2016 13:32 08/09/2016 12:03 08/10/2016 06:00 18.0 1.71 61.6 2.5 2016
01/07/2016 13:27 01/07/2016 07:27 01/08/2016 11:08 27.7 0.77 28.7 1.2 2016
05/16/2015 01:28 05/15/2015 05:15 05/28/2015 13:29 320 1.27 46.2 1.9 2015
04/10/2015 01:29 04/09/2015 13:06 04/14/2015 13:29 120 0.92 34.0 1.4 2015
03/03/2015 01:29 03/02/2015 15:05 03/04/2015 10:33 43.5 0.52 20.0 0.8 2015
02/04/2015 07:30 01/30/2015 07:30 02/15/2015 19:30 396 1.72 62.0 2.5 2015
12/04/2014 11:25 12/04/2014 09:35 12/07/2014 13:30 75.9 0.57 21.7 0.9 2015
09/27/2014 19:59 09/27/2014 15:04 10/18/2014 13:50 503 4.60 171 6.9 2014
09/08/2014 08:26 09/08/2014 02:17 09/18/2014 09:32 247 4.60 262 10.5 2014
03/01/2014 21:31 03/01/2014 18:33 03/11/2014 12:33 234 1.02 37.4 1.5 2014
12/20/2013 07:18 12/20/2013 03:49 12/26/2013 00:32 141 0.87 32.2 1.3 2014
11/22/2013 05:12 11/21/2013 19:18 11/28/2013 13:18 162 1.54 55.8 2.3 2014
09/09/2013 13:18 09/08/2013 13:17 09/19/2013 07:18 258 4.22 149.4 6.0 2013
09/03/2013 13:17 09/03/2013 09:37 09/07/2013 13:17 99.7 0.80 29.6 1.2 2013
08/30/2013 19:17 08/30/2013 17:40 09/02/2013 13:17 67.6 1.62 58.4 2.4 2013
03/13/2013 14:14 03/12/2013 13:19 03/17/2013 10:51 118 0.72 27.0 1.1 2013
03/08/2013 22:50 03/07/2013 22:50 03/12/2013 10:51 108 0.84 31.3 1.3 2013
02/22/2013 04:52 02/20/2013 12:33 02/26/2013 10:52 142 0.54 20.8 0.9 2013
01/26/2013 09:08 01/26/2013 07:39 02/01/2013 10:50 147 0.87 32.2 1.3 2013
12/15/2012 18:22 12/14/2012 21:42 12/18/2012 16:49 91.1 0.64 24.3 1.0 2013
09/07/2012 10:33 09/07/2012 09:32 09/18/2012 13:22 268 3.27 116.2 4.7 2012
08/24/2012 10:39 08/23/2012 03:56 09/01/2012 03:00 215 1.20 43.6 1.8 2012
07/14/2012 18:32 07/14/2012 16:25 07/26/2012 21:00 293 1.54 55.8 2.3 2012
03/21/2012 23:59 03/18/2012 13:19 03/26/2012 11:58 191 0.74 27.8 1.2 2012
12/13/2011 22:48 12/13/2011 06:15 12/20/2011 12:15 174 1.60 57.6 2.3 2012
09/10/2011 20:40 09/10/2011 20:18 09/11/2011 10:02 13.7 0.57 21.7 0.9 2011
12/29/2010 21:18 12/29/2010 19:36 01/01/2011 00:30 52.9 0.57 21.7 0.9 2011
10/13/2010 14:58 10/13/2010 12:40 10/16/2010 13:30 72.8 0.72 27.0 1.1 2011
10/06/2010 01:30 10/05/2010 21:01 10/10/2010 19:30 118 1.00 36.6 1.5 2011
09/22/2010 06:16 09/22/2010 01:51 09/27/2010 07:30 126 1.82 65.4 2.7 2010
09/02/2010 16:34 09/02/2010 15:07 09/03/2010 07:31 16.4 0.47 18.2 0.8 2010
08/17/2010 20:57 08/17/2010 17:41 08/19/2010 15:22 45.7 1.82 65.4 2.7 2010
03/09/2010 16:43 03/07/2010 19:12 03/13/2010 10:43 136 1.37 49.7 2.0 2010
02/23/2010 22:44 02/23/2010 16:38 02/24/2010 06:21 13.7 0.45 17.5 0.7 2010
01/22/2010 10:04 01/21/2010 04:45 01/27/2010 04:45 144 2.64 94.2 3.8 2010
01/19/2010 23:10 01/19/2010 22:43 01/20/2010 04:43 6.0 0.69 25.9 1.1 2010
07/24/2009 00:00 07/23/2009 23:20 07/24/2009 05:23 6.1 0.97 35.7 1.5 2009
02/09/2009 23:35 02/09/2009 22:47 02/10/2009 04:49 6.0 0.97 35.7 1.5 2009
12/26/2008 03:50 12/26/2008 02:52 12/26/2008 08:02 5.2 0.57 21.7 0.9 2009
09/11/2008 02:08 09/10/2008 23:27 09/11/2008 20:07 20.7 0.40 15.8 0.7 2008
08/28/2008 23:12 08/28/2008 21:25 08/29/2008 03:32 6.1 0.69 25.9 1.1 2008
08/26/2008 00:25 08/26/2008 00:25 08/26/2008 05:15 4.8 0.37 14.7 0.6 2008
08/14/2008 20:09 08/14/2008 19:06 08/14/2008 23:44 4.6 0.69 25.9 1.1 2008
07/21/2008 20:28 07/21/2008 19:29 07/25/2008 02:09 78.7 1.27 46.2 1.9 2008
07/10/2008 21:13 07/10/2008 19:31 07/21/2008 07:44 252 5.42 234.8 9.4 2008
