Red Mtn. Fwy. Levee @ McDowell Rd. - ID # 80007

Current at Gage  | Station Description  | Q Rating Curve  | V Rating Curve  |  Q Rating Table  | V Rating Table  | FRS XS  | Local XS  | Watershed Map  | DSS

Page Last Updated: 24 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

80007 0.35 feet 1,569.54 feet NAVD88 04/30/2020 -- Current
6637 0.35 feet 1,569.54 feet NAVD88 10/01/2017 -- 04/30/2020
6637 0.00 feet 1,569.50 feet NAVD88 06/19/2008 -- 09/30/2017

Back to Top   |   Streamflow Homepage   |   FCD Home Page

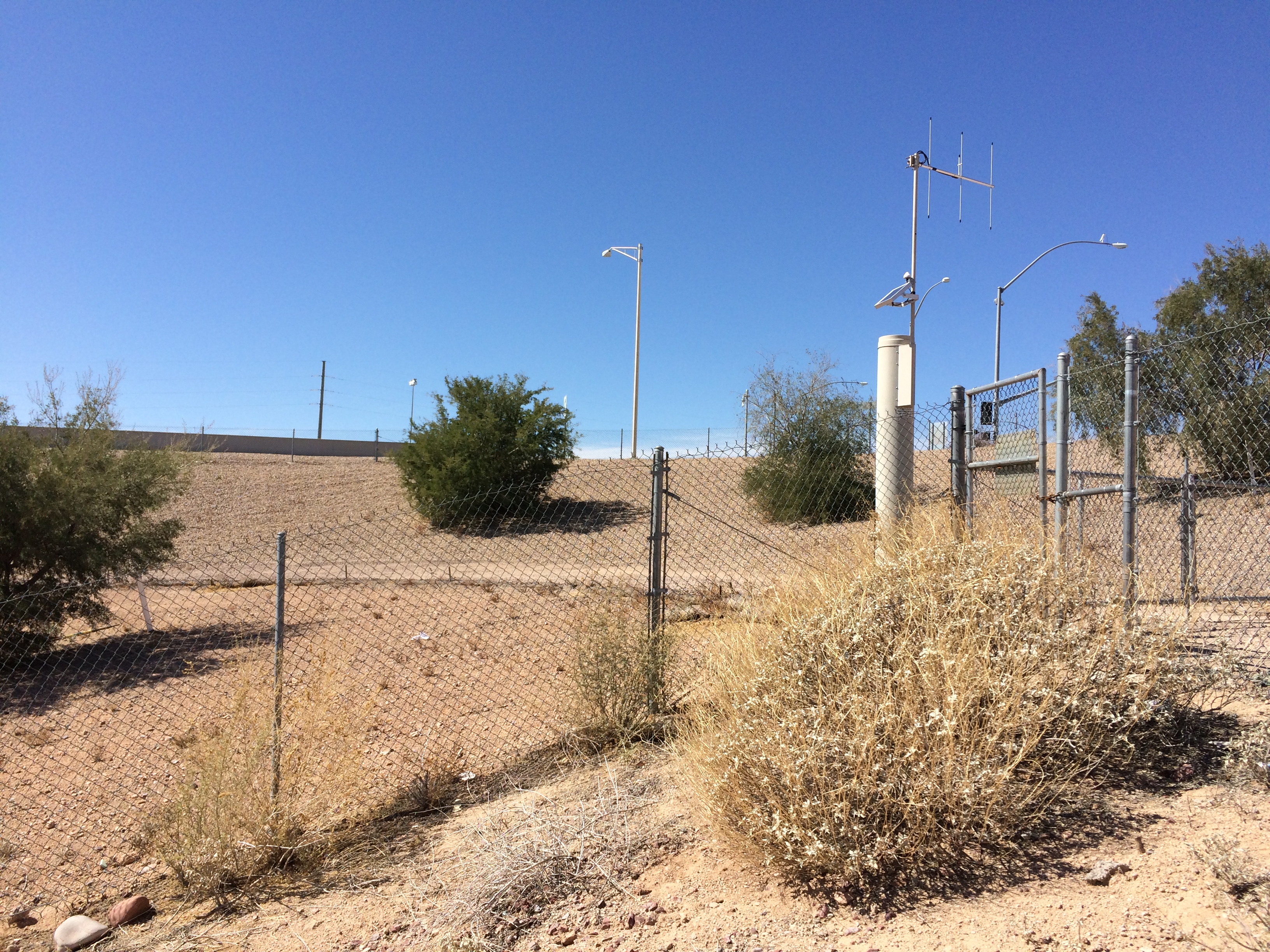

SITE DATA

STATUS Active
LOCATION Located at McDowell Road and the Loop 202
DRAINAGE AREA 13.6 mi2  at outlet gage
STREAM TYPE Engineered Channel / Levee / Dam
JURISDICTION Mesa, Arizona

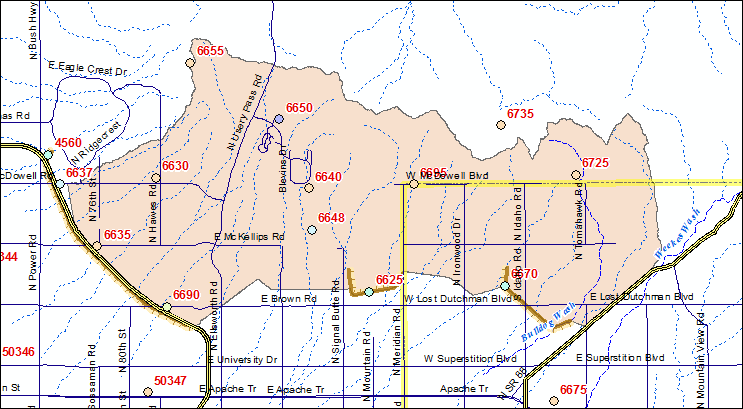

WATERSHED Lower Verde
SECTION/TOWNSHIP/RANGE S06 T1N R7E
LATITUDE N 33° 27' 57.4"  |  +33.46594
LONGITUDE W 111° 40' 42.0"  |  -111.67834
ARIZONA STATE PLANE E 772695  | N 897129
USGS QUAD SHEET Buckhorn 7.5-Minute
STREAMGAGE INSTALLATION DATE 06/19/2008 - WY 2008
PERIOD OF AVAILABLE DATA RECORD 06/19/2008 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 16.28 Years | 5,948 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.35 feet Gage Height
STAFF GAGES None
CREST STAGE GAGES None
ZERO GAGE HEIGHT ELEVATION 1,569.19 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height

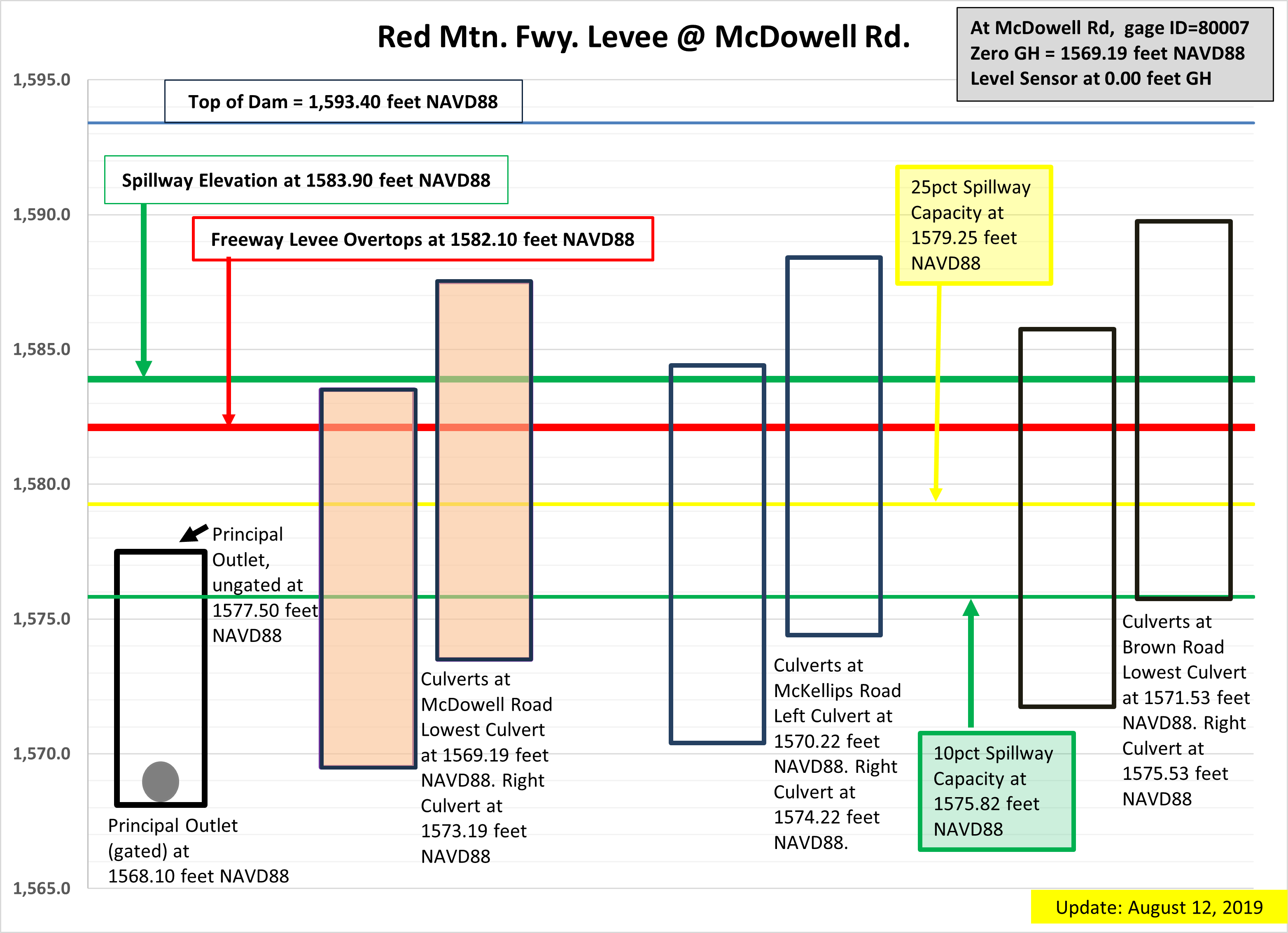

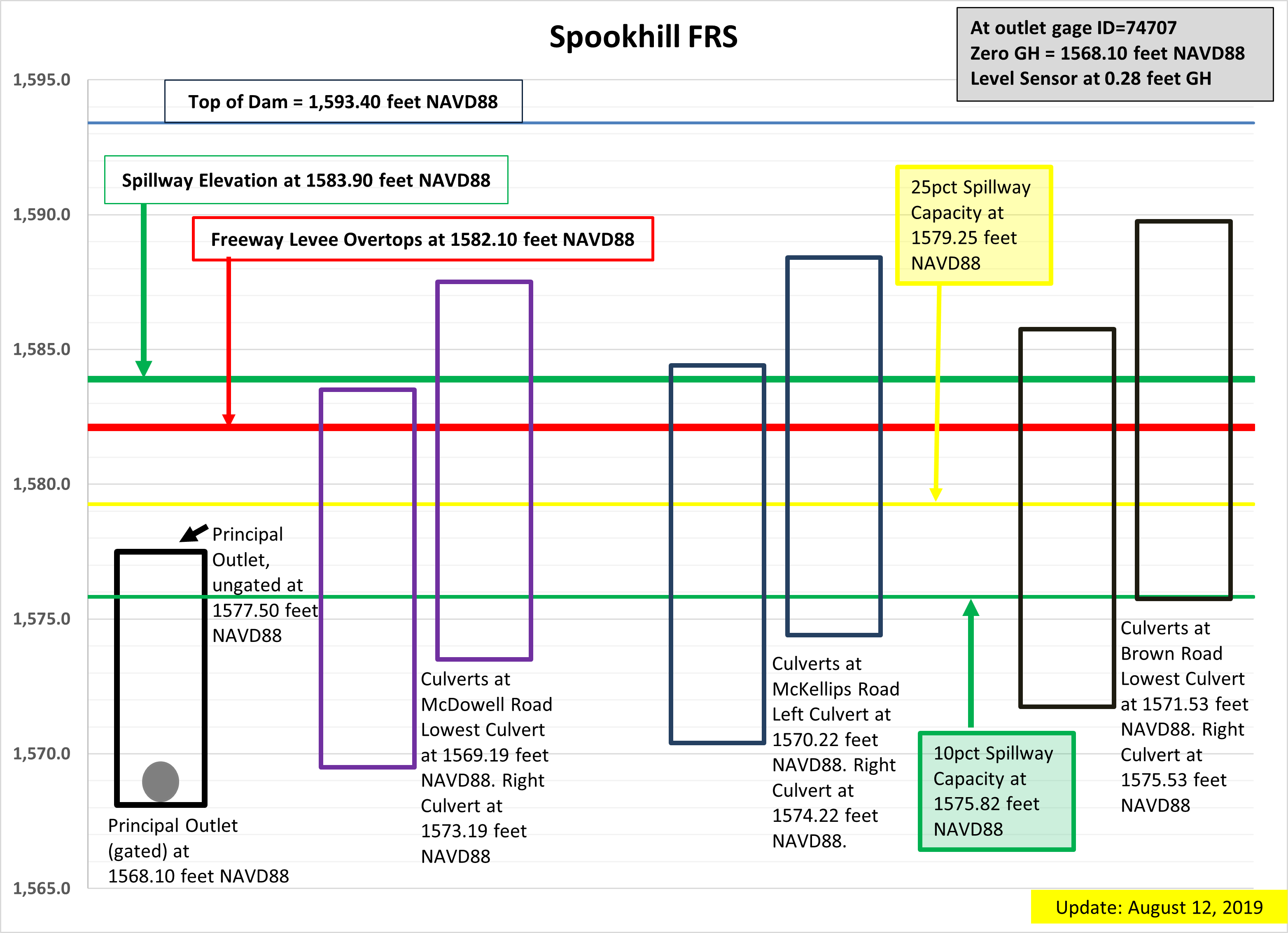

DAM ELEVATIONS AS RELATED TO GAGE HEIGHT AT THIS SITE
SPOOK HILL PRINCIPAL OUTLET ELEVATION -1.09 feet Gage Height
SPOOK HILL UNGATED PRINCIPAL OUTLET INLET ELEVATION 8.31 feet Gage Height
MINIMUM FREEWAY LEVEE ELEVATION UPSTREAM OF McDOWELL ROAD 12.91 feet Gage Height
SPOOK HILL SPILLWAY ELEVATION 14.71 feet Gage Height
SPOOK HILL TOP OF DAM ELEVATION 24.21 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

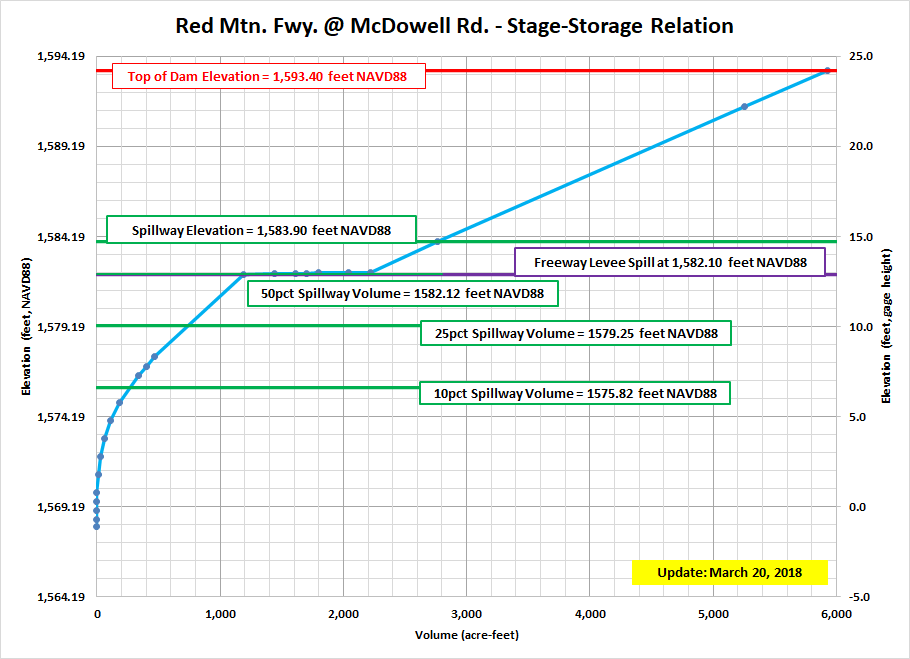

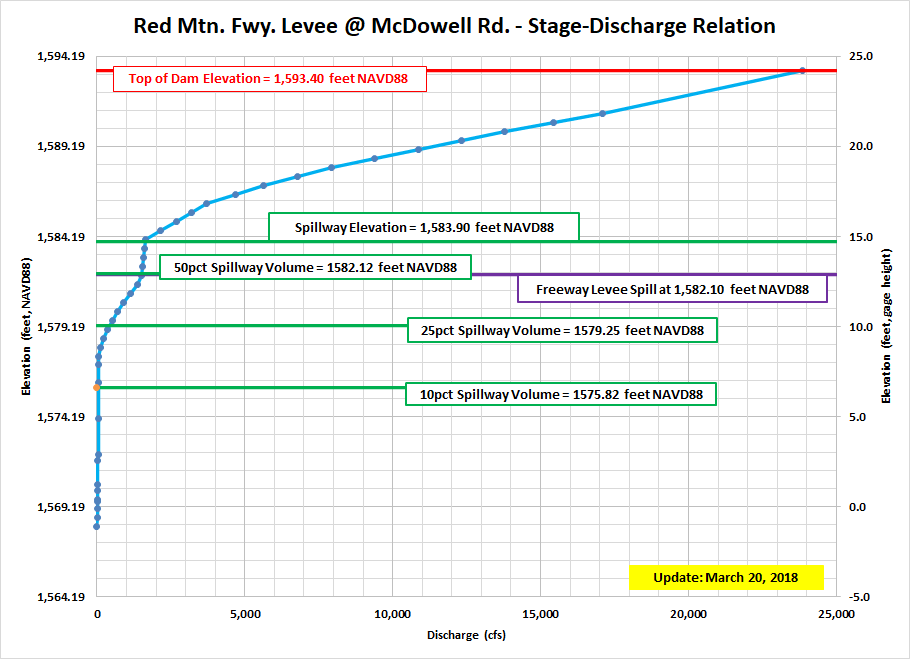

BRIEF RATING

Current Discharge Rating = #1 - Applied since 06/01/2008
Current Capacity Rating = #2 - Applied since 10/01/2015
Gage
Height
(feet)		 Elevation
(feet NAVD 88)		 Volume
(acre-feet)		 Discharge
(cfs)
Controlled Outlet (assumed open)		 Discharge
(cfs)
Uncontrolled Outlet		 Discharge
(cfs)
Spillway		 Discharge
(cfs)
Combined
0.00 1,569.19 0.0 0 0 0 0
0.60 1,569.79 1.5 27 0 0 27
2.60 1,571.79 32.4 39 0 0 39
4.60 1,573.79 118.0 47 0 0 47
6.60 1,575.79 292.2 54 0 0 54
8.00 1,577.19 468.5 59 0 0 59
9.00 1,578.19 596.9 63 161 0 224
11.00 1,580.19 901.6 69 838 0 907
12.50 1,581.69 1,172.6 72 1,425 0 1,497
12.90 1,582.09 2,281.9 72 1,454 0 1,526
13.30 1,582.49 2,405.9 74 1,481 0 1,555
13.50 1,582.69 2,468.9 74 1,495 0 1,569
14.40 1,583.59 2,761.0 76 1,565 0 1,641
15.00 1,584.19 2,939.4 77 1,638 470 2,164
15.50 1,584.69 3,091.1 78 1,666 934 2,678
17.00 1,586.19 3,561.7 79 1,763 2,740 4,582
19.00 1,588.19 4,224.4 83 1,930 7,284 9,297
20.50 1,589.69 4,746.7 85 2,108 11,605 13,798
23.90 1,593.09 5,927 90 5,927.0 21,388 23,871

Back to Top   |   Streamflow Homepage   |   FCD Home Page


WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-ft)		 Percent
Full
Available Storage Capacity		 Date of
Peak
2025
2024 1.85 15.1 0.3 12/23/2023, 02/11/2024
2023 2.24 23.2 0.4 10/16/2022
2022 2.89 41.2 1.0 08/12/2022
2021 7.00 340.0 7.3 08/14/2021
2020 2.46 28.6 0.5 11/29/2019
2019 5.28 165.3 4.4 09/23/2019
2018 5.61 192.3 4.8 08/10/2018
2017 4.11 91.1 2.7 07/24/2017
2016 2.08 9.0 0.4 01/07/2016
2015 1.82 7.5 0.3 05/16/2015
2014 7.25 199.5 8.0 09/08/2014
2013 4.90 94.5 3.8 09/09/2013
2012 3.58 48.1 2.0 09/07/2012
2011 2.68 16.6 0.7 07/24/2011
2010 4.85 92.8 3.8 01/22/2010
2009 1.90 7.9 0.3 07/24/2009
2008 (partial) 7.43 212.1 8.5 07/10/2008

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(ac-ft)		 Percent
Full
(%)		 Water
Year
View a Plot of These Data

02/11/2024 06:00 02/07/2024 00:00 02/13/2024 11:20 155.3 1.85 15.1 0.3 2024
02/02/2024 12:00 02/02/2024 00:00 02/05/2024 18:00 90.0 1.41 8.3 0.2 2024
01/24/2024 06:00 01/23/2024 00:00 01/24/2024 18:00 42.0 0.63 1.6 0.0 2024
12/23/2023 18:00 12/22/2023 16:00 12/27/2023 12:00 116.0 1.85 15.1 0.3 2024
09/12/2023 06:31 09/12/2023 18:00 09/14/2023 12:00 42.0 1.77 13.6 0.3 2023
03/16/2023 06:00 03/15/2023 18:00 03/18/2023 12:00 66.0 0.64 1.7 0.0 2023
02/15/2023 10:18 02/15/2023 10:18 02/16/2023 18:00 31.7 0.64 1.7 0.0 2023
01/17/2023 12:00 01/16/2023 06:00 01/18/2023 00:00 42.0 1.24 6.4 0.2 2023
01/02/2023 17:01 01/01/2023 12:00 01/03/2023 00:00 36.0 1.29 6.9 0.2 2023
10/16/2022 06:00 10/13/2022 12:00 10/18/2022 18:00 126.0 2.24 23.2 0.4 2023
09/21/2022 06:00 09/20/2022 23:22 09/21/2022 13:22 14.0 0.47 0.9 0.1 2022
09/12/2022 11:49 09/11/2022 18:00 09/15/2022 06:00 84.0 0.79 2.5 0.1 2022
09/07/2022 13:16 09/07/2022 12:00 09/07/2022 18:08 6.1 0.87 3.1 0.1 2022
08/12/2022 16:17 08/12/2022 15:30 08/17/2022 00:00 104.5 2.89 41.2 1.0 2022
01/01/2022 12:00 01/01/2022 00:00 01/03/2022 23:13 71.2 0.52 1.0 0.0 2022
12/25/2021 00:00 12/24/2021 10:05 12/27/2021 22:52 84.8 1.40 8.2 0.2 2022
09/02/2021 14:05 09/01/2021 02:55 09/04/2021 00:00 69.1 3.43 60.6 1.8 2021
08/14/2021 06:00 08/11/2021 07:53 08/23/2021 12:00 292.1 7.00 340.0 7.3 2021
07/24/2021 18:00 07/23/2021 11:09 07/29/2021 06:00 138.9 1.24 6.4 0.2 2021
01/25/2021 18:26 01/25/2021 17:32 01/26/2021 12:00 18.5 0.52 1.1 2021
03/19/2020 06:00 03/18/2020 17:30 03/23/2020 00:00 102.5 1.49 9.3 0.2 2020
03/11/2020 18:00 03/11/2020 11:10 03/12/2020 18:00 30.8 0.67 1.8 0.0 2020
02/23/2020 06:00 02/22/2020 13:22 02/28/2020 00:00 130.6 0.94 3.6 0.1 2020
12/26/2019 00:00 12/25/2019 11:02 12/27/2019 11:36 48.6 0.89 3.2 0.1 2020
12/09/2019 15:09 12/09/2019 14:42 12/12/2019 00:00 57.3 2.39 26.8 0.5 2020
11/29/2019 18:00 11/29/2019 05:17 12/03/2019 11:46 102.5 2.46 28.6 0.5 2020
11/21/2019 16:46 11/20/2019 11:06 11/26/2019 12:00 144.9 0.59 1.4 0.0 2020
09/23/2019 12:00 09/23/2019 06:29 09/27/2019 17:36 107.1 5.28 165.3 6.1 2019
08/04/2019 01:40 08/04/2019 01:17 08/05/2019 12:00 34.7 0.37 0.7 0.0 2019
02/22/2019 06:00 02/21/2019 18:07 03/02/2019 00:00 198 3.34 57.1 1.6 2019
10/13/2018 18:00 10/13/2018 11:02 10/19/2018 12:00 145 1.43 8.5 0.2 2019
08/10/2018 06:00 08/09/2018 23:27 08/16/2018 11:38 156 5.61 192.3 4.8 2018
08/08/2018 06:00 08/07/2018 22:12 08/09/2018 18:00 43.8 1.10 5.0 0.1 2018
07/11/2018 00:00 07/11/2018 16:28 07/13/2018 12:00 43.5 0.50 1.0 0.0 2018
08/04/2017 06:00 08/03/2017 19:24 08/08/2017 12:00 113 1.67 12.0 0.3 2017
07/24/2017 12:00 07/23/2017 19:20 07/31/2017 12:00 185 4.11 91.1 2.7 2017
07/21/2017 00:00 07/20/2017 21:04 07/23/2017 18:00 68.9 1.27 6.7 0.2 2017
07/17/2017 06:00 07/17/2017 03:07 07/17/2017 09:50 6.7 0.35 0.7 0.0 2017
02/20/2017 00:00 02/19/2017 00:00 02/23/2017 12:00 108 0.62 1.6 0.0 2017
01/21/2017 06:00 01/20/2017 20:11 01/23/2017 17:09 69.0 1.27 11.7 0.2 2017
01/01/2017 11:34 01/01/2017 08:30 01/03/2017 10:16 49.8 0.80 4.4 0.1 2017
08/10/2016 00:00 08/09/2016 12:50 08/11/2016 15:32 50.7 1.89 7.9 0.3 2016
01/07/2016 19:28 01/06/2016 04:59 01/17/2016 07:28 266 2.08 9.0 0.4 2016
08/11/2015 22:47 08/11/2015 22:40 08/15/2015 07:30 80.8 0.65 1.2 0.0 2015
08/07/2015 18:54 08/07/2015 18:25 08/10/2015 09:40 63.3 1.22 3.9 0.2 2015
07/14/2015 23:26 07/14/2015 23:05 07/16/2015 07:31 32.4 0.20 0.3 0.0 2015
05/16/2015 19:32 05/15/2015 23:23 05/30/2015 07:32 344 1.82 7.5 0.3 2015
01/31/2015 07:34 01/30/2015 13:08 02/16/2015 13:34 408 1.38 4.8 0.2 2015
12/05/2014 16:30 12/05/2014 00:58 12/09/2014 10:30 106 0.55 0.9 0.0 2015
09/27/2014 23:55 09/27/2014 11:55 10/21/2014 10:31 575 6.22 141 5.7 2014
09/08/2014   Data Unavailable Data Unavailable   7.25 199.5 8.0 2014
03/02/2014 05:45 03/01/2014 18:29 03/08/2014 11:45 161 2.18 9.6 0.4 2014
12/20/2013 20:54 12/20/2013 04:17 12/27/2013 11:46 175 1.35 4.7 0.2 2014
11/23/2013 04:48 11/22/2013 04:48 11/30/2013 08:53 196 2.70 17.5 0.7 2014
09/09/2013 20:54 09/09/2013 02:43 09/21/2013 08:54 294 4.90 94.5 3.8 2013
08/31/2013 16:13 08/30/2013 19:11 09/04/2013 07:42 109 1.00 2.6 0.1 2013
03/09/2013 23:05 03/08/2013 22:12 03/13/2013 05:05 103 0.82 1.8 0.1 2013
02/21/2013 17:07 02/21/2013 05:07 02/22/2013 17:07 36.0 0.12 0.2 0.0 2013
01/27/2013 23:05 01/26/2013 09:20 01/31/2013 11:05 122 1.50 5.6 0.2 2013
12/17/2012 17:05 12/17/2012 17:05 12/18/2012 11:05 18.0 0.05 0.1 0.0 2013
12/15/2012 23:06 12/15/2012 19:30 12/17/2012 11:05 39.6 0.15 0.2 0.0 2013
09/07/2012 21:16 09/07/2012 10:09 09/14/2012 15:15 173 3.58 48.1 2.0 2012
08/23/2012 03:40 08/23/2012 03:07 08/30/2012 15:16 180 1.78 7.2 0.3 2012
07/15/2012 03:16 07/14/2012 16:34 07/19/2012 09:16 113 1.90 7.9 0.3 2012
12/14/2011 06:16 12/13/2011 18:10 12/26/2011 04:55 299 2.25 10.0 0.4 2012
09/11/2011 02:31 09/10/2011 20:18 09/19/2011 08:31 204 1.38 4.8 0.2 2011
08/07/2011 20:03 08/07/2011 12:46 08/10/2011 14:03 73.3 0.25 0.4 0.0 2011
07/24/2011 22:59 07/24/2011 22:37 07/31/2011 08:03 153 2.68 16.6 0.7 2011
04/10/2011 01:29 04/09/2011 20:22 04/14/2011 15:46 115 0.28 0.5 0.0 2011
02/27/2011 09:46 02/27/2011 06:37 03/02/2011 03:46 69.2 0.35 0.6 0.0 2011
02/21/2011 21:46 02/20/2011 11:01 02/24/2011 09:46 94.8 0.20 0.3 0.0 2011
12/30/2010 03:47 12/29/2010 20:22 01/11/2011 15:47 307 0.88 1.9 0.1 2011
10/08/2010 21:47 10/05/2010 15:47 10/05/2010 03:47 228 0.52 0.9 0.0 2011
09/22/2010 15:48 09/22/2010 02:53 09/29/2010 09:48 175 3.05 29.8 1.2 2010
08/18/2010 03:25 08/17/2010 17:39 09/01/2010 09:48 352 3.15 33.2 1.4 2010
07/31/2010 09:48 07/31/2010 01:51 08/10/2010 15:48 254 1.30 4.4 0.2 2010
03/08/2010 00:24 03/07/2010 16:45 03/30/2010 09:49 545 3.48 44.6 1.8 2010
03/01/2010 03:48 02/28/2010 03:48 03/04/2010 09:49 102 0.92 2.1 0.1 2010
02/22/2010 21:50 02/21/2010 21:50 02/26/2010 09:51 108 1.23 4.0 0.2 2010
01/22/2010 09:51 01/19/2010 20:52 01/30/2010 21:51 265 4.85 92.8 3.8 2010
09/04/2009 18:25 09/03/2009 21:01 09/13/2009 13:48 233 0.88 1.9 0.1 2009
07/24/2009 07:47 07/23/2009 23:45 08/08/2009 13:46 374 1.90 7.9 0.3 2009
02/10/2009 18:06 02/08/2009 11:31 03/04/2009 18:06 583 1.62 6.3 0.3 2009
12/27/2008 00:05 12/26/2008 01:53 01/14/2009 12:05 466 1.62 6.3 0.3 2009
12/24/2008 00:05 12/23/2008 04:26 12/24/2008 12:05 31.7 0.82 1.7 0.1 2009
12/17/2008 06:05 12/14/2008 02:36 12/20/2008 12:05 154 1.65 6.4 0.3 2009
11/28/2008 00:07 11/27/2008 02:42 12/01/2008 18:07 111 0.90 2.0 0.1 2009
09/10/2008 23:23 09/10/2008 21:00 09/21/2008 09:10 252 1.25 4.1 0.2 2008
08/29/2008 01:59 08/28/2008 21:27 09/05/2008 09:52 180 0.73 1.4 0.0 2008
07/10/2008 22:29 07/10/2008 19:58 08/09/2008 08:19 708 7.43 212.1 8.5 2008
