Red Mtn. Fwy. Levee @ McKellips Rd. - ID # 79807

Current at Gage |  Station Description |  Q Rating Curve |  V Rating Curve |  Q Rating Table |  V Rating Table |  FRS XS |  Local XS |  Watershed Map |   | DSS

Page Last Updated: 24 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

79807 0.31 feet 1,570.53 feet NAVD88 04/29/2020 -- Current
6638 0.31 feet 1,570.53 feet NAVD88 03/01/2018 -- 04/29/2020
6638 0.25 feet 1,570.47 feet NAVD88 06/19/2008 -- 03/01/2018

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

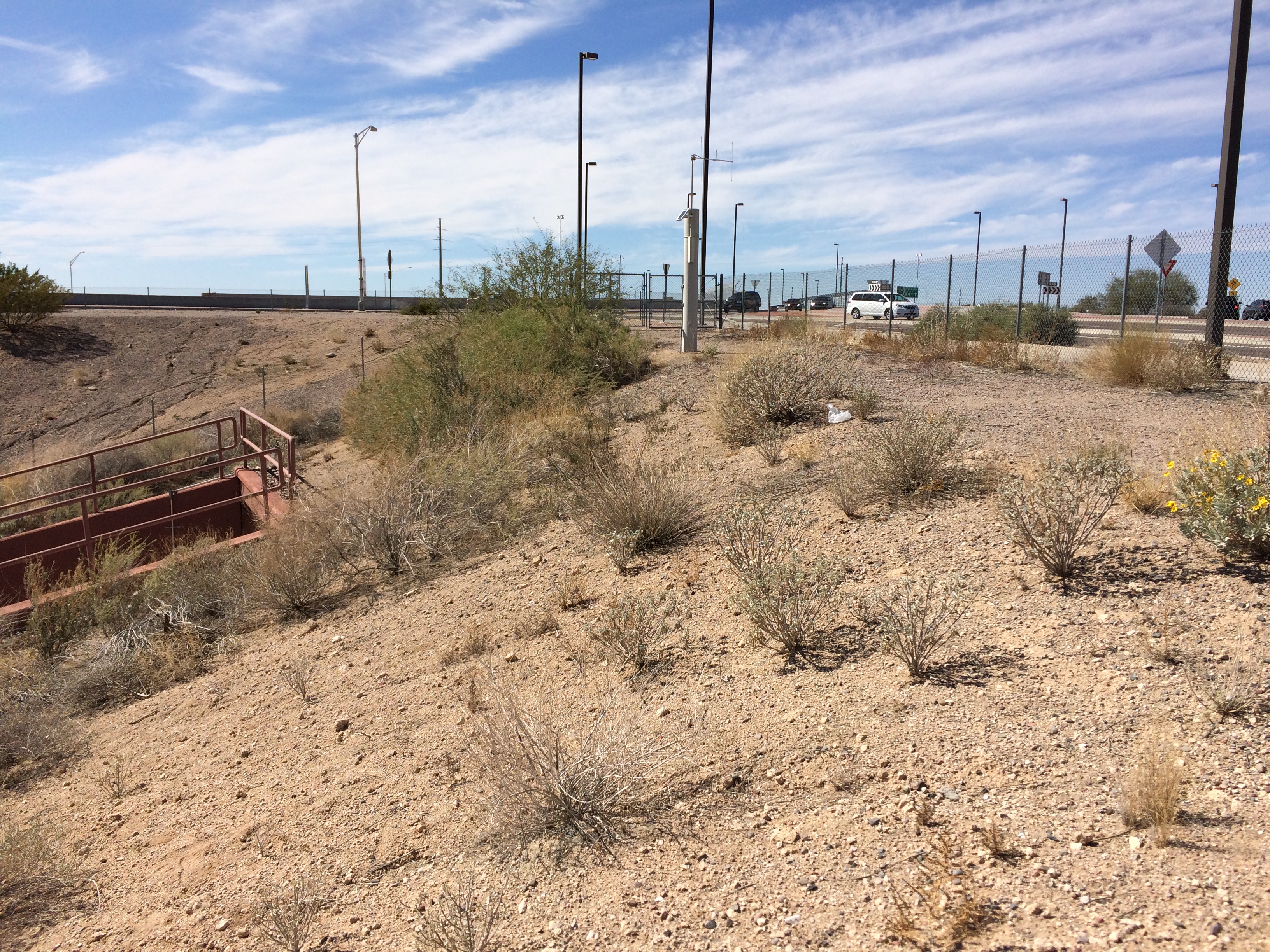

LOCATION Located at McKellips Road and the Loop 202
DRAINAGE AREA 13.6 mi2  at outlet gage
STREAM TYPE Engineered Channel / Levee / Dam
JURISDICTION Mesa, Arizona

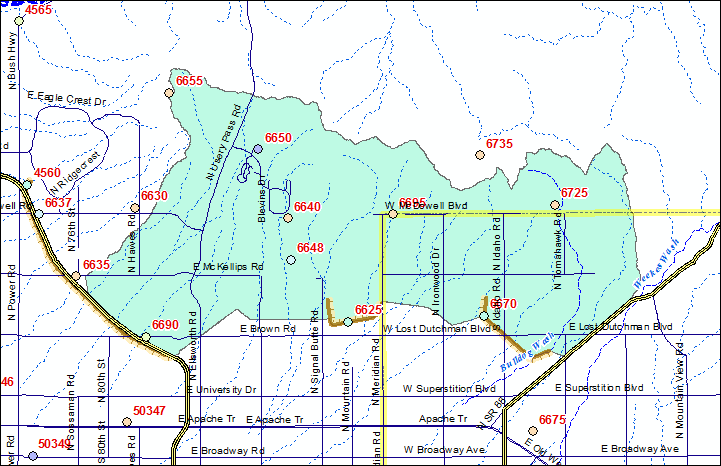

WATERSHED Lower Verde
SECTION/TOWNSHIP/RANGE S07 T1N R7E
LATITUDE N 33° 27' 04.7"  |  +33.45131
LONGITUDE W 111° 40' 03.4"  |  -111.66761
ARIZONA STATE PLANE E 775920  | N 891753
USGS QUAD SHEET Buckhorn 7.5-Minute
STREAMGAGE INSTALLATION DATE 06/19/2008 - WY 2008
PERIOD OF AVAILABLE DATA RECORD 06/19/2008 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 16.28 Years | 5,948 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.31 feet Gage Height
STAFF GAGES None
CREST STAGE GAGES None
ZERO GAGE HEIGHT ELEVATION 1,570.22 feet NAVD 1988
POINT OF ZERO FLOW 0.00 feet Gage Height

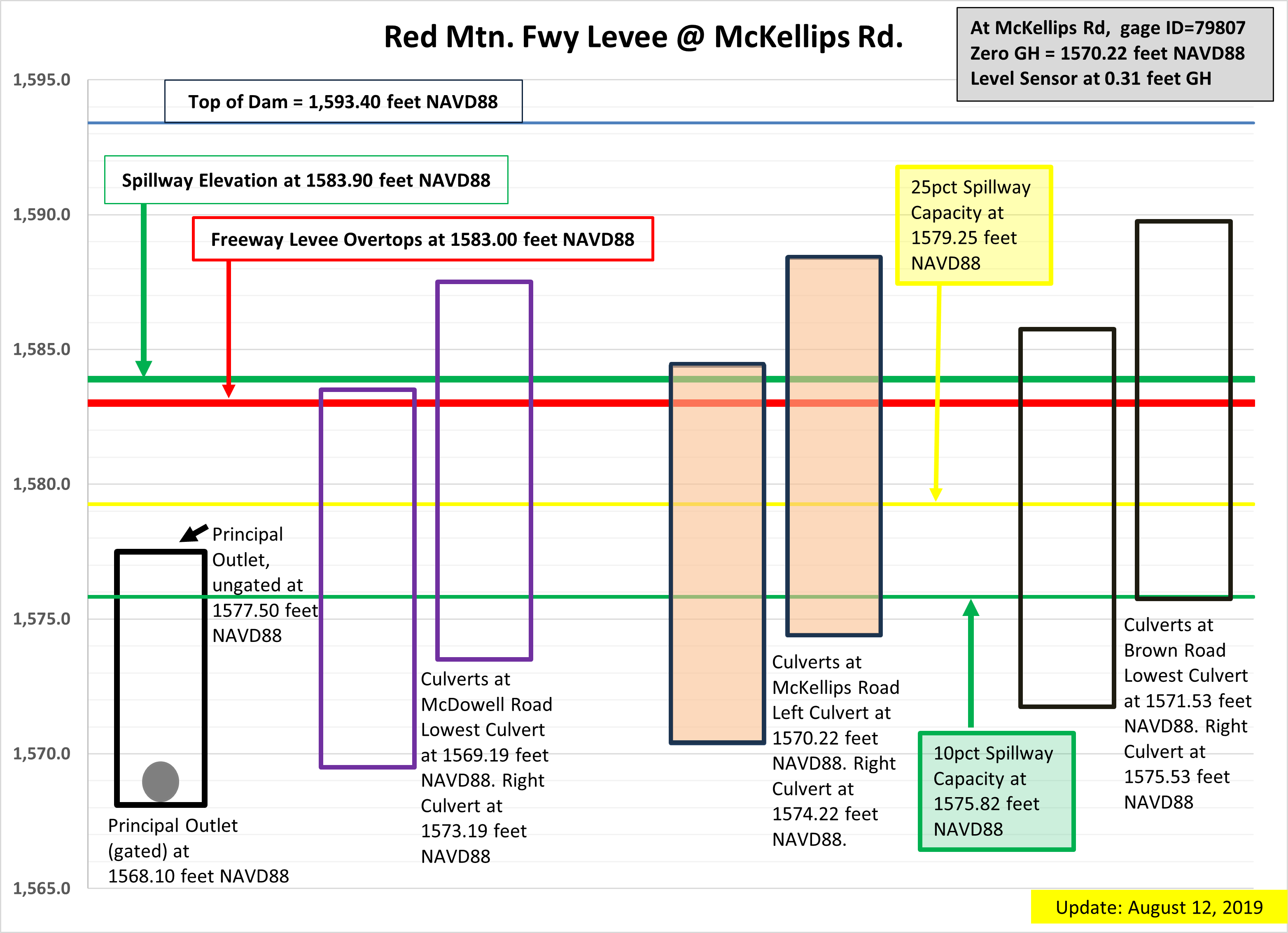

DAM ELEVATIONS AS RELATED TO GAGE HEIGHT AT THIS SITE
SPOOK HILL PRINCIPAL OUTLET ELEVATION -2.12 feet Gage Height
SPOOK HILL UNGATED PRINCIPAL OUTLET INLET ELEVATION 7.28 feet Gage Height
MINIMUM FREEWAY LEVEE ELEVATION UPSTREAM OF McKELLIPS ROAD 12.78 feet Gage Height
SPOOK HILL SPILLWAY ELEVATION 13.68 feet Gage Height
SPOOK HILL TOP OF DAM ELEVATION 23.18 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

BRIEF RATING

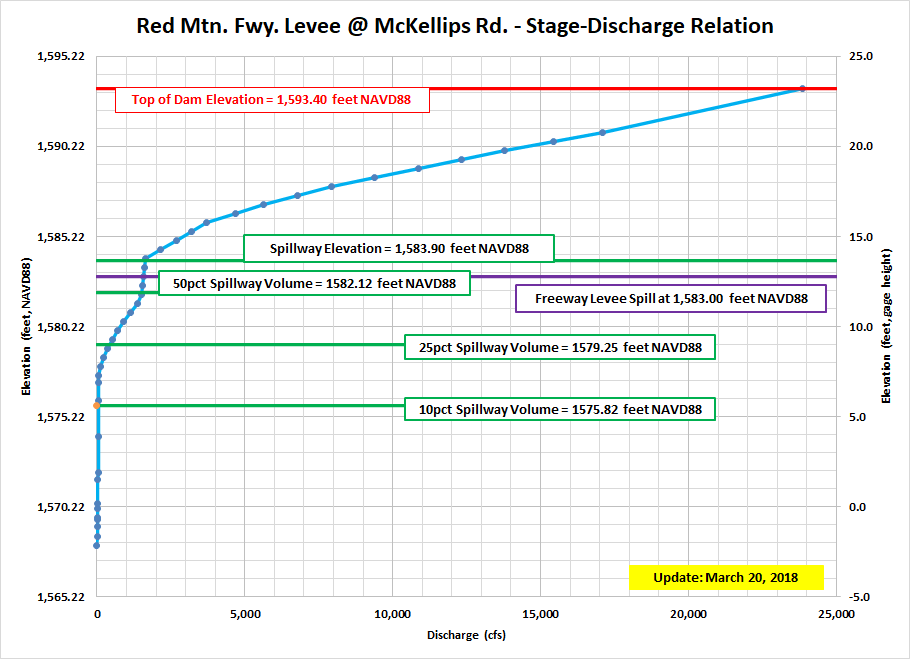

Current Discharge Rating = #1 - Applied since 06/01/2008

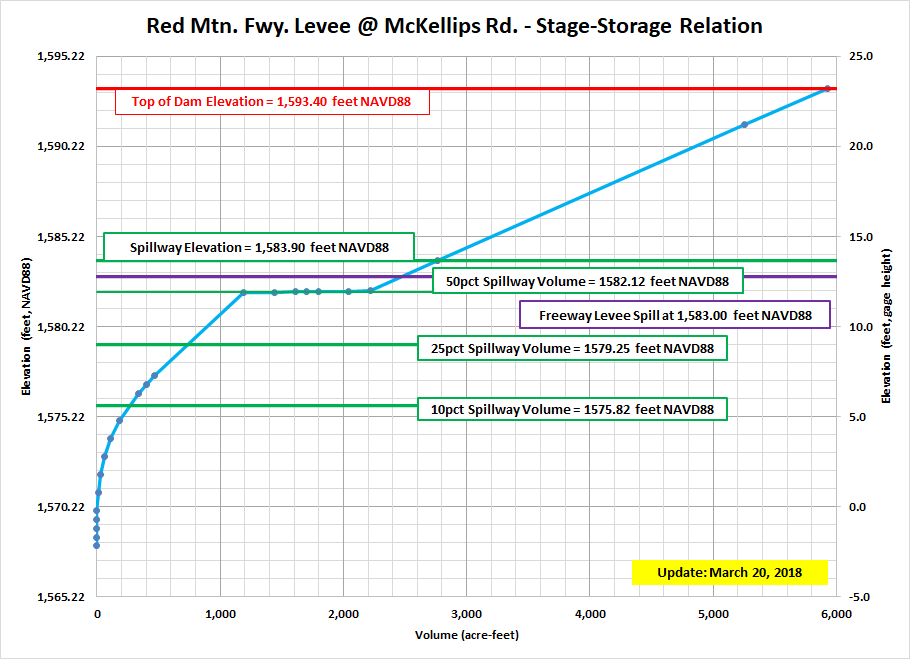

Current Capacity Rating = #2 - Applied since 10/01/2015
Gage
Height
(feet)		 Elevation
(feet NAVD 88)		 Volume
(acre-feet)		 Discharge
(cfs)
Controlled Outlet (assumed open)		 Discharge
(cfs)
Uncontrolled Outlet		 Discharge
(cfs)
Spillway		 Discharge
(cfs)
Combined
0.00 1,570.22 0.0 0 0 0 0
1.70 1,571.92 32.6 39 0 0 39
3.70 1,573.92 118.1 47 0 0 47
5.70 1,575.92 292.9 54 0 0 54
7.10 1,577.32 468.5 59 0 0 59
8.10 1,578.32 599.4 63 161 0 224
10.10 1,580.32 905.5 69 838 0 907
11.60 1,581.82 1,173.0 72 1,425 0 1,497
12.00 1,582.22 2,282.2 72 1,454 0 1,526
12.40 1,582.62 2,406.5 74 1,481 0 1,555
12.60 1,582.82 2,469.5 74 1,495 0 1,569
13.68 1,583.90 2,761.0 76 1,565 0 1,641
14.10 1,584.32 2,941.4 77 1,638 470 2,164
14.60 1,584.82 3,094.5 78 1,666 934 2,678
16.10 1,586.32 3,568.0 79 1,763 2,740 4,582
18.10 1,588.32 4,231.1 83 1,930 7,284 9,297
19.60 1,589.82 4,751.0 85 2,108 11,605 13,798
23.00 1,593.22 5,927.0 90 2,393 21,388 23,871

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Percent
Full
Available Storage Capacity		 Date of
Peak
2025
2024 1.56 28.8 0.5 12/23/2023
2023 2.52 60.5 1.8 09/12/2023
2022 2.20 48.8 1.3 08/13/2022
2021 6.30 364.5 7.9 08/14/2021
2020 1.79 35.4 0.7 11/29/2019
2019 4.73 194.3 4.8 09/23/2019
2018 5.06 225.3 5.3 08/10/2018
2017 3.59 111.3 3.2 07/24/2017
2016 1.56 12.4 0.5 08/09/2016
2015 1.72 14.9 1.9 05/15/2015
2014 6.25 192.5 7.7 09/08/2014
2013 4.02 95.4 3.9 09/09/2013
2012 2.82 53.4 2.2 09/07/2012
2011 1.30 9.7 0.4 07/25/2011
2010 3.75 85.8 3.5 01/22/2010
2009 1.60 12.9 0.5 07/23/2009
2008 (partial) 6.60 217.0 8.7 07/11/2008

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Percent
Full
(%)		 Water
Year
View a Plot of These Data

02/11/2024 06:00 02/19/2024 18:00 02/12/2024 18:00 72.0 1.23 21.9 0.4 2024
02/02/2024 02:21 02/01/2024 12:00 02/05/2024 06:00 90.0 1.01 17.3 0.3 2024
12/23/2023 07:06 12/22/2023 22:00 12/26/2023 07:00 81.0 1.56 28.8 0.5 2024
09/12/2023 21:33 09/12/2023 18:00 09/16/2023 13:55 91.9 2.52 60.5 1.8 2023
03/15/2023 22:14 03/15/2023 18:00 03/16/2023 12:00 18.0 0.90 15.1 0.3 2023
10/16/2022 12:00 10/15/2022 00:00 10/18/2022 12:00 84.0 2.03 43.1 1.1 2023
09/21/2022 00:00 09/20/2022 23:47 09/21/2022 02:48 3.0 0.88 14.7 0.3 2022
09/13/2022 18:27 09/13/2022 18:13 09/14/2022 00:00 5.8 0.80 13.2 0.2 2022
09/11/2022 22:04 09/11/2022 21:47 09/13/2022 04:02 30.3 1.40 25.4 0.4 2022
08/24/2022 23:32 08/24/2022 18:00 08/25/2022 06:00 12.0 0.80 13.2 0.2 2022
08/13/2022 00:00 08/12/2022 12:00 08/16/2022 12:00 96.0 2.20 48.8 1.3 2022
12/24/2021 12:41 12/24/2021 09:57 12/26/2021 12:00 50.1 0.90 15.1 0.3 2022
09/01/2021 01:27 09/01/2021 00:58 09/03/2021 06:00 53.0 1.09 18.9 0.3 2021
08/14/2021 04:42 08/11/2021 07:45 08/20/2021 00:00 208.3 6.30 364.5 7.9 2021
08/12/2021 08:16 08/11/2021 07:45 08/20/2021 00:00 208.3 4.78 198.8 4.9 2021
07/24/2021 09:58 07/24/2021 08:54 07/26/2021 12:00 51.1 1.19 21.0 0.4 2021
01/25/2021 15:20 01/25/2021 15:09 01/25/2021 18:00 2.9 0.52 1.4 2021
03/18/2020 19:14 03/18/2020 16:21 03/19/2020 18:00 25.7 1.02 17.5 0.3 2020
03/11/2020 12:34 03/11/2020 09:24 03/11/2020 18:00 8.6 0.54 2.4 0.2 2020
02/23/2020 00:46 02/23/2020 00:30 02/23/2020 06:00 5.5 0.59 7.5 0.2 2020
02/22/2020 11:55 02/22/2020 11:18 02/23/2020 00:00 12.7 0.57 4.8 0.2 2020
12/25/2019 12:00 12/25/2019 09:56 12/26/2019 00:00 14.1 0.59 7.5 0.2 2020
12/09/2019 00:00 12/09/2019 14:55 12/10/2019 23:00 32.1 1.22 21.6 32.1 2020
11/29/2019 12:00 11/29/2019 05:16 12/03/2019 06:00 96.7 1.79 35.4 0.7 2020
11/21/2019 13:25 11/21/2019 13:07 11/22/2019 12:00 22.9 0.67 10.7 0.2 2020
09/23/2019 12:00 09/23/2019 03:27 09/27/2019 00:00 92.6 4.73 194.3 7.0 2019
08/03/2019 22:50 08/03/2019 18:00 08/04/2019 06:00 12.0 0.72 11.6 0.4 2019
02/22/2019 03:46 02/21/2019 16:11 02/26/2019 23:20 127 2.59 63.0 1.8 2019
10/13/2018 15:48 10/13/2018 09:14 10/15/2018 17:39 56.4 1.77 34.8 0.7 2019
10/07/2018 07:52 10/07/2018 06:36 10/07/2018 18:00 11.4 0.62 9.8 0.2 2019
10/02/2018 09:55 10/02/2018 09:43 10/02/2018 17:41 8.0 0.62 9.8 0.2 2019
08/10/2018 06:00 08/09/2018 23:26 08/15/2018 05:31 126 5.06 225.3 5.3 2018
08/07/2018 21:57 08/07/2018 21:43 08/08/2018 15:48 18.1 1.74 33.9 0.7 2018
07/11/2018 15:53 07/11/2018 15:11 07/11/2018 19:17 4.1 0.97 16.5 0.3 2018
08/03/2017 19:35 08/03/2017 18:00 08/05/2017 00:00 30.0 1.49 27.3 0.5 2017
07/24/2017 09:51 07/23/2017 19:19 07/30/2017 06:00 155 3.59 111.3 3.2 2017
07/20/2017 21:27 07/20/2017 21:03 07/23/2017 00:00 51.0 1.19 21.0 0.4 2017
07/16/2017 23:36 07/16/2017 22:49 07/17/2017 06:00 7.2 0.69 7.2 11.1 2017
01/20/2017 23:58 01/20/2017 21:16 01/21/2017 12:00 14.7 0.48 25.3 0.2 2017
01/01/2017 08:11 01/01/2017 07:50 01/01/2017 10:08 2.3 0.55 25.7 0.2 2017
08/09/2016 15:36 08/09/2016 12:21 08/10/2016 21:20 33.0 1.56 12.4 0.5 2016
01/07/2016 13:20 01/07/2016 10:17 01/09/2016 07:20 45.1 1.08 8.2 0.3 2016
08/07/2015 20:23 08/07/2015 20:19 08/07/2015 20:58 0.7 0.45 4.2 0.2 2015
07/14/2015 20:14 07/14/2015 19:55 07/15/2015 02:19 6.4 0.60 5.2 0.2 2015
05/15/2015 20:23 05/15/2015 22:24 05/20/2015 20:19 118 1.72 14.9 1.9 2015
09/28/2014 08:49 09/27/2014 15:06 10/08/2014 03:10 252 5.38 142.6 5.7 2014
09/08/2014 13:11 09/08/2014 02:27 09/20/2014 20:49 306 6.25 192.5 7.7 2014
08/13/2014 06:58 08/13/2014 06:37 08/13/2014 16:49 10.2 0.82 6.6 0.3 2014
03/02/2014 14:56 03/01/2014 18:28 03/04/2014 23:32 77.1 1.40 10.6 0.4 2014
12/20/2013 04:10 12/20/2013 03:51 12/21/2013 20:58 41.1 0.68 5.7 0.2 2014
11/23/2013 11:08 11/22/2013 04:17 11/26/2013 16:05 108 1.82 18.4 0.8 2014
09/09/2013 16:26 09/09/2013 11:10 09/19/2013 03:25 232 4.02 95.4 3.9 2013
08/30/2013 23:32 08/30/2013 17:38 09/04/2013 03:25 106 1.00 7.8 0.3 2013
01/27/2013 12:01 01/26/2013 08:04 01/29/2013 08:52 72.8 0.72 6.0 0.2 2013
09/07/2012 13:42 09/07/2012 09:44 09/12/2012 09:09 119 2.82 53.4 2.2 2012
08/24/2012 13:45 08/23/2012 03:02 08/27/2012 01:45 94.7 0.92 7.3 0.3 2012
07/15/2012 09:37 07/14/2012 16:25 07/17/2012 03:47 59.4 1.25 9.4 0.4 2012
12/14/2011 02:38 12/13/2011 20:40 12/15/2011 17:32 44.9 1.42 10.9 0.4 2012
09/10/2011 20:30 09/10/2011 19:51 09/12/2011 05:03 33.2 1.20 9.0 0.4 2011
07/25/2011 02:16 07/24/2011 22:29 07/26/2011 05:03 30.6 1.30 9.7 0.4 2011
12/30/2010 04:06 12/29/2010 19:13 12/30/2010 19:34 24.4 0.42 4.1 0.1 2011
10/08/2010 16:06 10/06/2010 07:53 10/15/2010 10:06 218 0.90 7.1 0.3 2011
09/22/2010 12:09 09/22/2010 02:08 09/28/2010 04:06 146 2.30 35.0 1.4 2010
08/18/2010 09:42 08/17/2010 17:33 08/25/2010 08:21 183 2.45 40.2 1.6 2010
07/31/2010 01:04 07/31/2010 00:03 08/04/2010 07:21 103 1.15 8.7 0.3 2010
03/08/2010 10:19 03/07/2010 16:07 03/18/2010 22:07 270 2.45 40.2 1.6 2010
03/01/2010 10:09 02/28/2010 08:00 03/02/2010 18:55 58.9 0.60 5.2 0.2 2010
02/24/2010 10:08 02/24/2010 10:08 02/24/2010 19:45 9.6 0.52 4.7 0.2 2010
02/22/2010 12:39 02/22/2010 12:26 02/22/2010 18:54 6.5 0.60 5.2 0.2 2010
02/21/2010 15:19 02/21/2010 15:19 02/21/2010 17:44 2.4 0.45 4.2 0.2 2010
01/22/2010 12:41 01/21/2010 04:22 01/28/2010 22:08 186 3.75 85.8 3.5 2010
01/19/2010 23:11 01/19/2010 20:22 01/20/2010 22:08 25.8 0.70 5.8 0.2 2010
09/03/2009 21:15 09/03/2009 19:30 09/04/2009 04:06 8.6 0.73 6.0 0.2 2009
07/23/2009 23:49 07/23/2009 23:23 07/30/2009 04:06 149 1.60 12.9 0.5 2009
02/11/2009 16:09 02/09/2009 22:39 02/12/2009 22:09 71.5 0.60 5.2 0.2 2009
12/29/2008 13:33 12/29/2008 09:31 12/29/2008 22:08 12.6 0.50 4.5 0.2 2009
12/27/2008 13:13 12/26/2008 04:08 12/27/2008 18:36 38.5 0.50 4.5 0.2 2009
12/23/2008 11:20 12/23/2008 11:20 12/23/2008 13:32 2.2 0.40 3.9 0.1 2009
12/16/2008 15:16 12/16/2008 15:16 12/17/2008 10:07 18.9 0.43 4.1 0.1 2009
12/14/2008 10:07 12/14/2008 05:15 12/14/2008 22:07 16.9 0.57 5.0 0.2 2009
07/21/2008 23:53 07/21/2008 19:52 07/31/2008 03:03 223 2.45 40.2 1.6 2008
07/11/2008 02:42 07/10/2008 19:38 07/21/2008 19:19 264 6.60 217.0 8.7 2008
