Stoneridge Dam - ID # 77307

Current at Gage  | Station Description  | Q Rating Curve  | Vol Rating Curve  | DD Rating Curve  | Q Rating Table  | Vol Rating Table  | DD Rating Table  | Watershed Map  | DSS

Page Last Updated: 24 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

77307 1.30 feet 1,682.24 feet NAVD88 04/29/2020 -- Current
5968 1.30 feet 1,682.24 feet NAVD88 10/01/2016 -- 04/29/2020
5968 0.87 feet 1,679.73 feet M.S.L. 12/11/1996 -- 09/30/2016

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

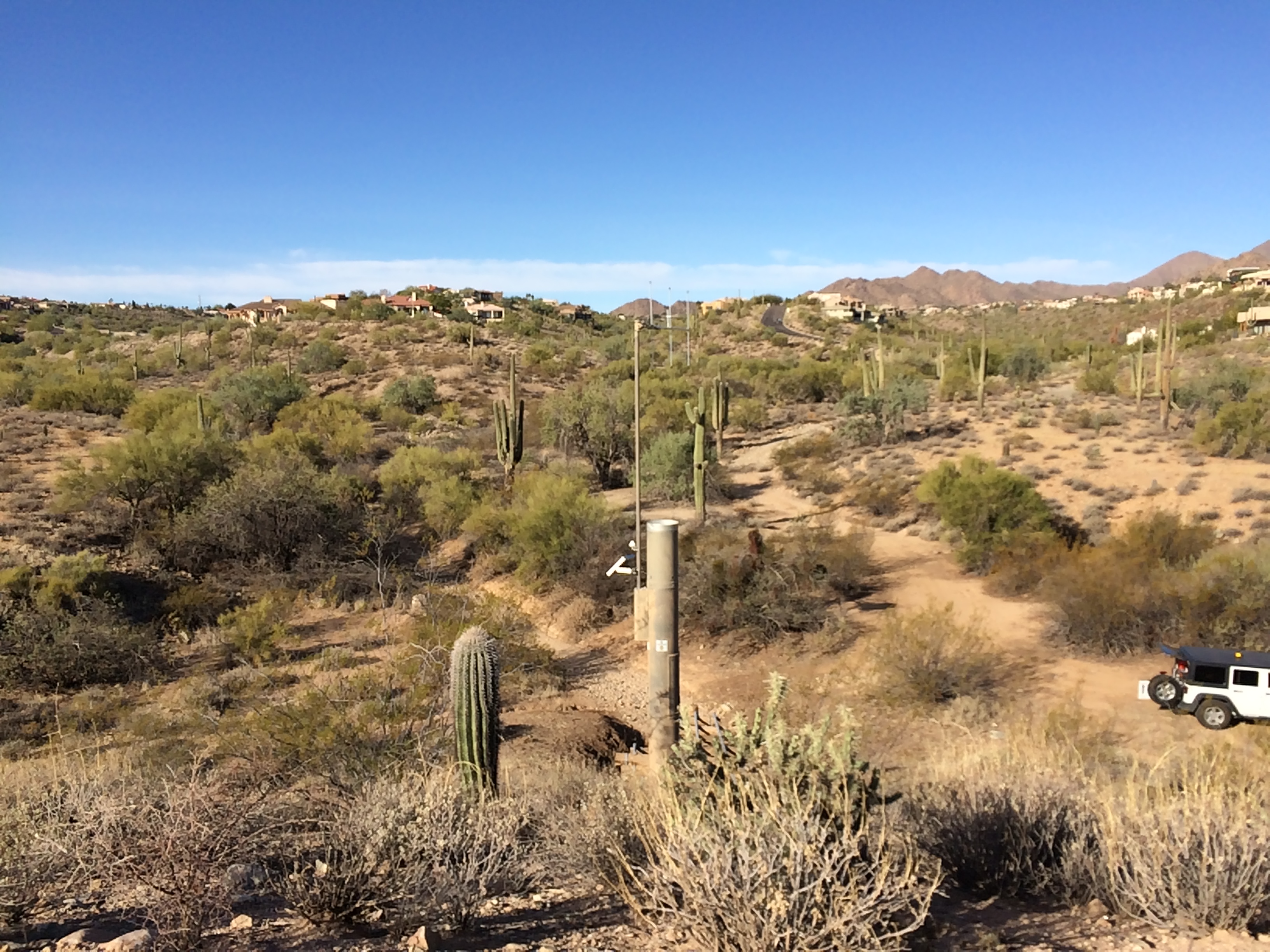

LOCATION About 1/2 mile north of Shea Boulevard, west of Fountain Hills Boulevard

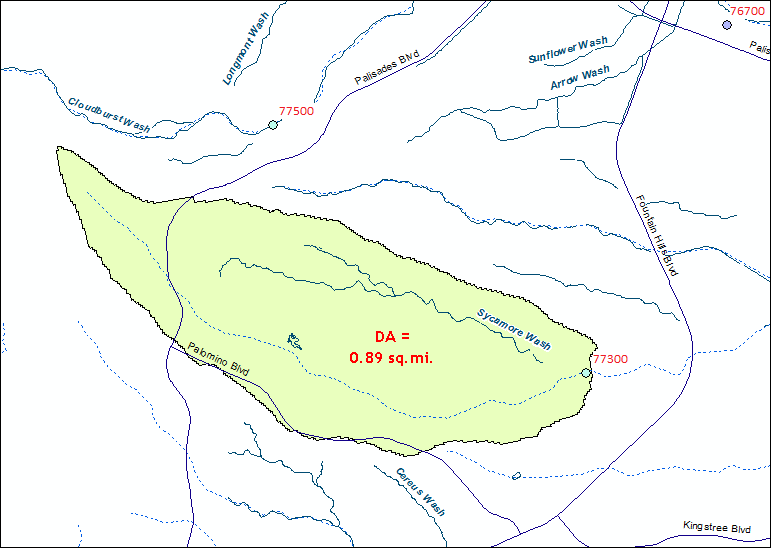

DRAINAGE AREA 0.89 mi2
STREAM TYPE Dam of natural drainage
JURISDICTION Fountain Hills, Arizona
WATERSHED Lower Verde
SECTION/TOWNSHIP/RANGE S22 T3N R6E
LATITUDE N 33° 35' 40.1"  |  +33.59448
LONGITUDE W 111° 44' 00.0"  |  -111.73332
ARIZONA STATE PLANE E 755863  | N 943908
USGS QUAD SHEET Granite Reef Dam 7.5-Minute
STREAMGAGE INSTALLATION DATE 12/11/1996 - WY 1997
PERIOD OF AVAILABLE DATA RECORD 12/11/1996 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 27.80 Years | 10,156 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 1.30 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,680.935 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height
SPILLWAY CREST ELEVATION 24.0 feet Gage Height
TOP OF DAM ELEVATION 31.0 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

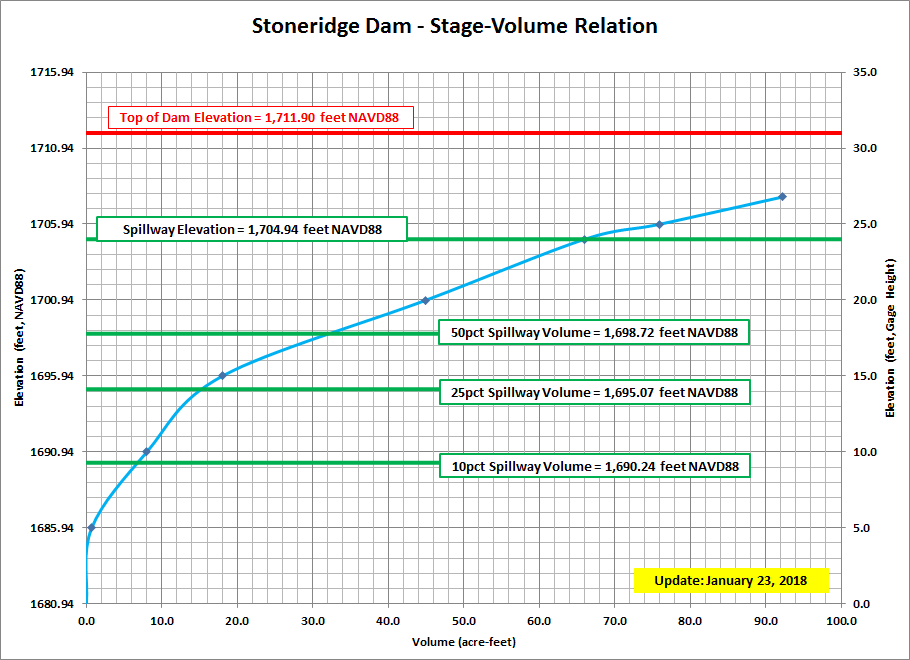

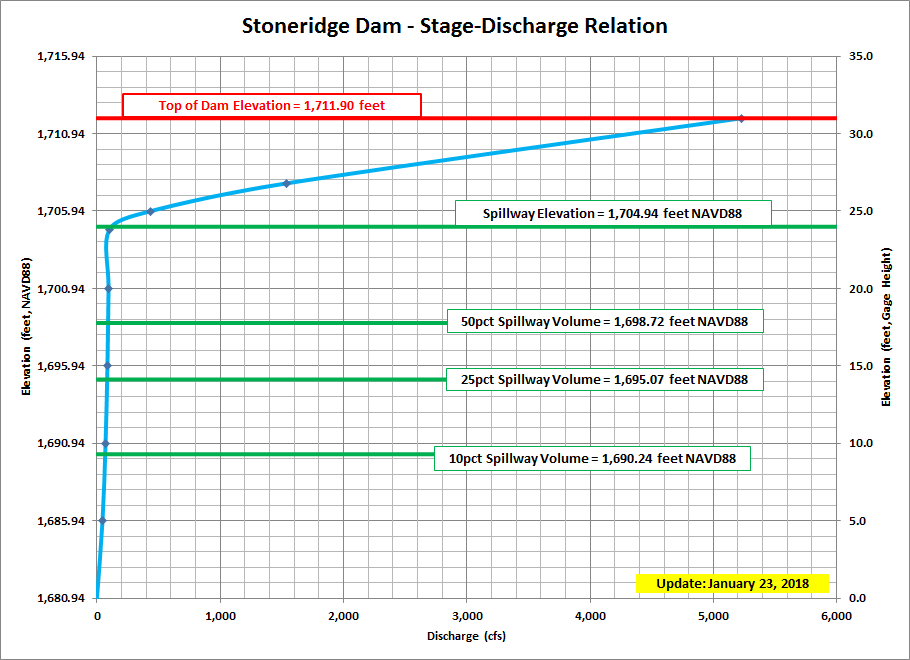

BRIEF RATING

Current Discharge Rating = #1 - Applied since 12/11/1996
Current Capacity Rating = #1 - Applied since 12/11/1996
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)
0.00 1,680.94 0 0.0
5.00 1,685.94 45 0.7
10.00 1,690.94 70 8.0
15.00 1,695.94 85 18.0
20.00 1,700.94 94 45.0
24.00 1,704.94 100 66.0
25.00 1,705.94 435 76.0
26.80 1,707.74 1,540 92.3
31.00 1,711.94 5,225 No Data

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2025
2024 None 0.0 0.0 None
2023 2.43 0.3 0.5 10/15/2022
2022 3.05 0.4 0.6 08/12/2022
2021 10.48 9.0 13.6 08/13/2021
2020 4.02 0.5 0.9 02/10/2020
2019 7.40 2.6 4.1 10/02/2018
2018 6.19 1.5 2.3 08/10/2018
2017 1.25 0.0 0.0 07/24/2017
2016 6.33 1.6 2.4 08/09/2016
2015 1.42 0.0 0.0 07/31/2015
2014 5.00 0.7 1.4 09/08/2014
2013 1.87 0.2 1.2 03/08/2013
2012 1.80 0.1 0.2 08/23/2012
2011 2.27 0.2 0.3 08/18/2011
2010 2.17 0.2 0.3 01/21/2010
2009 None 0.0 0.0 None
2008 4.87 0.7 1.1 08/28/2008
2007 None 0.0 0.0 None
2006 2.12 0.2 0.3 08/11/2006
2005 4.72 0.6 0.9 08/02/2005
2004 2.00 0.2 0.3 09/03/2004
2003 1.55 0.1 0.2 02/14/2003
2002 2.38 0.2 0.3 09/10/2002
2001 5.82 1.2 1.8 07/29/2001
2000 3.50 0.6 0.9 02/21/2000
1999 4.67 0.6 0.9 07/23/1999
1998 2.13 0.2 0.3 02/24/1998
1997 (partial) 1.09 <0.1 0.0 08/26/1997

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

10/15/2022 18:16 10/15/2022 12:00 10/15/2022 19:00 7.0 2.43 0.3 2023
08/12/2022 15:54 08/12/2022 15:20 08/12/2022 17:21 2.0 3.05 0.4 2022
08/16/2021 22:55 08/16/2021 22:52 08/16/2021 23:16 0.4 2.28 0.2 2021
08/13/2021 22:34 08/13/2021 21:36 08/14/2021 00:08 2.5 10.48 9.0 2021
08/11/2021 08:32 08/11/2021 06:40 08/11/2021 10:01 3.4 7.09 2.1 2021
08/11/2021 07:00 08/11/2021 06:40 08/11/2021 10:01 3.4 3.87 0.5 2021
07/23/2021 10:52 07/23/2021 10:34 07/23/2021 11:11 0.6 1.95 0.2 2021
02/10/2020 19:23 02/10/2020 19:02 02/11/2020 00:00 5.0 4.02 0.5 2020
09/23/2019 08:10 09/23/2019 07:47 09/23/2019 21:42 13.9 5.82 1.2 2019
10/02/2018 19:17 10/02/2018 18:50 10/02/2018 21:00 2.2 7.40 2.6 2019
08/12/2018 18:00 08/12/2018 17:54 08/12/2018 18:45 0.9 1.93 0.2 2018
08/10/2018 22:48 08/10/2018 22:22 08/11/2018 01:28 3.1 6.19 1.5 2018
08/08/2018 19:52 08/08/2018 19:30 08/08/2018 21:49 2.3 5.07 0.7 2018
07/30/2018 20:07 07/30/2018 20:04 07/30/2018 20:38 0.6 2.68 0.3 2018
07/14/2018 15:31 07/14/2018 15:30 07/14/2018 15:57 0.5 1.60 0.1 2018
07/24/2017 06:53 07/24/2017 06:53 07/24/2017 06:57 0.1 1.25 0.1 2017
08/09/2016 13:00 08/09/2016 12:12 08/09/2016 14:55 2.7 6.33 1.6 2016
07/31/2015 15:08 07/31/2015 15:08 07/31/2015 15:44 0.6 1.42 0.0 2015
09/27/2014 16:37 09/27/2014 14:55 09/27/2014 20:01 5.1 3.02 0.4 2014
09/08/2014 03:03 09/08/2014 02:43 09/08/2014 09:20 6.6 5.00 0.7 2014
03/01/2014 18:43 03/01/2014 17:37 03/02/2014 00:15 6.6 2.54 0.3 2014
03/01/2014 15:20 03/01/2014 15:17 03/01/2014 15:48 0.5 1.80 0.1 2014
11/22/2013 04:53 11/22/2013 04:46 11/22/2013 05:04 0.3 1.32 <0.1 2014
08/28/2013 21:16 08/28/2013 21:14 08/28/2013 22:44 1.5 1.24 <0.1 2013
03/08/2013 13:22 03/08/2013 13:08 03/09/2013 02:56 13.8 1.87 0.2 2013
08/23/2012 02:50 08/23/2012 02:43 08/23/2012 05:55 3.2 1.80 0.1 2012
09/13/2011 21:26 09/13/2011 21:26 single report 0.0 1.32 0.0 2011
08/18/2011 20:32 08/18/2011 20:27 08/18/2011 22:40 2.2 2.27 0.2 2011
10/05/2010 14:01 10/05/2010 14:00 10/05/2010 14:19 0.3 1.90 0.2 2011
01/21/2010 21:05 01/21/2010 20:58 01/21/2010 21:37 0.7 2.17 0.2 2010
08/28/2008 23:34 08/28/2008 22:49 08/29/2008 01:47 3.0 4.87 0.7 2008
08/25/2008 22:59 08/25/2008 22:51 08/25/2008 23:42 0.9 1.20 <0.1 2008
01/28/2008 04:34 01/28/2008 04:22 01/28/2008 05:06 0.7 1.17 <0.1 2008
08/11/2006 23:39 08/11/2006 23:35 08/12/2006 00:34 1.0 2.12 0.2 2006
10/17/2005 15:36 10/17/2005 15:35 10/17/2005 16:23 0.8 1.42 <0.1 2006
08/02/2005 21:25 08/02/2005 21:17 08/03/2005 03:17 6.0 4.72 0.6 2005
02/18/2005 16:27 02/18/2005 16:18 02/18/2005 16:40 0.4 1.54 0.1 2005
02/11/2005 22:39 02/11/2005 22:31 02/12/2005 03:01 4.5 1.87 0.2 2005
01/26/2005 16:43 01/26/2005 16:34 01/26/2005 19:46 3.2 1.62 0.1 2005
01/04/2005 03:23 01/04/2005 03:16 01/04/2005 04:43 1.5 2.64 0.3 2005
12/29/2004 10:32 12/29/2004 10:32 single report 0.0 1.27 <0.1 2005
09/19/2004 05:21 09/19/2004 05:10 09/19/2004 05:40 0.5 1.97 0.2 2004
09/03/2004 17:38 09/03/2004 17:37 09/03/2004 18:00 0.4 2.00 0.2 2004
03/05/2004 03:39 03/04/2004 18:33 03/05/2004 05:05 10.5 1.87 0.2 2004
08/14/2003 20:08 08/14/2003 20:05 08/14/2003 20:08 0.1 1.25 <0.1 2003
02/14/2003 00:12 02/13/2003 23:52 02/14/2003 02:52 3.0 1.55 0.1 2003
02/13/2003 14:57 02/13/2003 14:47 02/13/2003 15:12 0.4 1.42 <0.1 2003
09/10/2002 19:11 09/10/2002 19:11 09/10/2002 21:01 1.8 2.38 0.2 2002
07/29/2001 22:43 07/29/2001 21:54 07/30/2001 00:41 2.8 5.82 1.2 2001
03/07/2001 10:06 03/07/2001 09:57 03/07/2001 10:06 0.2 0.95 <0.1 2001
10/30/2000 20:19 10/30/2000 19:58 10/30/2000 20:37 0.7 1.10 <0.1 2001
10/27/2000 15:42 10/27/2000 15:31 10/27/2000 16:18 0.8 4.43 0.9 2001
02/21/2000 18:17 02/21/2000 18:09 02/21/2000 18:44 0.6 3.50 0.4 2000
08/31/1999 14:40 08/31/1999 14:25 08/31/1999 15:03 0.6 4.50 0.6 1999
07/23/1999 17:54 07/22/1999 21:15 07/23/1999 21:14 24.0 4.67 0.6 1999
07/10/1999 19:49 07/10/1999 19:19 07/10/1999 21:22 2.1 1.17 <0.1 1999
04/03/1999 03:32 04/03/1999 03:32 04/03/1999 07:29 4.0 2.99 0.3 1999
10/26/1998 03:35 10/26/1998 03:26 10/26/1998 07:25 4.0 2.23 0.2 1999
10/25/1998 16:00 10/25/1998 09:05 10/25/1998 16:17 7.2 1.87 0.2 1999
03/26/1998 13:45 03/26/1998 13:45 03/26/1998 14:09 0.4 1.17 <0.1 1998
02/24/1998 16:21 02/24/1998 09:34 02/24/1998 17:17 7.7 2.13 <0.1 1998
02/04/1998 18:38 02/04/1998 18:23 02/04/1998 19:12 0.8 1.29 <0.1 1998
09/11/1997 12:29 09/11/1997 12:29 09/11/1997 15:44 3.3 1.01 <0.1 1997
08/26/1997 11:46 08/26/1997 11:43 08/26/1997 12:13 0.5 1.09 <0.1 1997
