McMicken Dam at Bell Road - ID # 71507

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 04 November 2025

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

71507 0.35 feet 1,336.03 feet NAVD88 04/28/2020 -- Current
5443 0.35 feet 1,336.03 feet NAVD88 10/01/2013 -- 04/28/2020
5443 0.00 feet 0.00 feet Gage Height 03/04/2009 -- 09/30/2013

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

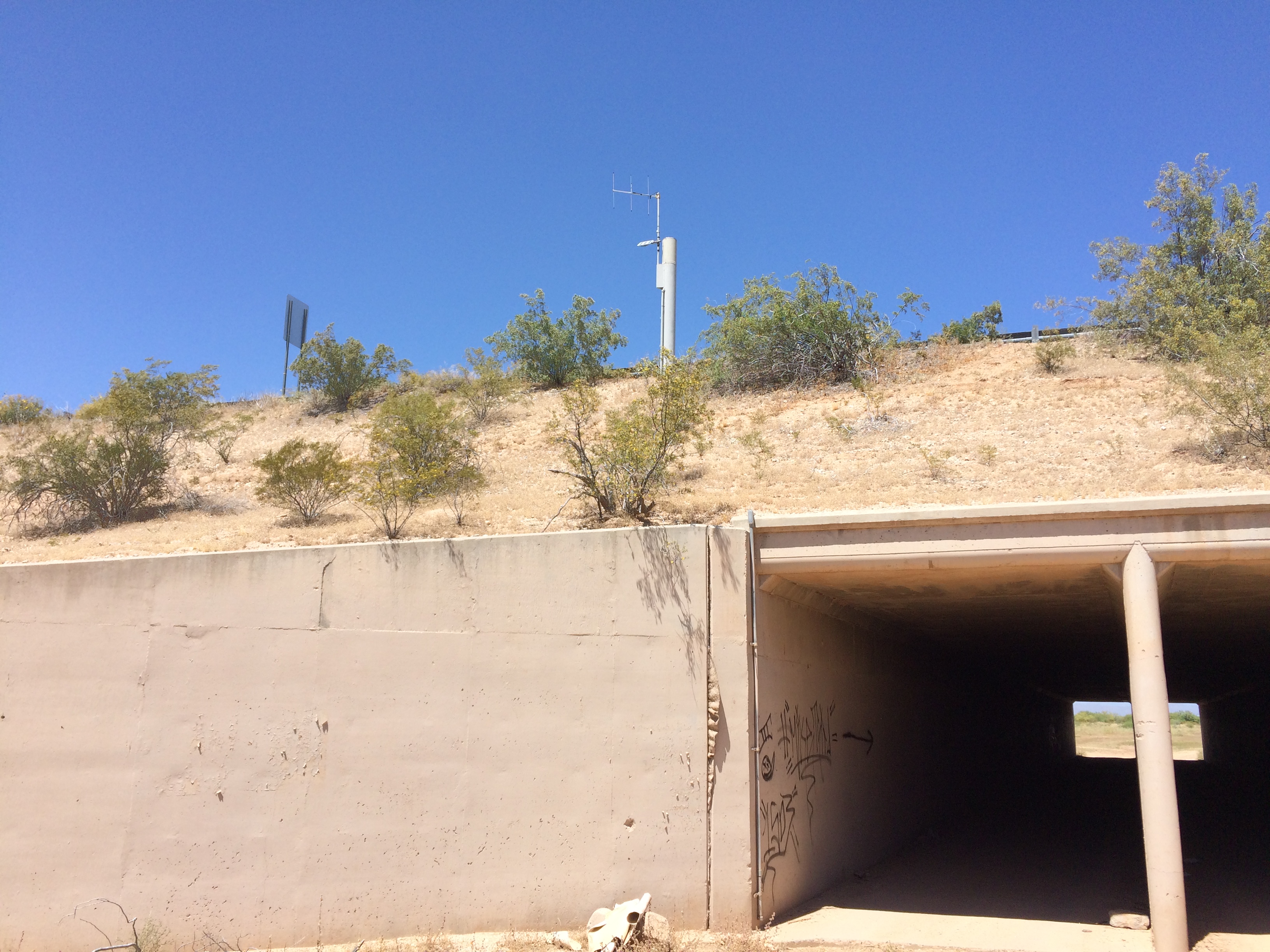

LOCATION Located on the south side of McMicken Dam at Bell Road

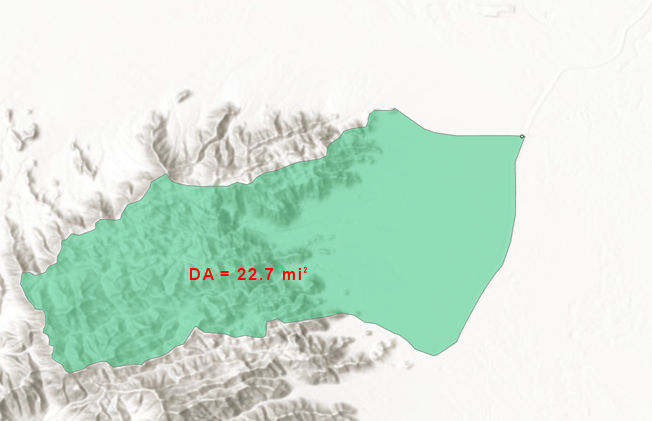

DRAINAGE AREA 22.7 mi2
STREAM TYPE Dam Pool Pass-through
JURISDICTION Surprise, Arizona
WATERSHED Trilby
SECTION/TOWNSHIP/RANGE S03 T3N R2W
LATITUDE N 33° 38' 17.6"  |  +33.63823
LONGITUDE W 112° 27' 41.1"  |  -112.46141
ARIZONA STATE PLANE E 534216  | N 960172
USGS QUAD SHEET McMicken Dam 7.5-Minute
STREAMGAGE INSTALLATION DATE 03/04/2009 - WY 2009
PERIOD OF AVAILABLE DATA RECORD 03/04/2009 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 15.58 Years | 5,690 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.35 feet Gage Height
STAFF GAGES None
CREST STAGE GAGES None
ZERO GAGE HEIGHT ELEVATION 1,335.681 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height
EXTREME FOR PERIOD OF RECORD 784 cfs | 5.80 feet | 09/08/2014

Back to Top   |   Streamflow Homepage   |   FCD Home Page

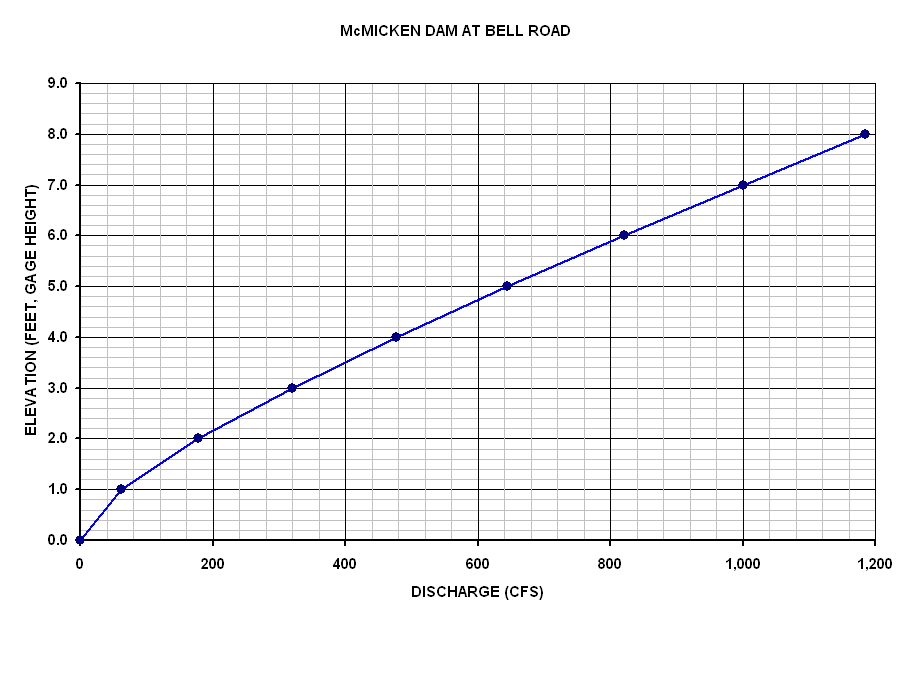

BRIEF RATING

Current Rating = #1 - Applied since 03/04/2009
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 1,335.68
62 1.00 1,336.68
178 2.00 1,337.68
320 3.00 1,338.68
477 4.00 1,339.68
645 5.00 1,340.68
820 6.00 1,341.68
1,000 7.00 1,342.68
1,185 8.00 1,343.68

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2026
2025 1.45 114 09/26/2025
2024 None 0 None
2023 0.83 48 10/15/2022
2022 2.15 198 08/10/2022
2021 None 0 None
2020 None 0 None
2019 None 0 None
2018 None 0 None
2017 None 0 None
2016 None 0 None
2015 None 0 None
2014 5.80 784 09/08/2014
2013 None 0 None
2012 None 0 None
2011 None 0 None
2010 3.08 332 01/22/2010
2009 (partial) None 0 None

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

09/26/2025 20:10 09/26/2025 15:00 09/28/2025 16:28 49.5 1.45 114 2025
10/15/2022 21:08 10/15/2022 18:00 10/16/2022 00:49 6.8 0.83 48 2023
08/10/2022 16:47 08/20/2022 12:00 08/20/2022 19:12 7.2 0.91 54 2022
08/10/2022 18:00 08/10/2022 13:20 08/10/2022 18:00 4.7 2.15 198 2022
08/07/2022 16:42 08/07/2022 12:31 08/08/2022 04:55 16.4 1.16 77 2022
09/08/2014 13:07 09/08/2014 05:13 09/13/2014 23:41 138 5.80 784 2014
01/22/2010 04:10 01/21/2010 07:38 01/25/2010 20:45 109 3.08 332 2010
