Sauceda Wash - ID # 71007

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 24 October 2024

ID History |  Site Data |  Brief Rating |  Water Year Peaks |  Runoff History |  Staff Gages |  Crest Gages |  USGS Data

Refresh Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


FLOOD VIDEOS

Runoff at Sauceda Wash on August 13, 2014


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

71007 1.10 feet 842.57 feet NAVD88 04/24/2020 -- Current
6923 1.10 feet 842.47 feet NAVD88 08/01/2001 -- 04/24/2020
6923 1.14 feet 843.15 feet NAVD88 08/01/2001 -- 04/24/2020
6923 1.04 feet 843.05 feet NAVD88 06/27/1997 -- 08/01/2001
6923 1.04 feet 843.05 feet NAVD88 07/08/1992 -- 06/17/1997
0523 0.90 feet 842.91 feet NAVD88 05/01/1992 -- 07/08/1992
0523 0.00 feet 842.01 feet NAVD88 02/28/1990 -- 05/01/1992

Back to Top   |   Streamflow Homepage   |   FCD Home Page

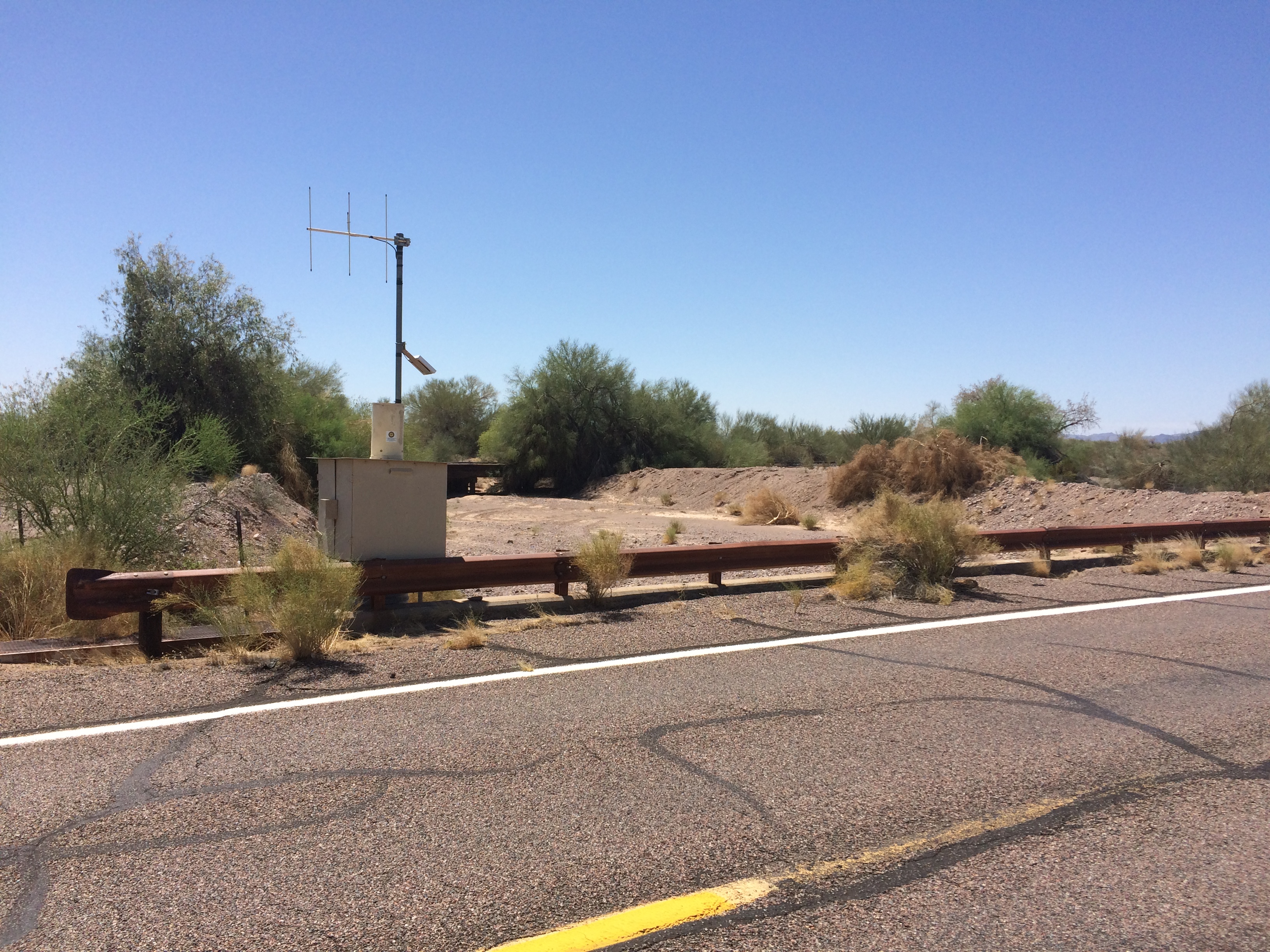

SITE DATA

STATUS Active
LOCATION About 5 miles south of Gila Bend on SR 85
DRAINAGE AREA 126 mi2
STREAM TYPE Natural Stream
JURISDICTION Maricopa County, Arizona
WATERSHED Theba
SECTION/TOWNSHIP/RANGE S27 T6S R5W
LATITUDE N 32° 52' 49.6"  |  +32.88044
LONGITUDE W 112° 45' 15.4"  |  -112.75427
ARIZONA STATE PLANE E 442867  | N 685054
USGS QUAD SHEET Black Gap 7.5-Minute
STREAMGAGE INSTALLATION DATE 02/28/1990 - WY 1990
PERIOD OF AVAILABLE DATA RECORD 02/28/1990 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 34.59 Years | 12,634 Days
GAPS (> 2 DAYS) IN RECORD None

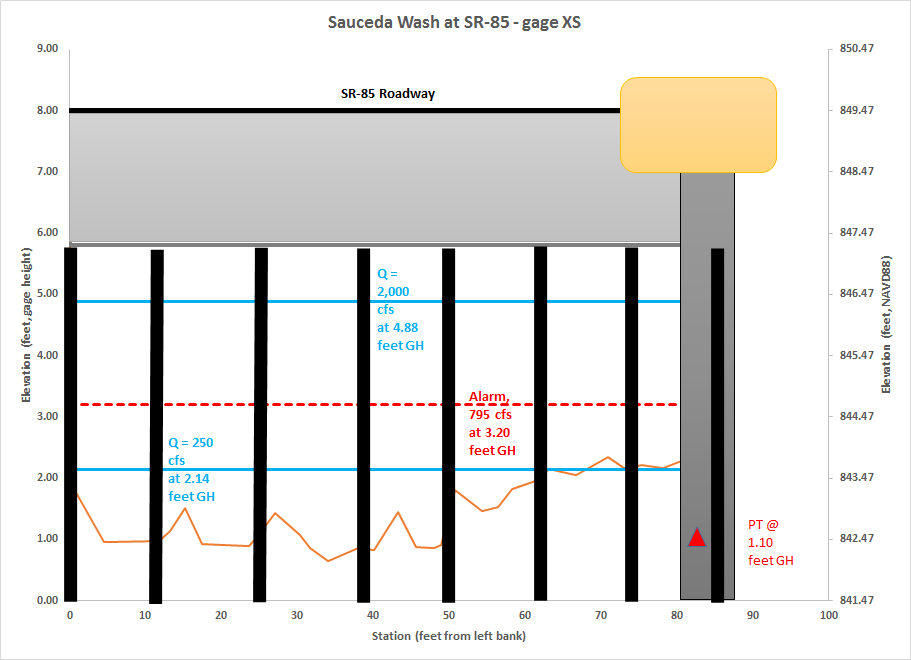

STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 1.10 feet Gage Height
STAFF GAGES 2
CREST STAGE GAGES 1
ZERO GAGE HEIGHT ELEVATION 841.472 feet NAVD88
POINT OF ZERO FLOW 0.8 feet Gage Height
EXTREME FOR PERIOD OF RECORD 2,698 cfs | 5.70 feet | 08/13/2014

Back to Top   |   Streamflow Homepage   |   FCD Home Page

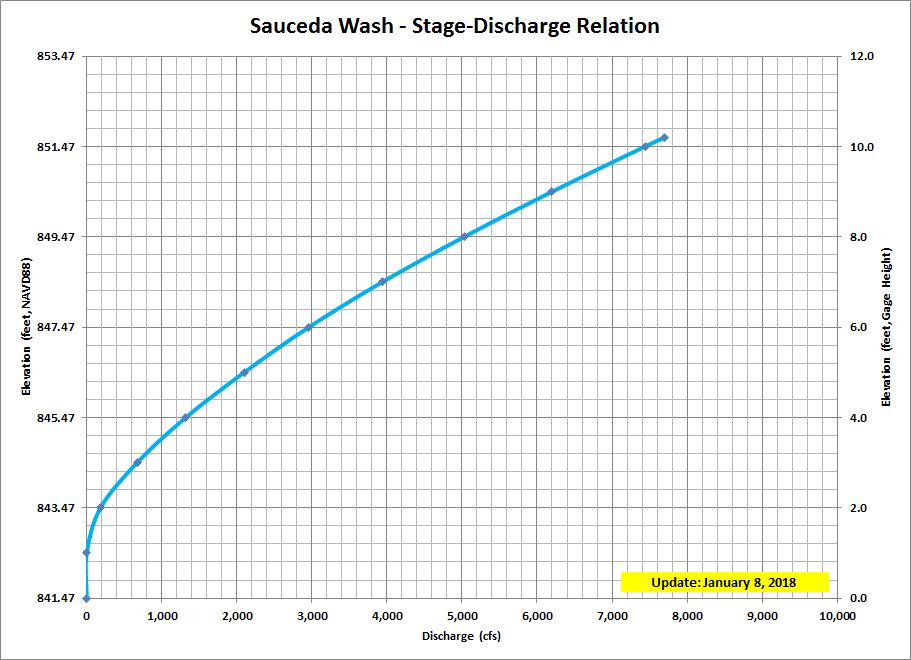

BRIEF RATING

Current Rating = #4 - Applied since 01/01/1990
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 841.47
278 2.20 843.67
795 3.20 844.67
1,470 4.20 845.67
2,270 5.20 846.67
3,150 6.20 847.67

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 None 0 None
2023 None 0 None
2022 2.72 522 08/20/2022
2021 4.10 1,396 08/14/2021
2020 1.99 191 03/12/2020
2019 3.27 837 10/02/2018
2018 4.82 1,952 09/19/2018
2017 3.59 1,041 07/16/2017
2016 None 0 None
2015 2.69 507 09/13/2015
2014 5.70 2,698 08/13/2014
2013 4.88 2,001 08/27/2013
2012 2.52 420 07/14/2012
2011 2.76 546 08/18/2011
2010 2.39 361 01/22/2010
2009 3.66 1,088 07/26/2009
2008 3.74 1,138 08/30/2008
2007 4.24 1,499 07/23/2007
2006 1.76 105 09/08/2006
2005 1.94 163 08/14/2005
2004 None 0 None
2003 2.34 336 09/05/2003
2002 1.81 120 09/07/2002
2001 1.81 120 07/08/2001
2000 2.21 284 06/22/2000
1999 2.21 284 07/14/1999
1998 4.66 1,825 08/25/1998
1997 3.04 696 09/06/1997
1996 None 0 None
1995 2.44 380 01/05/1995
1994 1.70 87 09/10/1994
1993 1.12 20 02/09/1993
1992 2.70 506 07/11/1992
1991 1.64 73 07/07/1991
1990 1.69 85 07/30/1990

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

08/22/2022 03:32 08/22/2022 03:23 08/22/2022 05:36 2.2 2.10 235 2022
08/20/2022 00:19 08/19/2022 23:21 08/20/2022 02:06 2.8 2.72 522 2022
08/14/2022 18:22 08/14/2022 18:15 08/14/2022 20:11 1.9 2.20 278 2022
07/31/2022 18:09 07/31/2022 16:35 07/31/2022 20:06 3.5 2.30 321 2022
08/31/2021 05:23 08/31/2021 05:13 08/31/2021 07:33 2.3 2.33 334 2021
08/14/2021 05:09 08/14/2021 02:09 08/14/2021 08:18 6.2 4.10 1,396 2021
03/12/2020 23:34 03/12/2020 23:34 03/13/2020 02:01 2.5 1.99 191 2020
10/07/2018 10:45 10/07/2018 10:41 10/07/2018 16:24 5.7 1.78 117 2019
10/02/2018 09:44 10/02/2018 06:42 10/02/2018 14:49 8.1 3.27 837 2019
09/19/2018 21:20 09/19/2018 18:01 09/20/2018 04:30 10.5 4.82 1,952 2018
08/23/2018 09:02 08/23/2018 08:51 08/23/2018 10:18 1.5 2.42 375 2018
07/10/2018 01:29 07/10/2018 01:21 07/10/2018 05:57 4.6 1.88 151 2018
07/16/2017 01:42 07/16/2017 00:12 07/16/2017 09:17 9.1 3.59 1,041 2017
09/13/2015 21:37 09/13/2015 21:26 09/14/2015 07:49 10.4 2.69 507 2015
05/16/2015 01:50 05/16/2015 01:07 05/16/2015 07:02 5.9 1.64 77 2015
09/28/2014 02:23 09/27/2014 23:57 09/28/2014 07:55 8.0 4.04 1,352 2014
09/04/2014 22:08 09/04/2014 20:41 09/05/2014 01:25 4.8 2.54 432 2014
08/21/2014 23:55 08/21/2014 23:44 08/22/2014 03:23 3.7 2.29 316 2014
08/21/2014 20:28 08/21/2014 20:21 08/21/2014 23:07 2.8 2.69 507 2014
08/13/2014 10:02 08/13/2014 03:46 08/13/2014 13:43 10.0 5.70 2,698 2014
07/27/2014 10:20 07/27/2014 09:51 07/27/2014 14:33 4.7 2.79 560 2014
11/22/2013 21:59 11/22/2013 17:13 11/23/2013 09:59 16.8 1.48 40 2014
09/09/2013 14:52 09/09/2013 14:51 09/09/2013 14:56 0.1 1.96 177 2013
08/29/2013 18:58 08/29/2013 18:40 08/30/2013 02:11 7.5 3.48 969 2013
08/27/2013 00:13 08/26/2013 22:20 08/27/2013 05:12 6.9 4.88 2,001 2013
07/26/2013 04:36 07/26/2013 03:13 07/26/2013 19:21 16.1 1.60 68 2013
07/25/2013 23:21 07/25/2013 23:20 07/26/2013 02:10 2.8 2.23 291 2013
07/21/2013 11:03 07/21/2013 07:55 07/21/2013 16:18 8.4 3.28 843 2013
07/14/2012 19:10 07/14/2012 19:06 07/15/2012 18:14 23.1 2.52 420 2012
11/13/2011 10:38 11/13/2011 08:48 11/14/2011 01:38 16.8 2.12 241 2012
09/13/2011 22:42 09/13/2011 22:38 09/15/2011 02:14 27.6 2.04 210 2011
08/18/2011 22:34 08/18/2011 21:28 08/19/2011 02:06 4.6 2.76 546 2011
08/03/2011 19:43 08/03/2011 19:37 08/04/2011 02:06 6.5 2.64 481 2011
10/05/2010 17:33 10/05/2010 17:32 10/06/2010 02:29 9.0 1.66 84 2011
01/22/2010 01:57 01/21/2010 21:54 01/22/2010 15:34 17.7 2.39 361 2010
01/19/2010 20:01 01/19/2010 19:59 01/19/2010 21:32 1.6 1.92 165 2010
07/26/2009 00:48 07/26/2009 00:36 07/26/2009 04:24 3.8 3.66 1,088 2009
07/19/2009 19:48 07/19/2009 19:20 07/19/2009 23:11 3.9 2.07 214 2009
08/31/2008 05:41 08/31/2008 05:13 08/31/2008 08:11 3.0 1.72 91 2008
08/30/2008 15:35 08/30/2008 14:02 08/30/2008 22:06 8.1 3.74 1,138 2008
08/25/2008 18:57 08/25/2008 18:43 08/25/2008 23:13 4.5 3.32 864 2008
08/07/2008 23:29 08/07/2008 23:25 08/08/2008 03:46 4.4 2.04 203 2008
05/22/2008 20:45 05/22/2008 20:05 05/23/2008 06:12 10.1 2.69 501 2008
01/07/2008 12:11 01/07/2008 12:04 01/07/2008 13:00 0.9 1.56 56 2008
09/21/2007 18:17 09/21/2007 18:09 09/21/2007 23:05 4.9 1.91 154 2007
09/06/2007 01:17 09/06/2007 01:15 09/06/2007 06:00 4.8 2.54 426 2007
08/20/2007 00:04 08/20/2007 00:01 08/20/2007 09:14 9.2 2.62 463 2007
08/15/2007 04:41 08/15/2007 03:42 08/15/2007 06:49 3.1 1.87 137 2007
08/14/2007 05:51 08/14/2007 04:41 08/14/2007 13:58 9.3 1.97 173 2007
08/01/2007 22:43 08/01/2007 18:42 08/02/2007 06:58 12.3 2.29 314 2007
07/25/2007 17:19 07/25/2007 14:51 07/25/2007 22:16 7.4 3.64 1,071 2007
07/23/2007 22:50 07/23/2007 21:56 07/24/2007 05:14 7.3 4.24 1,499 2007
09/09/2006 19:51 09/09/2006 19:51 09/09/2006 21:09 1.3 1.51 47 2006
09/08/2006 06:08 09/08/2006 05:59 09/08/2006 10:03 4.1 1.76 105 2006
08/14/2006 22:07 Data Unavailable Data Unavailable   1.29 8 2006
08/14/2006 13:22 Data Unavailable Data Unavailable   1.94 163 2006
08/03/2005 01:36 Data Unavailable Data Unavailable   6.36 NA 2005
03/05/2005 16:13 03/05/2005 16:10 03/05/2005 20:56 4.8 1.81 120 2005
09/05/2003 03:42 09/05/2003 03:27 09/05/2003 03:53 0.4 2.34 336 2003
08/27/2003 05:39 08/27/2003 05:29 08/27/2003 07:53 4.4 2.04 203 2003
08/26/2003 09:57 08/26/2003 09:44 08/26/2003 12:02 2.3 1.76 105 2004
08/15/2003 03:06 08/15/2003 03:05 08/15/2003 06:41 3.6 2.16 260 2003
03/16/2003 23:30 03/16/2003 18:03 03/16/2003 23:49 5.8 1.62 67 2003
11/29/2002 18:49 11/29/2002 17:37 11/29/2002 19:58 2.4 1.69 85 2003
10/26/2002 12:59 10/26/2002 12:45 10/26/2002 13:43 1.0 1.72 91 2003
09/07/2002 22:23 09/07/2002 22:17 09/08/2002 00:20 2.1 1.81 120 2002
10/08/2001 01:31 10/08/2001 00:51 10/08/2001 04:44 3.9 1.66 79 2002
07/08/2001 15:32 07/08/2001 15:29 07/09/2001 00:09 8.7 1.81 120 2001
11/06/2000 15:23 11/06/2000 15:10 11/06/2000 19:07 4.0 1.79 113 2001
06/22/2000 15:19 06/22/2000 15:04 06/23/2000 04:46 13.7 2.21 284 2000
09/16/1999 22:19 09/16/1999 22:13 09/17/1999 17:41 19.5 1.79 113 1999
07/18/1999 18:37 07/18/1999 18:18 07/18/1999 21:13 2.9 1.69 85 1999
07/14/1999 23:33 07/14/1999 23:29 07/15/1999 20:40 21.2 2.21 284 1999

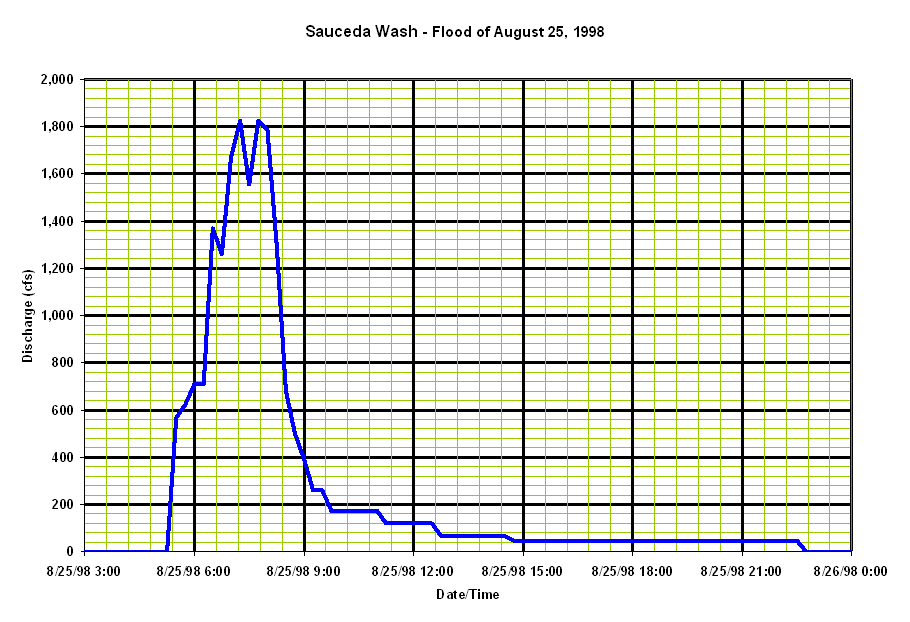

08/25/1998 07:11 08/25/1998 05:18 08/25/1998 14:34 9.3 4.66 1,825 1998
08/12/1998 02:48 08/12/1998 02:44 08/12/1998 06:39 3.9 2.29 314 1998
02/09/1998 01:42 02/09/1998 00:16 02/09/1998 09:05 8.8 2.69 501 1998
10/22/1997 18:22 10/22/1997 18:19 10/23/1997 14:30 20.2 2.54 426 1998
09/06/1997 05:38 09/06/1997 05:27 09/06/1997 09:01 3.6 3.04 696 1997
08/17/1997 17:30 08/17/1997 16:59 08/18/1997 09:01 16.0 2.26 304 1997
01/13/1997 07:25 01/13/1997 06:42 01/13/1997 10:11 3.5 2.04 203 1997
01/05/1995 06:26 01/05/1995 06:22 01/05/1995 16:41 10.3 2.44 380 1995
09/10/1994 21:32 09/10/1994 21:00 09/10/1994 23:20 2.3 1.70 87 1994
02/09/1993   Data Unavailable Data Unavailable   1.12 20 1993
07/11/1992 13:59 07/11/1992 13:41 07/11/1992 16:29 2.8 2.70 506 1992
03/28/1992 12:37 03/28/1992 12:37 single report 0.0 1.90 149 1992
07/07/1991   Data Unavailable Data Unavailable   1.64 73 1991
09/03/1990   Data Unavailable Data Unavailable   1.62 67 1990
08/14/1990   Data Unavailable Data Unavailable   1.59 61 1990
07/11/1990   Data Unavailable Data Unavailable   1.54 51 1990
07/03/1990   Data Unavailable Data Unavailable   1.69 85 1990

Back to Top   |   Streamflow Homepage   |   FCD Home Page

STAFF GAGES

Staff Gage Range Staff Gage Information
1.0 - 9.55 Inside stilling well, reads in gage height
1.0 - 9.55 Outside stilling well, reads in gage height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

CREST STAGE GAGES

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 2.60 Maintained by the USGS
