Page Last Updated: 23 October 2024
|
|
Page Last Updated: 23 October 2024 |
| ID | Elevation of Instrument in Gage Height |
Elevation of Instrument in Datum |
Period |
| 60107 | 0.00 feet | 1,519.60 feet NAVD88 | 07/19/2016 -- Current |
| STATUS | Active ALERT2 Station |

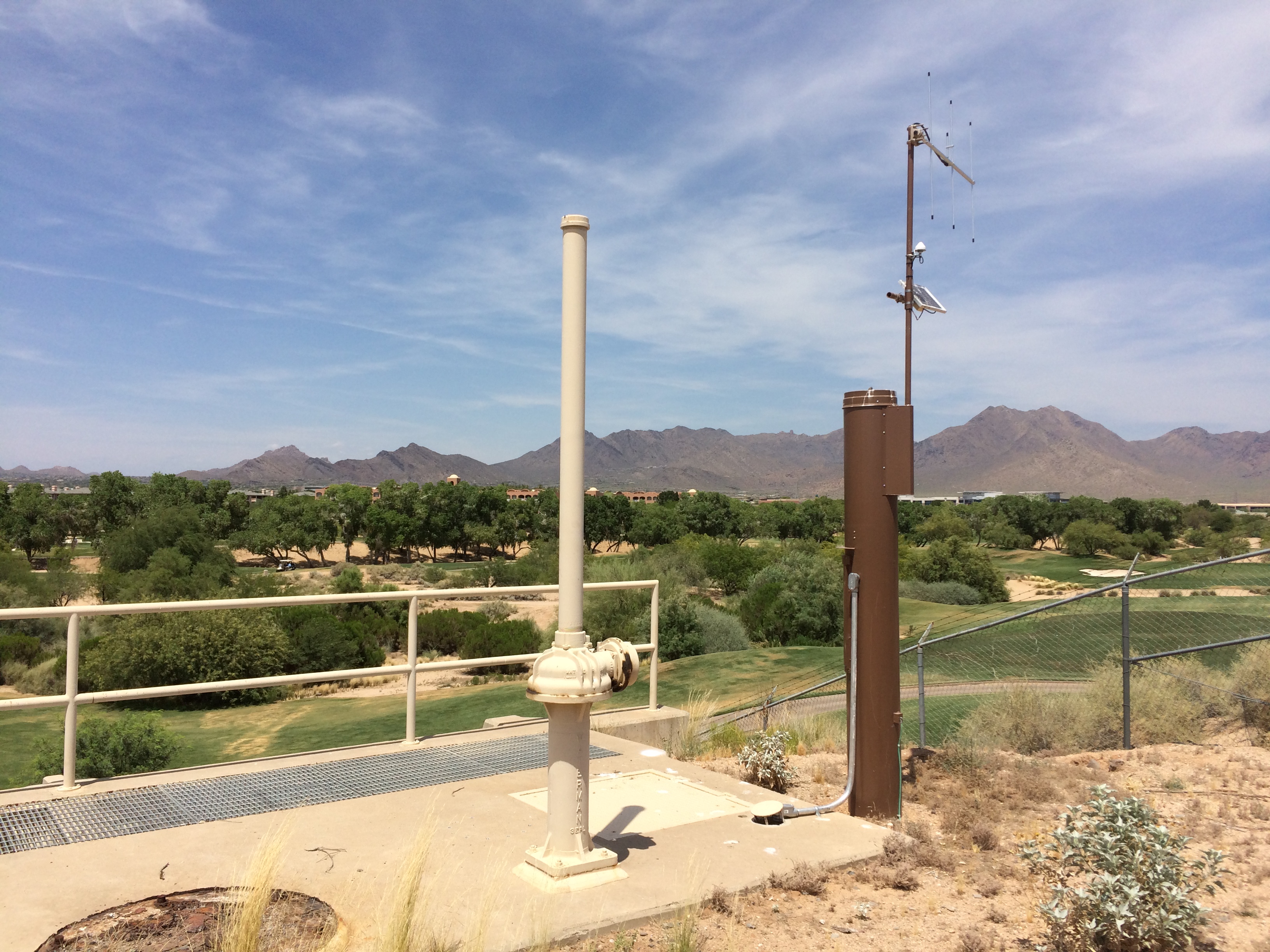

| LOCATION | Located on the CAP dike between Hayden and Pima Roads |

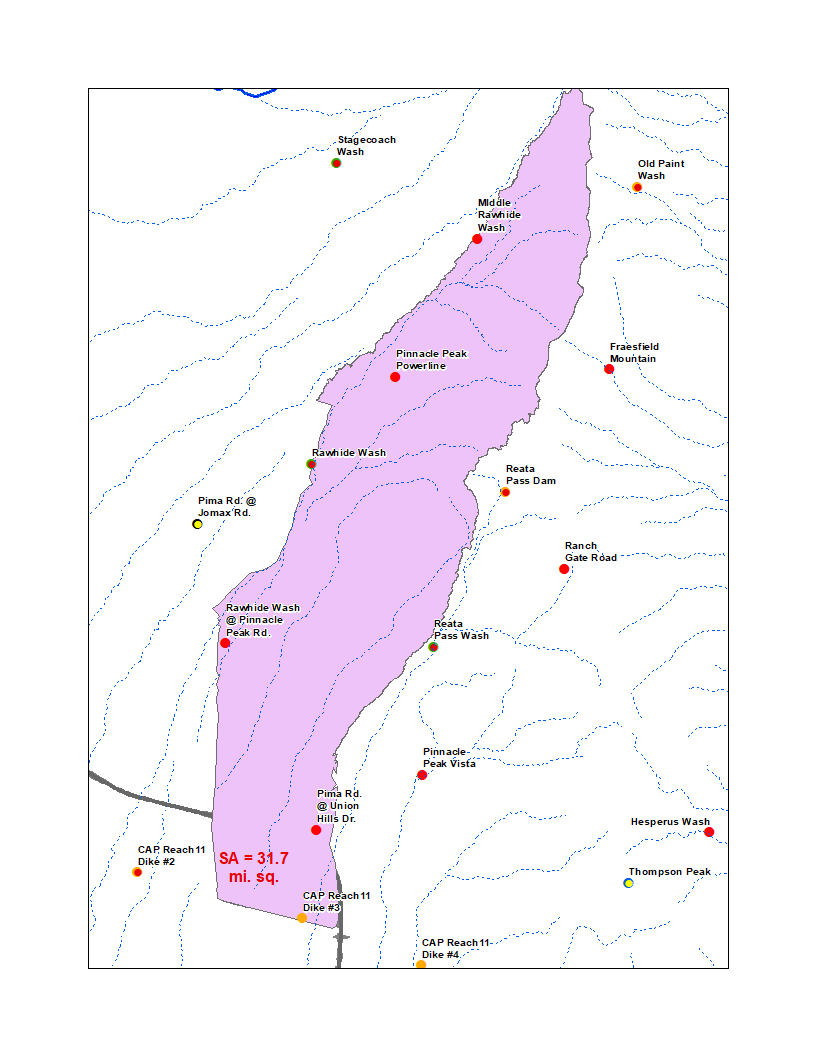

| DRAINAGE AREA | 31.7 mi2 |
| STREAM TYPE | Flood control dike |
| JURISDICTION | Scottsdale, Arizona |
| WATERSHED | Upper Indian Bend |
| SECTION/TOWNSHIP/RANGE | S01 T3N R4E |
| LATITUDE | N 33° 38' 03.0 | +33.63416 |
| LONGITUDE | W 111° 54' 03.0" | -111.90081 |
| ARIZONA STATE PLANE | E 704820 | N 958260 |
| USGS QUAD SHEET | Currys Corner 7.5-Minute |
| STREAMGAGE INSTALLATION DATE | 07/19/2016 - WY 2016 |
| PERIOD OF AVAILABLE DATA RECORD | 07/19/2016 - Current |
| LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) | 8.20 Years | 2,996 Days |
| GAPS (> 2 DAYS) IN RECORD | None |
| STAGE GAGE TYPE | Pressure Transducer |
| STAGE GAGE ELEVATION | 0.00 feet Gage Height |
| STAFF GAGES | 1 |
| CREST STAGE GAGES | 0 |
| ZERO GAGE HEIGHT ELEVATION | 1,519.60 feet NAVD88 |
| POINT OF ZERO FLOW | 2.00 feet Gage Height |
| SPILLWAY CREST ELEVATION | No spillway |
| TOP OF BASIN ELEVATION | 29.0 feet Gage Height |

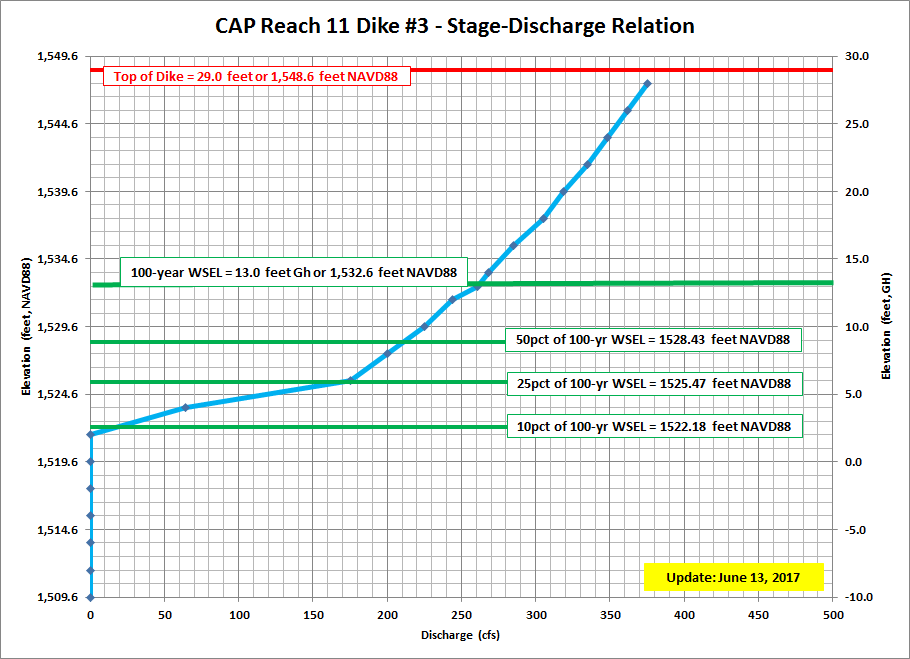

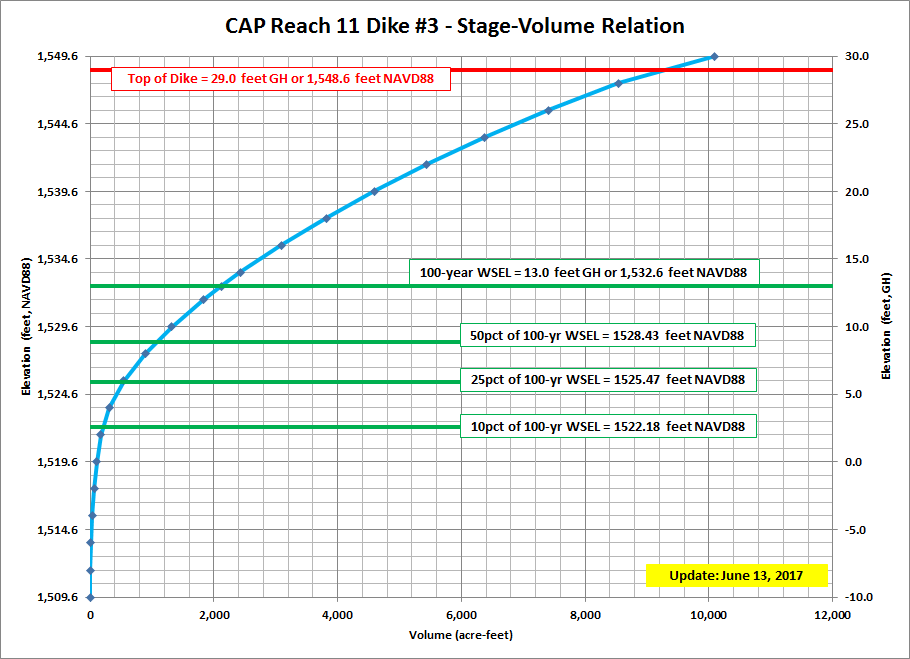

| Current Discharge Rating = Rating #1 (since 07/19/2016) Current Capacity Rating = Rating #1 (since 07/19/2016) |
|||
| Gage Height (feet) |
Elevation (feet NAVD88) |
Discharge (cfs) |
Volume (acre-feet) |
| 0.00 | 1,519.60 | 0 | 390.0 |
| 2.00 | 1,521.60 | 0 | 168.5 |
| 4.00 | 1,523.60 | 64 | 311.9 |
| 6.00 | 1,525.60 | 175 | 545.6 |
| 8.00 | 1,527.60 | 200 | 888.3 |
| 10.00 | 1,529.60 | 225 | 1,318.9 |
| 13.00 | 1,532.60 | 261 | 2,118.0 (100-yr Vol.) |
| 16.00 | 1,535.60 | 285 | 3,090.5 |
| 20.00 | 1,539.60 | 319 | 4,591.5 |
| 24.00 | 1,543.60 | 348 | 6,373.5 |
| 28.00 | 1,547.60 | 375 | 8,530.5 |
| Water Year |
Peak Gage Height (feet) |
Peak Volume (acre-feet) |
Percent Full (100-year Volume) |
Date of Peak |
| 2025 | ||||
| 2024 | None | 0.0 | 0.0 | None |
| 2023 | None | 0.0 | 0.0 | None |
| 2022 | None | 0.0 | 0.0 | None |
| 2021 | None | 0.0 | 0.0 | None |
| 2020 | None | 0.0 | 0.0 | None |
| 2019 | 0.19 | 117.9 | 5.3 | 10/03/2018 |
| 2018 | None | 0.0 | 0.0 | None |
| 2017 | None | 0.0 | 0.0 | None |
| 2016 (partial) | None | 0.0 | 0.0 | None |
| Date of Peak |
Time of Peak |
Runoff Start |
Runoff End |
Duration (hours) |
Peak Stage (feet GH) |
Peak Volume (acre-feet) |
Water Year |
| View a Plot of These Data | |||||||
| 10/03/2018 | 18:00 | 10/03/2018 11:08 | 10/06/2018 00:00 | 60.9 | 0.19 | 117.9 | 2019 |
| Staff Gage Range | Staff Gage Information |
| 0 - 24 | Inside right half of inlet area, viewable from west side of outlet. |
