Berneil Wash - ID # 59207

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

59207 0.00 feet 1,314.56 NAVD88 04/21/2020 -- Current
4688 0.00 feet 1,314.56 NAVD88 07/30/1998 -- 04/21/2020

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

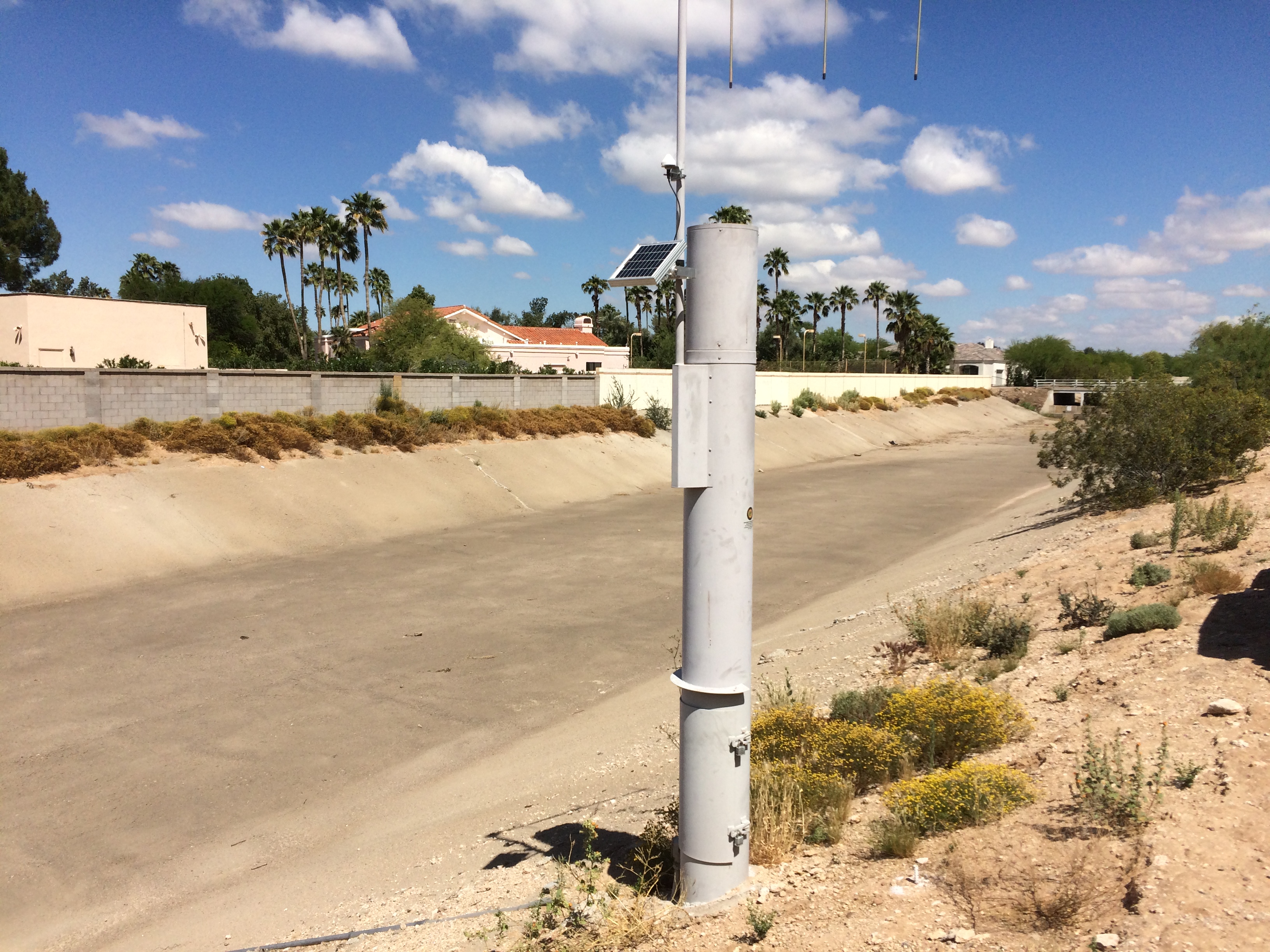

LOCATION Near 66th Street and Doubletree Road

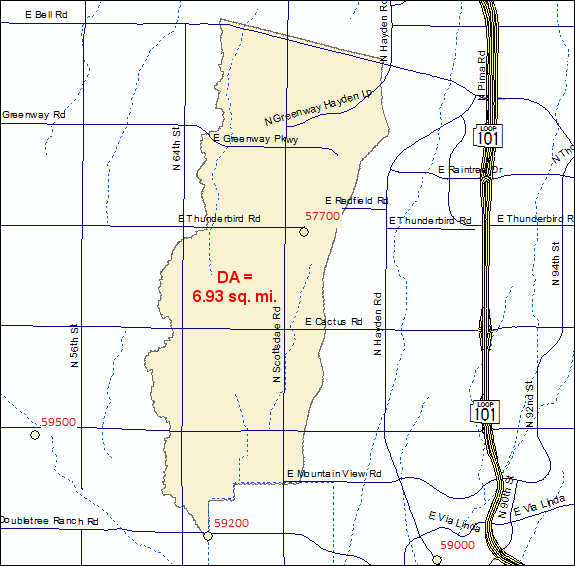

DRAINAGE AREA 6.9 mi2
STREAM TYPE Engineered Channel
JURISDICTION Paradise Valley, Arizona
WATERSHED Lower Indian Bend
SECTION/TOWNSHIP/RANGE S34 T3N R4E
LATITUDE N 33° 33' 58.5"  |  +33.56626
LONGITUDE W 111° 56' 19.6"  |  -111.93878
ARIZONA STATE PLANE E 693248  | N 933839
USGS QUAD SHEET Paradise Valley 7.5-Minute
STREAMGAGE INSTALLATION DATE 07/30/1998 - WY 1998
PERIOD OF AVAILABLE DATA RECORD 07/30/1998 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 26.17 Years | 9,560 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.00 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,314.560 feet NAVD88
POINT OF ZERO FLOW 0.0 feet Gage Height
EXTREME FOR PERIOD OF RECORD 1,634 cfs | 3.50 feet | 10/02/2018

Back to Top   |   Streamflow Homepage   |   FCD Home Page

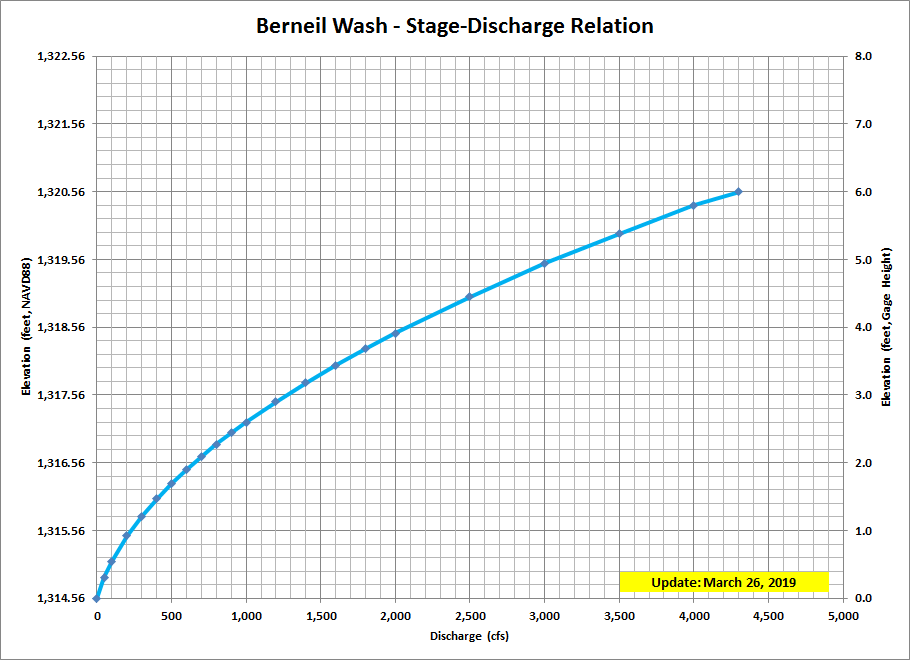

BRIEF RATING

Current Rating = #2 - Applied since 10/01/2018
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 1,314.56
50 0.31 1,314.87
100 0.55 1,315.11
200 0.92 1,315.48
500 1.69 1,316.25
800 2.27 1,316.83
1,000 2.60 1,317.16
2,000 3.91 1,318.47
3,000 4.94 1,319.50
4,300 6.00 1,320.56

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 0.89 191 04/01/2024
2023 0.83 173 03/01/2023
2022 2.82 1,145 08/12/2022
2021 1.52 422 08/17/2021
2020 0.89 191 11/29/2019
2019 3.50 1,634 10/02/2018
2018 1.04 197 08/08/2018
2017 1.67 423 07/16/2017
2016 2.06 612 08/05/2016
2015 1.40 314 09/22/2015
2014 2.38 792 08/19/2014
2013 2.55 901 07/21/2013
2012 0.90 154 08/23/2012
2011 0.45 50 10/05/2010
2010 0.90 154 01/19/2010
2009 0.85 140 11/27/2008
2008 0.93 162 01/28/2008
2007 1.77 470 07/31/2007

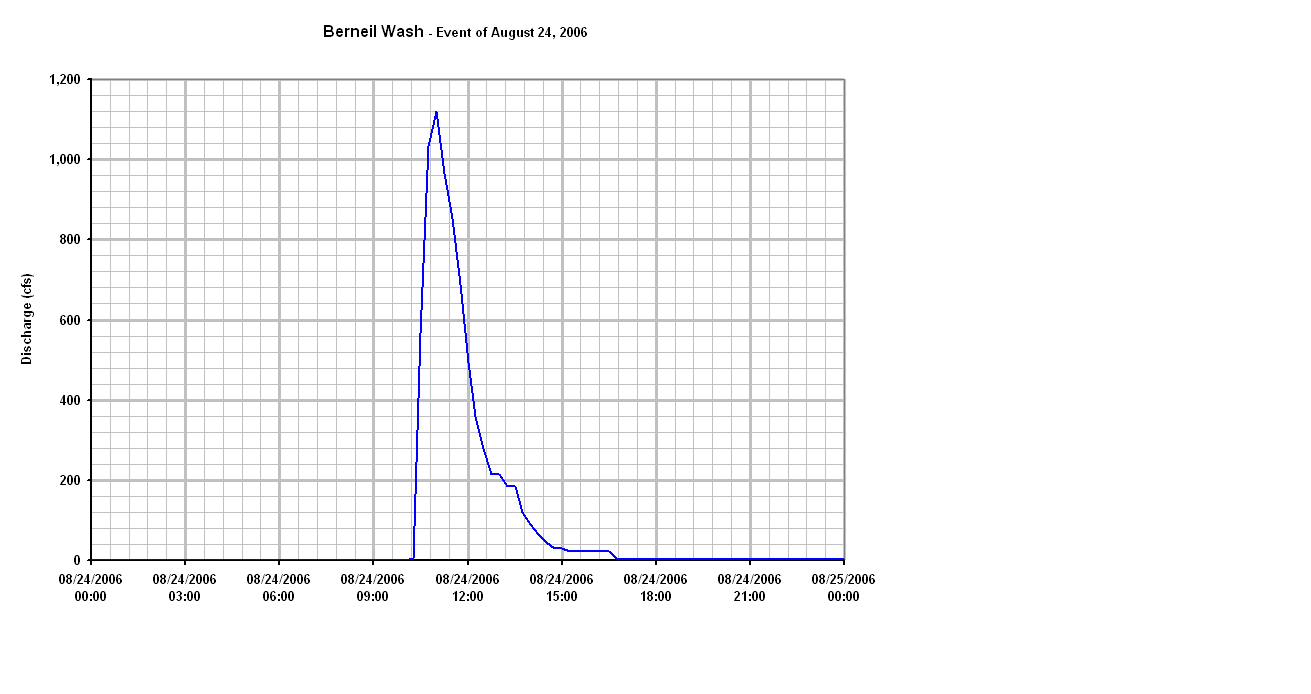

2006 2.88 1,120 08/24/2006

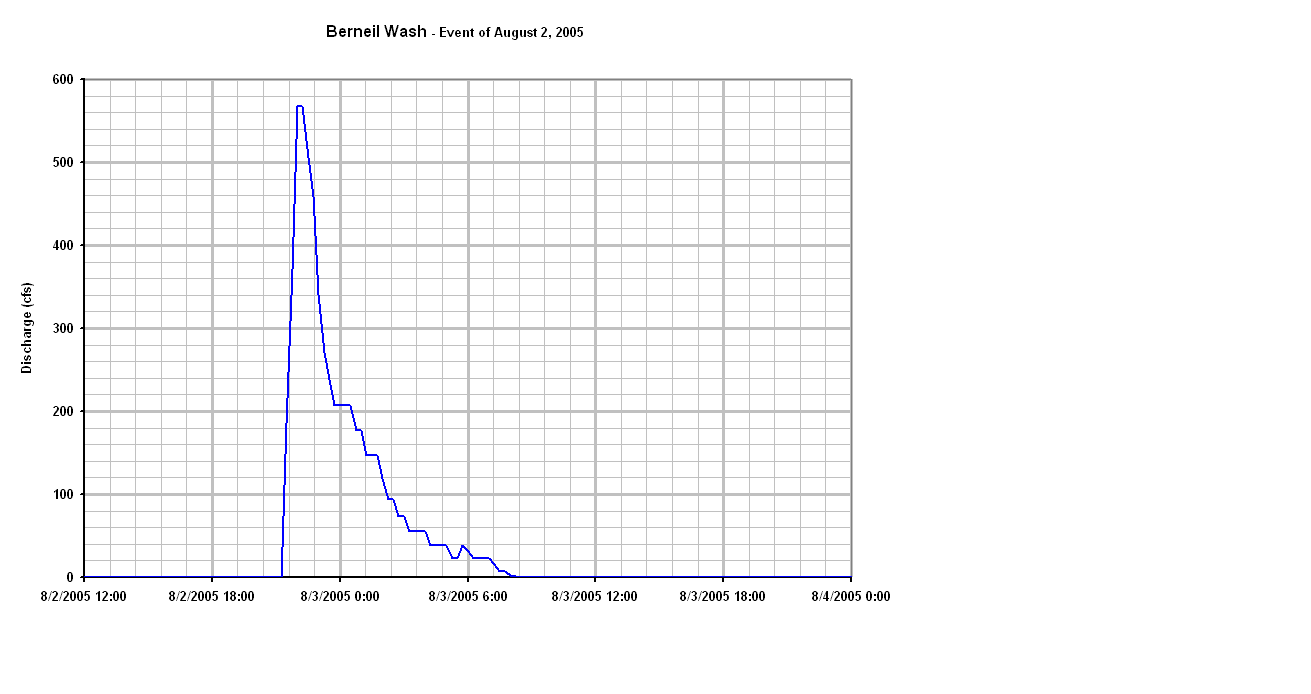

2005 1.98 567 08/02/2005
2004 1.02 192 04/02/2004

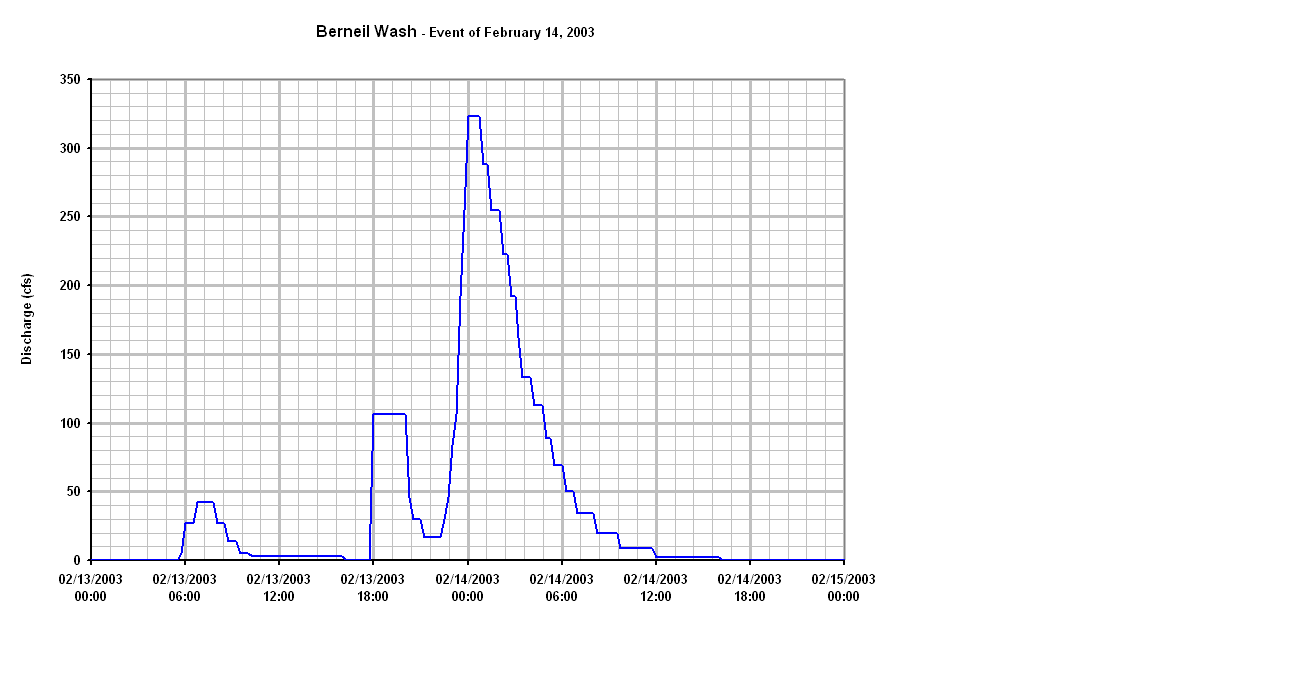

2003 1.42 323 02/13/2003
2002 1.10 215 07/23/2002

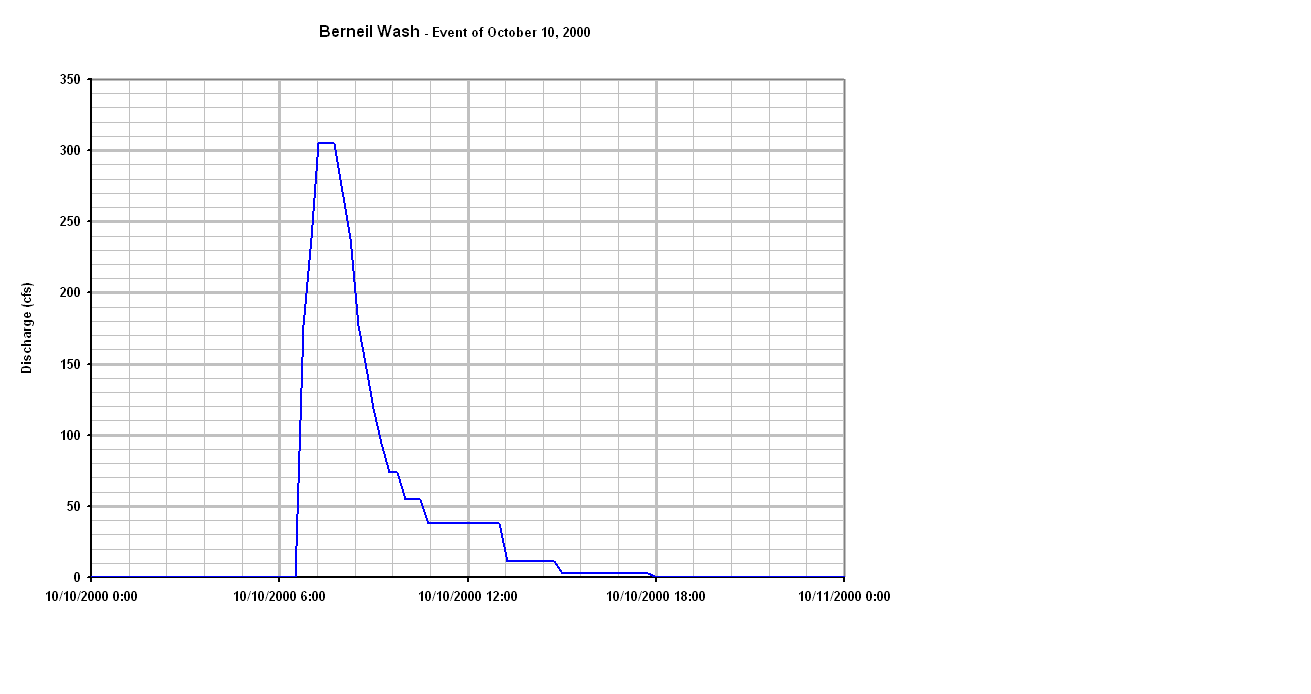

2001 1.38 305 10/10/2000
2000 1.02 192 03/06/2000

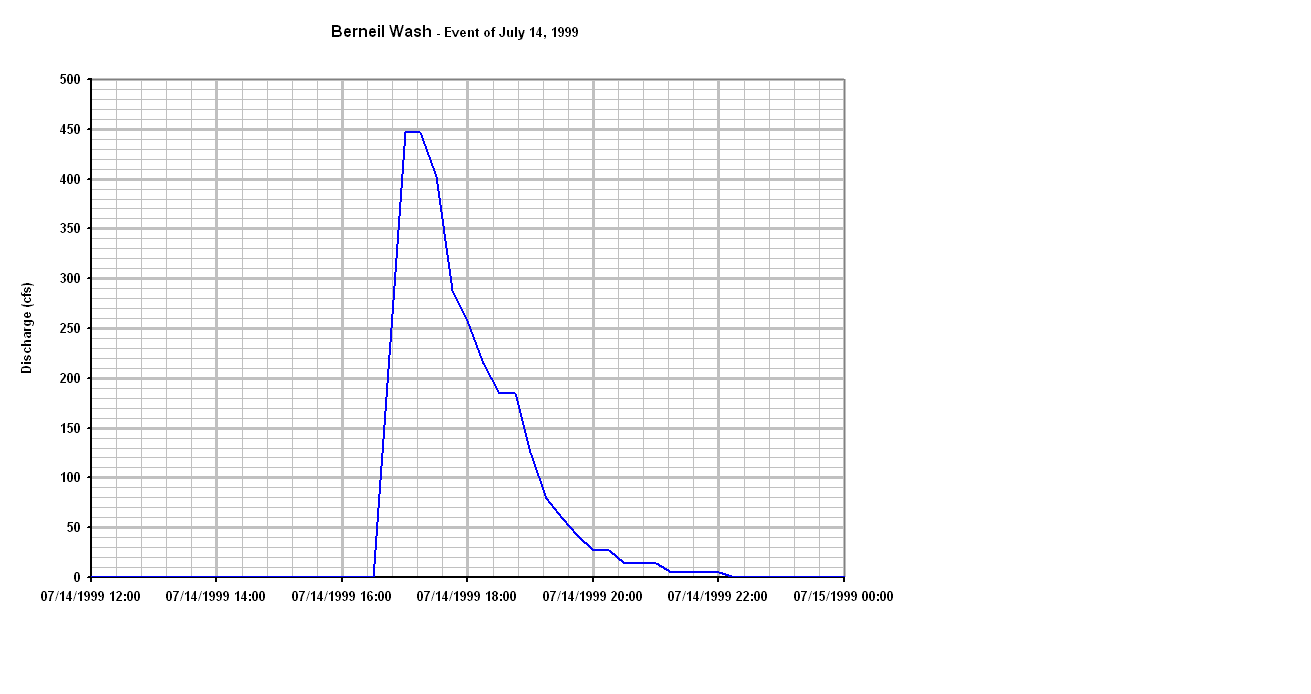

1999 1.73 447 07/14/1999
1998 0.20 14 08/17/1998

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year

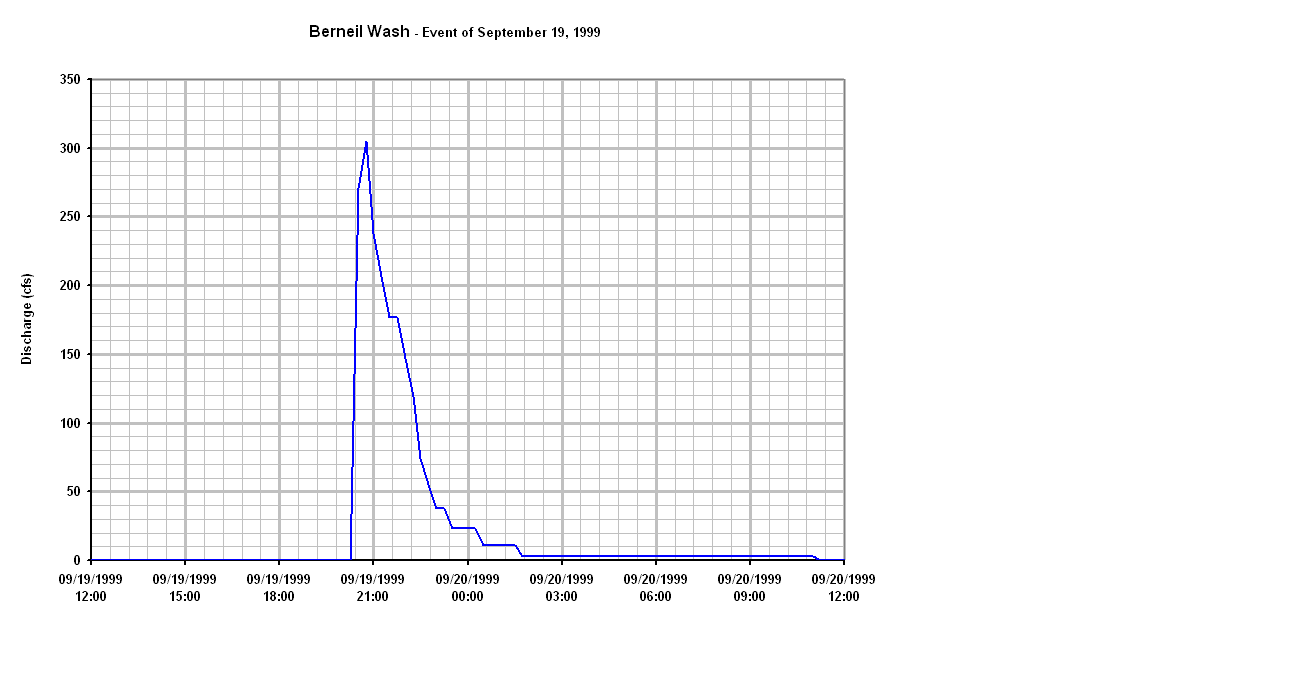

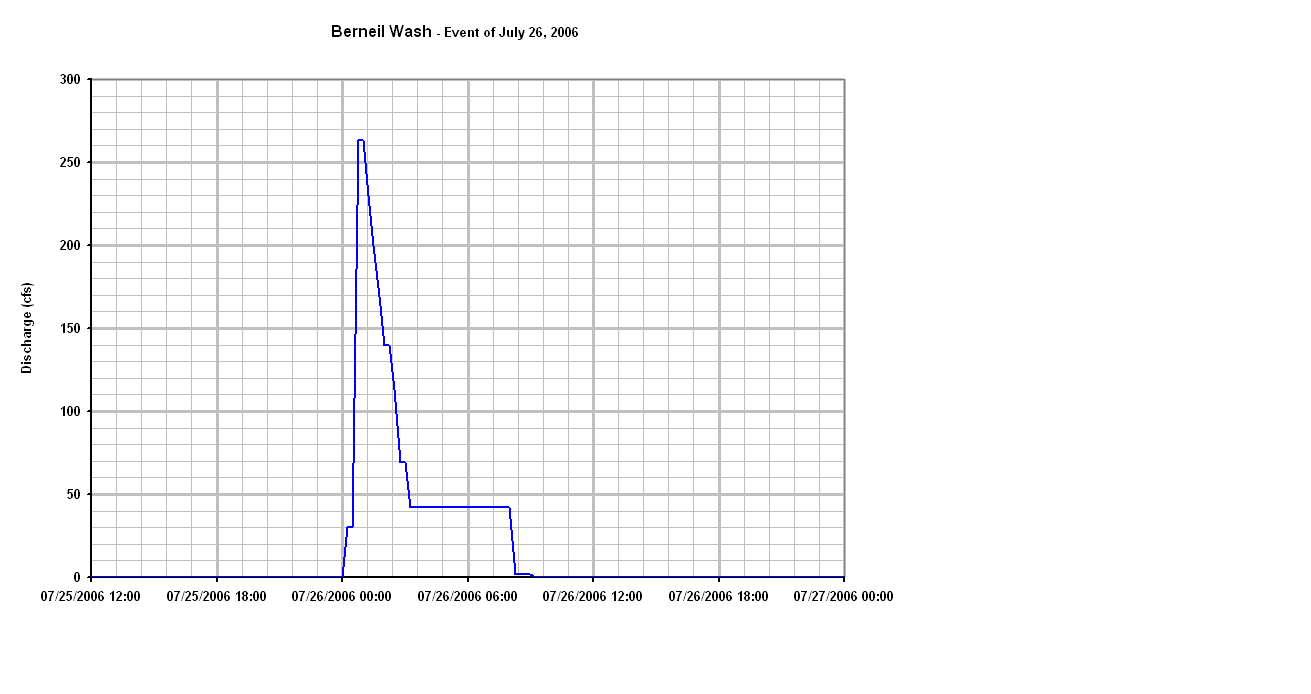

View a Plot of These Data

08/22/2024 19:38 08/22/2024 18:00 08/22/2024 20:52 2.9 0.42 72 2024
07/14/2024 22:53 07/14/2024 18:00 07/15/2024 01:17 7.3 0.55 100 2024
04/01/2024 04:59 04/01/2024 00:09 04/01/2024 12:00 11.9 0.89 191 2024
02/08/2024 14:16 02/18/2024 12:00 02/19/2024 00:00 12.0 0.37 62 2024
02/01/2024 23:52 02/01/2024 18:00 02/02/2024 12:00 18.0 0.37 62 2024
01/23/2024 10:41 01/23/2024 10:00 01/23/2024 13:56 3.9 0.67 130 2024
03/15/2023 21:58 03/15/2023 18:00 03/16/2023 01:26 7.4 0.37 62 2023
03/01/2023 21:01 03/01/2023 18:00 03/02/2023 02:32 8.5 0.83 173 2023
01/01/2023 18:00 01/01/2023 12:00 01/02/2023 00:00 12.0 0.42 72 2023
12/28/2022 09:36 12/27/2023 18:00 12/28/2023 13:13 19.2 0.37 62 2023
11/08/2022 06:00 11/07/2022 18:00 11/08/2022 12:00 18.0 0.70 138 2023
10/28/2022 05:43 10/28/2022 00:00 10/28/2022 07:41 7.7 0.50 89 2023
10/25/2022 06:00 10/24/2022 00:00 10/25/2022 18:00 42.0 0.32 52 2023
10/16/2022 01:51 10/15/2022 00:00 10/16/2022 12:00 36.0 0.72 144 2023
10/14/2022 05:50 10/12/2022 03:07 10/14/2022 07:40 52.5 0.62 118 2023
09/18/2022 04:31 08/12/2022 16:11 08/13/2022 02:17 10.1 0.25 35 2022
08/19/2022 17:41 08/19/2022 17:35 08/19/2022 20:30 2.9 0.85 180 2022
08/12/2022 16:31 08/12/2022 16:11 08/13/2022 02:17 10.1 2.82 1,145 2022
07/28/2022 07:43 07/28/2022 07:33 07/28/2022 09:19 1.8 0.54 98 2022
07/18/2022 04:07 07/18/2022 04:05 07/18/2022 06:00 1.9 0.27 40 2022
12/24/2022 12:00 12/24/2022 09:45 12/24/2022 16:25 6.7 0.59 110 2022
12/10/2022 00:00 12/09/2022 23:00 12/10/2022 01:24 2.4 0.42 72 2022
09/26/2021 14:38 09/26/2021 14:38 09/26/2021 16:44 2.1 0.12 11 2021
08/31/2021 23:55 08/31/2021 23:55 09/01/2021 01:56 2.0 0.24 33 2021
08/18/2021 15:33 08/18/2021 15:18 08/19/2021 00:00 8.7 0.82 171 2021
08/17/2021 06:38 08/17/2021 06:04 08/17/2021 10:45 4.7 1.52 422 2021
08/17/2021 00:02 08/16/2021 23:53 08/17/2021 01:00 1.1 0.42 72 2021
08/13/2021 23:55 08/13/2021 23:48 08/14/2021 07:20 7.5 0.27 40 2021
08/12/2021 03:27 08/12/2021 03:24 08/12/2021 06:21 3.0 0.47 83 2021
08/11/2021 08:52 08/11/2021 08:50 08/11/2021 12:00 3.2 0.44 76 2021
07/25/2021 04:15 07/25/2021 03:55 07/25/2021 05:43 1.8 0.49 87 2021
07/23/2021 12:00 07/23/2021 08:35 07/23/2021 19:40 11.1 1.07 250 2021
07/16/2021 11:19 07/16/2021 11:10 07/16/2021 12:50 1.7 0.29 45 2021
01/25/2021 15:24 01/25/2021 15:00 01/26/2021 01:40 10.7 0.97 216 2021
01/24/2021 09:13 01/24/2021 08:57 01/24/2021 11:48 2.9 0.24 33 2021
12/10/2020 09:26 12/10/2020 09:00 12/10/2020 12:00 3.0 0.24 33 2021
03/18/2020 20:38 03/18/2020 19:21 03/18/2020 23:17 3.9 0.37 62 2020
03/13/2020 16:29 03/13/2020 16:13 03/13/2020 20:43 4.5 0.57 105 2020
03/13/2020 01:24 03/13/2020 00:49 03/13/2020 06:00 5.2 0.64 123 2020
03/12/2020 09:29 03/12/2020 08:44 03/12/2020 11:23 2.7 0.57 105 2020
03/11/2020 11:36 03/11/2020 09:42 03/11/2020 17:04 7.4 0.52 93 2020
02/22/2020 11:08 02/22/2020 07:52 02/22/2020 18:00 10.1 0.62 118 2020
02/11/2020 00:55 02/10/2020 22:03 02/11/2020 10:28 12.4 0.54 98 2020
12/27/2019 20:16 12/27/2019 20:14 12/27/2019 23:00 2.8 0.27 40 2020
12/25/2019 11:17 12/25/2019 09:27 12/25/2019 12:25 3.0 0.24 33 2020
12/24/2019 18:32 12/24/2019 18:16 12/24/2019 20:30 2.2 0.72 144 2020
11/29/2019 05:53 11/29/2019 05:11 11/29/2019 11:57 6.8 0.89 191 2020
11/20/2019 09:40 11/20/2019 08:30 11/20/2019 13:45 5.3 0.74 149 2020
09/23/2019 19:48 09/23/2019 19:20 09/24/2019 00:00 4.7 1.22 304 2019
09/14/2019 20:29 09/14/2019 20:28 09/14/2019 22:05 1.6 0.29 45 2019
08/28/2019 22:15 08/28/2019 21:55 08/29/2019 02:29 4.6 0.92 200 2019
03/12/2019 13:42 03/12/2019 13:42 03/12/2019 15:20 1.6 0.29 45 2019
02/22/2019 00:00 02/21/2019 18:00 02/22/2019 07:20 13.3 0.44 76 2019
01/06/2019 06:00 01/06/2019 03:57 01/06/2019 08:10 4.2 0.17 19 2019
11/30/2018 00:44 11/30/2018 00:38 11/30/2018 02:13 1.6 0.24 33 2019
10/13/2018 11:14 10/13/2018 10:45 10/13/2018 17:44 7.0 0.57 105 2019
10/07/2018 05:11 10/07/2018 04:51 10/07/2018 12:00 7.2 0.64 123 2019
10/02/2018 22:01 10/02/2018 18:07 10/03/2018 06:00 11.9 3.50 1,634 2019
10/02/2018 09:49 10/02/2018 07:34 10/02/2018 14:56 7.4 1.44 388 2019
08/10/2018 23:44 08/10/2018 23:42 08/11/2018 02:32 2.8 0.47 54 2018
08/08/2018 20:21 08/08/2018 20:16 08/09/2018 00:00 3.7 1.04 197 2018
07/11/2018 23:06 07/11/2018 22:12 07/12/2018 02:32 4.3 0.77 118 2018
07/11/2018 17:05 07/11/2018 16:50 07/11/2018 19:23 2.6 0.74 110 2018
07/09/2018 18:03 07/09/2018 18:00 07/10/2018 00:00 6.0 0.64 87 2018
01/09/2018 23:50 01/09/2018 23:37 01/10/2018 02:23 2.8 0.35 34 2018
08/24/2017 00:18 08/23/2017 23:08 08/24/2017 01:30 2.4 0.25 20 2017
07/16/2017 22:57 07/16/2017 22:27 07/17/2017 04:25 6.0 1.67 423 2017
02/28/2017 08:36 02/28/2017 08:26 02/28/2017 11:25 3.0 0.75 113 2017
02/27/2017 22:41 02/27/2017 22:26 02/28/2017 00:29 2.1 0.33 31 2017
02/19/2017 06:00 02/18/2017 21:26 02/19/2017 12:00 14.6 0.25 20 2017
01/20/2017 21:39 01/20/2017 18:15 01/21/2017 00:55 6.7 0.70 100 2017
01/01/2017 09:11 01/01/2017 08:53 01/01/2017 13:10 4.3 0.23 18 2017
12/24/2016 16:22 12/24/2016 15:59 12/24/2016 18:50 2.9 0.40 42 2017
12/22/2016 04:53 12/22/2016 04:11 12/22/2016 08:52 4.7 0.95 169 2017
11/27/2016 20:51 11/27/2016 20:43 11/27/2016 23:14 2.5 0.30 27 2017
08/11/2016 09:11 08/11/2016 09:09 08/11/2016 12:00 2.9 0.55 69 2016
08/05/2016 09:52 08/05/2016 09:19 08/05/2016 18:00 8.7 2.06 612 2016
08/02/2016 18:51 08/02/2016 18:27 08/02/2016 21:08 2.7 1.61 396 2016
06/30/2016 00:07 06/30/2016 00:04 06/30/2016 02:45 2.7 0.59 77 2016
02/01/2016 00:05 01/31/2016 23:37 02/01/2016 05:15 5.6 0.75 113 2016
01/07/2016 09:21 01/07/2016 08:50 01/08/2016 04:40 19.8 0.90 154 2016
01/06/2016 05:00 01/05/2016 22:40 01/06/2016 11:57 13.3 0.70 100 2016
01/04/2016 21:11 01/04/2016 20:36 01/05/2016 10:40 14.1 0.48 55 2016
10/20/2015 05:17 10/20/2015 04:58 10/20/2015 10:38 5.7 0.62 84 2016
09/22/2015 19:00 09/22/2015 18:51 09/23/2015 00:14 5.4 1.40 314 2015
09/14/2015 20:54 09/14/2015 20:35 09/15/2015 00:01 3.4 0.82 133 2015
08/31/2015 22:37 08/31/2015 22:08 09/01/2015 00:43 2.6 0.58 74 2015
06/06/2015 01:31 06/05/2015 22:35 06/06/2015 02:32 4.0 0.18 11 2015
05/15/2015 23:47 05/15/2015 16:33 05/16/2015 07:03 14.5 0.88 147 2015
05/04/2015 03:22 05/04/2015 03:00 05/04/2015 08:51 5.9 0.50 59 2015
03/19/2015 05:41 03/19/2015 05:41 03/19/2015 07:35 1.9 0.10 5 2015
12/04/2014 09:20 12/04/2014 09:02 12/04/2014 11:45 2.7 0.30 27 2015
09/27/2014 15:34 09/27/2014 15:14 09/27/2014 19:58 4.7 0.88 147 2014
09/09/2014 11:19 09/09/2014 11:08 09/09/2014 13:12 2.1 0.42 46 2014
09/08/2014 03:45 09/08/2014 03:23 09/08/2014 12:32 9.2 1.82 494 2014
08/19/2014 13:06 08/19/2014 12:40 08/19/2014 17:54 5.2 2.38 792 2014
03/01/2014 22:24 03/01/2014 21:40 03/02/2014 02:50 5.2 0.60 79 2014
11/23/2013 00:56 11/22/2013 23:21 11/23/2013 08:03 8.7 0.65 89 2014
11/22/2013 08:19 11/22/2013 00:06 11/22/2013 12:24 12.3 0.82 133 2014
09/09/2013 13:11 09/09/2013 12:10 09/09/2013 16:28 4.3 0.55 69 2013
08/28/2013 22:54 08/28/2013 22:39 08/29/2013 02:48 4.2 0.45 50 2013
07/21/2013 11:53 07/21/2013 10:54 07/21/2013 20:48 9.9 2.55 901 2013
07/19/2013 23:40 07/19/2013 23:01 07/20/2013 03:37 4.6 0.75 113 2013
03/08/2013 22:27 03/08/2013 13:55 03/09/2013 04:26 14.5 0.45 50 2013
03/08/2013 06:43 03/08/2013 05:35 03/08/2013 12:43 7.1 0.38 38 2013
02/20/2013 15:58 02/20/2013 10:13 02/20/2013 20:48 10.6 0.45 50 2013
01/26/2013 08:32 01/26/2013 07:49 01/27/2013 00:42 16.9 0.72 106 2013
12/15/2012 16:33 12/15/2012 15:55 12/15/2012 22:41 6.8 0.50 20 2013
12/15/2012 02:44 12/15/2012 02:39 12/15/2012 03:05 0.4 0.20 14 2013
12/14/2012 05:05 12/14/2012 00:30 12/14/2012 11:00 10.5 0.98 177 2013
09/07/2012 11:38 09/07/2012 10:58 09/07/2012 13:13 2.3 0.35 34 2012
08/23/2012 03:33 08/23/2012 02:58 08/23/2012 09:52 6.9 0.90 154 2012
08/22/2012 00:55 08/22/2012 00:42 08/22/2012 03:02 2.3 0.20 14 2012
07/12/2012 00:47 07/12/2012 00:40 07/12/2012 03:33 2.9 0.78 119 2012
11/05/2011 01:32 11/05/2011 01:03 11/05/2011 07:17 6.2 0.62 84 2012
08/01/2011 00:10 08/01/2011 00:04 08/01/2011 02:20 2.3 0.42 46 2011
07/11/2011 04:24 07/11/2011 04:22 07/11/2011 05:06 0.7 0.30 27 2011
07/05/2011 00:14 07/05/2011 00:10 07/05/2011 01:19 1.2 0.20 14 2011
02/27/2011 03:11 02/27/2011 03:11 02/27/2011 05:39 2.5 0.20 14 2011
12/29/2010 18:51 12/29/2010 17:14 12/30/2010 06:47 13.6 0.40 42 2011
12/23/2010 01:23 12/23/2010 00:39 12/23/2010 04:02 3.4 0.30 27 2011
10/21/2010 07:28 10/20/2010 21:30 10/21/2010 10:16 12.8 0.38 38 2011
10/05/2010 16:42 10/05/2010 16:42 10/05/2010 19:31 2.8 0.45 50 2011
08/22/2010 01:26 08/22/2010 01:26 08/22/2010 04:38 3.2 0.22 17 2010
07/31/2010 15:31 07/31/2010 15:23 07/31/2010 16:46 1.4 0.52 64 2010
03/09/2010 14:54 03/09/2010 14:37 03/09/2010 16:52 2.3 0.25 20 2010
03/07/2010 14:07 03/06/2010 22:52 03/08/2010 04:52 30.0 0.75 113 2010
02/28/2010 01:50 02/28/2010 01:21 02/28/2010 13:08 11.8 0.82 133 2010
02/21/2010 06:52 02/21/2010 04:53 02/21/2010 10:13 5.3 0.62 83 2010
02/07/2010 05:53 02/07/2010 05:49 02/07/2010 08:40 2.9 0.35 34 2010
01/23/2010 04:06 01/23/2010 04:06 01/23/2010 07:23 3.3 0.28 24 2010
01/21/2010 22:53 01/21/2010 04:53 01/22/2010 13:23 32.5 0.90 154 2010
01/19/2010 20:25 01/19/2010 19:26 01/20/2010 06:37 11.2 0.90 154 2010
07/24/2009 00:42 07/24/2009 00:39 07/24/2009 04:04 3.4 0.60 79 2009
05/22/2009 06:05 05/22/2009 05:50 05/22/2009 06:23 0.6 0.20 14 2009
04/11/2009 08:39 04/11/2009 00:04 04/11/2009 09:32 9.5 0.30 27 2009
02/09/2009 21:50 02/09/2009 20:51 02/10/2009 06:12 9.4 1.10 215 2009
12/26/2008 04:07 12/26/2008 02:46 12/26/2008 07:05 4.3 0.57 74 2009
12/25/2008 15:21 12/25/2008 11:19 12/25/2008 17:19 6.0 0.28 23 2009
12/18/2008 06:16 12/18/2008 05:18 12/18/2008 08:57 3.7 0.28 23 2009
11/27/2008 06:52 11/27/2008 05:20 11/27/2008 12:45 7.4 0.85 140 2009
08/29/2008 00:16 08/28/2008 22:21 08/29/2008 05:03 6.7 0.85 140 2008
08/26/2008 00:41 08/25/2008 23:39 08/26/2008 04:08 4.5 0.50 59 2008
07/10/2008 21:28 07/10/2008 21:24 07/10/2008 23:28 2.1 0.35 34 2008
01/28/2008 04:47 01/27/2008 12:34 01/28/2008 14:03 25.5 0.93 162 2008
01/07/2008 13:24 01/07/2008 09:47 01/07/2008 16:26 6.7 0.38 38 2008
12/08/2007 03:11 12/08/2007 02:05 12/08/2007 08:04 6.0 0.50 59 2008
12/01/2007 14:31 12/01/2007 14:03 12/01/2007 19:42 5.7 0.75 113 2008
11/30/2007 19:12 11/30/2007 15:50 12/01/2007 08:05 16.3 0.80 126 2008
07/31/2007 19:56 07/31/2007 19:44 08/01/2007 02:06 6.4 1.77 470 2007
07/30/2007 17:06 07/30/2007 17:06 07/30/2007 17:31 0.4 0.20 14 2007
03/22/2007 23:46 03/22/2007 22:10 03/23/2007 03:36 5.4 0.52 64 2007
09/07/2006 01:32 09/07/2006 01:19 09/07/2006 06:12 4.9 0.73 106 2006
09/02/2006 21:36 09/02/2006 21:34 09/03/2006 03:12 5.6 0.40 42 2006
08/24/2006 10:48 08/24/2006 10:12 08/25/2006 00:12 14.0 2.88 1,120 2006
08/12/2006 03:43 08/12/2006 03:12 08/12/2006 06:12 3.0 0.28 23 2006
07/26/2006 00:42 07/26/2006 00:11 07/26/2006 08:06 7.9 1.25 263 2006
03/11/2006 21:34 03/11/2006 18:11 03/12/2006 06:11 12.0 0.52 64 2006
10/18/2005 01:22 10/18/2005 00:53 10/18/2005 05:19 4.4 0.88 147 2006
08/02/2005 21:57 08/02/2005 21:26 08/03/2005 08:24 11.0 1.98 567 2005
07/21/2005 23:35 07/21/2005 23:32 07/22/2005 02:28 2.9 0.50 59 2005
03/05/2005 05:34 03/05/2005 05:12 03/05/2005 10:11 5.0 0.45 50 2005
02/21/2005 22:11 02/21/2005 21:34 02/22/2005 10:12 12.6 0.35 34 2005
02/19/2005 02:07 02/18/2005 22:12 02/19/2005 22:11 24.0 1.02 192 2005
02/18/2005 01:52 02/18/2005 01:20 02/18/2005 09:28 8.1 0.55 69 2005
02/12/2005 19:37 02/12/2005 19:33 02/13/2005 10:11 14.6 0.50 59 2005
02/11/2005 23:32 02/11/2005 10:11 02/12/2005 12:25 26.2 0.62 84 2005
01/26/2005 16:34 01/26/2005 15:51 01/26/2005 22:10 6.3 0.85 140 2005
01/11/2005 20:36 01/11/2005 20:25 01/12/2005 10:10 13.8 0.45 50 2005
01/03/2005 17:50 01/03/2005 12:40 01/04/2005 20:40 32.0 1.10 215 2005
12/29/2004 11:34 12/29/2004 01:51 12/30/2004 04:10 26.3 1.12 223 2005
12/06/2004 03:11 12/05/2004 22:11 12/06/2004 10:11 12.0 0.35 34 2005
11/22/2004 11:14 11/22/2004 10:41 11/22/2004 22:10 11.5 0.45 50 2005
10/28/2004 09:41 10/28/2004 09:15 10/29/2004 10:10 24.9 0.30 27 2005
10/21/2004 17:33 10/21/2004 16:07 10/22/2004 10:07 18.0 0.43 46 2005
07/14/2004 00:05 07/13/2004 23:37 07/14/2004 04:47 5.2 0.77 119 2004
04/02/2004 15:45 04/02/2004 15:27 04/02/2004 22:08 6.7 0.82 133 2004
04/02/2004 06:31 04/02/2004 04:41 04/02/2004 14:19 9.6 1.02 192 2004
03/05/2004 02:30 03/05/2004 02:24 03/05/2004 13:17 10.9 0.77 119 2004
03/04/2004 19:45 03/04/2004 19:00 03/05/2004 10:08 15.1 0.95 169 2004
02/23/2004 06:26 02/23/2004 04:07 02/23/2004 16:07 12.0 0.82 133 2004
11/12/2003 18:13 11/12/2003 11:44 11/13/2003 03:17 15.6 0.57 74 2004
10/10/2003 10:52 10/10/2003 09:54 10/10/2003 14:32 4.4 0.68 94 2004
08/19/2003 10:32 08/19/2003 09:54 08/19/2003 11:45 1.9 0.85 140 2003
07/29/2003 23:30 07/29/2003 22:26 07/30/2003 00:55 2.5 0.60 79 2003
03/17/2003 12:47 03/17/2003 10:02 03/17/2003 20:17 10.3 0.62 84 2003
02/25/2003 19:38 02/25/2003 18:33 02/26/2003 04:01 9.5 1.00 185 2003
02/13/2003 23:59 02/13/2003 17:47 02/14/2003 11:53 18.1 1.42 323 2003
07/23/2002 20:37 07/23/2003 20:28 07/24/2003 00:33 4.1 1.10 215 2002
08/09/2001 02:41 08/09/2001 01:56 08/09/2001 04:10 2.2 0.60 79 2001
04/05/2001 23:36 04/05/2001 22:12 04/06/2001 03:58 5.8 1.10 215 2001
03/07/2001 11:41 03/07/2001 09:56 03/07/2001 15:04 5.1 0.73 106 2001
01/27/2001 07:07 01/27/2001 06:00 01/27/2001 10:37 4.6 0.50 59 2001
01/12/2001 19:59 01/12/2001 18:59 01/12/2001 21:46 2.8 0.45 50 2001
01/09/2001 02:24 01/09/2001 00:38 01/09/2001 05:26 4.8 0.50 59 2001
10/27/2000 16:59 10/27/2000 15:37 10/27/2000 23:13 7.6 0.70 100 2001
10/22/2000 06:56 10/22/2000 04:17 10/22/2000 16:06 11.8 1.35 297 2001
10/10/2000 07:02 10/10/2000 06:33 10/10/2000 14:53 8.3 1.38 305 2001
10/04/2000 13:45 10/04/2000 13:10 10/04/2000 16:30 3.3 0.57 74 2001
06/24/2000 00:50 06/23/2000 23:45 06/24/2000 06:40 6.9 0.85 140 2000
03/06/2000 02:18 03/05/2000 22:03 03/06/2000 10:23 12.3 1.02 192 2000
09/19/1999 20:33 09/19/1999 20:18 09/20/1999 01:35 5.3 1.38 305 1999
08/27/1999 19:19 08/27/1999 19:06 08/27/1999 22:01 2.9 0.52 64 1999
07/14/1999 16:57 07/14/1999 16:34 07/14/1999 21:07 4.6 1.73 447 1999
07/07/1999 20:20 07/07/1999 20:14 07/08/1999 00:02 3.8 1.08 207 1999
07/06/1999 17:48 07/06/1999 17:45 07/06/1999 19:25 1.7 0.45 50 1999
04/02/1999 04:57 04/01/1999 22:59 04/02/1999 07:51 8.9 0.45 50 1999
11/09/1998 01:58 11/09/1998 01:40 11/09/1998 06:05 4.4 0.80 126 1999
10/30/1998 16:34 10/30/1998 15:22 10/30/1998 22:00 6.6 0.52 64 1999

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
USGS StreamStats Flood Flow Frequency
2-year 5-year 10-year 25-year 50-year 100-year 200-year 500-year
Flood Flow Frequency
Based on HECWRC implementation of Bulletin 17B, n=24, 1998-2021
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year

Back to Top   |   Streamflow Homepage   |   FCD Home Page
