CAP Reach 11 Dike #2 - ID # 58607

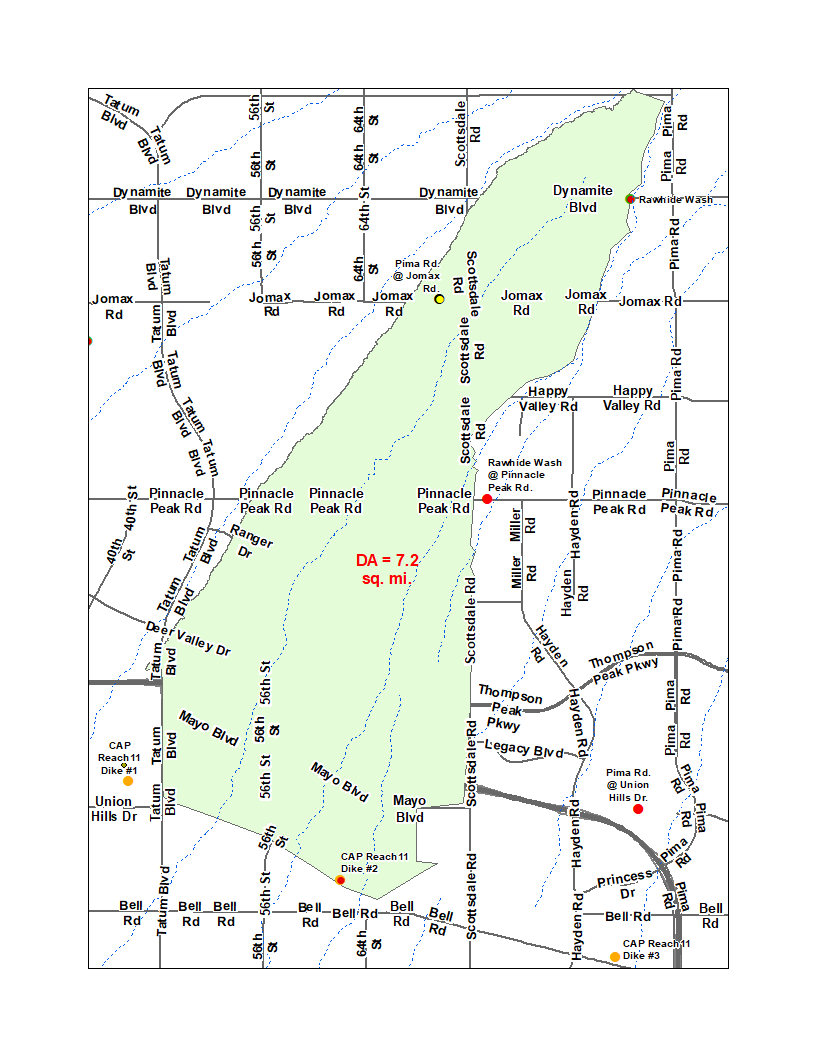

Current at Gage |  Station Description |  Q Rating Curve |  Vol Rating Curve |  Q Rating Table |  Vol Rating Table |  Watershed Map

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History | Staff Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

58607 0.00 feet 1,520.50 feet NAVD88 07/19/2016 -- Current

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

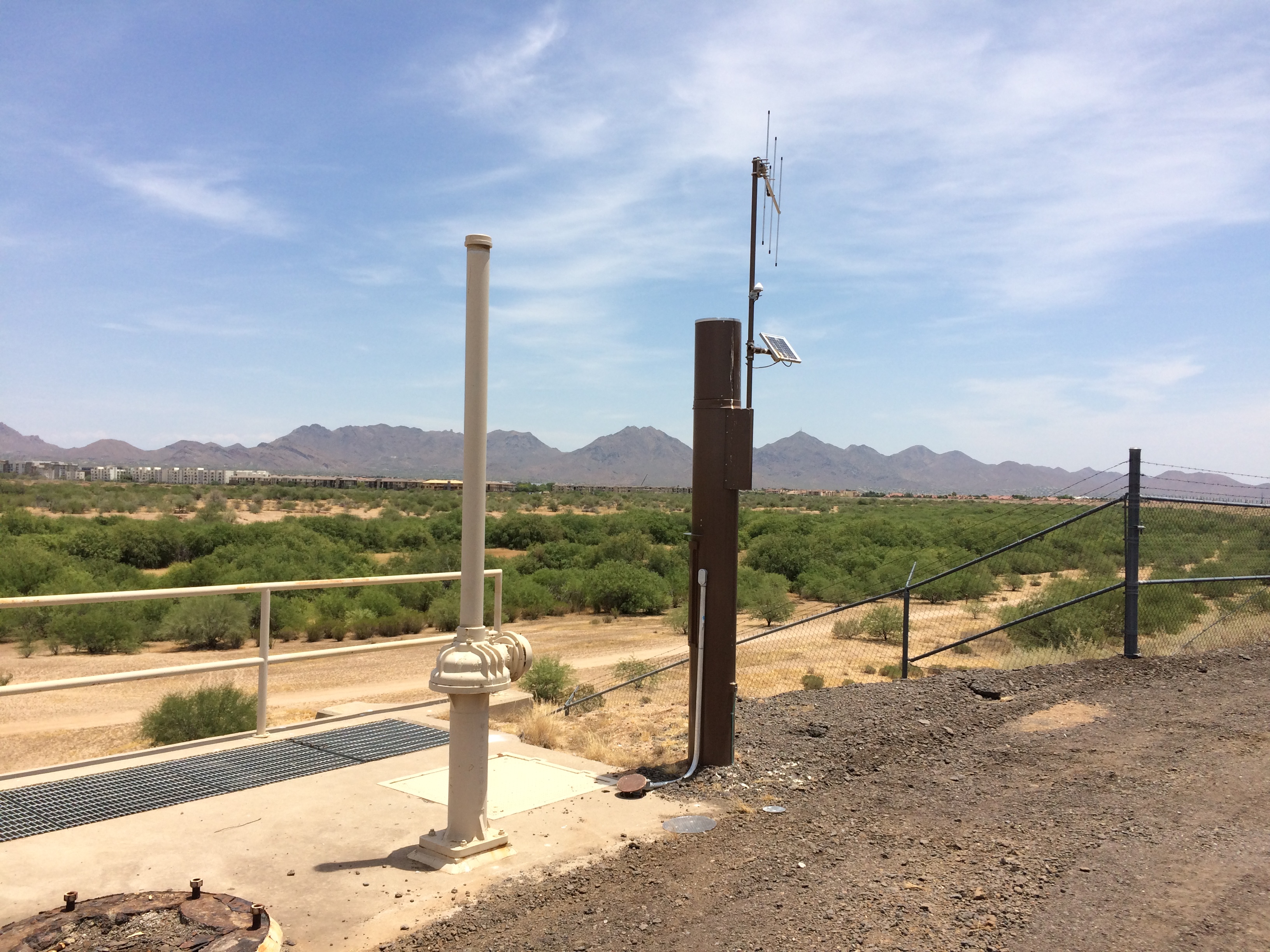

STATUS Active ALERT2 Station
LOCATION Located south of the SR101L freeway west of the 64th Street alignment
DRAINAGE AREA 15.7 mi2
STREAM TYPE Flood control dike
JURISDICTION Phoenix, Arizona
WATERSHED Upper Indian Bend
SECTION/TOWNSHIP/RANGE S33 T4N R4E
LATITUDE N 33° 38' 41.8  |  +33.64495
LONGITUDE W 111° 56' 49.7"  |  -111.94713
ARIZONA STATE PLANE E 690730  | N 962200
USGS QUAD SHEET Currys Corner 7.5-Minute
STREAMGAGE INSTALLATION DATE 07/19/2016 - WY 2016
PERIOD OF AVAILABLE DATA RECORD 07/19/2016 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 8.20 Years | 2,996 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.00 feet Gage Height
STAFF GAGES 1
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,520.50 feet NAVD88
POINT OF ZERO FLOW 2.00 feet Gage Height
SPILLWAY CREST ELEVATION No spillway
TOP OF BASIN ELEVATION 32.0 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

BRIEF RATING

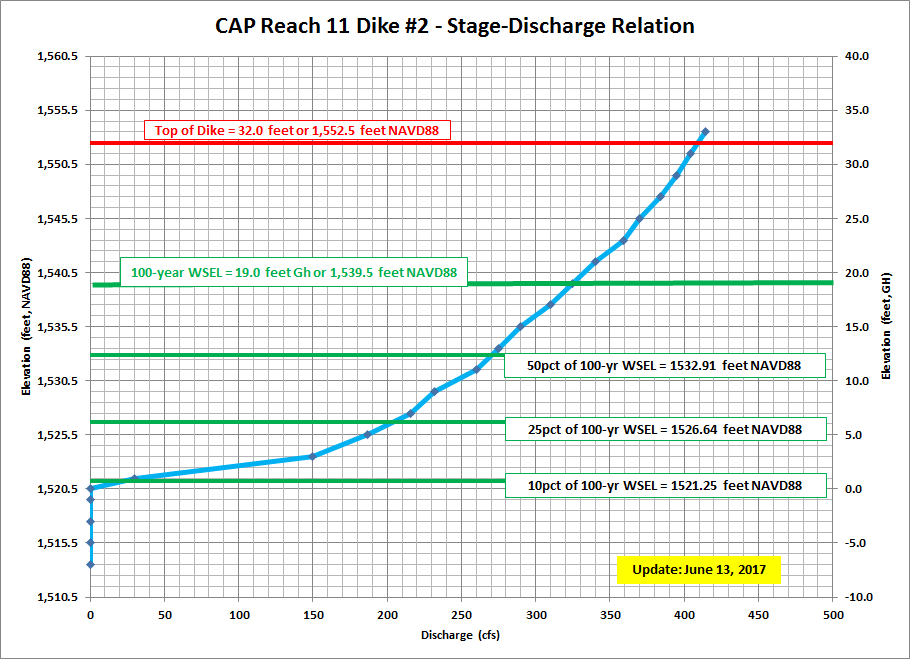

Current Discharge Rating = Rating #1 (since 07/19/2016)

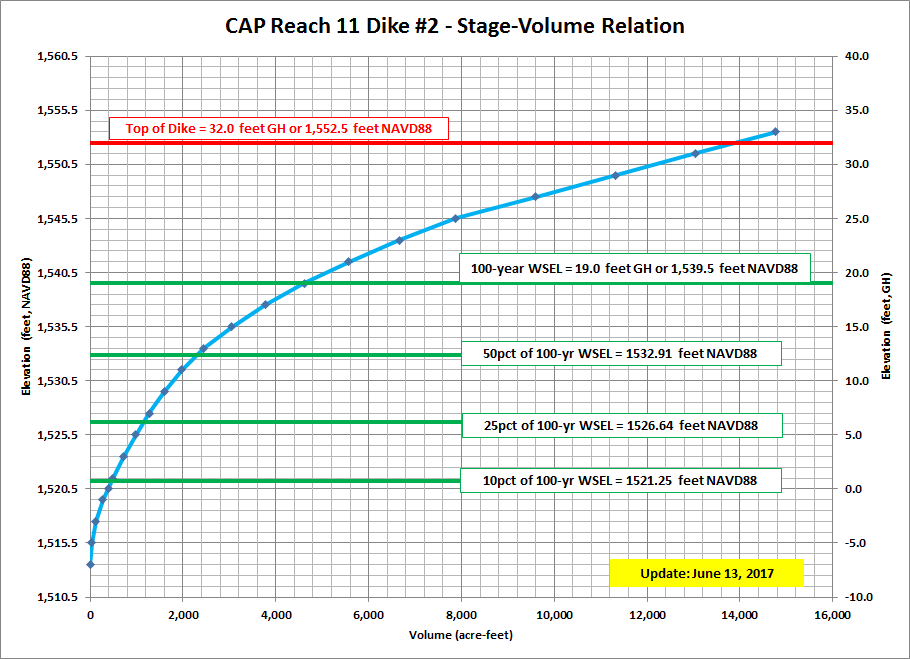

Current Capacity Rating = Rating #1 (since 07/19/2016)
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)
0.00 1,520.50 0 390.0
1.00 1,521.50 30 482.5
3.00 1,523.50 150 724.4
5.00 1,525.50 187 986.3
11.00 1,531.50 260 1,974.7
15.00 1,535.50 290 3,048.6
19.00 1,539.50 325 4,609.8 (100-yr Vol.)
25.00 1,545.50 370 7,877.9
31.00 1,551.50 404 13,052.0

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(100-year Volume)		 Date of
Peak
2025
2024 None 0.0 0.0 None
2023 None 0.0 0.0 None
2022 None 0.0 0.0 None
2021 0.20 442.0 8.9 08/13/2021
2020 None 0.0 0.0 None
2019 0.76 475.3 10.0 10/03/2018
2018 None 0.0 0.0 None
2017 None 0.0 0.0 None
2016 (partial) None 0.0 0.0 None

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

08/13/2021 22:24 08/13/2021 22:12 08/13/2021 22:51 0.7 0.2 442.0 2021
10/03/2018 11:38 10/02/2018 18:16 10/08/2018 18:00 144 0.76 475.3 2019

Back to Top   |   Streamflow Homepage   |   FCD Home Page

STAFF GAGES

Staff Gage Range Staff Gage Information
0 - 24+ Inside right half of inlet area, viewable from west side of outlet.
