GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

53007 0.19 feet 2,136.85 feet NAVD88 04/16/2020 -- Current
7133 0.19 feet 2,136.85 feet NAVD88 10/01/1997 -- 04/16/2020
7133 0.19 feet 2,134.88 feet M.S.L. 10/01/1997 -- 04/16/2020
7133 -0.08 feet 2,134.61 feet M.S.L. 08/15/1996 -- 09/30/1997

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION In Wickenburg north and west of US 60 and Mariposa Avenue
DRAINAGE AREA 1.2 mi2
STREAM TYPE Dam of natural drainage
JURISDICTION Wickenburg, Arizona

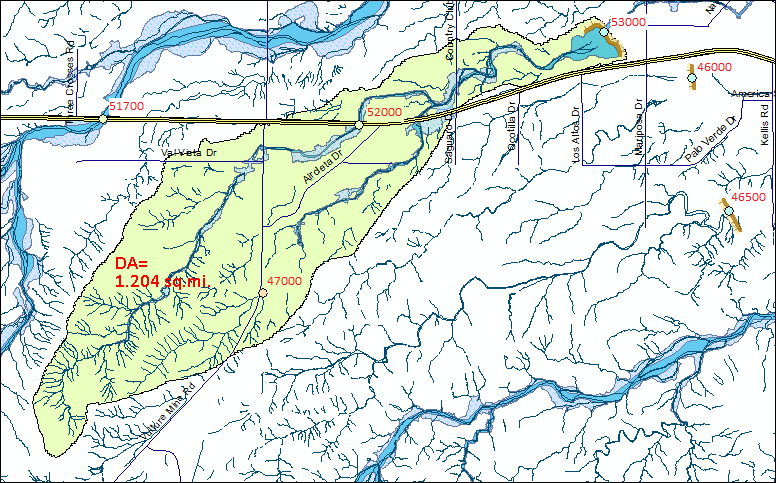

WATERSHED Lower Hassayampa
SECTION/TOWNSHIP/RANGE S11 T7N R5W
LATITUDE N 33° 58' 02.8"  |  +33.96744
LONGITUDE W 112° 44' 54.7"  |  -112.74853
ARIZONA STATE PLANE E 447787  | N 1080564
USGS QUAD SHEET Wickenburg 7.5-Minute
STREAMGAGE INSTALLATION DATE 08/15/1996 - WY 1996
PERIOD OF AVAILABLE DATA RECORD 08/15/1996 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 28.13 Years | 10,274 Days
GAPS (> 2 DAYS) IN RECORD None

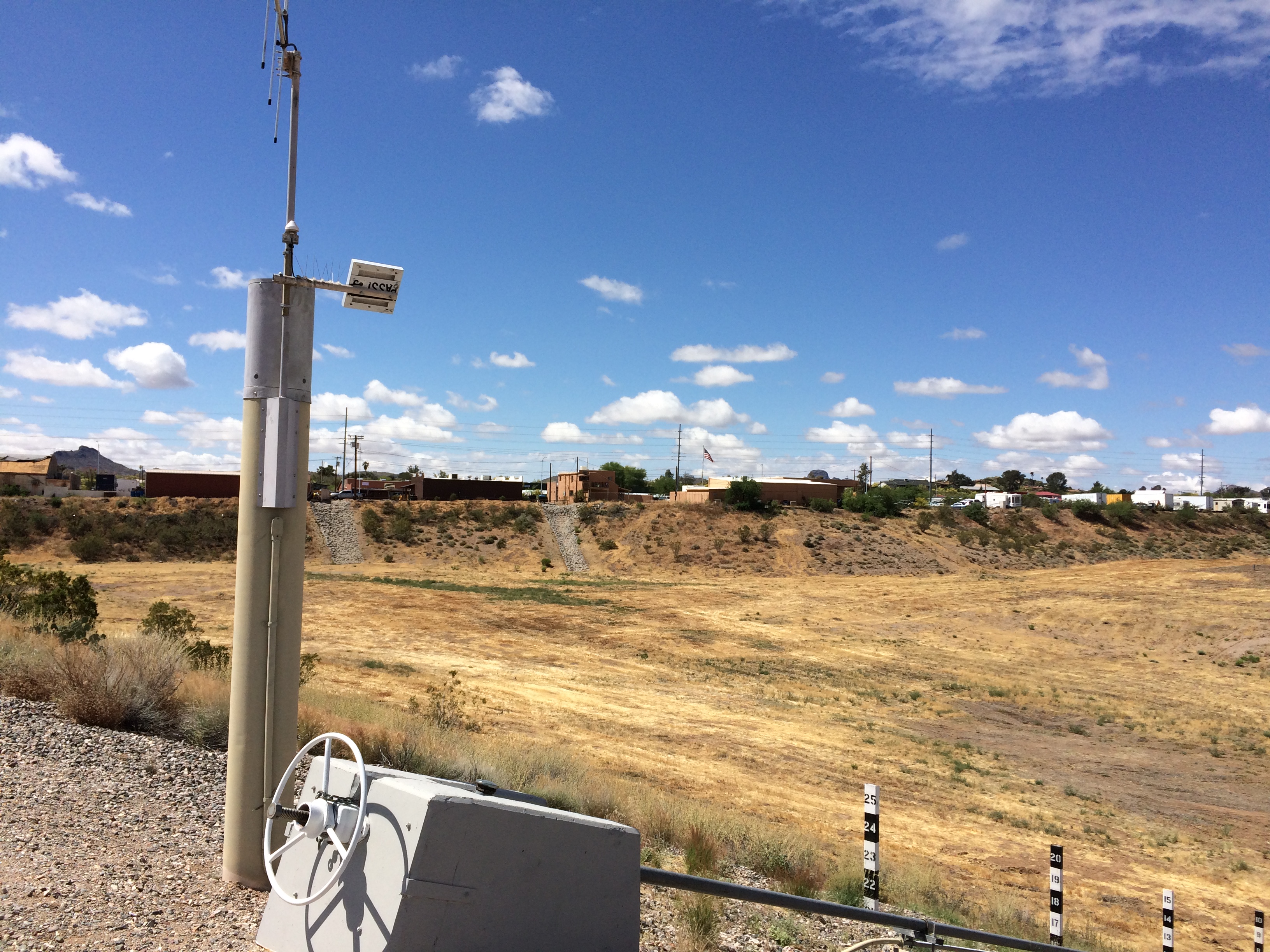

STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.19 feet Gage Height
STAFF GAGES 5
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 2,136.66 feet NAVD88
POINT OF ZERO FLOW 0.25 feet Gage Height
SPILLWAY ELEVATION 20.34 feet Gage Height
TOP OF DAM ELEVATION 28.56 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

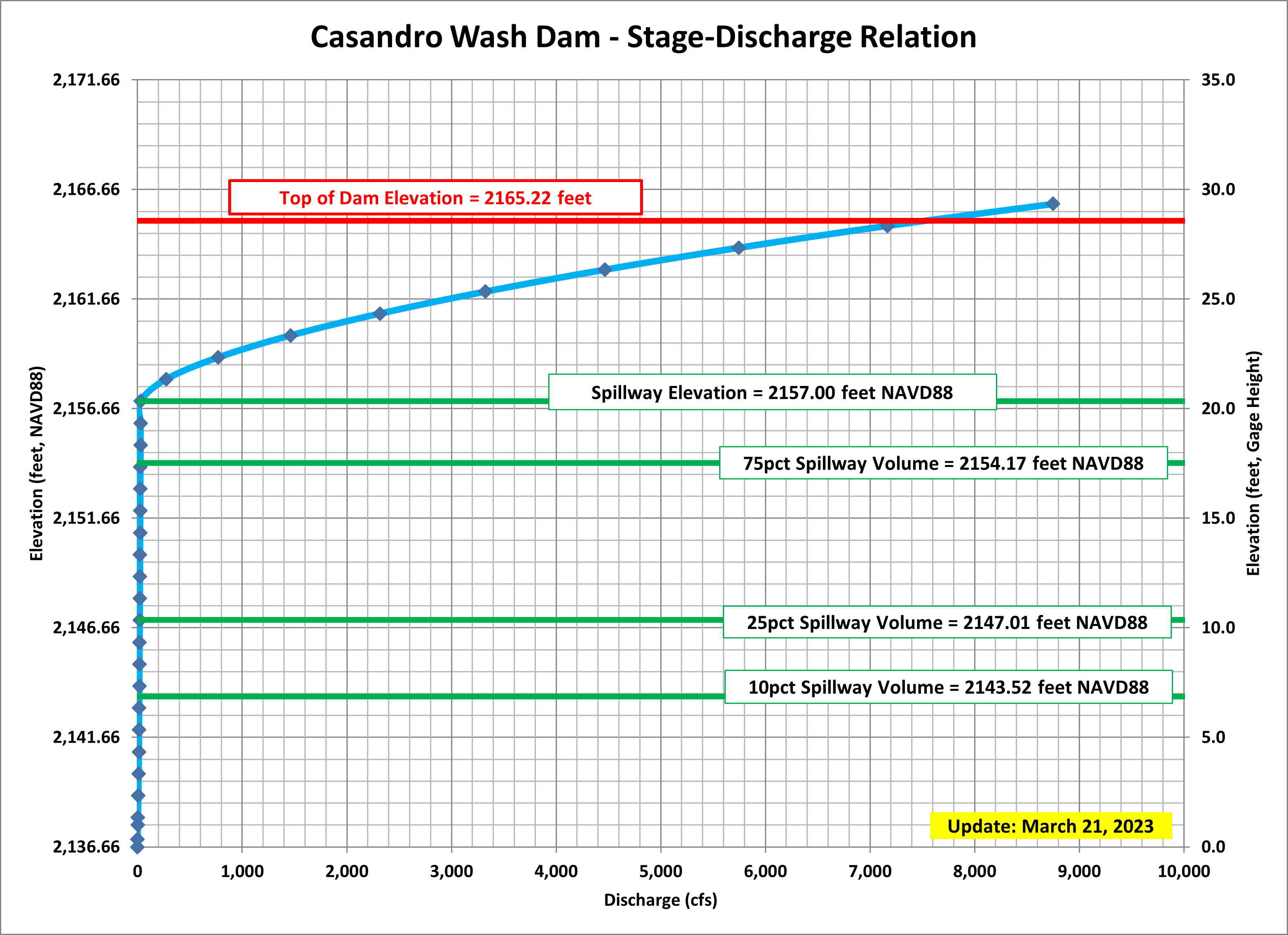

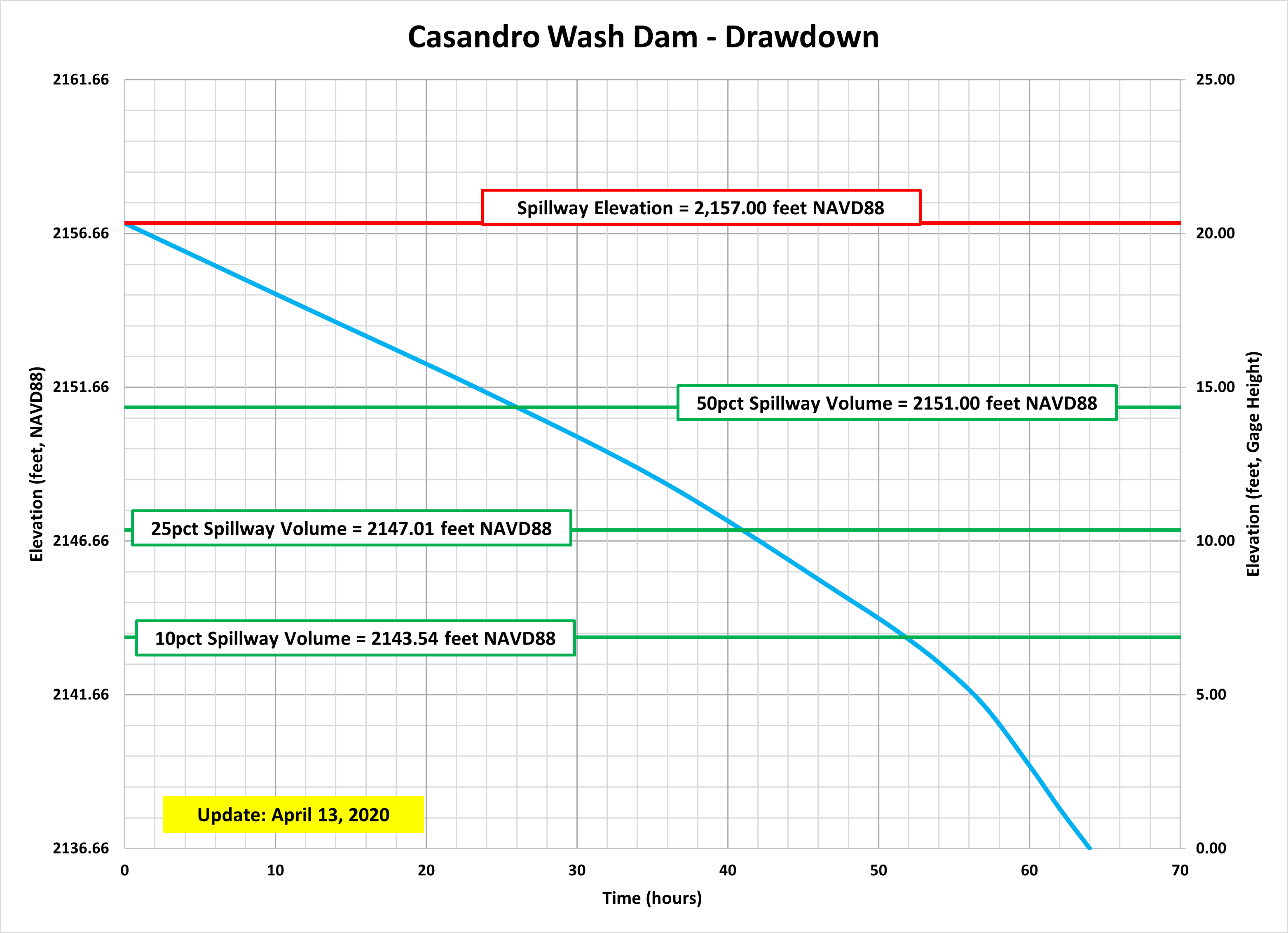

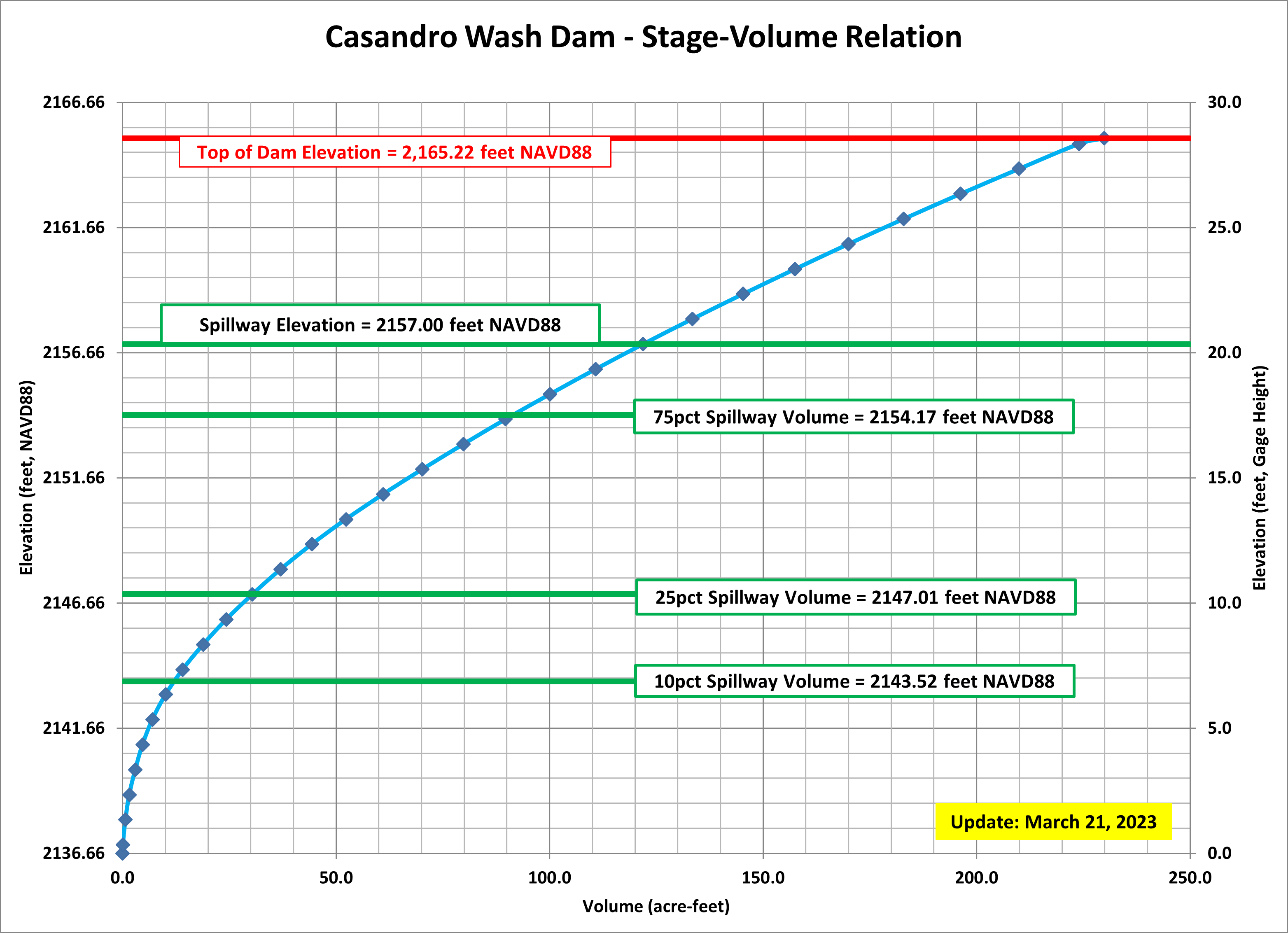

BRIEF RATING

Current Discharge Rating = #3 - Applied since 10/01/2016
Current Capacity Rating = #4 - Applied since 10/01/2016
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)		 Percent
Full		 Drawdown
(hours)
0.0 2,136.66 0 0.0 0.0 0.0
1.0 2,137.66 2 0.5 0.4 1.5
5.0 2,141.66 13 6.2 5.1 7.8
10.0 2,146.66 20 28.2 23.1 22.1
15.0 2,151.66 25 67.0 55.0 40.7
20.0 2,156.66 30 118.1 96.9 62.5
20.34 2,157.00 30 121.9 100.0 64.0
22.0 2,158.66 544 153.3 115.8 N/A
24.0 2,160.66 1,987 165.7 135.9 N/A
26.0 2,162.66 4,044 191.6 157.2 N/A
28.0 2,163.66 6,653 219.2 179.8 N/A
28.75 2,164.41 7,784 229.8 188.5 N/A

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2025
2024 None 0.0 0.0 None
2023 7.23 13.6 11.3 03/15/2023
2022 1.36 0.7 1.1 08/21/2022
2021 2.63 2.0 1.7 07/25/2021
2020 6.21 9.7 8.0 11/29/2019
2019 2.06 1.3 1.2 09/26/2019
2018 None 0.0 0.0 None
2017 4.43 4.9 4.1 08/10/2017
2016 3.66 2.7 2.1 07/31/2016
2015 18.64 113.4 85.2 07/18/2015
2014 8.69 21.4 16.1 08/03/2014
2013 6.39 10.0 7.6 08/26/2013
2012 7.29 29.2 21.9 07/14/2012
2011 1.19 2.8 2.1 12/23/2010
2010 6.19 23.4 17.6 01/21/2010
2009 2.54 7.4 5.6 12/26/2008
2008 2.34 6.7 5.0 08/25/2008
2007 7.94 32.7 24.6 08/01/2007
2006 5.69 20.8 15.6 09/09/2006
2005 2.29 6.5 4.9 02/12/2005
2004 9.65 45.0 33.8 08/15/2004
2003 2.58 7.5 5.6 02/25/2003
2002 3.61 11.4 8.6 09/08/2002
2001 7.22 28.4 21.3 10/27/2000
2000 4.29 14.4 10.8 08/29/2000
1999 6.47 24.6 18.5 08/31/1999
1998 3.34 10.3 7.7 08/12/1998
1997 11.30 65.0 48.8 09/26/1997
1996 (partial) 5.84 23.5 17.7 09/11/1996

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

03/15/2023 12:37 03/15/2023 06:00 03/16/2023 00:00 18.0 7.23 13.6 2023
09/12/2022 07:12 09/12/2022 02:46 09/12/2022 09:28 6.7 0.63 0.2 2022
08/21/2022 04:05 08/21/2022 03:30 08/21/2022 08:54 5.4 1.36 0.7 2022
07/25/2021 09:13 07/25/2021 08:34 07/25/2021 16:10 7.6 2.63 2.0 2021
03/12/2020 17:01 03/12/2020 16:03 03/15/2020 02:02 58.0 2.21 1.5 2020
11/29/2019 03:26 11/29/2019 02:16 11/30/2019 09:34 31.3 6.21 9.7 2020
09/26/2019 06:53 09/26/2019 06:16 09/27/2019 12:00 29.7 2.06 1.3 2019
09/25/2019 22:47 09/25/2019 20:58 09/26/2019 00:00 9.0 1.72 1.0 2019
08/10/2017 19:47 08/10/2017 18:15 08/11/2017 08:20 14.1 4.43 4.9 2017
07/18/2017 20:15 07/18/2017 19:26 07/19/2017 12:00 16.6 1.11 0.5 2017
07/31/2016 22:04 07/31/2016 21:08 08/01/2016 12:00 14.9 3.66 2.7 2016
07/18/2015 19:16 07/18/2015 17:11 07/23/2015 00:05 103 18.64 113.4 2015
09/09/2014 01:45 09/08/2014 23:32 09/10/2014 23:01 47.5 4.44 4.2 2014
08/25/2014 19:48 08/25/2014 17:12 08/27/2014 11:30 42.3 7.04 12.8 2014
08/12/2014 21:34 08/12/2014 20:32 08/14/2014 05:30 33.0 5.29 6.4 2013
08/03/2014 18:52 08/03/2014 17:23 08/05/2014 14:50 45.5 8.69 21.4 2014
08/02/2014 18:09 08/02/2014 16:43 08/03/2014 10:07 17.4 2.89 1.6 2014
07/06/2014 17:33 07/06/2014 15:18 07/07/2014 17:34 26.3 7.74 14.2 2014
07/03/2014 23:03 07/03/2014 22:38 07/04/2014 03:28 4.8 2.29 0.8 2014
09/10/2013 09:16 09/10/2013 09:11 09/10/2013 14:21 5.2 0.94 <0.1 2013
08/26/2013 21:46 08/26/2013 20:56 08/27/2013 14:21 17.4 6.39 10.0 2013
08/17/2013 00:52 08/17/2013 00:37 08/17/2013 01:42 1.1 1.39 0.1 2013
07/22/2013 18:13 07/22/2013 17:38 07/23/2013 02:40 9.0 4.04 3.4 2013
07/11/2013 14:06 07/11/2013 14:01 07/11/2013 14:11 0.2 0.69 <0.1 2013
08/23/2012 02:40 08/23/2012 02:12 08/23/2012 15:08 12.9 1.64 4.3 2012
07/14/2012 18:37 07/14/2012 17:31 07/15/2012 15:15 21.7 7.29 29.2 2012
08/17/2011 06:57 08/17/2011 06:57 08/17/2011 11:55 5.0 0.39 0.5 2011
02/20/2011 22:11 02/20/2011 16:38 02/22/2011 10:38 42.0 0.74 1.5 2011
12/23/2010 00:00 12/22/2010 22:47 12/23/2010 10:01 11.2 1.19 2.8 2011
03/07/2010 13:53 03/07/2010 12:23 03/08/2010 09:10 20.8 1.19 2.8 2010
01/21/2010 21:53 01/21/2010 05:28 01/22/2010 23:48 42.3 6.19 23.4 2010
01/19/2010 21:40 01/19/2010 20:59 01/20/2010 02:32 5.6 2.09 5.8 2010
01/04/2009 06:42 01/03/2009 18:43 01/04/2009 12:54 18.2 0.74 1.5 2009
12/26/2008 01:03 12/25/2008 22:20 12/26/2008 13:41 15.4 2.54 7.4 2009
12/18/2008 01:10 12/17/2008 22:01 12/18/2008 14:08 16.1 1.99 5.5 2009
11/27/2008 03:36 11/27/2008 00:58 11/27/2008 12:58 12.0 1.84 5.0 2009
08/25/2008 21:53 08/25/2008 20:32 08/26/2008 07:47 11.3 2.34 6.7 2008
02/04/2008 01:39 02/04/2008 01:14 02/04/2008 06:06 4.9 0.79 1.6 2008
12/01/2007 01:07 11/30/2007 23:27 12/01/2007 11:04 11.6 2.14 6.0 2008
08/01/2007 17:13 08/01/2007 15:53 08/03/2007 06:52 39.0 7.94 32.7 2007
07/28/2007 19:27 07/28/2007 18:29 07/29/2007 07:39 13.2 2.94 8.8 2007
07/25/2007 13:30 07/25/2007 11:31 07/26/2007 08:36 21.1 7.24 28.9 2007
09/09/2006 08:24 09/09/2006 07:21 09/10/2006 10:01 26.7 5.69 20.8 2006
08/24/2006 13:46 08/24/2006 13:46 single report 0.0 0.59 1.0 2006
08/12/2006 00:47 08/12/2006 00:21 08/12/2006 04:01 3.7 1.79 4.8 2006
07/30/2005 19:14 07/30/2005 18:59 07/31/2005 02:39 7.7 1.19 2.8 2005
07/23/2005 23:39 07/23/2005 23:24 07/24/2005 08:39 9.3 1.69 4.5 2005
02/22/2005 14:40 02/22/2005 13:43 02/26/2005 03:55 86.2 2.29 6.5 2005
02/20/2005 01:24 02/20/2005 00:18 02/21/2005 02:40 26.4 1.79 4.8 2005
02/12/2005 06:49 02/11/2005 18:09 02/14/2005 20:40 74.5 2.29 6.5 2005
01/04/2005 17:45 01/04/2005 08:39 01/06/2005 08:39 48.0 1.29 3.2 2005
01/03/2005 21:15 01/03/2005 20:47 01/04/2005 02:39 5.9 1.39 3.5 2005
12/29/2004 12:48 12/29/2004 11:26 12/30/2004 08:39 21.2 1.79 4.8 2005
11/22/2004 08:30 11/22/2004 07:24 11/22/2004 14:30 7.1 0.69 1.3 2005
10/21/2004 12:56 10/21/2004 12:19 10/22/2004 08:29 20.2 1.89 5.1 2005
08/15/2004   Data Unavailable Data Unavailable   9.65 45.0 2004
11/12/2003 18:23 11/12/2003 17:29 11/13/2003 23:29 30.0 1.02 2.3 2004
02/25/2003 22:22 02/25/2003 18:08 02/27/2003 13:52 43.7 2.58 7.5 2003
02/14/2003 03:22 02/13/2003 21:59 02/15/2003 19:53 45.9 1.65 4.3 2003
10/26/2002 15:53 10/26/2002 13:33 10/30/2002 16:38 99.1 2.29 6.5 2003
09/08/2002 20:37 09/07/2002 05:13 09/11/2002 13:54 90.7 3.61 11.4 2002
07/06/2001 06:09 07/06/2001 05:13 07/10/2001 23:00 114 6.10 22.8 2001
03/07/2001 08:34 03/07/2001 07:34 03/08/2001 11:01 27.5 0.97 2.2 2001
10/27/2000 13:50 10/27/2000 12:41 10/28/2000 18:32 29.9 7.22 28.4 2001
10/21/2000 21:54 10/21/2000 20:41 10/23/2000 21:56 49.3 5.27 18.8 2001
08/29/2000 14:16 08/29/2000 10:04 08/30/2000 21:55 35.9 4.29 14.4 2000
08/27/2000 11:01 08/27/2000 10:29 08/28/2000 09:56 23.5 2.14 6.0 2000
08/31/1999 20:25 08/31/1999 16:33 09/03/1999 07:36 63.1 6.47 24.6 1999
07/15/1999 09:44 07/15/1999 04:58 07/16/1999 14:38 33.7 6.07 22.6 1999
08/12/1998 19:44 08/12/1998 19:01 08/14/1998 23:22 52.4 3.34 10.3 1998
08/08/1998 01:12 08/08/1998 00:39 08/08/1998 22:33 21.9 1.41 3.6 1998
09/26/1997 07:18 09/25/1997 20:05 Data Unavailable   11.30 65.0 1997
09/11/1996 02:14 09/10/1996 21:43 09/12/1996 19:19 45.6 5.84 23.5 1996

Back to Top   |   Streamflow Homepage   |   FCD Home Page

STAFF GAGES

Staff Gage Range Staff Gage Information
0 - 5 Displays high by 0.17 feet
5 - 10 Displays high by 0.05 feet
10 - 15 Displays high by 0.20 feet
15 - 20 Displays high by 0.11 feet
20 - 25 Displays high by 0.04 feet
