Flying E Wash - ID # 51707

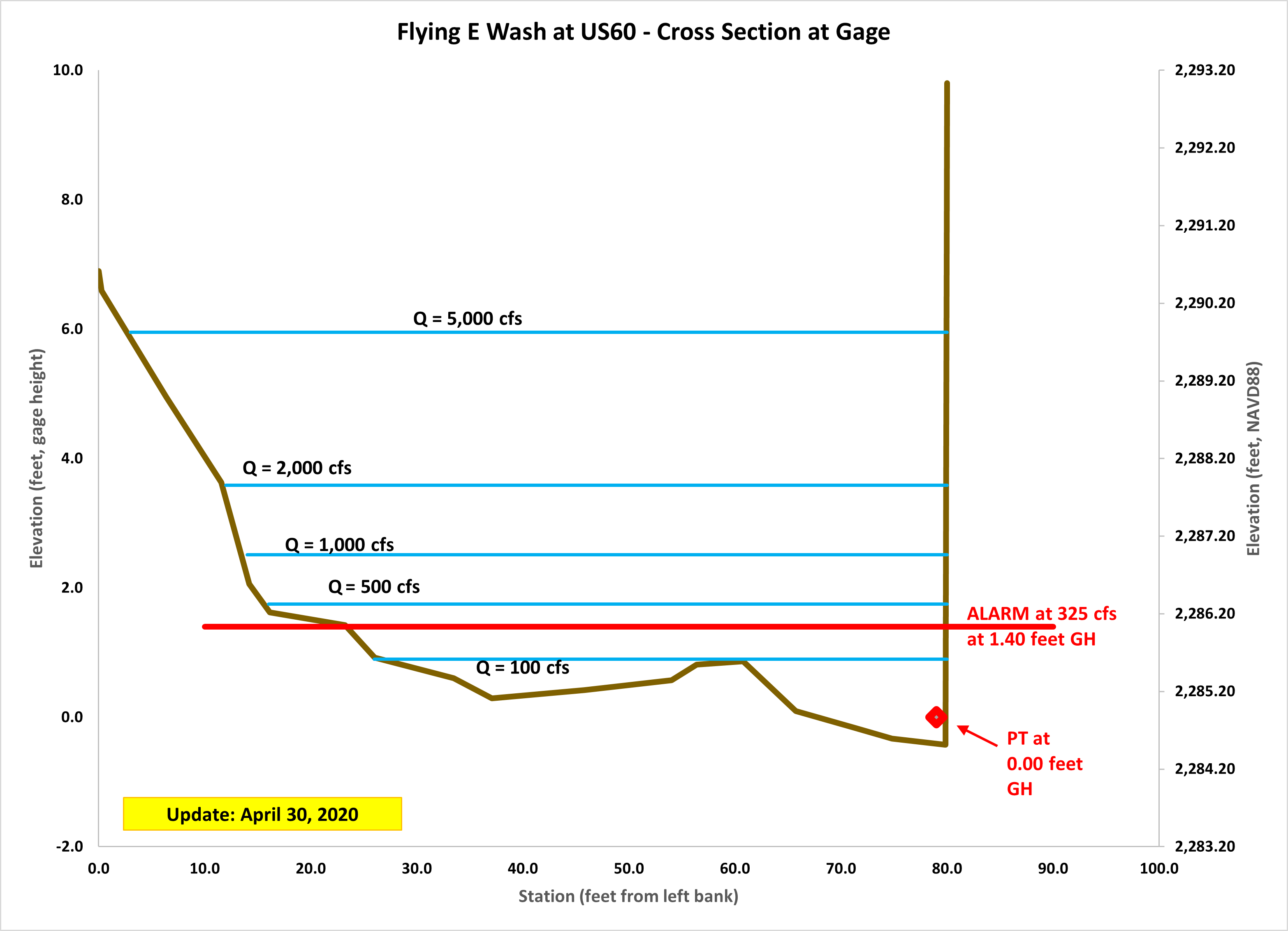

Current at Gage | Station Description | Rating Curve | Rating Table | Cross Section | Watershed Map | DSS


	Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency | Staff Gages | Crest Gages

Reload Page | ASWR | Streamflow Homepage | FCD Home Page

GAGE ID AND DATUM HISTORY

ID	Elevation of Instrument in Gage Height	Elevation of Instrument in Datum	Period

51707	0.00 feet	2,283.20 feet NAVD88	04/16/2020 -- Current
7083	0.00 feet	2,283.20 feet NAVD88	08/17/2017 -- 04/16/2020
7083	0.45 feet	2,283.65 feet NAVD88	12/01/2000 -- 08/17/2017
7083	0.10 feet	2,283.30 feet NAVD88	07/12/1994 -- 12/01/2000

Back to Top | Streamflow Homepage | FCD Home Page

SITE DATA

STATUS	Active
LOCATION	About 1 mile west of Vulture Mine Road on US 60

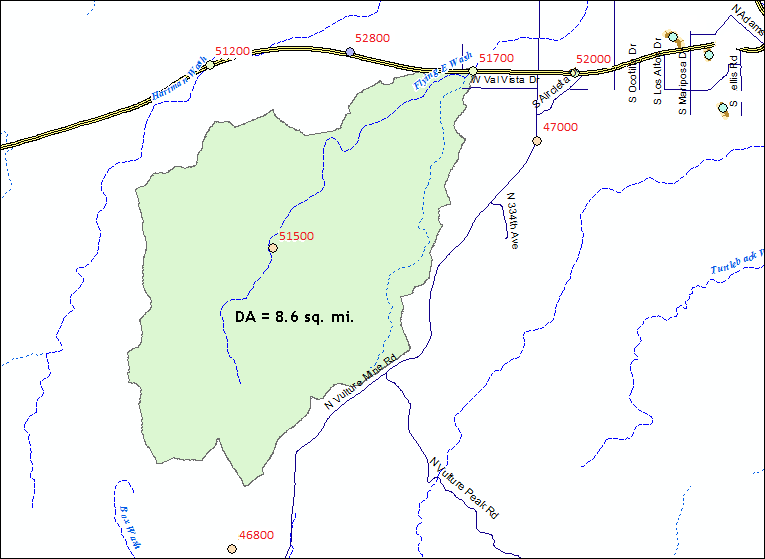

DRAINAGE AREA	8.6 mi²
STREAM TYPE	Natural Stream
JURISDICTION	Wickenburg, Arizona
WATERSHED	Lower Hassayampa
SECTION/TOWNSHIP/RANGE	S09 T7N R5W
LATITUDE	N 33° 57' 44.0" \| +33.96223
LONGITUDE	W 112° 46' 58.5" \| -112.78291
ARIZONA STATE PLANE	E 437353 \| N 1078752
USGS QUAD SHEET	Vulture Peak 7.5-Minute
STREAMGAGE INSTALLATION DATE	07/12/1994 - WY 1994
PERIOD OF AVAILABLE DATA RECORD	07/12/1994 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024)	30.22 Years \| 11,039 Days
GAPS (> 2 DAYS) IN RECORD	None
STAGE GAGE TYPE	Pressure Transducer
STAGE GAGE ELEVATION	0.00 feet Gage Height
STAFF GAGES	1
CREST STAGE GAGES	2
ZERO GAGE HEIGHT ELEVATION	2,283.20 feet NAVD88
POINT OF ZERO FLOW	0.4 feet Gage Height
EXTREME FOR PERIOD OF RECORD	5,267 cfs \| 7.07 feet \| 07/18/2015

Back to Top | Streamflow Homepage | FCD Home Page

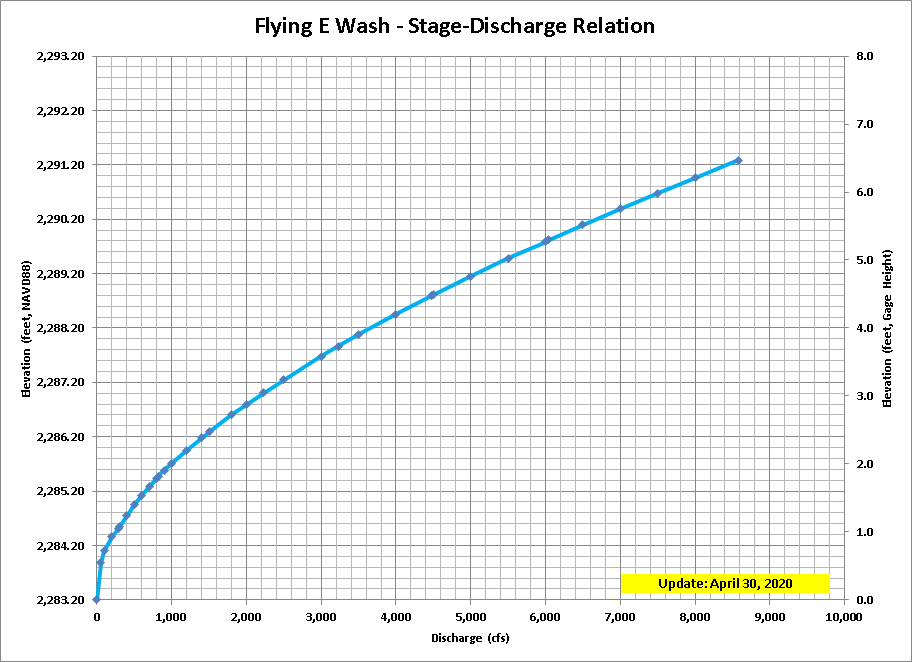

BRIEF RATING

Current Rating = #6 - Applied since 10/01/2019
Discharge (cfs)	Elevation feet Gage Height	Elevation feet NAVD88
0	0.00	2,283.20
100	0.90	2,284.10
300	1.34	2,284.54
500	1.75	2,284.95
1,000	2.51	2,285.71
2,000	3.59	2,286.79
3,000	4.48	2,287.68
5,000	5.95	2,289.15

Back to Top | Streamflow Homepage | FCD Home Page

WATER YEAR PEAKS

Water Year	Peak Gage Height (feet)	Peak Discharge (cfs)	Date of Peak
2025
2024	None	0	None
2023	1.47	177	03/15/2023
2022	1.77	269	08/19/2022
2021	4.44	2,214	08/11/2021
2020	2.80	1,242	Date Unknown
2019	None	0	None
2018	None	0	None
2017	1.30	124	07/15/2017
2016	1.38	147	10/05/2015
2015	7.07	5,267	07/18/2015
2014	1.80	280	08/03/2014
2013	2.40	467	09/10/2013
2012	1.58	218	07/14/2012
2011	None	0	None
2010	1.23	103	01/21/2010
2009	0.85	16	11/27/2008
2008	1.77	276	11/30/2007
2007	1.95	329	07/25/2007
2006	1.50	189	08/09/2006
2005	5.74	3,740	07/30/2005
2004	4.10	1,868	08/15/2004
2003	3.92	1,300	10/26/2002
2002	None	0	None
2001	5.60	3,650	10/27/2000
2000	1.55	211	08/29/2000
1999	2.38	444	07/15/1999
1998	1.60	171	08/12/1998
1997	3.30	1,145	09/26/1997
1996	2.00	297	09/10/1996
1995	1.40	119	02/14/1995
1994	0.82	51	09/20/1994

Back to Top | Streamflow Homepage | FCD Home Page

RUNOFF EVENT HISTORY (RUNOFF ≥50 CFS)

Date of Peak	Time of Peak	Runoff Start	Runoff End	Duration (hours)	Peak Stage (feet GH)	Peak Discharge (CFS)	Water Year
View a Plot of These Data

05/19/2023	17:57	05/19/2023 12:00	Unknown	Unknown	~1.28	~113	2023
03/15/2023	21:44	03/15/2023 12:00	03/16/2023 09:56	21.9	1.47	177	2023
08/21/2022	03:48	08/21/2022 00:00	08/21/2022 10:32	10.5	1.28	113	2022
08/19/2022	18:58	08/19/2022 18:40	08/20/2022 06:00	11.3	1.77	269	2022
08/10/2022	16:07	08/10/2022 15:58	08/11/2022 00:00	8.0	1.13	75	2022
08/11/2021	16:44	08/11/2021 16:24	08/11/2021 17:13	0.8	4.44	2,214	2021
08/11/2021	15:47	08/11/2021 15:47	08/11/2021 16:05	0.3	1.02	53	2021
Date Unknown					2.80	1,242	2020
08/03/2017	16:46	08/03/2017 16:24	08/03/2017 17:53	1.5	1.17	87	2017
07/18/2017	19:47	07/18/2017 19:00	07/19/2017 00:40	5.7	1.17	87	2017
07/15/2017	18:33	07/15/2017 17:56	07/15/2017 19:50	1.9	1.30	124	2017
07/31/2016	21:41	07/31/2016 20:45	07/31/2016 22:12	1.5	1.12	75	2016
10/05/2015	11:11	10/05/2015 10:16	10/05/2015 14:37	4.4	1.38	147	2016
07/31/2015	16:58	07/31/2015 16:12	07/31/2015 18:25	2.2	1.18	89	2015
07/18/2015	19:03	07/18/2015 17:14	07/18/2015 21:40	4.4	7.07	5,267	2015
09/09/2014	00:54	09/08/2014 23:36	09/09/2014 12:00	12.4	1.62	231	2014
08/25/2014	18:57	08/25/2014 18:46	08/25/2014 21:19	2.6	1.35	139	2014
08/03/2014	17:40	08/03/2014 17:28	08/03/2014 17:50	0.4	1.80	280	2014
08/02/2014	18:20	08/02/2014 17:09	08/02/2014 22:35	5.4	1.30	124	2014
07/11/2014	16:32	07/11/2014 16:07	07/11/2014 16:52	0.8	1.05	60	2014
07/09/2014	16:53	07/09/2014 16:46	07/09/2014 17:47	1.0	1.40	156	2014
07/06/2014	15:18	07/06/2014 15:11	07/06/2014 19:49	4.6	1.48	182	2014
07/03/2014	22:09	07/03/2014 21:54	07/04/2014 23:17	25.4	1.20	95	2014
09/10/2013	12:23	09/10/2013 12:15	09/10/2013 20:24	8.2	2.40	467	2013
09/10/2013	08:28	09/10/2013 08:12	09/10/2013 09:23	1.2	1.48	182	2013
08/26/2013	21:16	08/26/2013 20:50	08/27/2013 02:41	5.9	1.52	201	2013
08/23/2012	01:52	08/23/2012 01:37	08/23/2012 03:47	2.2	1.25	109	2012
07/14/2012	18:08	07/14/2012 17:20	07/15/2012 03:48	10.5	1.58	218	2012
01/21/2010	14:00	01/21/2010 01:29	01/22/2010 02:13	24.7	1.23	103	2010
01/19/2010	21:30	01/19/2010 20:29	01/19/2010 23:28	3.0	1.00	50	2010
11/30/2007	23:28	11/30/2007 23:11	12/01/2007 12:30	13.3	1.77	276	2008
07/28/2007	19:01	07/28/2007 18:54	07/28/2007 19:07	0.2	1.48	186	2007
07/25/2007	13:01	07/25/2007 12:45	07/25/2007 13:55	1.2	1.95	329	2007
08/09/2006		Data Unavailable	Data Unavailable		1.50	189	2006
07/30/2005		Data Unavailable	Data Unavailable		5.74	3,740	2005

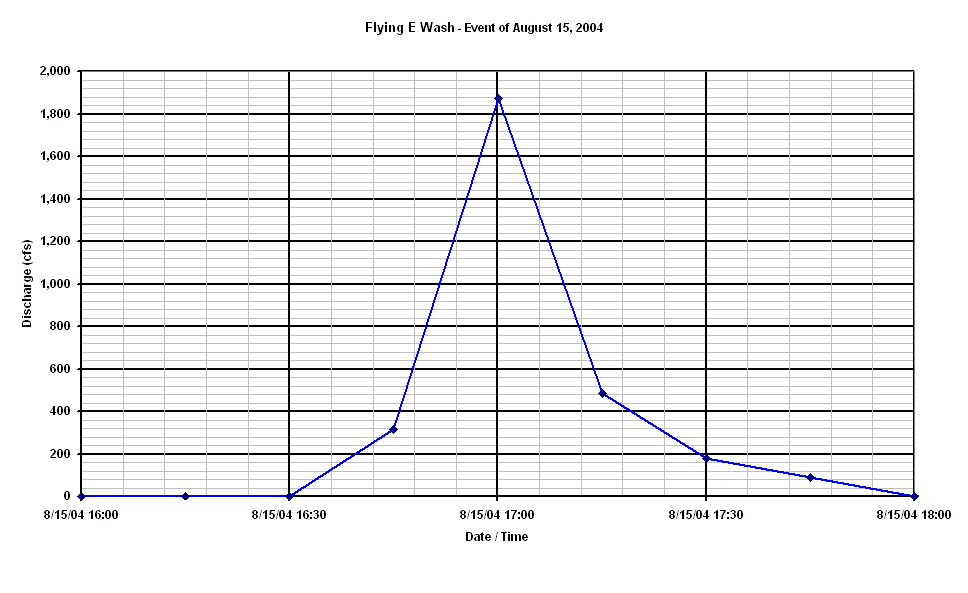

08/15/2004	16:50	08/15/2004 16:30	08/15/2004 17:38	1.1	4.10	1,868	2004
10/26/2002		Data Unavailable	Data Unavailable		3.92	1,300	2003
10/27/2000		Data Unavailable	Data Unavailable		5.60	3,650	2001
10/21/2000	21:07	10/21/2000 20:07	10/23/2000 23:57	51.8	2.53	517	2001
08/29/2000	13:26	08/29/2000 13:14	08/29/2000 20:53	7.7	1.55	211	2000
08/27/2000	09:24	08/27/2000 08:03	08/27/2000 12:48	4.7	1.42	169	2000
08/31/1999	16:45	08/31/1999 16:23	09/01/1999 00:07	7.7	1.67	192	1999
07/15/1999	04:49	07/15/1999 03:34	07/15/1999 08:52	5.3	2.38	444	1999
04/02/1999	07:40	04/02/1999 07:30	04/02/1999 11:10	3.7	1.23	86	1999
08/12/1998	19:08	08/12/1998 18:15	08/12/1998 22:57	4.7	1.60	171	1998
08/08/1998	00:31	08/07/1998 23:39	08/08/1998 04:07	4.5	1.15	73	1998
09/26/1997	05:51	09/25/1997 14:58	09/26/1997 13:51	22.9	3.30	1,145	1997
09/06/1997	00:55	09/05/1997 21:35	09/06/1997 05:49	8.2	1.27	92	1997
08/30/1997	15:02	08/30/1997 08:59	08/30/1997 17:20	8.4	1.90	260	1997
09/10/1996	21:36	09/10/1996 20:08	09/11/1996 06:46	10.6	2.00	297	1996
02/14/1995	22:25	02/14/1995 18:33	02/15/1995 04:31	10.0	1.40	119	1995
01/25/1995	19:37	01/25/1995 18:10	01/26/1995 05:15	11.1	0.88	55	1995
09/20/1994	20:58	09/20/1994 20:34	09/20/1994 22:05	1.5	0.82	51	1994

Back to Top | Streamflow Homepage | FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency View a plot of Flood Frequncy Data *NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation* Magnitude and Probability of Instantaneous Peak Flow \| Discharge, in cfs, for indicated Recurrence Interval
FEMA Flood Flow Frequency
2-year	5-year	10-year	20-year	50-year	100-year	200-year	500-year
-----	-----	1,000	-----	4,500	6,500	-----	15,000
FEMA Flood Insurance Study
2-year	5-year	10-year	20-year	50-year	100-year	200-year	500-year
-----	-----	-----	-----	-----	7,820	-----	-----
Wickenburg ADMS/HEC-1 Analysis
2-year	5-year	10-year	20-year	50-year	100-year	200-year	500-year

USGS StreamStats Flood Flow Frequency
2-year	5-year	10-year	25-year	50-year	100-year	200-year	500-year

Flood Flow Frequency Based on HECWRC implementation of Bulletin 17B, n=28, 1994-2021
2-year	5-year	10-year	20-year	50-year	100-year	200-year	500-year

Back to Top | Streamflow Homepage | FCD Home Page

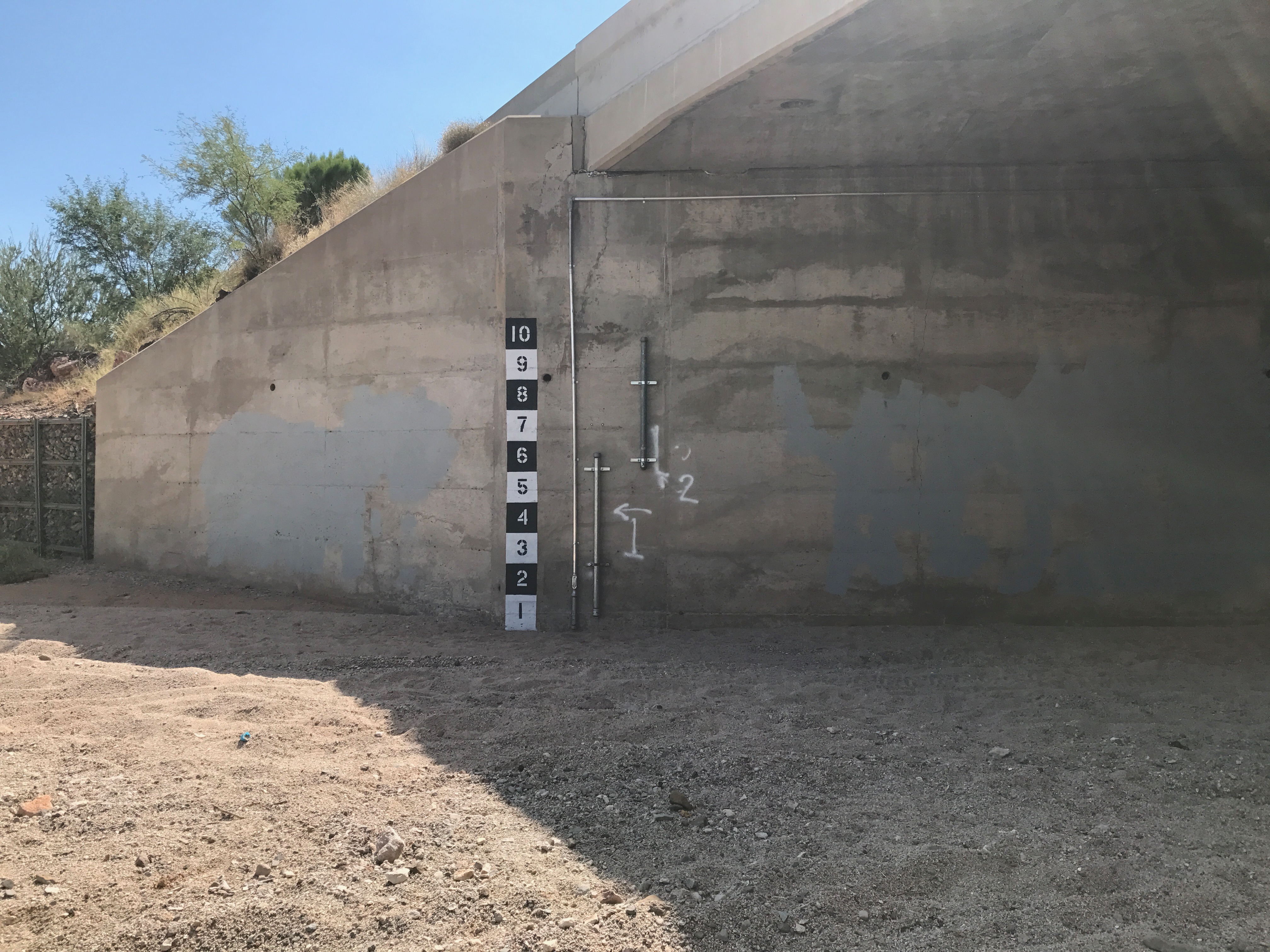

STAFF GAGES

Staff Gage Range	Staff Gage Information
0 - 10	At right bank near transducer

Back to Top | Streamflow Homepage | FCD Home Page

CREST STAGE GAGES

Crest Gage	Pin Elevation (Feet, Gage Height)	Additional Information
Lower	0.49	At right bank near transducer
Upper	5.28	At right bank near transducer

Back to Top | Streamflow Homepage | FCD Home Page

STATION VISIT NOTES

Available Station Visit Notes
08/02/2016	07/18/2017	07/20/2017	08/14/2017	05/07/2018
05/09/2019	05/13/2020
