Buckeye FRS #1 - ID # 44007

Current at Gage  | Station Description  | Q Rating Curve  | Vol Rating Curve  | DD Rating Curve  | Q Rating Table  | Vol Rating Table  | DD Rating Table  | Watershed Map  | DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History | Staff Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

44007 0.20 feet 1,062.20 feet NAVD88 06/01/2020 -- Current
44007 0.49 feet 1,062.49 feet NAVD88 04/14/2020 -- 06/01/2020
5203 0.49 feet 1,062.49 feet NAVD88 06/15/2017 -- 04/14/2020
5203 1.40 feet 1,063.50 feet NAVD88 01/17/2017 -- 06/15/2017
5203 -2.30 feet 1,059.80 feet NAVD88 03/05/2010 -- 01/17/2017
5203 -2.49 feet 1,059.70 feet NAVD88 10/01/2003 -- 03/05/2010
5203 -2.49 feet 1,058.87 feet NAVD88 10/01/1995 -- 09/30/2003
5203 0.00 feet 1,057.50 feet M.S.L. 02/14/1993 -- 09/30/1995
5203 2.50 feet 1,060.00 feet M.S.L. 09/28/1992 -- 02/14/1993
1628 2.50 feet 1,060.00 feet M.S.L. 07/26/1983 -- 09/28/1992

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION Located near I-10 and the Hassayampa River

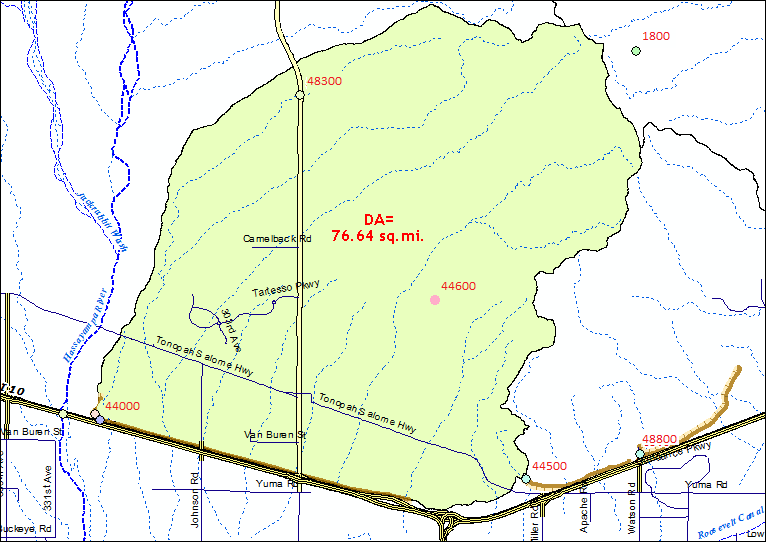

DRAINAGE AREA 76.6 mi2 Excluding structures 2 and 3
STREAM TYPE Dam of natural drainage
JURISDICTION Maricopa County, Arizona
WATERSHED Lower Hassyampa
SECTION/TOWNSHIP/RANGE S03 T1N R5W
LATITUDE N 33° 27' 27.9"  |  +33.45775
LONGITUDE W 112° 44' 59.9"  |  -112.74998
ARIZONA STATE PLANE E 445850  | N 895097
USGS QUAD SHEET Buckeye NW 7.5-Minute
STREAMGAGE INSTALLATION DATE 07/26/1983 - WY 1983
PERIOD OF AVAILABLE DATA RECORD 11/23/1987 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 36.86 Years | 13,462 Days
GAPS (> 2 DAYS) IN RECORD 01/21/2010 - 03/01/2010 | 10/10/2021 - 01/03/2022
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.20 feet Gage Height
STAFF GAGES 6
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,062.00 feet NAVD88
POINT OF ZERO FLOW 0.00 feet
SPILLWAY ELEVATION 20.0 feet Gage Height
TOP OF DAM ELEVATION 28.6 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

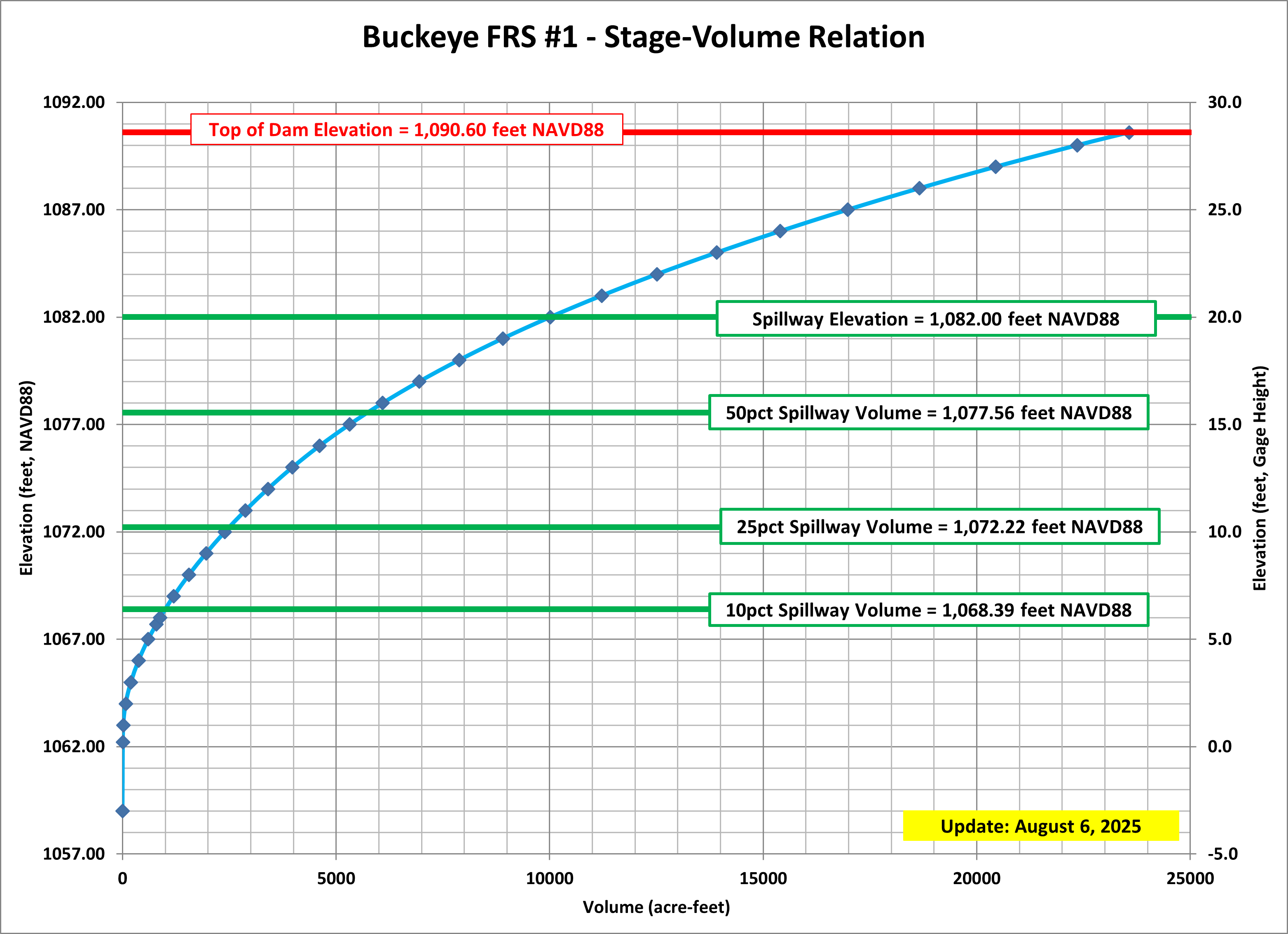

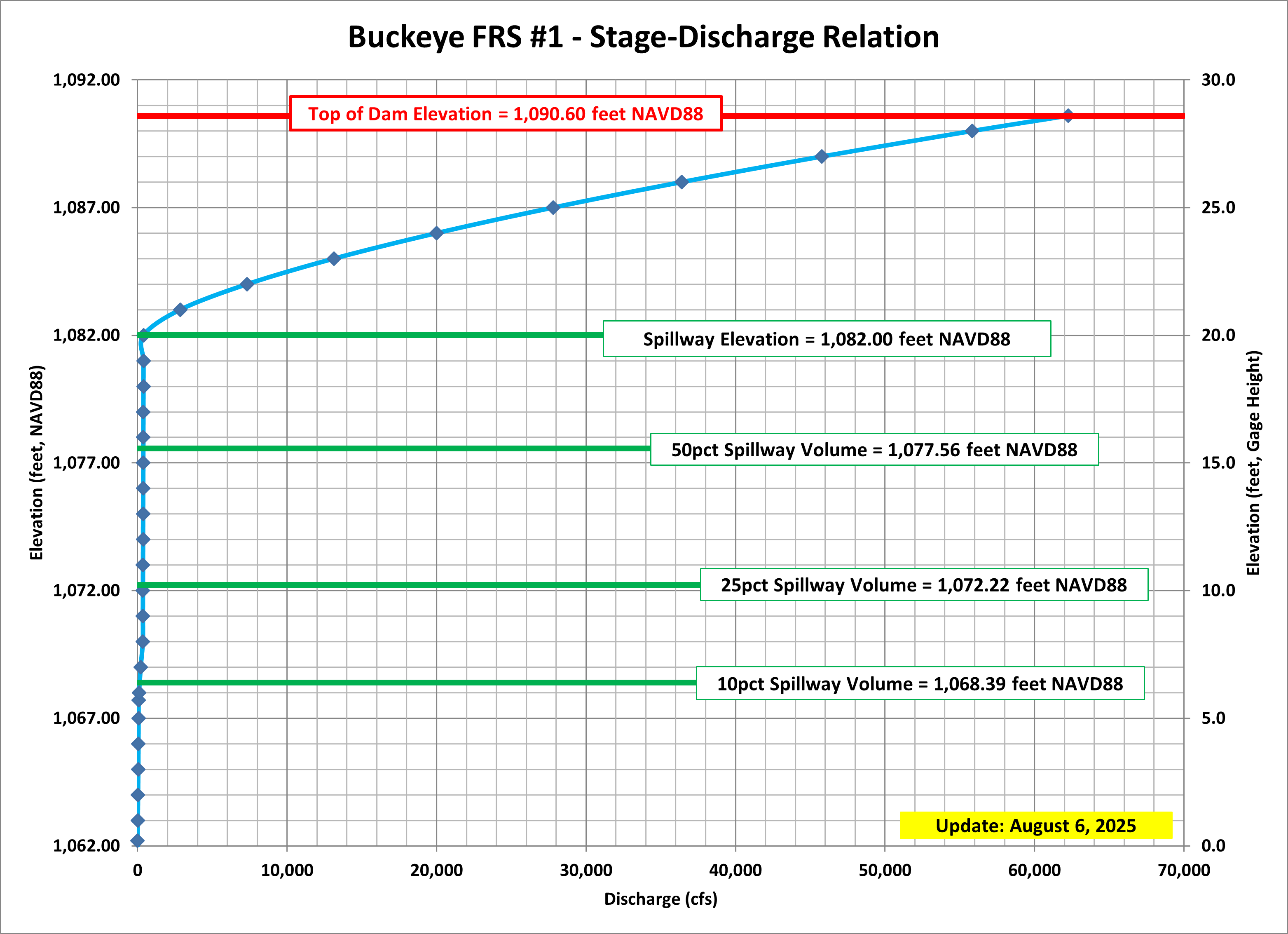

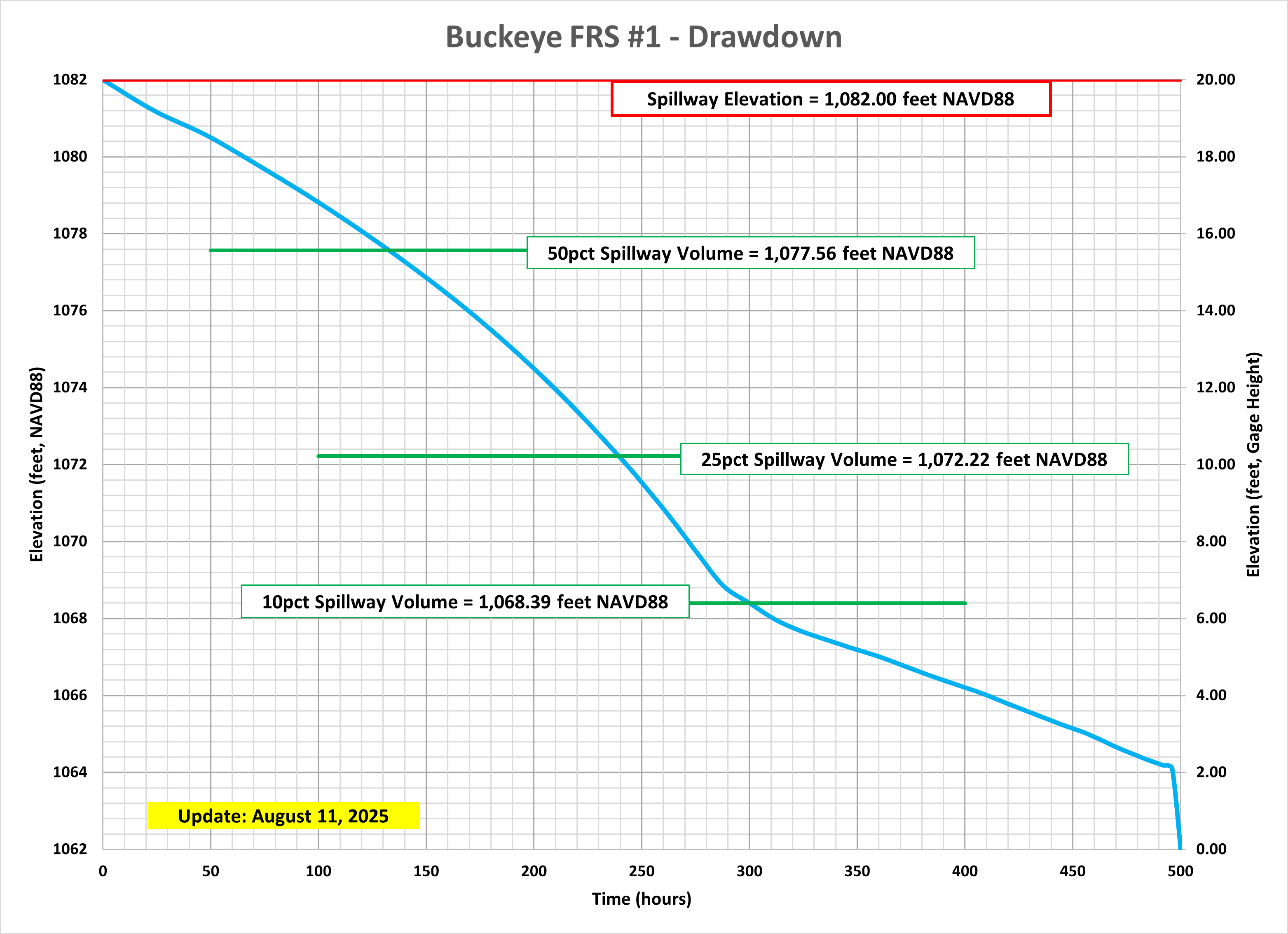

BRIEF RATING

Current Discharge Rating = #3 - Applied since 08/11/2025
Current Capacity Rating = #3 - Applied since 08/11/2025
Gage
Height
(feet)		 Elevation
(feet NAVD 88)		 Volume
(acre-feet)		 Discharge
(cfs)		 Percent
Capacity		 Drawdown
(hours)
0.00 1,062.00 0.0 0 0.0 0.0
2.50 1,064.50 135 33 1.3 23
5.00 1,067.00 602 58 6.0 140
7.50 1,069.50 1,374 274 13.7 221
10.00 1,072.00 2,396 353 23.9 257
12.50 1,074.50 3,688 364 36.8 300
15.00 1,077.00 5,314 375 53.1 353
18.50 1,080.70 8,391 389 83.8 450
20.00 1,082.00 10,012 395 100.0 500
22.50 1,084.50 13,211 10,231 132.0 N/A
25.00 1,087.00 16,978 27,795 169.0 N/A
28.50 1,089.70 23,365 61,196 233.4 N/A

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2025
2024 None 0.0 0.0 None
2023 2.99 160 2.5 10/15/2022
2022 2.52 97.0 1.8 09/21/2022
2021 1.03 9.5 0.5 07/25/2021
2020 None 0.0 0.0 None
2019 None 0.0 0.0 None
2018 None 0.0 0.0 None
2017 None 0.0 0.0 None
2016 None 0.0 0.0 None
2015 None 0.0 0.0 None
2014 3.90 349 4.2 09/08/2014
2013 -2.10 0.0 0.0 08/29/2013
2012 -1.42 0.0 0.0 11/05/2011
2011 None 0.0 0.0 None
2010 -1.25 0.0 0.0 07/29/2010
2009 None 0.0 0.0 None
2008 None 0.0 0.0 None
2007 None 0.0 0.0 None
2006 None 0.0 0.0 None
2005 -0.89 0.0 0.0 08/03/2005
2004 None 0 0.0 None
2003 4.96 595 7.2 02/14/2003
2002 0.31 18 0.2 09/08/2002
2001 2.61 148 1.8 08/22/2001
2000 None 0.0 0.0 None
1999 1.61 59 0.7 07/14/1999
1998 -2.29 0.0 0.0 02/08/1998
1997 1.31 48 0.6 08/08/1997
1996 1.51 45 0.5 07/15/1996
1995 None 0.0 0.0 None
1994 None 0.0 0.0 None
1993 None 0.0 0.0 None
1992 3.10 30 0.4 08/22/1992
1991 0.50 <1 0.0 02/03/1991
1990 3.00 25 0.3 08/15/1990
1989 0.00 0.0 0.0 04/17/1989
1988 0.10 0.0 0.0 08/25/1988

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

10/15/2022 22:59 10/15/2022 18:00 10/17/2022 08:18 38.3 2.99 160.0 2023
09/21/2022 12:00 09/21/2022 08:38 09/22/2022 13:15 28.6 2.52 97.0 2022
09/02/2021 00:14 09/01/2021 23:24 09/02/2021 09:15 9.9 0.83 0.5 2021
07/25/2021 19:40 07/25/2021 17:38 07/26/2021 06:00 12.4 1.03 9.5 2021
09/08/2014 21:04 09/08/2014 07:28 09/13/2014 06:04 119 3.90 349 2014
08/29/2013 01:58 08/29/2013 01:07 08/29/2013 08:02 6.9 -2.10 0 2013
11/05/2011 02:38 11/04/2011 22:42 11/05/2011 12:37 13.9 -1.42 0 2012
07/29/2010 19:45 07/29/2010 17:39 07/30/2010 02:31 8.9 -1.25 0 2010
08/03/2005 02:12 08/03/2005 00:57 08/03/2005 11:17 10.3 -0.89 <1 2005
08/15/2003 02:13 08/14/2003 23:08 08/15/2003 20:43 21.6 0.91 33 2003
07/30/2003 08:41 07/30/2003 07:46 07/30/2003 14:44 7.0 0.81 29 2003
02/27/2003 08:37 02/27/2003 08:37 02/27/2003 08:39 0.1 -0.49 <1 2003
02/14/2003 05:57 02/13/2003 22:27 02/17/2003 15:08 88.7 4.96 595 2003
09/08/2002 01:47 09/07/2002 23:13 09/08/2002 16:16 17.1 0.31 18 2002
08/22/2001 09:21 08/22/2001 09:17 08/22/2001 09:21 0.1 2.61 148 2001
08/15/2001 12:16 08/15/2001 12:16 08/15/2001 17:10 4.9 -1.59 <1 2001
07/14/1999 21:19 07/13/1999 19:11 07/17/1999 00:39 77.5 1.61 59 1999
07/11/1999 01:24 07/10/1999 22:50 07/12/1999 17:30 42.7 1.31 48 1999
02/08/1998 22:45 02/08/1998 22:40 02/08/1998 23:22 0.7 -2.29 <1 1998
09/11/1997 13:46 09/11/1997 09:57 09/12/1997 03:13 17.3 -1.79 <1 1997
09/02/1997 04:27 09/01/1997 17:47 09/03/1997 21:56 52.5 -1.01 <1 1997
08/17/1997 17:53 08/17/1997 15:25 08/19/1997 14:34 47.2 0.41 20 1997
08/08/1997 22:34 08/08/1997 20:36 08/10/1997 22:04 49.5 1.31 48 1997
07/15/1996 04:00 07/15/1996 01:15 07/16/1996 20:47 43.5 1.51 45 1996
08/22/1992 22:37 08/22/1992 21:28 08/23/1992 13:51 16.4 3.10 30 1992
08/15/1990 20:34 08/15/1990 03:20 08/16/1990 23:10 43.8 3.00 25 1990
08/14/1990 14:15 08/14/1990 13:05 08/15/1990 03:09 14.1 2.00 10 1990

Back to Top   |   Streamflow Homepage   |   FCD Home Page

STAFF GAGES

Staff Gage Range Staff Gage Information
0 - 5 At principal outlet, displays in gage height
5 - 10 At principal outlet, displays in gage height
10 - 15 At principal outlet, displays in gage height
15 - 20 At principal outlet, displays in gage height
20 - 25 At principal outlet, displays in gage height
25 - 30 At principal outlet, displays in gage height
