Rainbow Wash - ID # 42807

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 04 November 2025

ID History | Site Data | Travel Times | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency | Crest Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

42807 0.16 feet 900.22 feet NAVD88 12/13/2024 -- Current
42807 0.07 feet 900.13 feet NAVD88 04/14/2020 -- 12/13/2024
6953 0.07 feet 900.13 feet NAVD88 11/06/2000 -- 04/14/2020

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION Located on SR85 about 10 miles south of Buckeye

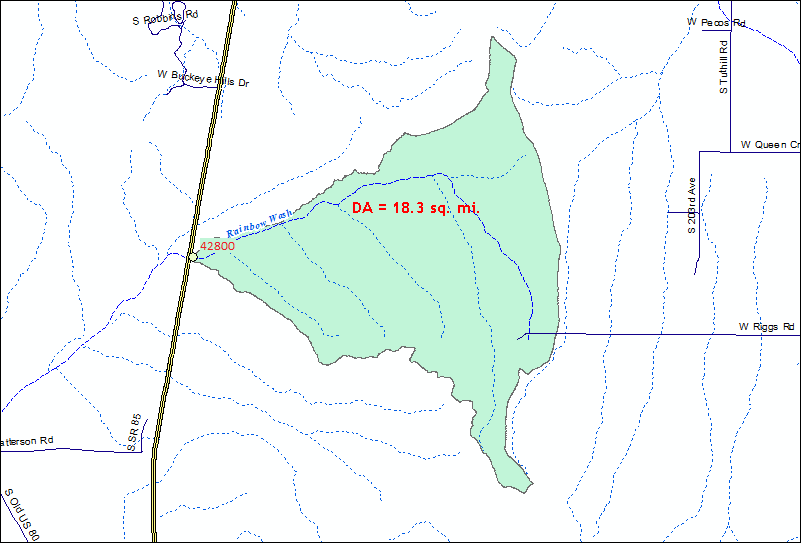

DRAINAGE AREA 18.3 mi2
STREAM TYPE Natural Stream
JURISDICTION Maricopa County, Arizona
WATERSHED Gillespie
SECTION/TOWNSHIP/RANGE S23 T2S R4W
LATITUDE N 33° 14' 08.0"  |  +33.23556
LONGITUDE W 112° 38' 21.0"  |  -112.63917
ARIZONA STATE PLANE E 479082  | N 813998
USGS QUAD SHEET Cotton Center NW 7.5-Minute
STREAMGAGE INSTALLATION DATE 11/06/2000 - WY 2001
PERIOD OF AVAILABLE DATA RECORD 11/06/2000 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 23.90 Years | 8,730 Days
GAPS (> 2 DAYS) IN RECORD None

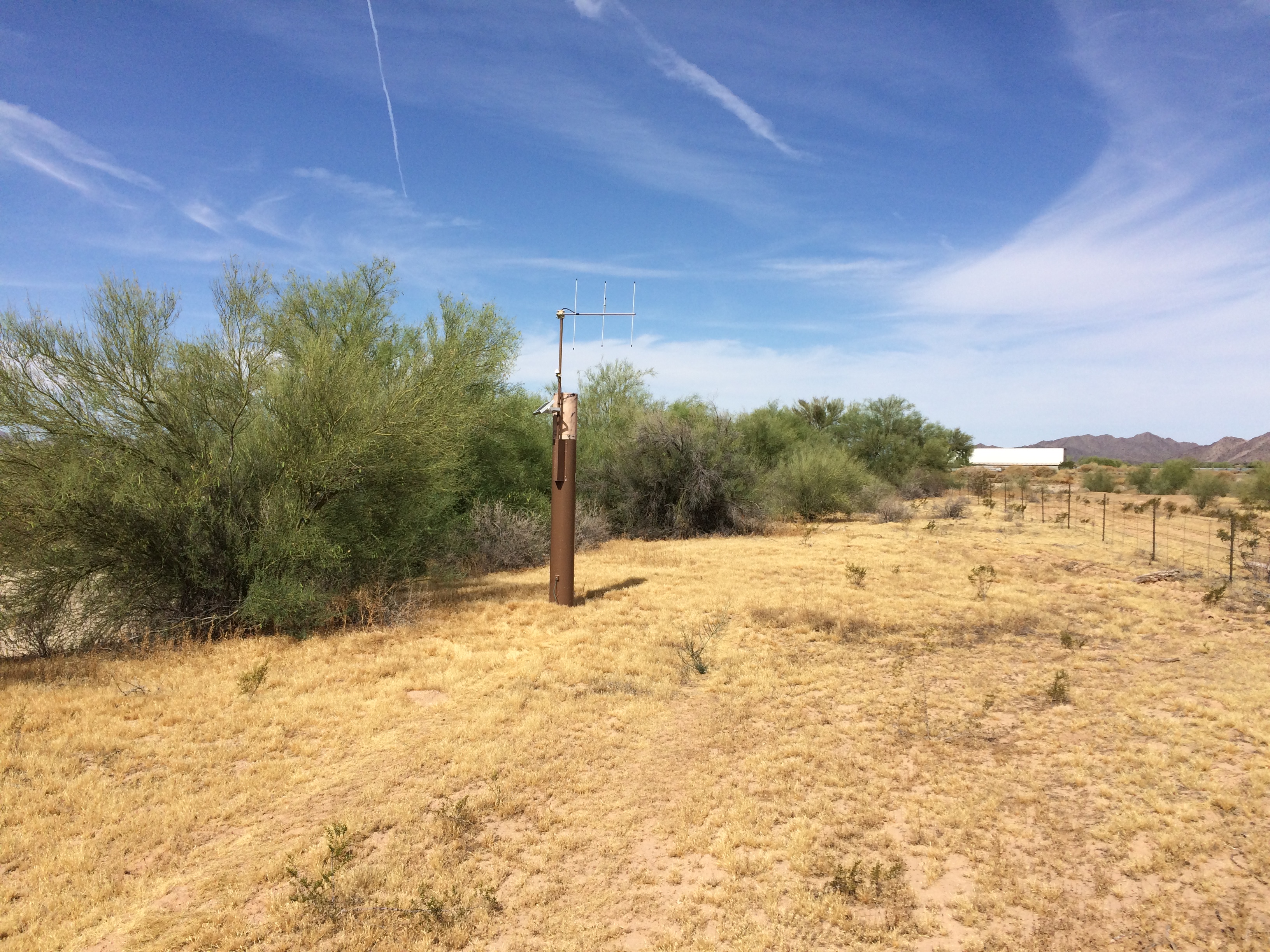

STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.16 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 1
ZERO GAGE HEIGHT ELEVATION 900.06 feet NAVD88
POINT OF ZERO FLOW -0.5 feet Gage Height (July 2020)
EXTREME FOR PERIOD OF RECORD 7,500 cfs | 8.20 feet | 09/08/2014

Back to Top   |   Streamflow Homepage   |   FCD Home Page

TRAVEL TIMES

To Old US80, about 5.3 miles downstream
Discharge (cfs) Gage Height (feet) Time (hours)
200 0.72 2.7
500 1.55 1.9
1,100 (5-yr) 2.72 1.6
2,200 (25-yr) 4.22 1.3

Back to Top   |   Streamflow Homepage   |   FCD Home Page

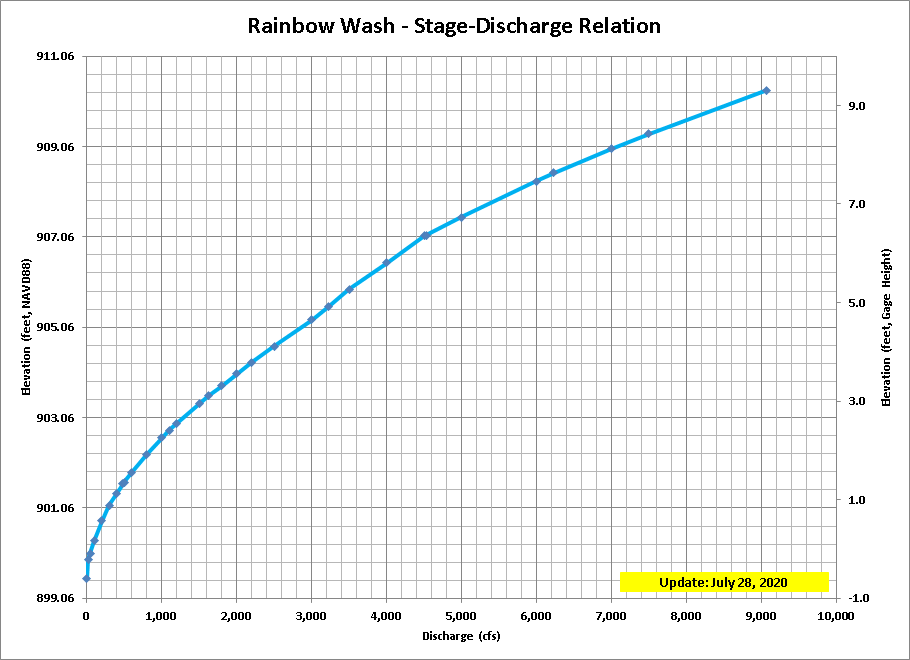

BRIEF RATING

Current Rating = #4 - Applied since 07/01/2020
Discharge
(cfs)		 Gage
Height
(feet)		 Gage
Height
(feet)
0 0.00 900.06
100 0.27 900.33
200 0.72 900.78
500 1.57 901.63
800 2.19 902.25
1,000 2.55 902.61
1,500 3.31 903.37
2,000 3.97 904.03
3,000 5.17 905.23
5,000 7.43 907.49

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2026
2025 None 0 None
2024 None 0 None
2023 4.42 2,368 10/15/2022
2022 0.72 200 09/09/2022
2021 1.19 347 08/17/2021
2020 3.84 1,899 07/23/2020
2019 2.97 913 10/13/2018
2018 None 0 None
2017 4.23 1,921 07/24/2017
2016 3.17 1,060 10/06/2015
2015 1.14 117 08/27/2015
2014 8.2 7,500 09/08/2014
2013 0.62 39 08/29/2013
2012 5.00 2,695 08/21/2012
2011 2.12 458 07/05/2011
2010 3.64 1,625 07/29/2010
2009 1.75 264 11/27/2008
2008 3.24 735 08/07/2008
2007 1.45 223 07/25/2007
2006 1.77 271 08/10/2006
2005 4.60 1,827 08/09/2005
2004 1.73 262 04/02/2004
2003 0.82 119 01/08/2003
2002 1.65 251 09/07/2002
2001 4.90 2,350 10/22/2000

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

10/15/2022 18:53 10/15/2022 12:00 10/16/2022 11:01 23.0 4.42 2,368 2023
09/09/2022 21:05 09/09/2022 17:35 09/10/2022 00:00 6.4 0.72 200 2022
08/20/2022 22:35 08/20/2022 12:00 08/21/2022 18:00 30.0 0.54 163 2022
09/02/2021 02:11 09/02/2021 02:09 09/02/2021 03:08 1.0 0.34 118 2021
08/17/2021 06:21 08/17/2021 05:47 08/17/2021 07:52 2.1 1.19 347 2021
07/23/2020 15:06 07/23/2020 14:17 07/23/2020 18:55 4.6 3.84 1,899 2020
03/18/2020 17:43 03/18/2020 17:17 03/18/2020 21:54 4.6 1.74 300 2020
03/13/2020 16:30 03/13/2020 16:19 03/13/2020 21:28 5.2 2.37 592 2020
03/13/2020 00:11 03/12/2020 22:51 03/13/2020 04:54 6.1 2.90 874 2020
11/29/2019 04:46 11/29/2019 03:55 11/29/2019 10:40 6.8 2.17 483 2020
11/20/2019 18:26 11/20/2019 18:17 11/20/2019 20:35 2.3 0.70 62 2020
11/20/2019 08:30 11/20/2019 08:01 11/20/2019 12:00 4.0 0.72 50 2020
09/26/2019 17:10 09/26/2019 16:57 09/26/2019 19:52 2.9 1.77 311 2019
09/26/2019 05:59 09/26/2019 05:51 09/26/2019 08:10 2.3 1.22 136 2019
09/25/2019 22:19 09/25/2019 21:59 09/26/2019 00:27 2.5 1.32 163 2019
10/14/2018 00:06 10/13/2018 23:55 10/14/2018 03:02 3.1 1.72 293 2019
10/13/2018 11:14 10/13/2018 09:47 10/13/2018 14:53 5.1 2.97 913 2019
10/07/2018 04:36 10/07/2018 03:55 10/07/2018 11:32 7.6 1.84 337 2019
10/02/2018 07:25 10/02/2018 06:21 10/02/2018 09:55 3.6 1.57 242 2019
08/09/2017 11:15 08/09/2017 08:45 08/09/2017 11:46 3.0 1.07 100 2017
08/08/2017 12:31 08/08/2017 08:50 08/08/2017 18:00 9.2 2.94 897 2017
08/07/2017 14:10 08/07/2017 08:54 08/07/2017 15:04 6.2 1.32 163 2017
07/29/2017 18:59 07/29/2017 18:28 07/29/2017 20:45 2.3 0.94 77 2017
07/24/2017 10:55 07/24/2017 09:48 07/24/2017 13:38 3.8 4.23 1,921 2017
09/07/2016 09:08 09/07/2016 06:18 09/07/2016 11:38 5.3 1.52 226 2016
09/07/2016 06:44 09/07/2016 06:18 09/07/2016 11:38 5.3 2.14 468 2016
07/01/2016 19:29 07/01/2016 18:56 07/01/2016 23:14 4.3 2.74 790 2016
01/07/2016 09:50 01/07/2016 08:24 01/07/2016 13:48 5.4 0.80 59 2016
10/29/2015 16:58 10/29/2015 16:55 10/29/2015 21:02 4.2 0.40 18 2016
10/06/2015 14:50 10/06/2015 13:30 10/06/2015 17:42 4.2 3.17 1,060 2016
08/27/2015 19:06 08/27/2015 19:04 08/27/2015 21:06 2.0 1.14 117 2015
09/27/2014 20:07 09/27/2014 19:59 09/28/2014 02:38 6.7 2.37 592 2014
09/27/2014 14:31 09/27/2014 13:16 09/27/2014 19:28 6.2 3.24 1,120 2014
09/08/2014   Data Unavailable Data Unavailable   8.20 7,500 2014
08/25/2014 22:51 08/25/2014 22:42 08/26/2014 01:51 3.2 1.92 368 2014
08/21/2015 20:01 08/21/2014 19:32 08/21/2014 23:47 4.3 2.44 637 2014
07/14/2014 01:24 07/13/2014 23:59 07/14/2014 03:07 3.1 1.22 136 2014
11/22/2013 05:27 11/22/2013 05:23 11/22/2013 07:32 2.2 0.30 10 2014
08/29/2013 19:02 08/29/2013 18:57 08/29/2013 21:21 2.4 0.62 39 2013
07/21/2013 11:05 07/21/2013 10:55 07/21/2013 12:55 2.0 0.52 29 2013
08/22/2012 16:04 08/22/2012 14:50 08/22/2012 19:20 4.5 4.24 1,936 2012
08/21/2012 20:54 08/21/2012 20:23 08/22/2012 02:41 6.3 5.00 2,695 2012
08/17/2012 02:58 08/17/2012 01:55 08/17/2012 09:02 7.1 2.30 550 2012
07/14/2012 08:55 07/14/2012 08:36 07/14/2012 10:50 2.2 0.62 39 2012
07/30/2011 20:25 07/30/2011 20:14 07/30/2011 23:07 2.9 0.57 34 2010
07/05/2011 22:37 07/05/2011 22:16 07/06/2011 10:07 11.9 2.12 458 2010
08/27/2010 07:29 08/27/2010 07:23 08/27/2010 10:53 3.5 1.72 293 2010
08/17/2010 22:23 08/17/2010 22:24 08/18/2010 01:58 3.6 1.67 275 2010

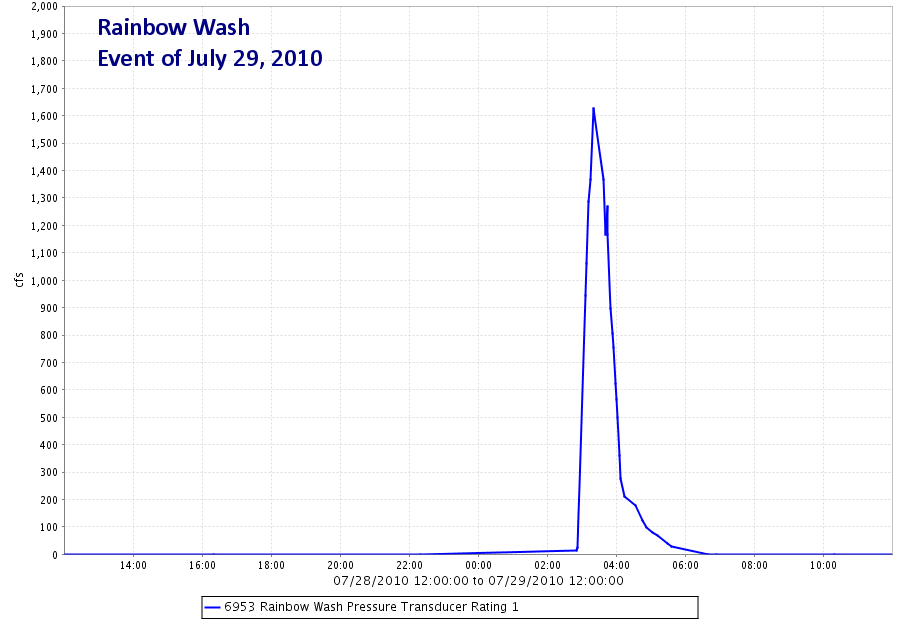

07/29/2010 03:21 07/29/2010 02:51 07/29/2010 06:55 4.1 3.64 1,625 2010
03/07/2010 19:00 03/07/2010 18:51 03/07/2010 19:50 1.0 0.37 27 2010
02/28/2010 01:11 02/28/2010 00:48 02/28/2010 07:44 6.9 1.92 368 2010
01/21/2010 21:39 01/21/2010 17:42 01/22/2010 02:40 9.0 2.33 570 2010
01/19/2010 20:02 01/19/2010 19:01 01/20/2010 00:15 5.2 0.67 81 2010
08/13/2009 05:46 08/13/2009 05:44 08/13/2009 08:20 2.6 0.67 81 2009
07/21/2009 22:48 07/21/2009 22:27 07/22/2009 01:18 2.9 0.94 145 2009
11/27/2008 02:31 11/27/2008 02:18 11/27/2008 08:23 6.1 1.75 264 2009
08/29/2008 00:51 08/28/2008 23:22 08/29/2008 07:35 8.2 0.94 145 2008
08/26/2008 02:54 08/26/2008 02:36 08/26/2008 07:35 5.0 0.67 81 2008
08/07/2008 22:10 08/07/2008 20:29 08/08/2008 08:08 11.7 3.24 735 2008
07/13/2008 16:34 07/13/2008 16:32 07/13/2008 21:03 4.5 0.69 86 2008
07/25/2007 14:12 07/25/2007 13:46 07/25/2007 18:05 4.3 1.45 223 2007
08/12/2006 01:46 08/12/2006 01:23 08/12/2006 09:05 7.7 1.47 227 2006
08/10/2006 19:50 08/10/2006 19:31 08/11/2006 03:05 7.6 1.77 271 2006
04/27/2006 17:32 04/27/2006 17:26 04/27/2006 19:56 2.5 0.57 68 2006
08/09/2005 18:32 08/09/2005 18:08 08/10/2005 03:14 9.1 4.60 1,827 2005
07/23/2005 01:08 07/23/2005 00:34 07/23/2005 09:16 8.7 1.25 196 2005
02/23/2005 23:33 02/23/2005 22:30 02/24/2005 10:24 11.9 1.12 178 2005
02/20/2005 03:42 02/20/2005 01:22 02/20/2005 12:23 11.0 0.80 113 2005
02/19/2005 00:50 02/19/2005 00:45 02/19/2005 06:21 5.6 0.65 82 2005
01/04/2005 14:54 01/04/2005 06:07 01/04/2005 22:47 16.7 0.93 142 2005
01/03/2005 20:48 01/03/2005 20:45 01/04/2005 04:18 7.6 0.55 63 2005
11/22/2004 05:30 11/22/2004 05:28 11/22/2004 10:45 5.3 0.77 108 2005
11/12/2004 19:35 11/12/2004 19:33 11/13/2004 04:45 9.2 1.23 192 2005
07/27/2004 20:01 07/27/2004 19:58 07/27/2004 23:49 3.8 0.80 113 2004
07/26/2004 04:21 07/26/2004 03:56 07/26/2004 06:56 3.0 0.57 68 2004
07/14/2004 04:21 07/14/2004 03:16 07/14/2004 09:56 6.7 1.67 255 2004
04/02/2004 16:41 04/02/2004 16:11 04/03/2004 00:56 8.8 1.73 262 2004
02/25/2003 21:29 02/25/2003 19:04 02/26/2003 04:18 9.2 0.65 82 2003
01/08/2003 14:47 01/08/2003 14:37 01/09/2003 02:37 12.0 0.82 119 2003
10/26/2002 14:18 10/26/2002 14:13 10/26/2002 19:53 5.7 0.80 113 2003
09/07/2002 18:33 09/07/2002 17:18 09/08/2002 02:18 9.0 1.65 251 2002
08/17/2001 03:43 08/17/2001 02:32 08/17/2001 15:02 12.5 2.38 648 2001
07/06/2001 12:18 07/06/2001 12:10 07/06/2001 16:54 4.7 0.80 96 2001
03/07/2001 17:32 03/07/2001 17:31 03/07/2001 22:13 4.7 0.43 37 2001

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
FEMA Flood Flood Insurance Study
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year
----- ----- ----- ----- ----- 7,124 ----- -----


Back to Top   |   Streamflow Homepage   |   FCD Home Page


CREST STAGE GAGES

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 0.65 Located near transducer
