Siphon Draw at Signal Butte Rd. - ID # 37607

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 24 October 2024

ID History | Site Data  | Brief Rating  | Water Year Peaks  | Runoff History  | Flood Frequency  | Crest Gage Info

Reload Page   |    ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

37607 0.65 feet gage height 1,461.15 feet NAVD88 12/22/2016 -- Current

Back to Top   |   Streamflow Homepage   |   FCD Home Page

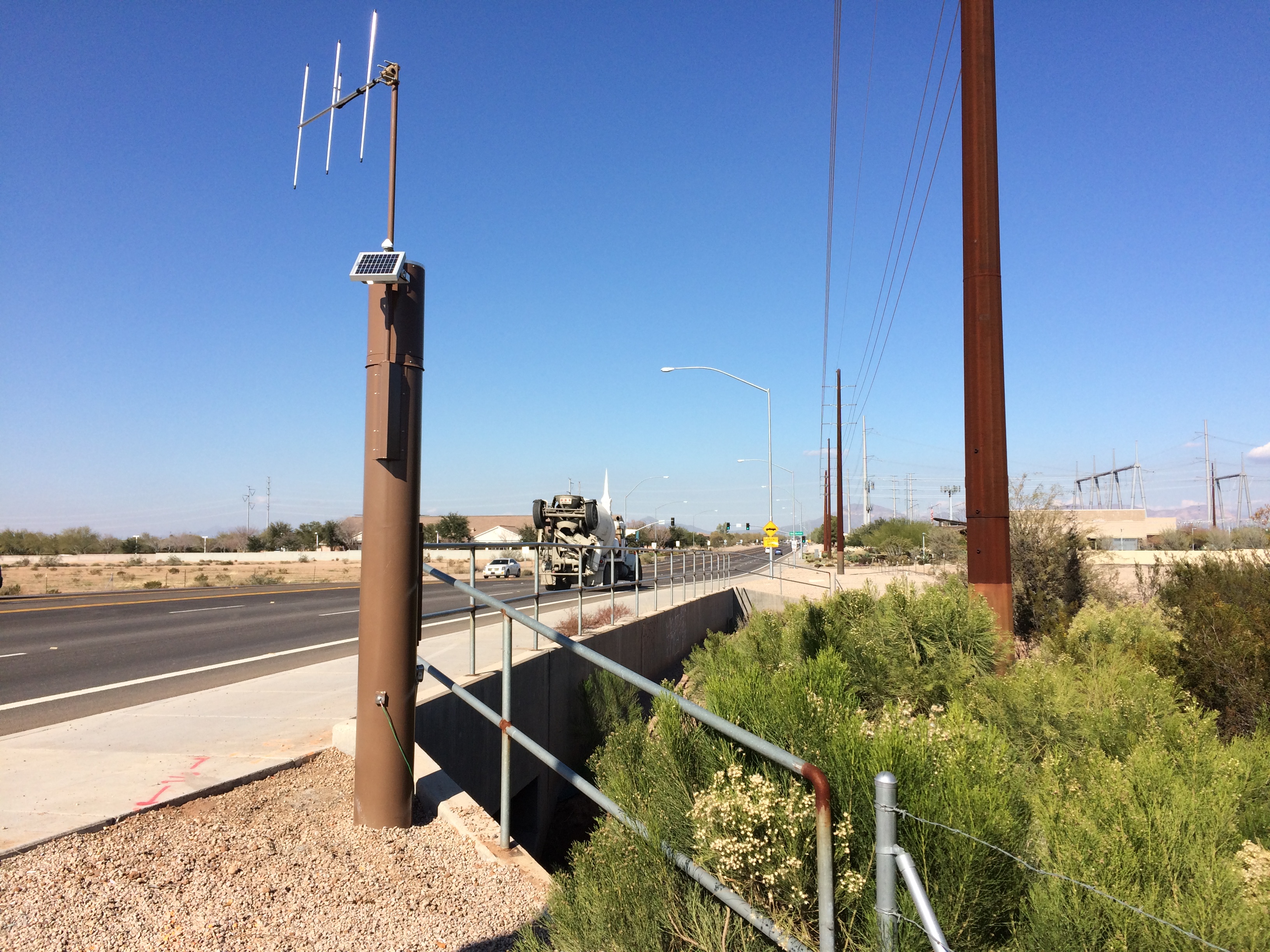

SITE DATA

STATUS Active Alert2 Station
LOCATION Located north of Elliot Road on Signal Butte Road
DRAINAGE AREA 2.37 mi2
STREAM TYPE Natural wash flows at a culvert
JURISDICTION Mesa, Arizona
WATERSHED Upper East Maricopa Floodway
SECTION/TOWNSHIP/RANGE S12 T1S R7E
LATITUDE N 33° 21' 06.1"  |  +33.35169
LONGITUDE W 111° 36' 03.2"  |  -111.60090
ARIZONA STATE PLANE E 796420  | N 855630
USGS QUAD SHEET Desert Well 7.5-Minute
STREAMGAGE INSTALLATION DATE 12/28/2016 - WY 2016
PERIOD OF AVAILABLE DATA RECORD 12/28/2016 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 7.76 Years | 2,834 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.65 feet Gage Height
STAFF GAGES None
CREST STAGE GAGES One
ZERO GAGE HEIGHT ELEVATION 1,460.50 feet NAVD88
POINT OF ZERO FLOW 0.1 feet Gage Height
EXTREME FOR PERIOD OF RECORD 07/24/2017 | 312 cfs | 4.46 feet GH

Back to Top   |   Streamflow Homepage   |   FCD Home Page

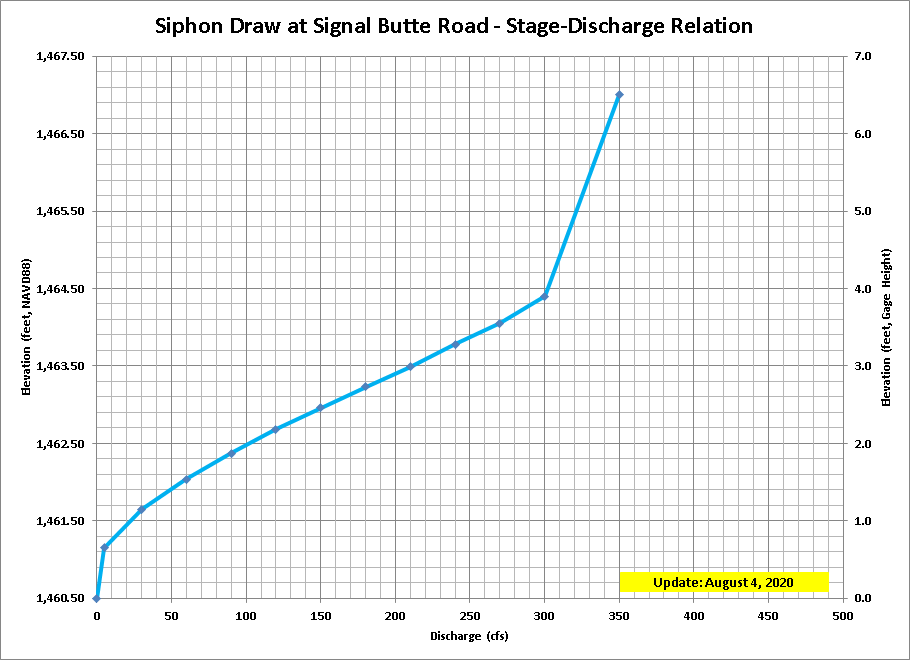

BRIEF RATING

Current Rating = #1 - Applied since 12/22/2016
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 1,460.50
30 1.15 1,461.65
60 1.54 1,462.04
90 1.87 1,462.37
120 2.18 1,462.68
150 2.46 1,462.96
210 2.99 1,463.49
300 3.90 1,464.40

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 1.23 35 02/02/2024
2023 1.07 24 10/16/2022
2022 1.56 60 09/12/2022
2021 1.07 24 07/25/2021
08/14/2021
2020 1.40 48 11/29/2019
2019 2.45 149 02/21/2019
2018 3.80 291 08/10/2018
2017 (partial) 4.46 312 07/24/2017

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

02/02/2024 07:35 02/02/2024 00:00 02/02/2024 18:00 18.0 1.23 35 2024
03/02/2023 01:16 03/02/2023 00:00 03/02/2023 12:00 12.0 0.97 17 2023
10/16/2022 02:48 10/15/2022 06:00 10/16/2022 12:00 30.0 1.07 24 2023
09/12/2022 00:00 09/11/2022 22:30 09/12/2022 10:04 11.6 1.56 60 2022
08/19/2022 18:00 08/19/2022 16:45 08/20/2022 00:00 7.3 1.46 53 2022
08/12/2022 18:00 08/12/2022 16:25 08/13/2022 03:49 11.4 1.46 1800 2022
08/09/2022 04:09 08/09/2022 00:00 08/09/2022 10:31 10.5 1.05 22 2022
12/24/2021 15:32 12/24/2021 14:56 12/25/2021 00:40 9.7 0.86 12 2022
09/02/2021 09:24 09/02/2021 09:19 09/02/2021 09:44 0.4 0.86 12 2021
08/17/2021 02:41 08/17/2021 02:07 08/17/2021 06:20 4.2 0.96 17 2021
08/14/2021 03:01 08/14/2021 01:53 08/14/2021 07:33 5.7 1.07 24 2021
07/25/2021 20:17 07/25/2021 20:17 07/26/2021 00:00 3.7 1.07 24 2021
12/25/2019 14:25 12/25/2019 13:57 12/26/2019 00:00 10.1 0.96 17 2020
11/29/2019 12:00 11/29/2019 07:32 11/29/2019 16:40 9.1 1.40 48 2020
11/21/2019 10:13 11/21/2019 08:36 11/22/2019 06:00 21.4 1.27 38 2020
11/20/2019 06:49 11/20/2019 06:19 11/20/2019 18:00 11.7 0.96 17 2020
11/05/2019 08:20 11/05/2019 08:20 11/05/2019 12:20 4.0 0.75 8 2020
09/23/2019 10:49 09/23/2019 07:48 09/23/2019 20:15 12.5 1.48 55 2019
03/12/2019 19:24 03/12/2019 16:36 03/13/2019 06:00 13.4 1.44 51 2019
02/21/2019 21:41 02/21/2019 16:42 02/23/2019 12:00 43.3 2.45 149 2019
01/06/2019 07:43 01/06/2019 03:18 01/06/2019 18:00 14.7 0.92 15 2019
10/13/2018 12:00 10/13/2018 10:39 10/13/2018 23:13 12.6 1.26 37 2019
08/24/2018 00:43 08/23/2018 22:29 08/24/2018 12:00 13.5 1.62 67 2018
08/10/2018 01:44 08/09/2018 23:50 08/11/2018 06:35 30.8 3.80 291 2018
07/24/2017 10:20 07/24/2017 07:26 07/25/2017 02:51 19.4 4.46 312 2017
01/21/2017 00:49 01/20/2017 23:29 01/21/2017 08:15 8.8 0.99 19 2017

Back to Top   |   Streamflow Homepage   |   FCD Home Page

CREST STAGE GAGES

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 0.90 Located to the right of the transducer
