El Mirage Drain - ID # 14507

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 23 October 2024

ID History |  Site Data |  Brief Rating |  Water Year Peaks |  Runoff History |  Flood Flow Frequency |  Crest Gage

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

14507 1.20 feet 1,264.16 feet NAVD88 03/31/2020 -- Current
5483 1.20 feet 1,264.16 feet NAVD88 04/01/2013 -- 03/31/2020
5483 0.26 feet 0.26 feet Gage Height 02/16/2006 -- 03/31/2013

Back to Top   |   Streamflow Homepage   |   FCD Home Page

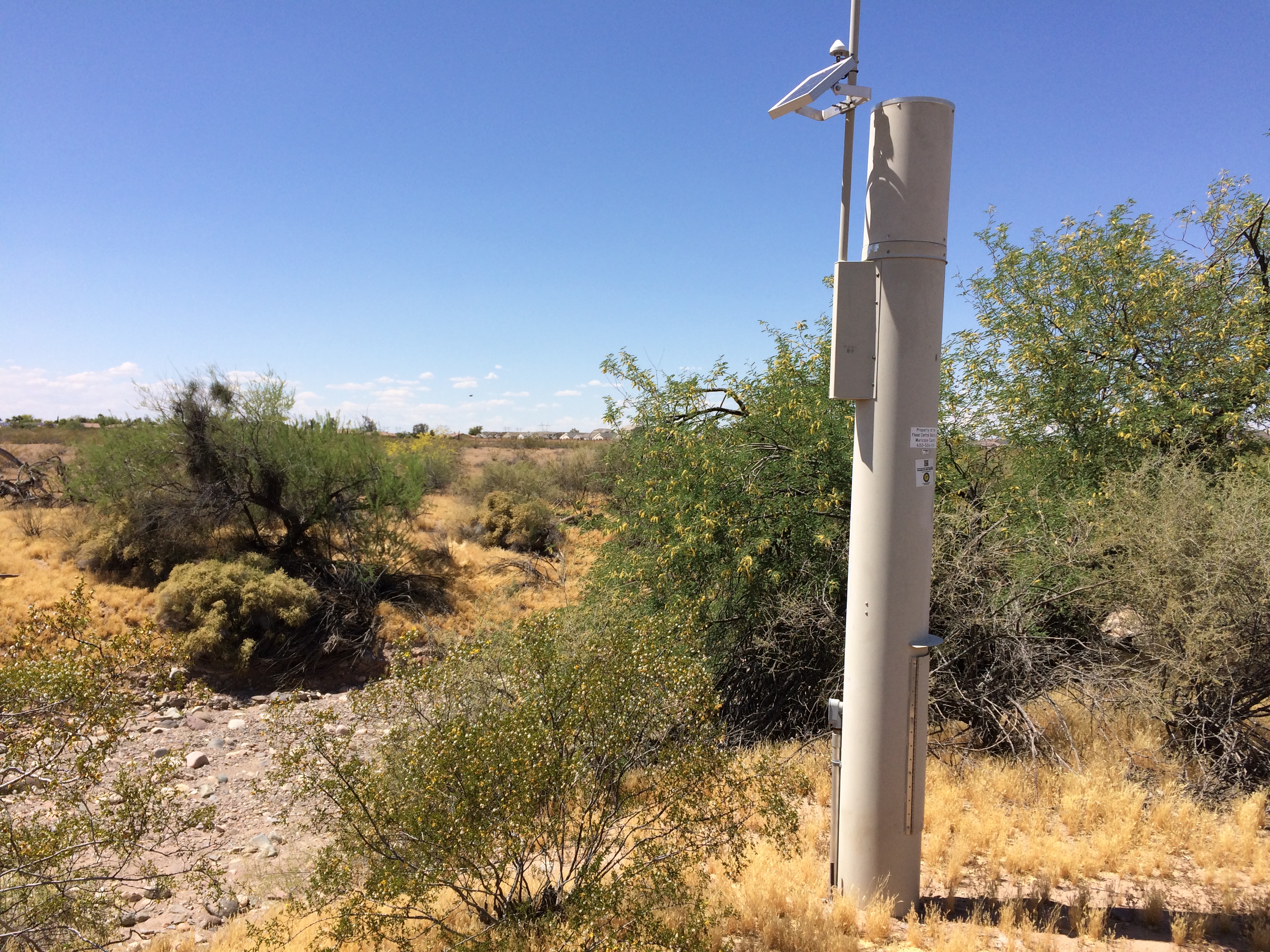

SITE DATA

STATUS Active
LOCATION Located near El Mirage Road south of Loop 303

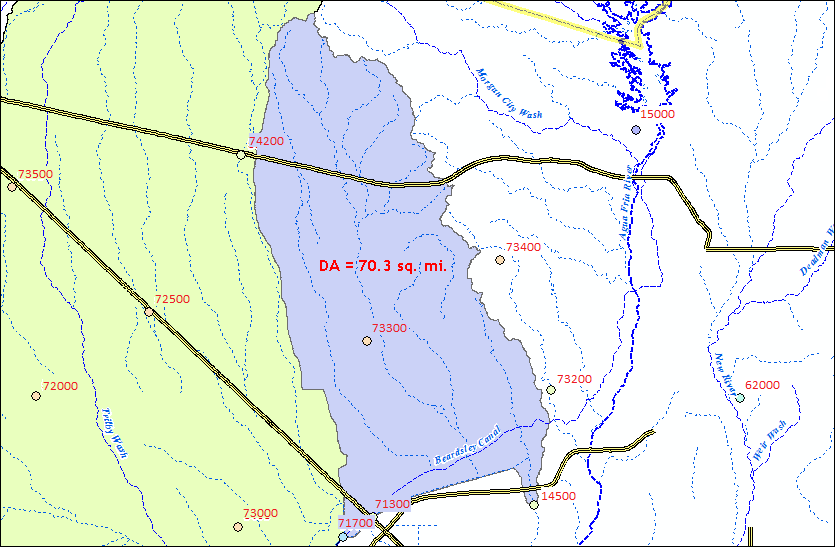

DRAINAGE AREA 70.3 mi2
STREAM TYPE Natural Stream
JURISDICTION Surprise, Arizona
WATERSHED Trilby
SECTION/TOWNSHIP/RANGE S14 T4N R1W
LATITUDE N 33° 41' 26.6"  |  +33.69072
LONGITUDE W 112° 19' 40.9"  |  -112.32804
ARIZONA STATE PLANE E 574868  | N 979095
USGS QUAD SHEET Calderwood Butte 7.5-Minute
STREAMGAGE INSTALLATION DATE 02/16/2006 - WY 2006
PERIOD OF AVAILABLE DATA RECORD 02/16/2006 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 18.62 Years | 6,802 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 1.20 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 1
ZERO GAGE HEIGHT ELEVATION 1,262.960 feet NAVD88
POINT OF ZERO FLOW 0.3 feet Gage Height
EXTREME FOR PERIOD OF RECORD 475 cfs | 3.36 feet GH | 01/21/2010

Back to Top   |   Streamflow Homepage   |   FCD Home Page

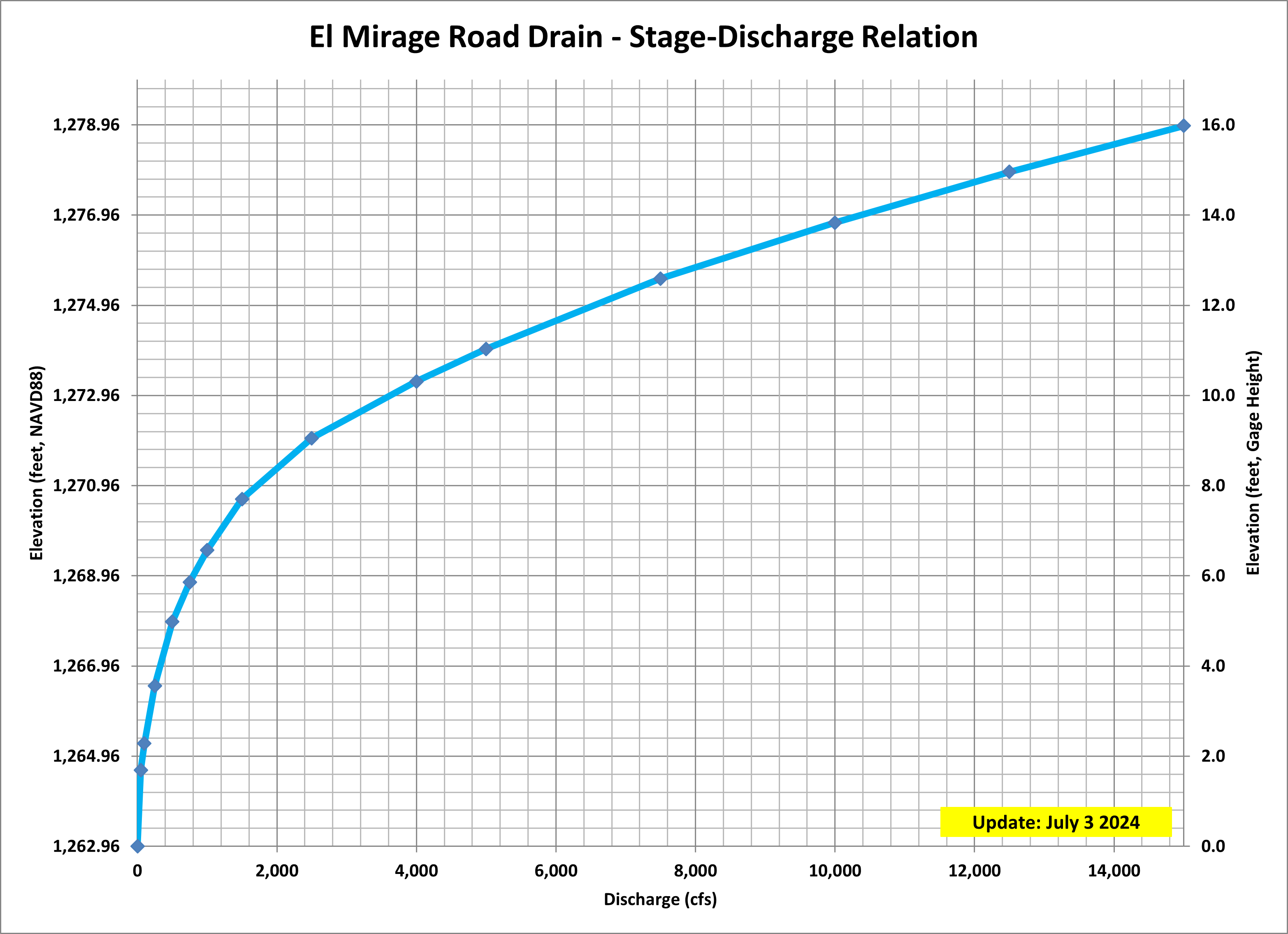

BRIEF RATING

Current Rating = #3 - Applied since 07/03/2024
Discharge
(cfs)		 Gage
Height
(feet)		 Discharge
(cfs)
0 0.00 1,262.96
100 2.28 1,265.24
250 3.56 1,266.52
500 4.98 1,267.94
750 5.86 1,268.82
1,000 6.57 1,269.53
1,500 7.70 1,270.66
2,500 9.05 1,272.01
4,000 10.31 1,273.27
5,000 11.03 1,273.99

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 None 0 None
2023 2.23 46 10/15/2022
2022 2.00 45 07/17/2022
2021 1.67 42 07/03/2021
2020 None 0 None
2019 2.87 57 09/27/2019
2018 4.99 471 08/12/2018
2017 2.57 49 01/01/2017
2016 None 0 None
2015 3.98 226 3.98
2014 4.80 418 09/08/2014
2013 2.10 46 07/20/2013
2012 2.31 240 08/17/2012
2011 None 0 None
2010 3.36 475 01/21/2010
2009 1.16 65 11/27/2008
2008 1.26 76 12/01/2007
2007 0.81 32 02/19/2007
2006 2.21 222 09/02/2006

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

10/15/2022 20:50 10/15/2022 18:00 10/16/2022 12:00 18.0 2.23 46 2023
07/17/2022 22:43 07/17/2022 22:01 07/18/2022 00:58 3.0 2.00 45 2022
07/25/2021 16:32 07/25/2021 15:54 07/25/2021 20:36 4.7 1.62 42 2021
07/03/2021 19:07 07/03/2021 19:04 07/03/2021 21:11 2.1 1.67 42 2021
09/27/2019 04:28 09/27/2019 04:08 09/27/2019 09:52 5.7 2.87 57 2019
09/26/2019 16:31 09/26/2019 16:22 09/26/2019 18:00 1.6 1.45 40 2019
09/23/2019 15:32 09/23/2019 15:24 09/24/2019 03:18 11.9 2.67 49 2019
08/28/2019 22:58 08/28/2019 22:40 08/29/2019 06:00 7.3 1.52 50 2019
02/15/2019 10:32 02/15/2019 10:32 02/15/2019 12:00 1.5 1.30 39 2019
10/13/2018 17:29 10/13/2018 17:20 10/14/2018 00:00 6.7 2.15 46 2019
10/02/2018 08:27 10/02/2018 08:06 10/02/2018 15:22 7.3 2.23 46 2019
08/12/2018 21:50 08/12/2018 21:00 08/13/2018 06:00 9.0 4.99 471 2018
01/01/2017 11:08 01/01/2017 10:18 01/01/2017 18:00 7.7 2.57 49 2017
10/13/2016 16:11 10/13/2016 16:11 10/13/2016 18:00 1.8 1.37 40 2017
08/27/2015 16:13 08/27/2015 15:17 08/27/2015 20:40 5.4 3.98 226 2015
09/08/2014 10:04 09/08/2014 03:41 09/11/2014 21:29 89.8 4.80 418 2014
08/19/2014 16:32 08/19/2014 12:19 08/20/2014 12:18 24.0 4.10 250 2014
08/19/2014 07:22 08/19/2014 06:44 08/19/2014 11:43 5.0 3.60 157 2014
08/02/2014 19:26 08/02/2014 18:16 08/02/2014 23:00 4.7 3.68 170 2014
07/20/2013 00:06 07/19/2013 23:53 07/20/2013 09:23 9.5 2.10 46 2013
08/23/2012 07:52 08/23/2012 01:59 08/23/2012 12:15 10.3 1.44 97 2012
08/17/2012 04:16 08/17/2012 02:40 08/17/2012 13:05 10.4 2.31 240 2012
07/31/2010 03:57 07/31/2010 03:32 07/31/2010 04:55 1.4 1.26 76 2010
01/22/2010 10:48 01/22/2010 09:37 01/22/2010 14:57 5.3 0.76 28 2010
01/21/2010 21:20 01/21/2010 15:28 01/22/2010 02:44 11.3 3.36 475 2010
01/21/2010 07:53 01/21/2010 07:21 01/21/2010 10:10 2.8 0.71 24 2010
11/27/2008 08:17 11/27/2008 07:31 11/27/2008 12:50 5.3 1.16 65 2009
07/10/2008 23:25 07/10/2008 23:21 07/11/2008 00:45 1.4 0.63 18 2008
01/27/2008 17:22 01/27/2008 17:12 01/27/2008 20:12 3.0 0.66 20 2008
12/01/2007 11:01 12/01/2007 00:33 12/01/2007 14:36 14.1 1.26 76 2008
07/31/2007 20:44 07/31/2007 20:25 07/31/2007 21:59 1.6 0.78 30 2007
03/22/2007 20:41 03/22/2007 19:49 03/23/2007 02:41 6.9 0.63 18 2007
02/19/2007 18:03 02/19/2007 16:52 02/19/2007 23:40 6.8 0.81 32 2007
09/02/2006 19:27 09/02/2006 18:48 09/03/2006 05:41 10.9 2.21 222 2006

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
FEMA Flood Flow Frequency
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year
----- ----- 2,835 ----- 4,747 6,023 ----- -----
USGS StreamStats Flood Flow Frequency
2-year 5-year 10-year 25-year 50-year 100-year 200-year 500-year
Flood Flow Frequency
Based on HECWRC implementation of Bulletin 17B, n=16, 2006-2021
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year

Back to Top   |   Streamflow Homepage   |   FCD Home Page

CREST STAGE GAGE

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 1.39 Located on left bank just downstream of the transducer
