Phoenix Basin #7 - ID # 13307

Current at Gage  | Station Description  | Q Rating Curve  | Vol Rating Curve  | DD Rating Curve  | Q Rating Table  | Vol Rating Table  | DD Rating Table  | Watershed Map  | DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Impound History | Staff Gage

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

13307 0.12 feet 1,371.46 feet NAVD88 03/31/2020 -- Current
4853 0.12 feet 1,371.46 feet NAVD88 10/01/2017 -- 03/31/2020
4853 0.17 feet 1,369.17 feet M.S.L. 05/12/2009 -- Current
4853 0.00 feet 1,369.00 feet M.S.L. 12/19/2001 -- 01/29/2009

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active
LOCATION Located on the north side of North Mountain

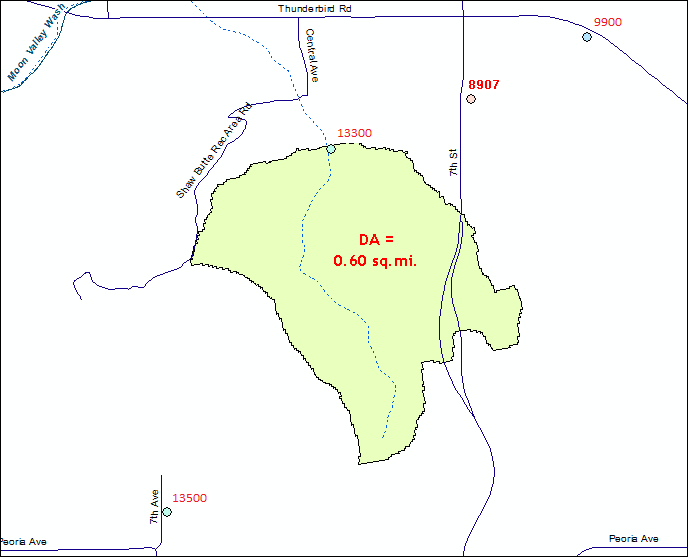

DRAINAGE AREA 0.60 mi2
STREAM TYPE Dam of natural drainage
JURISDICTION Phoenix, Arizona
WATERSHED Upper ACDC
SECTION/TOWNSHIP/RANGE S17 T3N R3E
LATITUDE N 33° 36' 04.4"  |  +33.60123
LONGITUDE W 112° 04' 21.5"  |  -112.07264
ARIZONA STATE PLANE E 652520  | N 946342
USGS QUAD SHEET Sunnyslope 7.5-Minute
STREAMGAGE INSTALLATION DATE 12/19/2001 - WY 2002
PERIOD OF AVAILABLE DATA RECORD 12/19/2001 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 22.78 Years | 8,322 Days
GAPS (> 2 DAYS) IN RECORD 01/30/2009 -- 05/11/2009
STAGE GAGE TYPE None
STAGE GAGE ELEVATION 0.12 feet Gage Height
STAFF GAGES 1
CREST STAGE GAGES 0
ZERO GAGE HEIGHT ELEVATION 1,371.340 feet NAVD88
POINT OF ZERO FLOW 0.00 feet Gage Height
SPILLWAY ELEVATION 22.4 feet Gage Height
TOP OF DAM ELEVATION 29.0 feet Gage Height

Back to Top   |   Streamflow Homepage   |   FCD Home Page

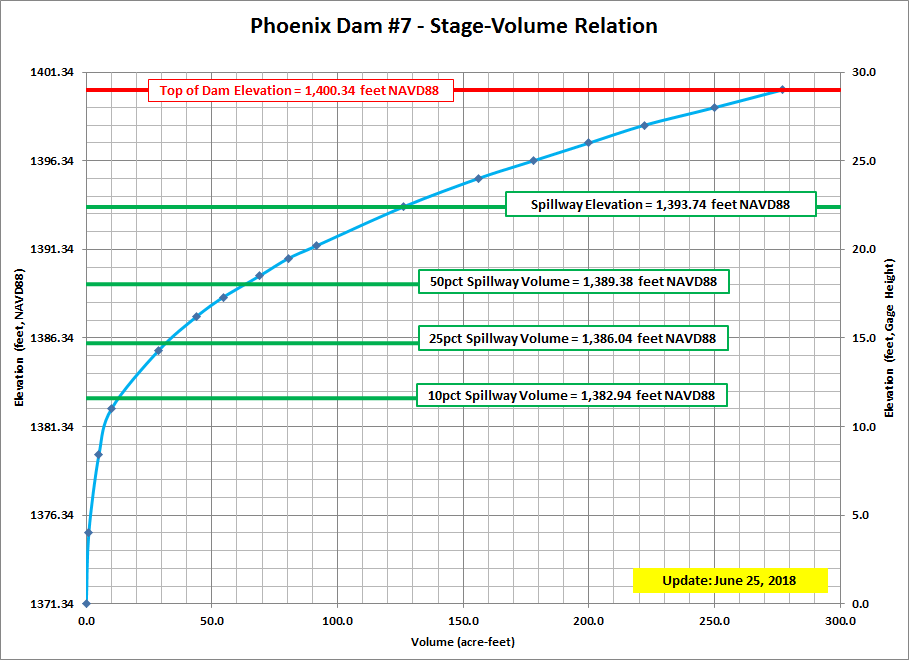

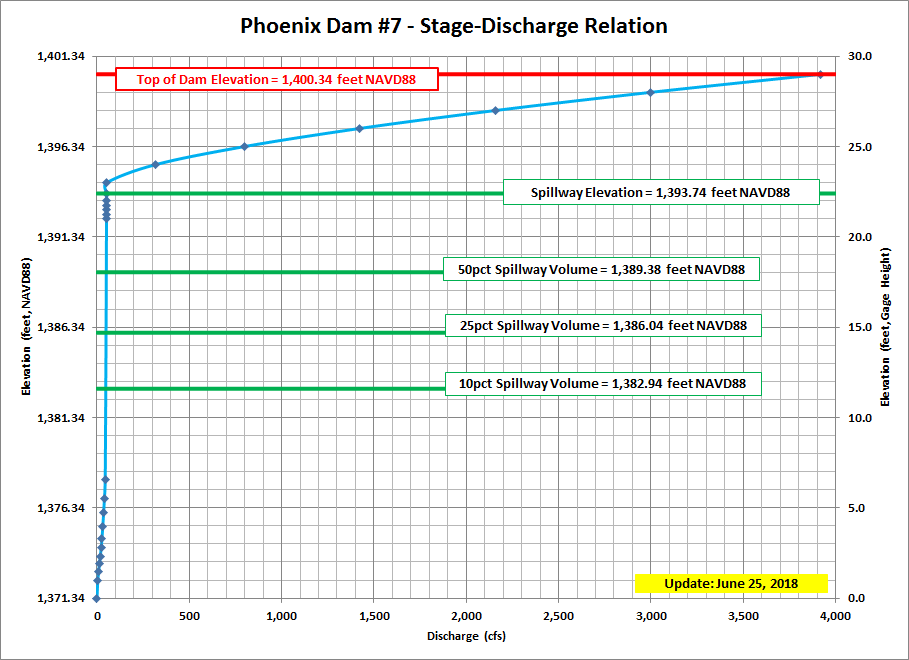

BRIEF RATING

Current Discharge Rating = #1 - Applied since 12/19/2001
Current Capacity Rating = #1 - Applied since 12/19/2001
Gage
Height
(feet)		 Elevation
(feet NAVD88)		 Discharge
(cfs)		 Volume
(acre-feet)
0.00 1,369.0 0 0.0
5.00 1,376.34 37 1.6
10.00 1,381.34 47 7.8
15.00 1,386.34 50 33.8
20.00 1,391.34 52 88.3
22.00 1,393.34 52 119.3
22.40 1,393.74 52 126.2
24.00 1,395.34 316 156.0
26.00 1,397.34 1,420 200.0
28.00 1,399.34 2,996 250.0
29.00 1,400.34 3,918 277.0

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Volume
(acre-feet)		 Percent
Full
(Available Storage Capacity)		 Date of
Peak
2025
2024 3.45 0.9 0.5 11/18/2023
2023 3.25 0.8 0.4 03/01/2023
2022 11.91 14.0 12.0 07/30/2022
2021 12.15 15.1 13.1 08/13/2021
2020 8.02 4.5 3.7 03/13/2020
2019 11.78 13.4 11.4 10/07/2018
2018 5.75 2.2 2.1 08/23/2018
2017 7.24 3.6 3.3 12/22/2016
2016 10.31 8.5 11.9 08/05/2016
2015 4.92 1.6 2.1 05/15/2015
2014 12.37 16.2 16.1 08/19/2014
2013 5.62 2.1 3.1 07/19/2013
2012 4.92 1.6 1.3 08/23/2012
2011 7.40 3.8 3.0 10/05/2010
2010 3.99 1.0 0.8 01/21/2010
2009 4.57 2.0 1.6 09/05/2009
2008 5.05 1.7 1.3 07/10/2008
2007 1.65 0.5 0.4 07/23/2007
2006 5.90 2.0 1.6 09/03/2006
2005 8.40 9.2 7.3 09/03/2005
2004 6.95 6.2 4.9 04/02/2004
2003 8.59 9.8 7.8 02/14/2003
2002 (partial) 12.11 20.8 16.5 07/14/2002

Back to Top   |   Streamflow Homepage   |   FCD Home Page

IMPOUNDMENT EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Volume
(acre-feet)		 Water
Year
View a Plot of These Data

04/01/2024 04:02 04/01/2024 03:06 04/01/2024 05:48 2.7 1.58 0.4 2024
02/01/2024 23:21 02/01/2024 23:14 02/02/2024 06:00 6.8 0.78 0.2 2024
12/22/2023 20:23 12/22/2023 18:00 12/22/2023 21:27 3.6 1.75 0.5 2024
11/18/2023 06:47 11/18/2023 06:00 11/18/2023 07:57 2.0 3.45 0.9 2024
03/01/2023 20:08 03/01/2023 18:00 03/01/2023 23:37 5.6 3.25 0.8 2023
01/01/2023 15:55 01/01/2023 12:00 01/02/2023 00:00 12.0 2.02 0.5 2023
09/11/2022 22:10 09/11/2022 21:40 09/12/2022 00:17 2.6 8.76 5.6 2022
08/04/2022 05:08 08/04/2022 04:28 08/04/2022 09:33 5.1 10.24 8.3 2022
07/30/2022 18:50 07/30/2022 18:14 07/31/2022 00:51 6.6 11.91 14.0 2022
12/24/2021 16:46 12/24/2021 11:30 12/24/2021 18:32 7.0 4.75 1.5 2022
08/18/2021 14:02 08/18/2021 13:34 08/18/2021 16:19 2.8 5.72 2.2 2021
08/13/2021 22:41 08/13/2021 22:05 08/14/2021 06:00 7.9 12.15 15.1 2021
03/13/2020 16:17 03/13/2020 15:42 03/13/2020 19:15 3.6 8.02 4.5 2020
03/13/2020 00:53 03/13/2020 00:06 03/13/2020 03:48 3.7 1.04 0.3 2020
03/12/2020 15:45 03/12/2020 15:40 03/12/2020 17:12 1.5 4.75 1.5 2020
02/22/2020 09:15 02/22/2020 08:47 02/22/2020 09:53 1.1 0.69 0.2 2020
11/29/2019 04:27 11/29/2019 04:02 11/29/2019 07:41 3.7 7.67 4.1 2020
11/20/2019 17:55 11/20/2019 08:31 11/20/2019 19:40 11.2 4.28 1.2 2020
09/23/2019 18:51 09/23/2019 17:22 09/23/2019 22:31 5.2 9.79 7.4 2019
08/28/2019 22:12 08/28/2019 21:44 08/29/2019 01:15 3.5 9.16 6.2 2019
10/07/2018 04:09 10/07/2018 03:10 10/07/2018 12:00 8.8 11.78 13.4 2019
10/02/2018 18:49 10/02/2018 17:47 10/03/2018 00:00 6.2 6.57 2.9 2019
10/02/2018 10:14 10/02/2018 06:00 10/02/2018 12:50 6.8 6.30 2.7 2019
08/23/2018 18:20 08/23/2018 17:52 08/23/2018 19:57 2.1 5.75 2.2 2018
08/08/2018 20:15 08/08/2018 20:04 08/08/2018 21:10 1.1 1.21 0.3 2018
07/30/2018 20:21 07/30/2018 19:59 07/30/2018 21:20 1.4 1.09 0.3 2018
07/09/2018 17:17 07/09/2018 17:00 07/09/2018 18:15 1.3 1.96 0.5 2018
01/09/2018 22:05 01/09/2018 21:41 01/10/2018 00:20 2.7 1.73 0.5 2018
08/03/2017 16:43 08/03/2017 16:38 08/03/2017 18:00 1.4 0.84 0.2 2017
07/29/2017 17:40 07/29/2017 17:19 07/29/2017 18:40 1.4 4.33 1.2 2017
02/28/2017 07:35 02/27/2017 21:23 02/28/2017 09:24 12.0 3.68 0.9 2017
01/20/2017 20:49 01/20/2017 19:45 01/21/2017 02:15 6.5 1.31 0.3 2017
01/01/2017 09:53 01/01/2017 07:17 01/01/2017 12:00 4.7 2.43 0.6 2017
12/31/2016 05:30 12/31/2016 05:15 12/31/2016 07:55 2.7 2.71 0.7 2017
12/22/2016 10:47 12/22/2016 10:26 12/22/2016 12:27 2.0 7.24 3.6 2017
12/22/2016 04:13 12/22/2016 02:52 12/22/2016 09:38 6.8 4.15 1.1 2017
08/23/2016 03:16 08/23/2016 02:48 08/24/2016 10:37 31.8 4.05 1.0 2016
08/22/2016 16:23 08/22/2016 15:57 08/22/2016 20:35 4.6 8.86 5.7 2016
08/05/2016 09:30 08/05/2016 07:35 08/05/2016 13:07 5.5 10.31 8.5 2016
01/06/2016 04:00 01/06/2016 02:20 01/06/2016 05:48 3.5 4.05 1.0 2016
05/15/2015 15:34 05/15/2015 15:18 05/16/2015 04:32 13.2 4.92 1.6 2015
03/19/2015 04:50 03/19/2015 04:14 03/19/2015 05:49 1.6 0.97 0.3 2015
12/04/2014 08:17 12/04/2014 07:50 12/04/2014 09:46 1.9 1.82 0.5 2015
10/19/2014 18:48 10/19/2014 18:31 10/20/2014 01:49 7.3 4.52 1.3 2015
09/27/2014 14:54 09/27/2014 14:39 09/27/2014 16:15 1.6 4.97 1.6 2014
09/08/2014 04:48 09/08/2014 03:02 09/08/2014 11:14 8.2 10.64 9.2 2014
08/19/2014 12:23 08/19/2014 11:51 08/20/2014 03:28 15.6 12.37 16.2 2014
08/19/2014 06:57 08/19/2014 06:36 08/19/2014 09:28 2.9 7.77 4.2 2014
08/12/2014 21:44 08/12/2014 21:27 08/13/2014 22:51 25.4 3.04 0.8 2014
08/12/2014 18:22 08/12/2014 18:04 08/12/2014 19:04 1.0 1.82 0.5 2014
08/02/2014 17:44 08/02/2014 17:15 08/02/2014 19:26 2.2 7.14 3.5 2014
07/14/2014 19:04 07/14/2014 18:45 07/14/2014 21:27 2.7 5.54 2.0 2014
03/01/2014 21:23 03/01/2014 21:02 03/01/2014 22:59 2.0 4.40 1.2 2014
03/01/2014 12:26 03/01/2014 12:11 03/01/2014 15:51 3.7 5.64 2.1 2014
11/22/2013 07:13 11/22/2013 06:46 11/22/2013 08:08 1.4 0.94 0.2 2014
11/22/2013 04:22 11/22/2013 03:32 11/22/2013 05:19 1.8 1.24 0.3 2014
08/26/2013 19:35 08/26/2013 19:28 08/26/2013 20:31 1.1 1.44 0.4 2013
07/21/2013 11:40 07/21/2013 11:16 07/21/2013 12:26 1.2 0.87 0.2 2013
07/19/2013 23:23 07/21/2013 11:16 07/21/2013 12:26 5.0 5.62 2.1 2013
01/27/2013 16:19 01/27/2013 14:27 01/27/2013 17:08 2.7 0.60 0.1 2013
12/14/2012 01:39 12/14/2012 01:24 12/14/2012 11:06 9.7 2.32 0.6 2013
08/23/2012 02:13 08/23/2012 01:58 08/23/2012 03:11 1.2 4.92 1.6 2012
07/31/2011 22:23 07/31/2011 22:07 07/31/2011 23:54 1.8 5.70 2.2 2011
12/30/2010 03:08 12/30/2010 02:46 12/30/2010 04:40 1.9 3.12 0.8 2011
10/05/2010 13:00 10/05/2010 12:46 10/05/2010 19:08 6.4 7.40 3.8 2011
08/07/2010 05:12 08/07/2010 04:59 08/07/2010 06:31 1.5 1.12 0.3 2010
02/28/2010 01:08 02/28/2010 00:42 02/28/2010 03:56 3.2 1.40 0.4 2010
02/21/2010 06:09 02/21/2010 05:43 02/21/2010 06:52 1.2 0.92 0.2 2010
01/21/2010 20:57 01/21/2010 20:22 01/21/2010 22:49 2.5 3.99 1.0 2010
01/19/2010 19:46 01/19/2010 19:30 01/19/2010 23:02 3.5 0.69 0.2 2010
09/05/2009 10:16 09/05/2009 09:53 09/05/2009 11:05 1.2 4.57 2.0 2009
12/26/2008 02:37 12/26/2008 02:37 single event 0.0 0.10 <0.1 2009
08/14/2008 19:43 08/14/2008 19:18 08/14/2008 20:55 1.6 1.80 0.5 2008
08/07/2008 21:42 08/07/2008 21:42 single report 0.0 0.10 <0.1 2008
07/10/2008 20:50 07/10/2008 20:19 07/10/2008 23:09 2.8 5.05 1.7 2008
01/27/2008 17:35 01/27/2008 17:11 01/28/2008 02:34 9.4 2.38 0.6 2008
12/08/2007 03:00 12/08/2007 03:00 12/08/2007 03:12 0.2 0.68 0.2 2008
12/01/2007 14:51 12/01/2007 13:16 12/01/2007 16:00 2.7 1.33 0.4 2008
11/30/2007 23:36 11/30/2007 18:00 12/01/2007 00:47 6.8 1.55 0.4 2008
07/23/2007 17:39 07/23/2007 17:34 07/23/2007 18:28 0.9 1.65 0.5 2007
09/03/2006 22:18 09/03/2006 21:59 09/04/2006 00:05 2.1 5.90 2.0 2006
09/02/2006 19:39 09/02/2006 19:03 09/02/2006 20:36 1.5 3.45 0.9 2006
10/18/2005 11:06 10/18/2005 08:51 10/18/2005 15:11 6.3 3.60 0.9 2006
09/03/2005 19:31 09/03/2005 19:12 09/03/2005 23:11 4.0 8.40 9.2 2005
08/02/2005 22:14 08/02/2005 21:44 08/02/2005 22:59 1.3 1.30 0.3 2005
02/19/2005 01:04 02/19/2005 00:57 02/19/2005 04:08 3.2 1.20 0.3 2005
01/29/2005 11:15 01/29/2005 10:56 01/29/2005 16:34 5.6 1.30 0.3 2005
01/26/2005 15:46 01/26/2005 15:03 01/26/2005 16:34 1.5 1.30 0.3 2005
01/11/2005 18:57 01/11/2005 18:57 01/11/2005 22:35 3.6 0.45 0.1 2005
01/04/2005 06:13 01/04/2005 06:13 01/04/2005 10:35 4.4 0.45 0.1 2005
12/29/2004 13:23 12/29/2004 13:23 single report 0.0 0.20 0.1 2005
11/22/2004 09:23 11/22/2004 09:21 11/22/2004 09:23 0.1 0.40 0.1 2005
09/19/2004 15:01 09/19/2004 14:48 09/19/2004 15:33 0.8 0.45 0.1 2004
07/14/2004 02:22 07/14/2004 01:56 07/14/2004 03:06 1.2 4.15 1.3 2004
04/02/2004 10:57 04/02/2004 10:06 04/02/2004 12:28 2.4 6.95 6.2 2004
04/02/2004 05:49 04/02/2004 05:25 04/02/2004 07:06 1.7 3.15 0.8 2004
03/04/2004 17:56 03/04/2004 17:44 03/05/2004 03:22 9.6 3.00 0.8 2004
11/12/2003 23:10 11/12/2003 22:34 11/12/2003 23:52 1.3 2.78 0.7 2004
03/17/2003 10:55 03/17/2003 10:30 03/17/2003 12:35 2.1 1.32 0.3 2003
02/25/2003 19:46 02/25/2003 19:01 02/25/2003 20:11 1.2 5.52 3.7 2003
02/14/2003 00:46 02/13/2003 20:31 02/14/2003 06:16 9.8 8.59 9.8 2003
02/13/2003 18:16 02/13/2003 16:46 02/13/2003 18:35 3.4 3.86 1.0 2003
10/26/2002 13:13 10/26/2002 12:36 10/26/2002 14:30 1.9 1.03 0.3 2003
09/06/2002 22:47 09/06/2002 22:26 09/06/2002 23:50 1.4 2.34 0.6 2002
09/06/2002 21:41 09/06/2002 21:18 09/06/2002 22:08 0.8 3.12 0.8 2002
07/23/2002 20:40 07/23/2002 20:17 07/23/2002 22:20 2.1 6.05 4.6 2002
07/14/2002 21:29 07/14/2002 20:54 07/15/2002 03:57 6.9 12.11 20.8 2002

Back to Top   |   Streamflow Homepage   |   FCD Home Page

STAFF GAGES

Staff Gage Range Staff Gage Information

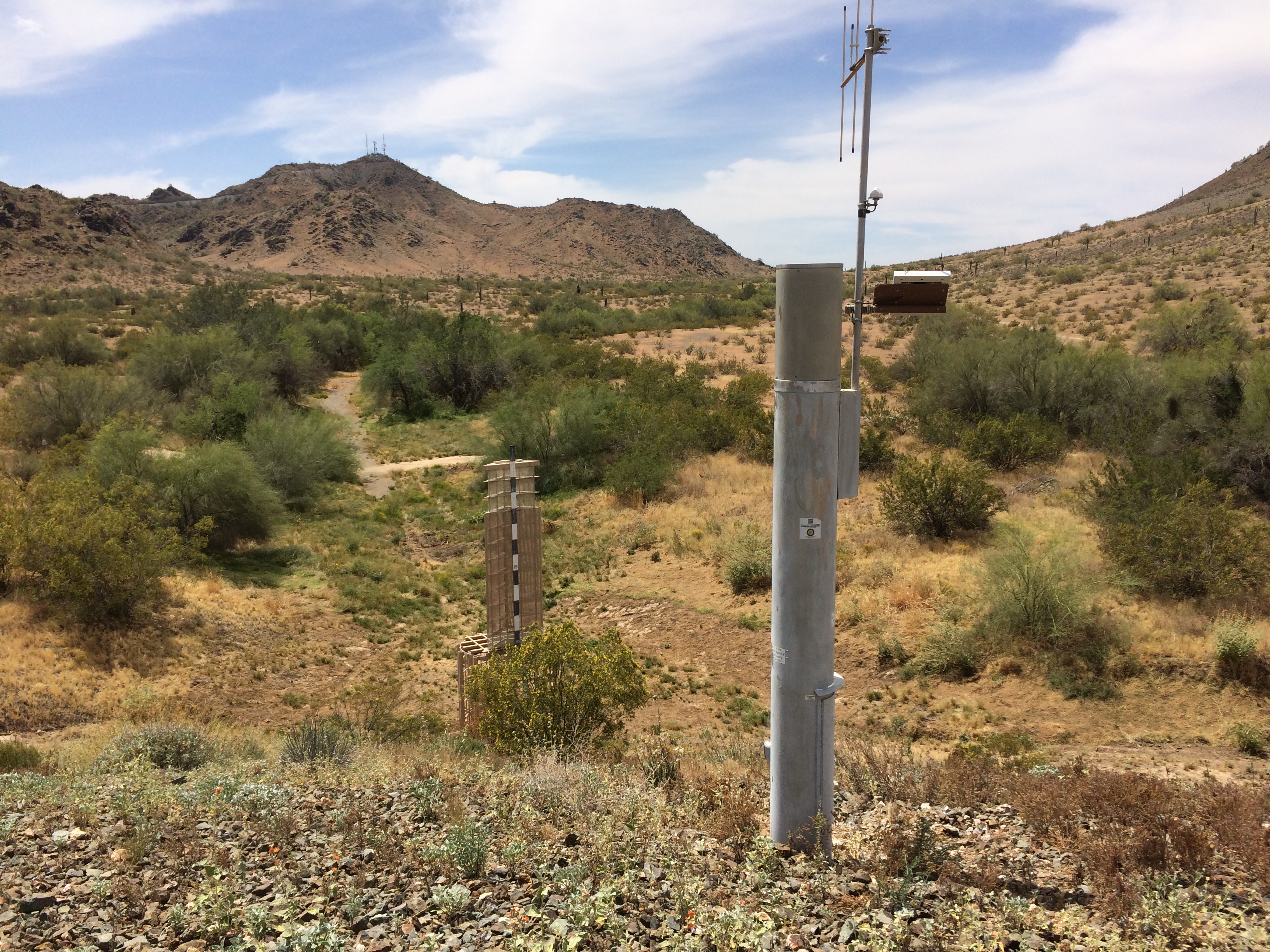

4 - 23 Single staff gage attached to outlet trash rack
