Casandro Wash - ID # 52007

Current at Gage |  Station Description |  Rating Curve |  Rating Table |  Cross Section |  Watershed Map |  DSS

Page Last Updated: 23 October 2024

ID History | Site Data | Brief Rating | Water Year Peaks | Runoff History | Flood Frequency | Crest Gages

Reload Page   |  ASWR   |   Streamflow Homepage   |   FCD Home Page


GAGE ID AND DATUM HISTORY

ID Elevation of
Instrument
in Gage Height		 Elevation of
Instrument
in Datum		 Period

52007 0.75 feet 2,242.486 feet NAVD88 04/16/2020 -- Current
7093 0.75 feet 2,242.486 feet NAVD88 03/15/2006 -- 04/16/2020
7093 0.15 feet 0.15 feet gage height 08/13/1998 -- 03/15/2006
7093 0.13 feet 0.13 feet gage height 03/27/1997 -- 08/13/1998
7093 0.15 feet 0.15 feet gage height 07/12/1994 -- 03/27/1997

Back to Top   |   Streamflow Homepage   |   FCD Home Page

SITE DATA

STATUS Active

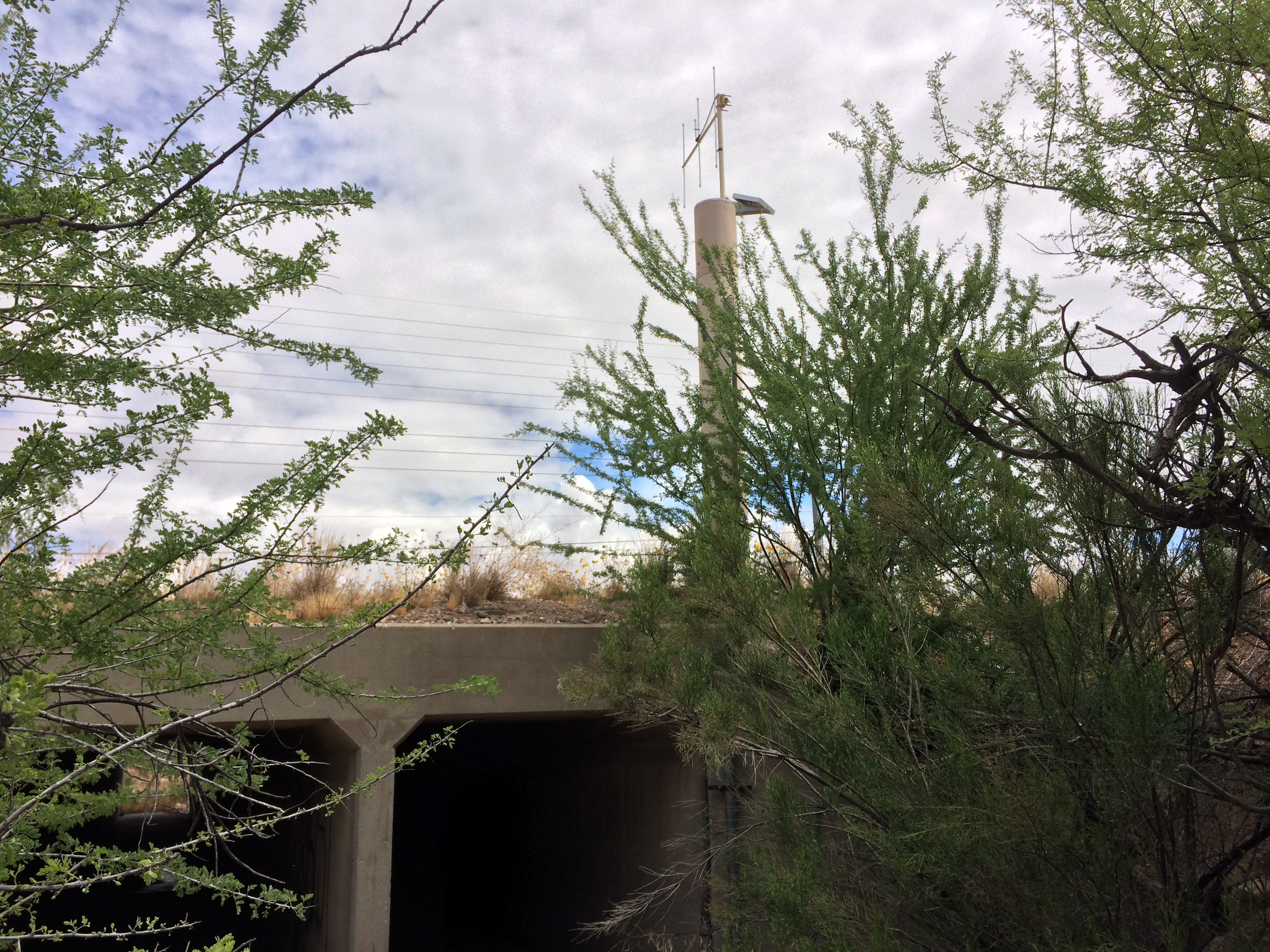

LOCATION Located near the intersection of Lazy Fox Road and US 60

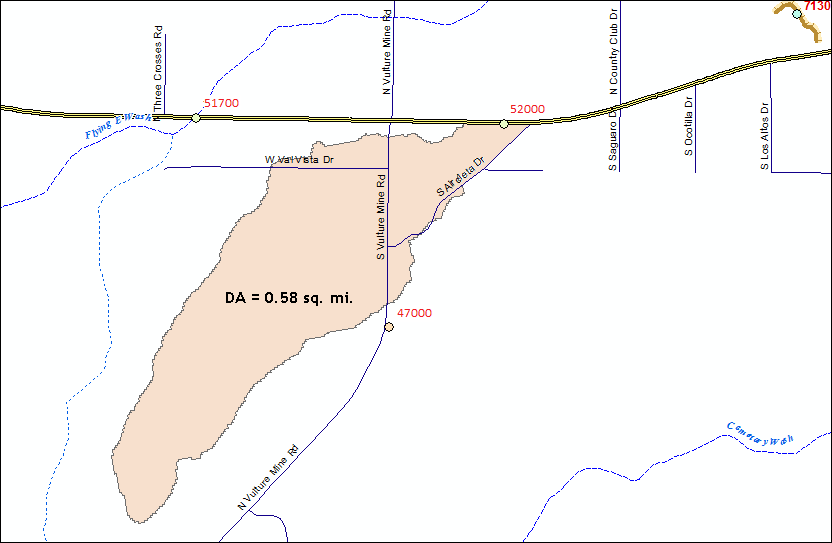

DRAINAGE AREA 0.58 mi2
STREAM TYPE Culvert / Natural Stream
JURISDICTION Wickenburg, Arizona
WATERSHED Lower Hassayampa
SECTION/TOWNSHIP/RANGE S10 T7N R5W
LATITUDE N 33° 57' 43.3"  |  +33.96204
LONGITUDE W 112° 45' 55.0"  |  -112.76528
ARIZONA STATE PLANE E 442700  | N 1078641
USGS QUAD SHEET Vulture Peak 7.5-Minute
STREAMGAGE INSTALLATION DATE 07/12/1994 - WY 1994
PERIOD OF AVAILABLE DATA RECORD 07/12/1994 - Current
LENGTH OF AVAILABLE DATA RECORD (AS OF 10/01/2024) 30.22 Years | 11,039 Days
GAPS (> 2 DAYS) IN RECORD None
STAGE GAGE TYPE Pressure Transducer
STAGE GAGE ELEVATION 0.73 feet Gage Height
STAFF GAGES 0
CREST STAGE GAGES 1
ZERO GAGE HEIGHT ELEVATION 2,241.736 feet NAVD88
POINT OF ZERO FLOW 1.24 feet Gage Height
EXTREME FOR PERIOD OF RECORD 667 cfs | 8.00 feet | 07/18/2015

Back to Top   |   Streamflow Homepage   |   FCD Home Page

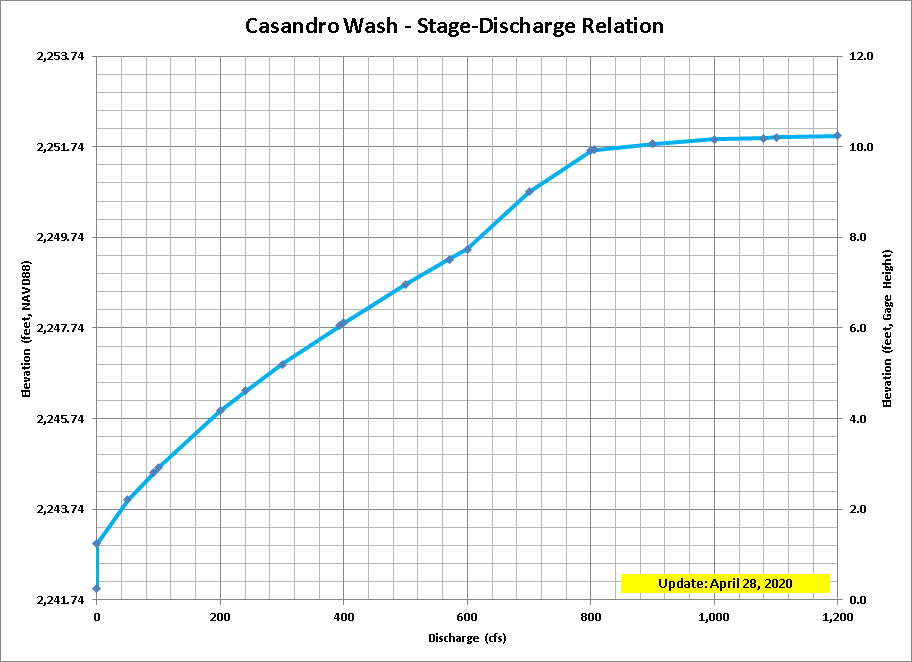

BRIEF RATING

Current Rating = #5 - Applied since 10/01/2019
Discharge
(cfs)		 Elevation
feet
Gage Height		 Elevation
feet
NAVD88
0 0.00 2,241.74
0 1.24 2,242.98
50 2.21 2,243.95
100 2.92 2,244.66
200 4.17 2,245.91
300 5.20 2,246.94
500 6.96 2,248.70
800 9.91 2,251.65
1,000 10.17 2,251.91

Back to Top   |   Streamflow Homepage   |   FCD Home Page

WATER YEAR PEAKS

Water
Year		 Peak
Gage Height
(feet)		 Peak
Discharge
(cfs)		 Date of
Peak
2025
2024 2.17 33 02/02/2024
2023 4.76 343 03/15/2023
2022 2.35 112 09/12/2022
2021 2.77 146 07/25/2021
2020 3.52 214 11/29/2019
2019 2.15 96 10/07/2018
2018 1.87 32 07/12/2018
2017 2.66 137 08/10/2017
2016 3.20 184 07/31/2016
2015 8.00 668 07/18/2015
2014 5.68 449 08/03/2014
2013 4.53 318 08/26/2013
2012 5.66 446 07/14/2012
2011 None 0 None
2010 2.18 99 01/19/2010
2009 2.08 91 11/27/2008
2008 2.78 147 11/30/2007
2007 5.61 440 08/01/2007
2006 2.93 159 08/24/2006
2005 0.35 14 02/11/2005
2004 1.17 404 08/15/2004
2003 0.45 27 08/14/2003
2002 0.47 30 09/08/2002
2001 1.20 118 10/27/2000
2000 1.42 147 08/23/2000
1999 0.75 66 08/31/1999
1998 1.46 151 08/12/1998
1997 1.65 177 09/26/1997
1996 0.60 35 09/10/1996
1995 0.38 19 08/14/1995
1994 None 0 None

Back to Top   |   Streamflow Homepage   |   FCD Home Page

RUNOFF EVENT HISTORY

Date of
Peak		 Time of
Peak		 Runoff
Start		 Runoff
End		 Duration
(hours)		 Peak
Stage
(feet GH)		 Peak
Discharge
(CFS)		 Water
Year
View a Plot of These Data

08/06/2024 21:47 08/06/2024 21:00 08/07/2024 00:00 3.0 1.52 0 2024
03/31/2024 23:35 03/31/2024 04:30 04/01/2024 10:18 29.8 1.99 5 2024
03/15/2024 20:19 03/15/2024 18:00 03/16/2024 00:00 6.0 1.92 2 2024
02/08/2024 11:23 02/08/2024 06:00 02/08/2024 17:23 11.4 1.92 2 2024
02/02/2024 00:30 02/01/2024 18:00 02/02/2024 04:43 10.7 2.17 33 2024
12/22/2023 19:49 12/22/2023 17:00 12/24/2023 01:00 8.0 1.82 1 2024
09/01/2023 00:24 09/01/2023 00:00 09/01/2023 03:41 3.7 1.90 48 2023
03/15/2023 20:30 03/15/2023 18:00 03/16/2023 06:00 12.0 4.76 343 2023
01/01/2023 14:19 01/01/2023 12:00 01/02/2023 02:34 14.6 1.75 6 2023
09/12/2022 02:09 09/12/2022 01:54 09/12/2022 07:13 5.3 2.35 112 2022
08/21/2022 03:03 08/21/2022 02:46 08/21/2022 07:59 5.2 2.22 102 2022
08/19/2022 19:14 08/19/2022 18:00 08/20/2022 01:04 7.1 2.22 102 2022
07/25/2022 12:29 07/25/2022 12:00 07/26/2022 09:50 21.8 2.27 106 2022
08/11/2021 16:15 08/11/2021 16:13 08/11/2021 16:48 0.6 2.02 86 2021
07/25/2021 08:20 07/25/2021 07:48 07/25/2021 09:04 1.3 2.77 146 2021
03/13/2020 15:14 03/13/2020 15:10 03/13/2020 15:41 0.5 1.98 83 2020
03/13/2020 00:33 03/12/2020 23:31 03/13/2020 01:25 1.9 1.98 83 2020
11/29/2019 02:38 11/29/2019 01:23 11/29/2019 04:08 2.8 3.52 214 2020
11/20/2019 02:26 11/20/2019 02:16 11/20/2019 03:02 0.8 2.05 88 2020
09/26/2019 06:16 09/26/2019 05:41 09/26/2019 06:30 0.8 1.98 83 2019
09/25/2019 21:48 09/25/2019 21:12 09/25/2019 22:19 1.1 2.05 88 2019
09/23/2019 12:47 09/23/2019 12:39 09/23/2019 13:03 0.4 1.75 6 2019
10/07/2018 01:16 10/07/2018 01:06 10/07/2018 02:23 1.3 2.15 96 2019
07/12/2018 16:00 07/12/2018 15:54 07/12/2018 16:15 0.4 1.87 32 2018
08/10/2017 18:38 08/10/2017 18:04 08/10/2017 19:42 1.6 2.66 137 2017
07/18/2017 19:11 07/18/2017 19:04 07/18/2017 20:00 0.9 2.46 121 2017
07/15/2017 18:21 07/15/2017 18:14 07/15/2017 18:43 0.5 1.81 14 2017
07/31/2016 21:23 07/31/2016 20:53 07/31/2016 22:10 1.3 3.20 184 2016
07/29/2016 21:49 07/29/2016 21:43 07/29/2016 22:36 0.9 2.03 87 2016
07/25/2016 19:48 07/25/2016 19:37 07/25/2016 20:09 0.5 2.00 85 2016
07/18/2015 18:18 07/18/2015 17:13 07/18/2015 19:52 2.7 8.00 668 2015
09/09/2014 00:06 09/08/2014 23:34 09/09/2014 00:42 1.1 3.33 196 2014
08/25/2014 19:16 08/25/2014 18:43 08/25/2014 19:51 1.1 4.98 368 2014
08/12/2014 20:44 08/12/2014 20:18 08/12/2014 21:51 1.6 3.10 175 2014
08/03/2014 17:53 08/03/2014 17:31 08/03/2014 18:49 1.3 5.68 449 2014
08/02/2014 17:10 08/02/2014 16:58 08/02/2014 18:19 1.4 1.96 81 2014
07/06/2014 15:31 07/06/2014 15:03 07/06/2014 16:32 1.5 5.56 434 2014
07/03/2014 22:15 07/03/2014 21:37 07/03/2014 22:52 1.3 2.88 155 2014
11/23/2013 00:00 11/22/2013 22:40 03/02/2014 12:52 16.6 1.88 0.8 2014
09/10/2013 08:39 09/10/2013 08:33 09/10/2013 09:07 0.6 2.96 161 2013
08/26/2013 21:03 08/26/2013 20:46 08/26/2013 21:49 1.1 4.53 318 2013
07/22/2013 17:24 07/22/2013 17:12 07/22/2013 18:08 0.9 3.50 212 2013
08/23/2012 02:04 08/23/2012 02:04 08/23/2012 02:43 0.7 1.93 70 2012
07/22/2012 19:14 07/22/2012 18:46 07/22/2012 19:45 1.0 2.06 89 2012
07/14/2012 17:47 07/14/2012 17:21 07/14/2012 18:34 1.2 5.66 446 2012
07/14/2012 09:47 07/14/2012 09:33 07/14/2012 10:19 0.8 2.33 110 2012
08/22/2010 00:38 08/22/2010 00:36 08/22/2010 00:54 0.3 1.88 37 2010
01/21/2010 14:04 01/21/2010 01:12 01/22/2010 04:35 27.4 1.98 83 2010
01/19/2010 20:59 01/19/2010 02:17 01/20/2010 02:55 24.6 2.18 99 2010
07/21/2009 19:51 07/21/2009 19:50 07/21/2009 19:58 0.1 1.75 6 2009
12/26/2008 00:09 12/26/2008 00:04 12/26/2008 01:16 1.2 1.78 9 2009
11/27/2008 01:16 11/27/2008 01:07 11/27/2008 02:26 1.3 2.08 91 2009
08/25/2008 20:52 08/25/2008 20:20 08/25/2008 21:42 1.4 2.73 143 2008
07/13/2008 15:19 07/13/2008 15:14 07/13/2008 15:45 0.5 1.88 37 2008
05/23/2008 13:43 05/23/2008 13:38 05/23/2008 14:34 0.9 1.86 26 2008
02/04/2008 00:11 02/04/2008 00:05 02/04/2008 01:11 1.1 1.90 51 2008
11/30/2007 23:17 11/30/2007 18:57 12/01/2007 00:09 5.2 2.78 147 2008
08/01/2007 16:22 08/01/2007 15:40 08/01/2007 17:21 1.7 5.61 440 2007
07/28/2007 18:32 07/28/2007 18:28 07/28/2007 19:30 1.0 2.43 118 2007
07/25/2007 12:51 07/25/2007 11:41 07/25/2007 13:56 2.3 4.83 351 2007
09/09/2006 07:29 09/09/2006 07:15 09/09/2006 08:22 1.1 2.61 132 2006
08/24/2006 12:47 08/24/2006 12:14 08/24/2006 13:13 1.0 2.93 159 2006
08/11/2006 23:24 08/11/2006 23:09 08/12/2006 00:24 1.3 2.45 120 2006
08/09/2006 16:41 08/09/2006 16:33 08/09/2006 19:20 2.8 1.73 4 2006
08/11/2005 12:30 08/11/2005 12:30 08/11/2005 13:31 1.0 0.28 7 2005
07/30/2005 17:57 07/30/2005 17:57 single report 0.0 0.25 5 2005
02/23/2005 18:43 02/23/2005 18:43 single report 0.0 0.25 5 2005
02/22/2005 13:01 02/22/2005 09:14 02/22/2005 15:14 6.0 0.28 7 2005
02/21/2005 00:10 02/19/2005 21:14 02/20/2005 01:20 4.1 0.28 7 2005
02/18/2005 16:06 02/18/2005 16:06 single report 0.0 0.25 5 2005
02/11/2005 21:13 02/11/2005 09:13 02/12/2005 01:40 16.5 0.35 14 2005
01/04/2005 13:23 01/04/2005 13:23 single report 0.0 0.25 5 2005
01/03/2005 20:02 01/03/2005 15:12 01/03/2005 21:12 6.0 0.28 7 2005
12/29/2004 10:23 12/29/2004 03:12 12/29/2004 11:32 8.3 0.28 7 2005
11/22/2004 06:11 11/22/2004 06:11 single report 0.0 0.25 5 2005
10/21/2004 11:23 10/21/2004 11:23 single report 0.0 0.25 5 2005
08/15/2004 16:46 08/15/2004 16:20 08/15/2004 17:34 1.2 1.17 404 2004
11/12/2003 17:19 11/12/2003 17:19 11/12/2003 18:24 1.1 0.25 5 2004
08/14/2003 22:13 08/14/2003 22:13 single report 0.0 0.25 5 2003
03/16/2003 14:33 03/16/2003 14:33 03/16/2003 15:51 1.3 0.25 5 2003
02/25/2003 18:18 02/25/2003 15:52 02/25/2003 21:52 6.0 0.38 17 2003
02/13/2003 21:52 02/13/2003 21:52 single report 0.0 0.25 5 2003
11/30/2002 04:18 11/30/2002 04:18 single report 0.0 0.25 5 2003
10/26/2002 14:00 10/26/2002 13:31 10/26/2002 15:51 2.3 0.45 27 2003
09/08/2002 19:45 09/08/2002 19:13 09/08/2002 21:53 2.7 0.47 30 2002
07/06/2001 05:11 07/06/2001 04:35 07/06/2001 05:48 1.2 0.70 61 2001
10/27/2000 12:41 10/27/2000 12:11 10/27/2000 13:34 1.4 1.20 118 2001
10/21/2000 20:29 10/21/2000 20:22 10/21/2000 21:41 1.3 0.82 74 2001
08/29/2000 13:44 08/29/2000 11:29 08/29/2000 14:41 3.2 1.42 147 2000
08/29/2000 09:28 08/29/2000 09:22 08/29/2000 11:01 1.7 1.20 118 2000
08/27/2000 09:45 08/27/2000 09:42 08/27/2000 11:52 2.2 0.88 80 2000
08/31/1999 16:50 08/31/1999 16:45 08/31/1999 17:14 0.5 0.75 66 1999
07/15/1999 04:53 07/15/1999 04:51 07/15/1999 05:15 0.4 0.55 42 1999
08/12/1998 19:00 08/12/1998 19:00 08/12/1998 19:15 0.3 1.465 151 1998
09/26/1997 04:30 09/26/1997 04:09 09/26/1997 07:00 2.9 1.65 177 1997
09/06/1997 01:00 09/06/1997 01:00 single report 0.0 0.38 18 1997
09/10/1996 23:39 09/10/1996 23:36 09/10/1996 23:55 0.3 0.60 35 1996
08/14/1995 22:45 08/14/1995 22:41 08/14/1995 23:00 0.3 0.38 19 1995

Back to Top   |   Streamflow Homepage   |   FCD Home Page

FLOOD FLOW FREQUENCY

Flood Flow Frequency
View a plot of Flood Frequncy Data
***NOTE: Flood Flow Frequency data are for information only and should not be considered valid for regulation***
Magnitude and Probability of Instantaneous Peak Flow  |  Discharge, in cfs, for indicated Recurrence Interval
FEMA Flood Flow Frequency
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year
----- ----- ----- ----- ----- 714 ----- -----
USGS StreamStats Flood Flow Frequency
2-year 5-year 10-year 25-year 50-year 100-year 200-year 500-year
Flood Flow Frequency
Based on HECWRC implementation of Bulletin 17B, n=28, 1994-2021
2-year 5-year 10-year 20-year 50-year 100-year 200-year 500-year

Back to Top   |   Streamflow Homepage   |   FCD Home Page

CREST STAGE GAGES

Crest Gage Number Pin Elevation
(Feet, Gage Height)		 Additional Information
1 1.52 Located on upstream side of culvert
